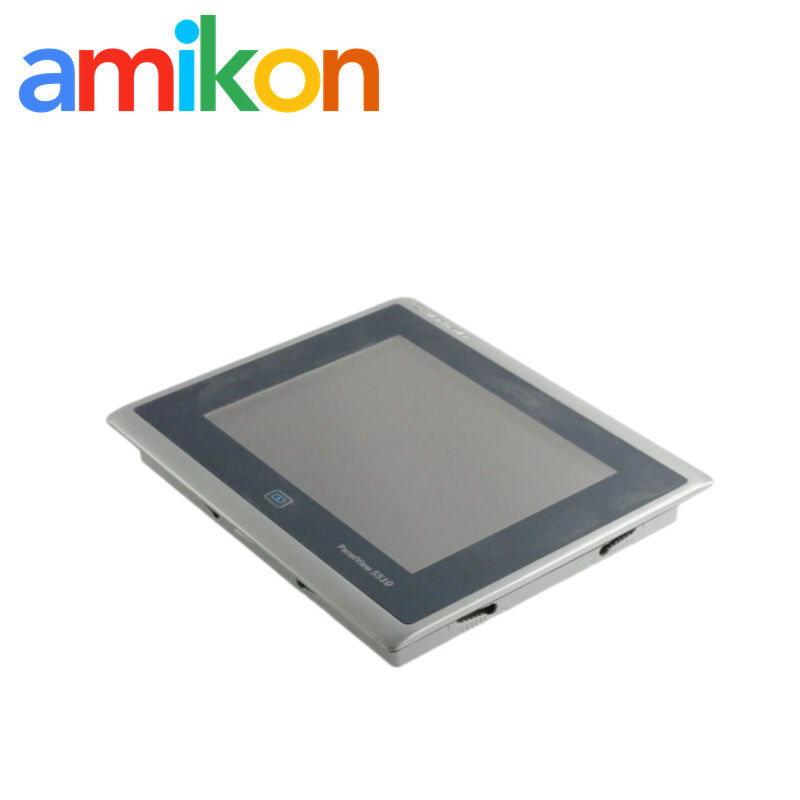

The Allen-Bradley 2715P-T10CD is a PanelView 5510 operator terminal with a 10.4-inch 4:3 color display, resistive touch input and EtherNet/IP connectivity.
The terminal communicates with the control system through its Ethernet interface.
| Display size | 10.4 in. diagonal |
|---|---|
| Display type | Color TFT LCD |
| Aspect ratio | 4:3 |
| Display resolution | 800 × 600 SVGA |
| View area | 211 × 158 mm (8.3 × 6.2 in.) |
| Operator input | Touch plus menu navigation button |
| Brightness | 300 cd/m² typical |
| Backlight | LED, non-replaceable; 50,000 hr minimum at 40 °C to half-brightness |
| Color depth | 24-bit color graphics |
| Input voltage | 24V DC nominal; 18…30V DC |
|---|---|
| Power supply type | DC; supports SELV and PELV 24V DC supplies |
| Inrush current | 7 A typical |
| Ethernet ports | Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports |
| Network topology | Device Level Ring (DLR), linear or star |
| RAM | 1 GB |
| User storage | 1 GB nonvolatile storage for projects |
| RS-232 | 0 |
| Front dimensions | 297 × 252 mm |
|---|---|
| Cutout dimensions | 269 × 224 mm (10.59 × 8.82 in.) |
| Mounted depth | 64 mm |
| Overall depth | 69.5 mm |
| Mounting | Wall/direct mounting; rail mounting not supported |
| Weight | Approx. 3.35 kg (7.4 lb) |
| Operating temperature | 0…55 °C |
| Nonoperating temperature | -25…70 °C |
| Relative humidity | 5…95%, noncondensing |
| Front protection | IP66 / NEMA 4X |
| Conformal coating | Non-conformal-coated version |
| Operating altitude | Up to 2000 m |
| Backlight power consumption | 4 W typical |
|---|---|
| Power dissipation | 51 BTU/hr |
| Shock | Operating: 15 G @ 11 ms; nonoperating: 30 G @ 11 ms |
| Vibration | 0.012 peak-to-peak, 10…57 Hz; 2 G peak at 57…500 Hz |
| Real-time clock backup | CR2032 lithium coin cell; minimum 4-year battery life at 25 °C |
| RTC accuracy | ±2 min/month |
Source: Rockwell Automation, PanelView 5510 Terminals Specifications, publication 2715P-TD001, and product data for 2715P-T10CD.
The 2715P-T10CD serves as the local operator interface in PanelView 5510 systems.
A failed display or touch function can remove local operator visibility and control.
Loss of EtherNet/IP communication can interrupt operator access to the control system.
When an installed terminal fails, the exact catalog number is important for replacement sourcing.
