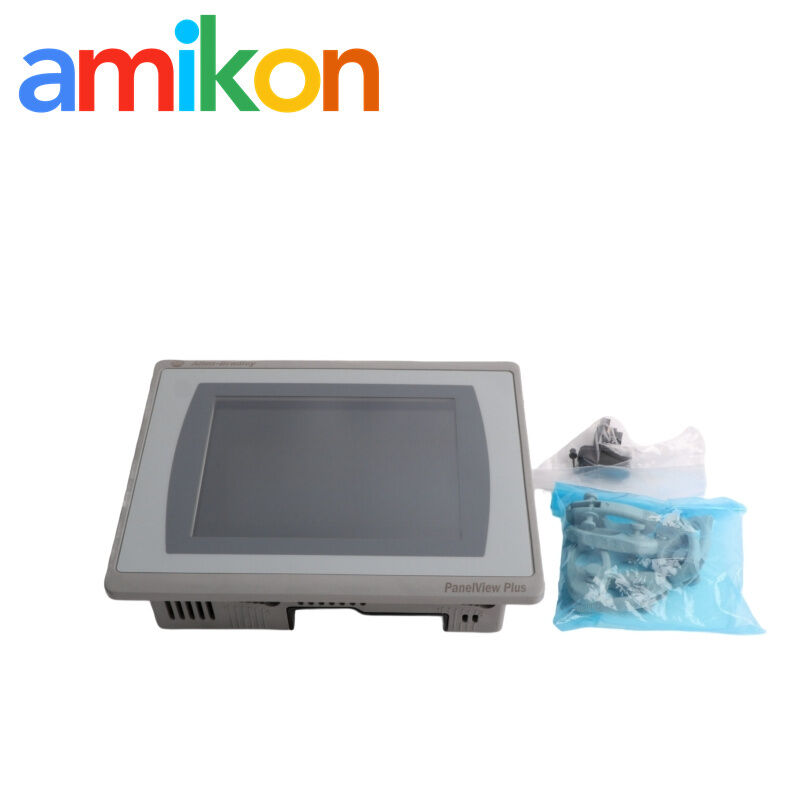

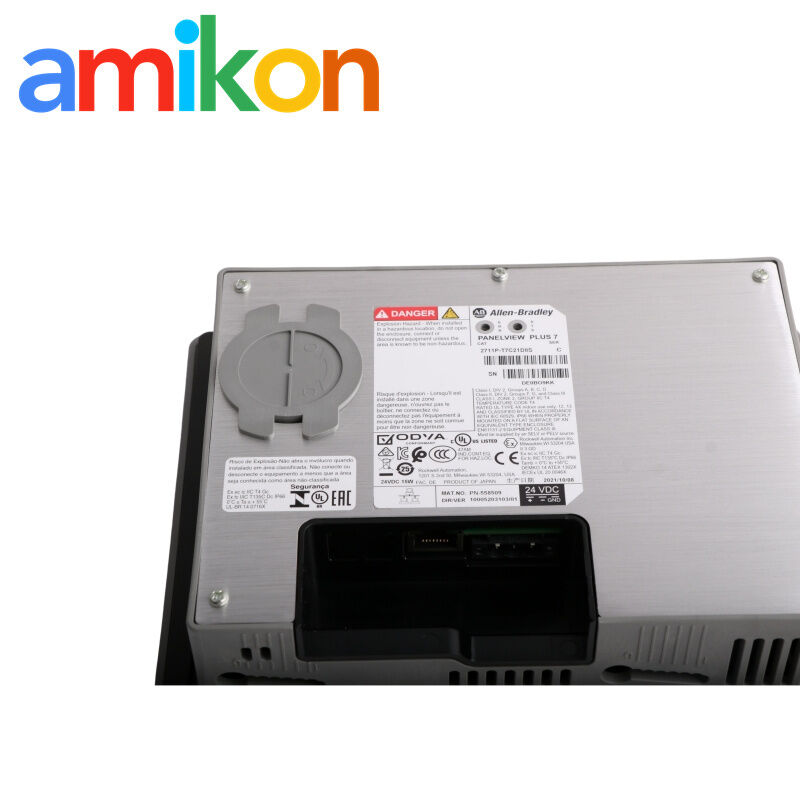

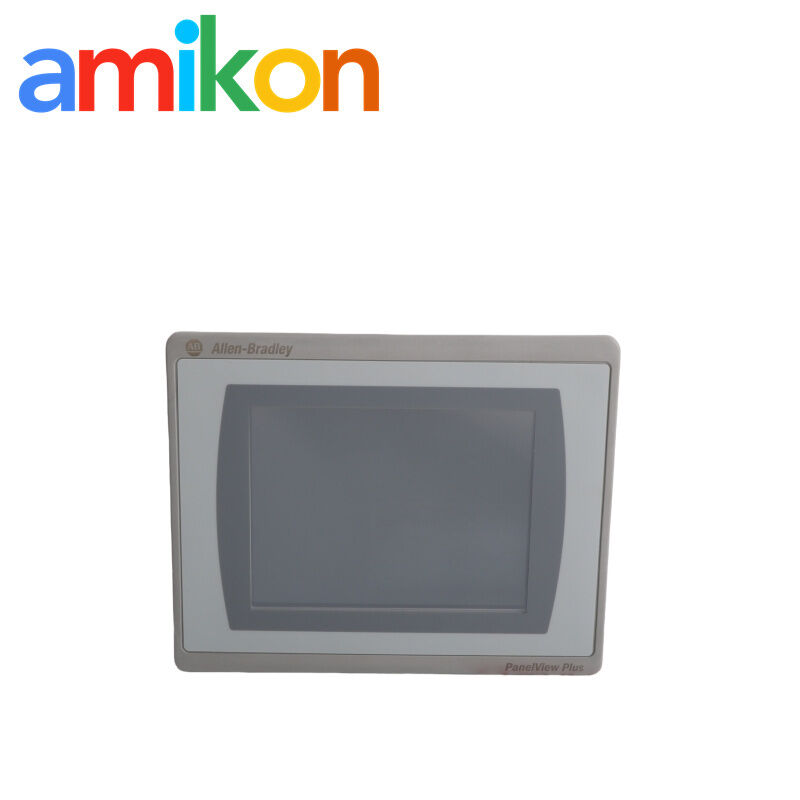

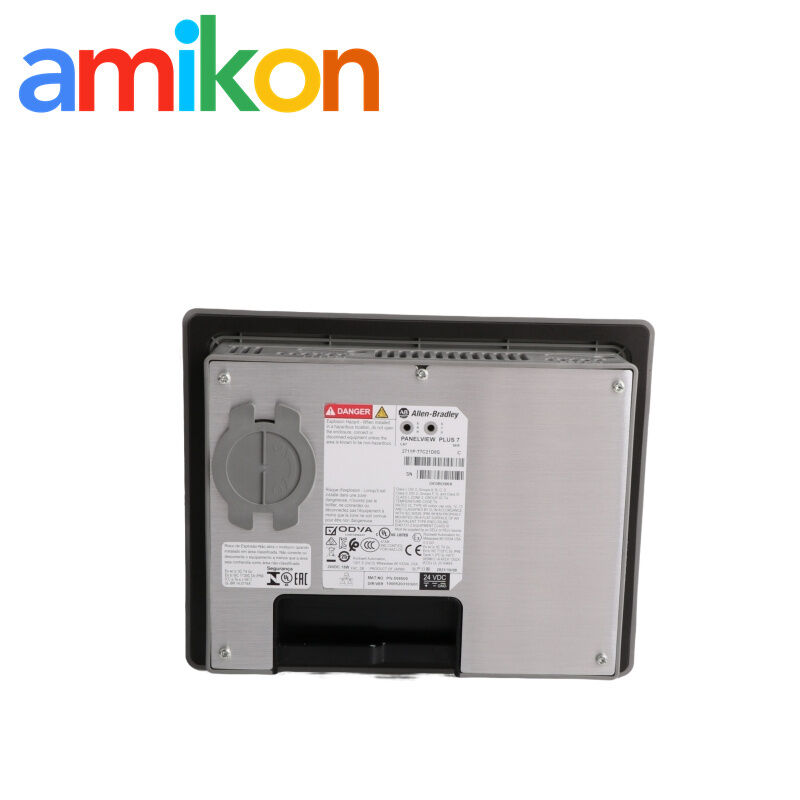

Allen-Bradley 2711P-T7C21D8S PanelView Plus 7 Standard Terminal — 7-in.
Allen-Bradley 2711P-T7C21D8S PanelView Plus 7 Standard Terminal — 7-in.
Allen-Bradley PanelView Plus 7 terminal
7-inch industrial touchscreen terminal
PanelView Plus 7 Standard with warranty
Place of Origin:
USA
Brand Name:
Allen Bradley
Contact Us
Request A Quote
Product Details
Highlight:
Allen-Bradley PanelView Plus 7 terminal
,7-inch industrial touchscreen terminal
,PanelView Plus 7 Standard with warranty
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
In Stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Signal Path
ControlLogix 5570 / CompactLogix 5370 → EtherNet/IP → 2711P-T7C21D8S → Operator Interface
The PanelView Plus 7 Standard terminal is designed for monitoring and controlling devices connected to the documented EtherNet/IP environment.
Key Configuration
01 / DISPLAY
6.5-in. touch display
Color TFT LCD with 640 × 480 VGA resolution and 4:3 aspect ratio.
02 / NETWORK
Single Ethernet
One 10/100Base-T Auto MDI/MDI-X Ethernet port with IEEE 1588 support.
03 / POWER
24V DC
24V DC nominal input for the Standard terminal configuration.
Technical Specifications
Product data
| Parameter | 2711P-T7C21D8S |
|---|---|
| Product family | PanelView Plus 7 Standard |
| Operator input | Touch |
| Display type | Color TFT LCD |
| Display size | 6.5 in. diagonal |
| Viewing area | 132 × 99 mm |
| Display resolution | 640 × 480 VGA, 18-bit color graphics |
| Aspect ratio | 4:3 |
| Touch technology | Analog resistive |
| System memory | 512 MB RAM and 512 MB nonvolatile memory |
| Ethernet | 1 × RJ45 10/100Base-T Auto MDI/MDI-X, IEEE 1588 support |
| USB | USB host and device ports |
| Input voltage | 24V DC nominal, 18…30V DC |
| Operating system | Windows CE 6 |
| Operating temperature | 0…55 °C |
| Dimensions | Approx. 170 × 212 × 56.5 mm |
| Panel cutout | Approx. 142 × 184 mm |
Additional technical, environmental and certification data
| Parameter | Data |
|---|---|
| Brightness | 300 nits typical |
| Backlight | 50,000 h minimum at 40 °C to half-brightness; not replaceable |
| Touch actuation | 1 million presses |
| Power consumption | 50 W maximum; 2.1 A at 24V DC |
| Relative humidity | 5…95% without condensation |
| Operating altitude | 2000 m |
| Operating shock | 15 g at 11 ms |
| Nonoperating shock | 30 g at 11 ms |
| Enclosure | NEMA and UL Type 12, 13, 4X indoor use; IP54/IP66 classifications as applicable |
| Software | FactoryTalk View Studio for Machine Edition and FactoryTalk ViewPoint |
| SD card | One SD card slot |
| Certifications | Applicable marked units include UL, CE, ATEX, IECEx, INMETRO, CCC, KC, RCM and EAC certifications. |
Source: Rockwell Automation 2711P-TD008 PanelView Plus 7 Standard Terminals Technical Data; 2711P-UM007 PanelView Plus 7 Standard Terminals User Manual; current Rockwell Automation product record.
Installation & Configuration
Panel installation
Cutout
Approx. 142 × 184 mm for the 6.5-in. terminal.
Mounting
Panel mounting is performed using the terminal mounting hardware and procedure specified in the user manual.
Power
The terminal uses a 24V DC nominal supply.
HMI configuration
Application
FactoryTalk View Machine Edition provides the HMI application environment.
Network
This exact configuration uses one 10/100Base-T Ethernet port.
Backup
Rockwell Automation documents SD card and USB methods for copying and restoring applications.
Application & Fault Context
Where this terminal matters
Operator interface
Provides the local HMI interface for monitoring and controlling equipment within the supported automation architecture.
Replacement search
The exact catalog number is relevant when an installed PanelView terminal requires replacement because of display, touch, startup or communication problems.
Downtime
An HMI failure can interrupt normal operator access to machine and process information or control functions.
AMIKON supplies DCS, PLC, HMI, drives and robotics components across Asia, Europe, North America, South America and the Middle East.
Supply & Warranty
AMIKON provides applicable inspection/testing, protective export packaging and a one-year warranty. DOA cases are handled through the applicable after-sales process.
FAQ
2711P-T7C21D8S buyer questions
Is the 2711P-T7C21D8S still an active Rockwell Automation model?
Yes. Rockwell Automation currently lists the 2711P-T7C21D8S lifecycle status as Active.
Does the 2711P-T7C21D8S have one or two Ethernet ports?
This exact catalog number uses a single 10/100Base-T Ethernet port. The model designation 21 identifies the single-Ethernet configuration.
What controllers can the PanelView Plus 7 Standard terminal communicate with?
Rockwell Automation identifies the PanelView Plus 7 Standard terminals for monitoring and controlling devices attached to ControlLogix 5570 and CompactLogix 5370 controllers over EtherNet/IP.
What is the display resolution of the 2711P-T7C21D8S?
The 6.5-in. color TFT display uses 640 × 480 VGA resolution with an aspect ratio of 4:3.
What information should I send when asking for a 2711P-T7C21D8S quotation?
Please provide the Part Number, Quantity, Destination, Required Date and Machine/System Model so the exact requirement can be checked efficiently.
