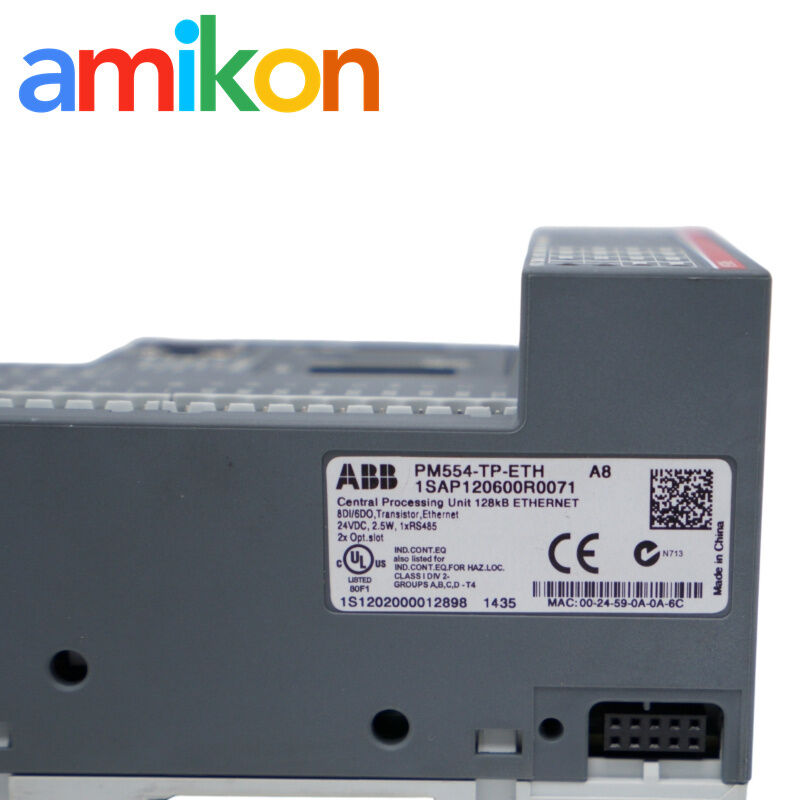

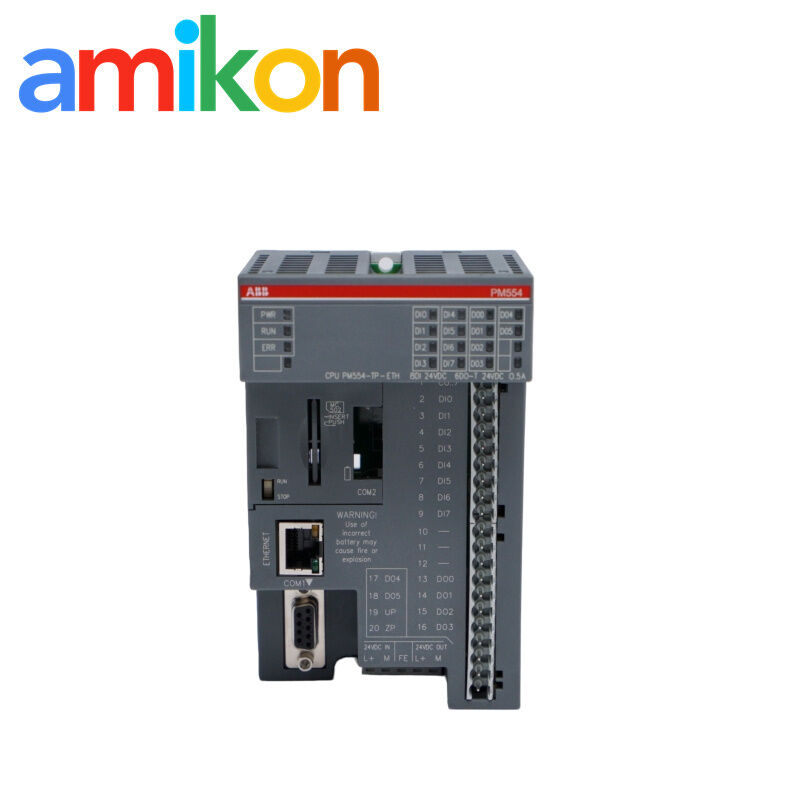

ABB PM554-TP-ETH 1SAP120600R0071 AC500-eCo Processor Module with Ethernet
ABB PM554-TP-ETH 1SAP120600R0071 AC500-eCo Processor Module with Ethernet
ABB PM554-TP-ETH
128 kB Flash EPROM
8 Digital Inputs
Place of Origin:
SWEDEN
Brand Name:
ABB
Contact Us
Request A Quote
Product Details
Highlight:
ABB PM554-TP-ETH
,128 kB Flash EPROM
,8 Digital Inputs
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
2-3 work days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Engineering Data
Technical Specifications
Core specifications are shown first; extended engineering data is folded below.
| Product type | AC500-eCo processor module |
|---|---|
| Part number | 1SAP120600R0071 |
| ABB type designation | PM554-TP-ETH |
| Program memory | 128 kB Flash EPROM |
| Digital inputs | 8 |
| Digital outputs | 6, transistor type |
| Supply voltage | 24 V DC |
| Maximum current consumption | 190 mA |
| Typical current consumption | 70 mA |
| Maximum power dissipation | 3.3 W |
| Onboard communication | Ethernet; COM1 RS-485 |
| COM1 transmission rate | Configurable from 1.2 to 187.5 kBit/s |
| COM1 connector | 9-pin D-sub female connector |
| Maximum AC500-eCo I/O module expansion | 10 I/O modules |
Show extended technical data
| Data memory | VAR data 10 kB; VAR_RETAIN data 1 kB; %RB data 1 kB; %MB data 2 kB for PM554 types |
|---|---|
| Data buffering | Flash memory |
| Real-time clock | Optional |
| Battery indication | Warning |
| Programming languages | IL, FBD, LD, SFC, ST, CFC |
| Cycle time / 1000 instructions | Binary 0.08 ms; Word 0.1 ms; Floating point 1.2 ms |
| Program execution | Cyclic; time-controlled; multitasking; one interruption with up/down edge detection |
| Indicators | Power, Run, Error, Status of I/Os |
| RUN/STOP switch | Yes |
| User program protection | Password protection possible |
| Mounting position | Horizontal or vertical |
| Operating temperature | 0 °C to +60 °C horizontal mounting; 0 °C to +40 °C vertical mounting with output load reduced to 50% per group |
| Humidity | Maximum 95%, without condensation |
| Protection degree | IP20 when all terminal screws are tightened |
| Mounting rail | DIN rail according to DIN EN 50022, 35 mm, depth 7.5 mm or 15 mm |
| Screw mounting | 4 mm diameter screws; fastening torque 1.2 Nm |
| Net weight | 300 g in the PM554-TP-ETH data-sheet specification |
Configuration
Programming & Communication
Programming
ABB specifies IL, FBD, LD, SFC, ST and CFC programming languages for the AC500-eCo controller family. User programs can also be password protected.
Communication
Ethernet provides the onboard network interface. COM1 is an RS-485 interface supporting programming, Modbus RTU, ASCII communication and CS31 remote I/O functions.
System Architecture
Expansion & Terminal Connection
Central I/O expansion
The AC500-eCo platform permits central expansion with up to 10 I/O modules.
Terminal blocks
AC500-eCo I/O uses pluggable terminal blocks; the required terminal blocks should be checked against the installed configuration.
Service identification
When replacing a controller, retain the original order code and installed I/O configuration for configuration checking.
Installation & Diagnostics
Mounting & Service Checks

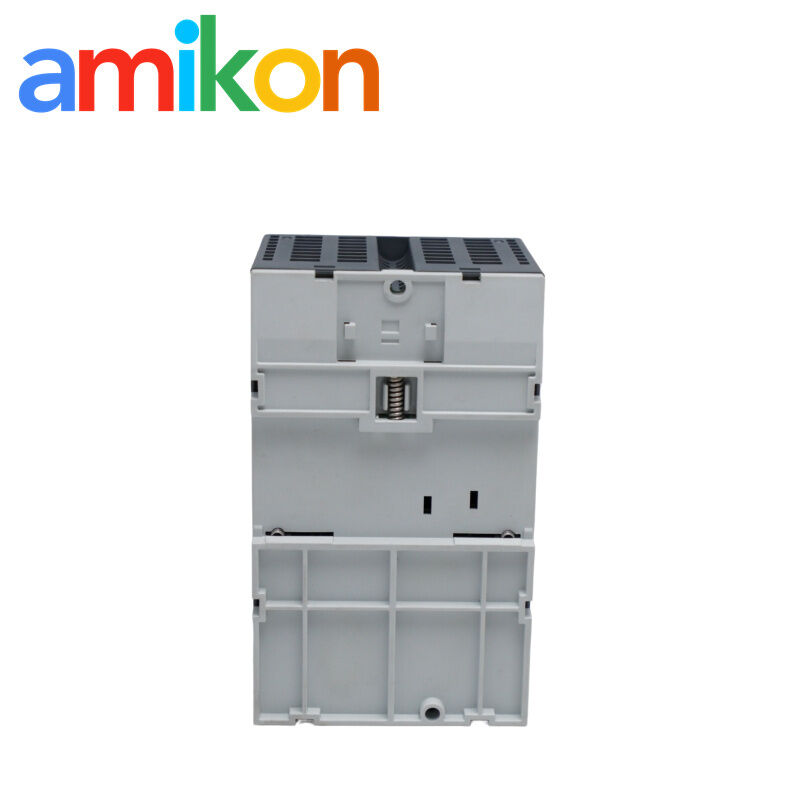

Mounting
- 35 mm DIN rail mounting according to DIN EN 50022.
- Horizontal or vertical mounting is specified by ABB.
- 4 mm screw mounting is also provided.
Local diagnostics
- Power, Run and Error indicators support first-level status checking.
- I/O status indication assists local inspection of digital signals.
- The RUN/STOP switch provides local operating-state control
Direct RFQ Support
AMIKON Industrial Automation · Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
50 Models Related Models
| KJ3208X1-BA2 | 6SL3353-6TE32-1AA3 | 75HC0375 | KJ4110X1-BC1 | A5E38979248 |
| FM19856 | 6ES7221-1BH32-0XB0 | 6SL3351-6GE36-1AB3 | KJ2006X1-BK1 | 390R-070204M-MM 1040 |
| 6RY1243-0EA00 | CE4035S2B5 | M705 | 6SL3352-6TG41-3AA3 | OTBVN6 |
| A5E34612879 | 6SE7027-2ED84-1HF5 | KJ4006X1-BD1 | 75HC0125 | 6SL3351-6GH34-1AB3 |
| PCI-1220U | SE4022 | 6SE7033-5GJ84-1JC0 | XTN32-34.93 | KC4011X1-BZ1 |
| 6SL3130-7TE21-6AA4 | 6SL3355-6TE35-0AA3 | KJ2201X1-BA1 | ST201M-K2 | 6SL3351-6GE41-0AB3 |
| KL2001X1-BC1 | A5E01283291 | 6ES7214-2AD23-0XB8 | VE4035S2B5 | 6SL3352-6TG41-0AA3 |
| KJ3243X1-BK1 | 6RY1803-0AA05-0AA1 | 1900GSR-2USB-A | 6SL3351-6TE32-6AA3 | KJ3003X1-EA1 |
| C98043-A1603-L11 | 6SL3351-6FE35-0AA1 | KSH06-01S | 6SE7024-7ED84-1HF5 | SE5009 |
| 6SL3300-1AE32-5AA0 | KL2002X1-BC1 | A5F00133619 | KJ4110X1-BB1 | 6DD1842-0AA0 |
| 396P-08-10-55 | ||||
Buyer Questions
FAQ
How can I confirm that 1SAP120600R0071 is the correct replacement?
Compare the complete ABB order code on the installed controller with 1SAP120600R0071 and check the connected AC500-eCo I/O configuration before replacement.
Does PM554-TP-ETH support Ethernet communication?
Yes. Ethernet is integrated on the PM554-TP-ETH. The controller also provides the COM1 RS-485 interface for supported serial communication functions.
Can the existing AC500-eCo I/O configuration be retained?
The AC500-eCo platform supports central I/O expansion. Before replacement, the installed I/O arrangement and exact controller order code should be checked against the existing system.
What should be checked when the controller shows an Error condition?
Check the controller power and operating-state indicators first, then inspect the relevant I/O or communication connections according to the fault symptoms.
What information should I send for an RFQ?
Send the exact part number, quantity, destination, required date and machine/system model so the order can be checked accurately.
Source: ABB, PM554, PM556, PM564, PM566 Processor Module Data Sheet, 3ADR010065; ABB product record for 1SAP120600R0071. For procurement reference, search the exact model as PM554-TP-ETH datasheet.
