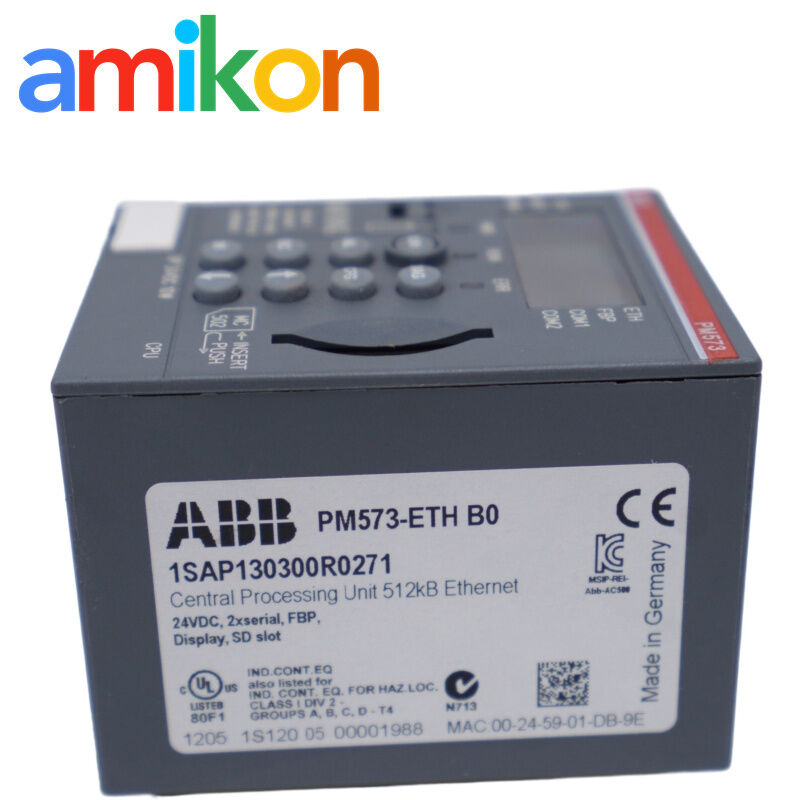

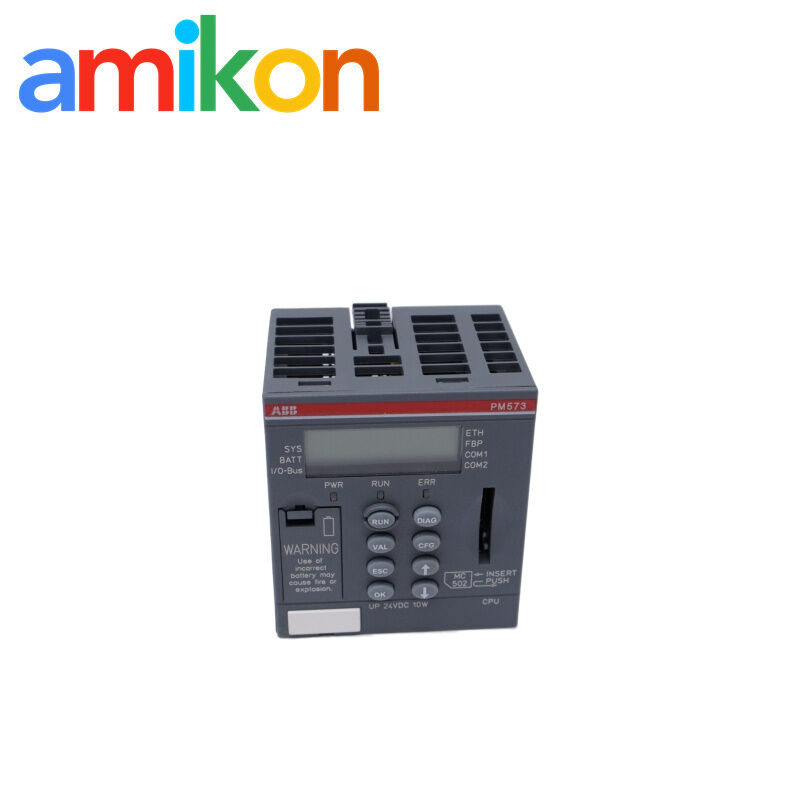

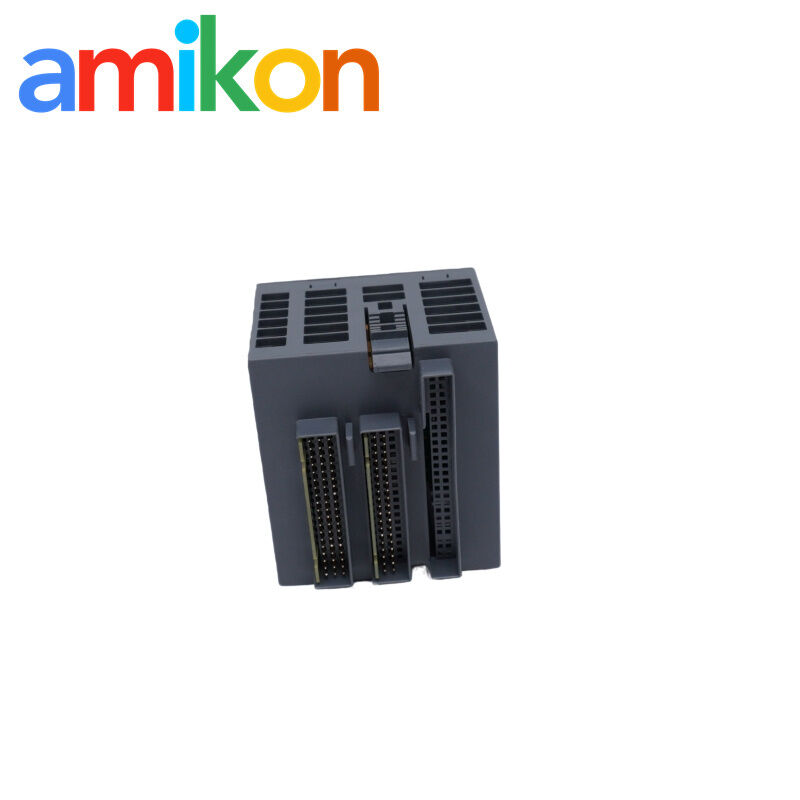

PM573-ETH 1SAP130300R0271 ABB — AC500 Processor Module, 512 kB Ethernet, 2× RS-232/RS-485
512 kB User Program Memory
24 V DC Processor Module
Ethernet Communication
Place of Origin:
SWEDEN
Brand Name:
ABB
Document:
512 kB User Program Memory
,24 V DC Processor Module
,Ethernet Communication
01 / Description
Processor module. Memory 512kB. Interfaces: Ethernet, 2x RS232/485, FBP. Display.
02 / PM573-ETH Technical Specifications
Complete technical data
| Product designation | PM573-ETH |
|---|---|
| Product ID / Part number | 1SAP130300R0271 |
| Product family | ABB AC500 processor module |
| Module function | Processor module |
| Product type | PLC-AC500 |
| Program memory | 512 kB, Flash EPROM and RAM |
| User data memory | 512 kB, including 288 kB saved |
| Total user program memory | 2048 kB |
| Memory card | Plug-in SD memory card slot; memory-card functions support program storage, user data storage and firmware-related functions according to the applicable AC500 configuration. |
| Processor | Freescale ARM Processor, 32-bit |
| Processor clock frequency | 84 MHz |
| Supply voltage | 24 V DC |
| Supply voltage range | 20.4 … 28.8 V DC |
| Current consumption, module alone | 0.110 A typical at 24 V DC |
| Current consumption, maximum typical | 0.810 A with all couplers and I/Os |
| Communication interfaces | Serial / FBP / Ethernet |
| Ethernet | Integrated Ethernet interface |
| Serial interfaces | 2 × RS-232 / RS-485 configurable |
| Serial interface 1 | RS-232 / RS-485 configurable; programming, Modbus Master/Slave, ASCII and CS31 Master functions |
| Serial interface 2 | RS-232 / RS-485 configurable; programming, Modbus Master/Slave and ASCII functions |
| FBP interface | 1 × FBP |
| Communication functions | Serial and Ethernet interfaces for communication and programming |
| Ethernet functions | Web server and IEC 60870-5-104 communication |
| CS31 bus | 1 |
| Display | LCD |
| Display lines | 1 |
| Function keys | 8 |
| Status LEDs | 3 |
| Real-time clock | Yes |
| Configurable digital I/Os on CPU | 0 |
| Maximum digital I/O capacity | Up to 320 DI and 240 DO/DC with up to 10 local extension modules |
| Maximum analog I/O capacity | Up to 160 AI and 160 AO with up to 10 local extension modules |
| Logic execution speed | 0.06 ms for 1,000 instructions of logic |
| Word execution speed | 0.09 ms for 1,000 instructions of word operations |
| Floating-point execution speed | 0.70 ms for 1,000 floating-point instructions |
| Protection degree | IP20 |
| Mounting | DIN rail TH35-15 according to IEC 60715 |
| Mounting position | Horizontal; vertical mounting possible with derating |
| Operating temperature | 0 … +60 °C |
| Storage temperature | -40 … +70 °C |
| Maximum operating altitude | 2000 m |
| Product net width | 67.5 mm |
| Product net height | 76 mm |
| Product net depth / length | 62 mm |
| Product net weight | 0.135 kg |
| Gross weight | 0.159 kg |
| Package dimensions | 84 × 72 × 71 mm (D × H × W) |
| Minimum order quantity | 1 piece |
03 / PM573-ETH Configuration & Connection
Processor position
PM573-ETH serves as the processor module within the AC500 architecture.
Serial communication
Two configurable RS-232 / RS-485 interfaces support programming and the documented serial communication functions.
Ethernet communication
The integrated Ethernet interface provides network communication together with the documented web server and IEC 60870-5-104 functions.
Memory and display
The processor includes an SD memory-card slot, LCD display, status LEDs and front function keys for controller operation and status handling.
04 / PM573-ETH Application & Fault Search
System role
PM573-ETH is used as the PLC processor in AC500 control systems where controller execution, serial communication, FBP connectivity and Ethernet communication are required.
Typical fault-search triggers
- CPU does not start or remain in the expected operating state.
- Existing controller requires processor replacement.
- Ethernet communication to the controller is unavailable.
Downtime risk
A processor fault can interrupt the PLC control sequence and connected automation functions. Before replacement, confirm the installed hardware, terminal-base arrangement and project configuration to reduce commissioning downtime.
05 / AMIKON Service & Contact
Inspection/testing where applicable, protective export packaging, one-year warranty and DOA after-sales handling.
06 / Request a Quote for ABB PM573-ETH
Send the exact part information below for quotation and application checking.
07 / ABB PM573-ETH FAQ
What is the ABB PM573-ETH part number?
What memory does the ABB PM573-ETH have?
Does the ABB PM573-ETH have onboard Ethernet?
How many RS-232 / RS-485 interfaces does the ABB PM573-ETH provide?
What are the dimensions of the ABB PM573-ETH?
