PM583-ETH 1SAP140300R0271 ABB — AC500 V2 Processor Module with 1 MB Memory and Ethernet
PM583-ETH 1SAP140300R0271 ABB — AC500 V2 Processor Module with 1 MB Memory and Ethernet

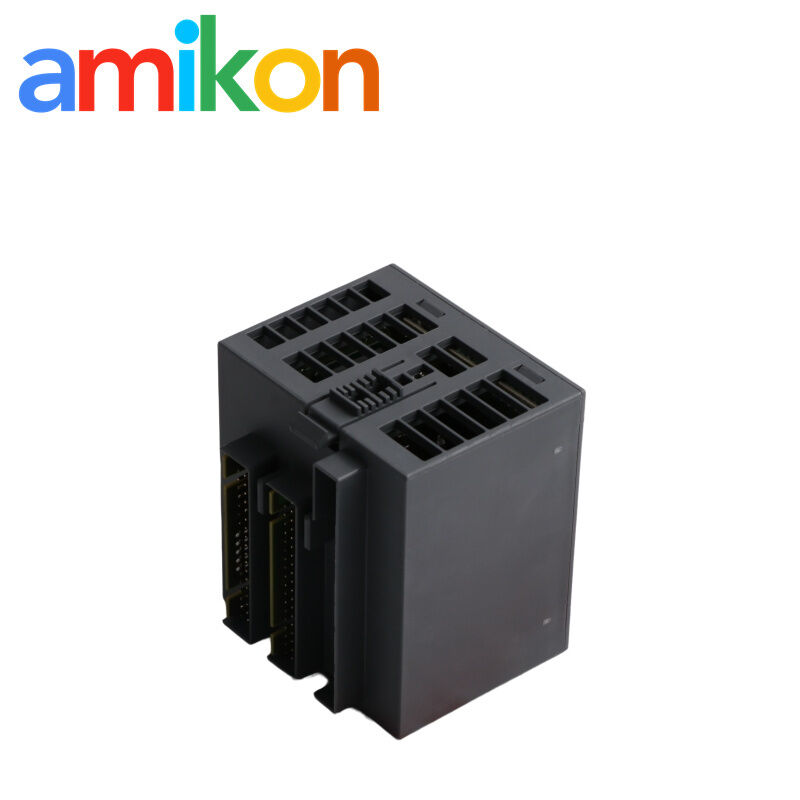

ABB PM583-ETH 1SAP140300R0271
AC500 V2 Processor Module
1 MB Program Memory
Place of Origin:
SWEDEN
Brand Name:
ABB
Document:
Contact Us
Request A Quote
Product Details
Highlight:
ABB PM583-ETH 1SAP140300R0271
,AC500 V2 Processor Module
,1 MB Program Memory
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
2-3 work days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Description

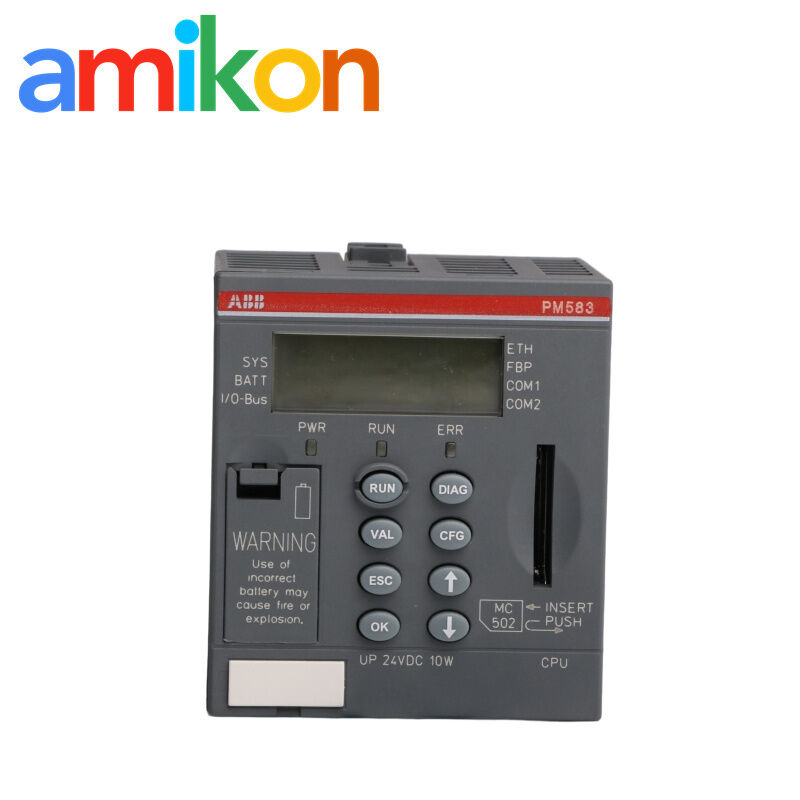

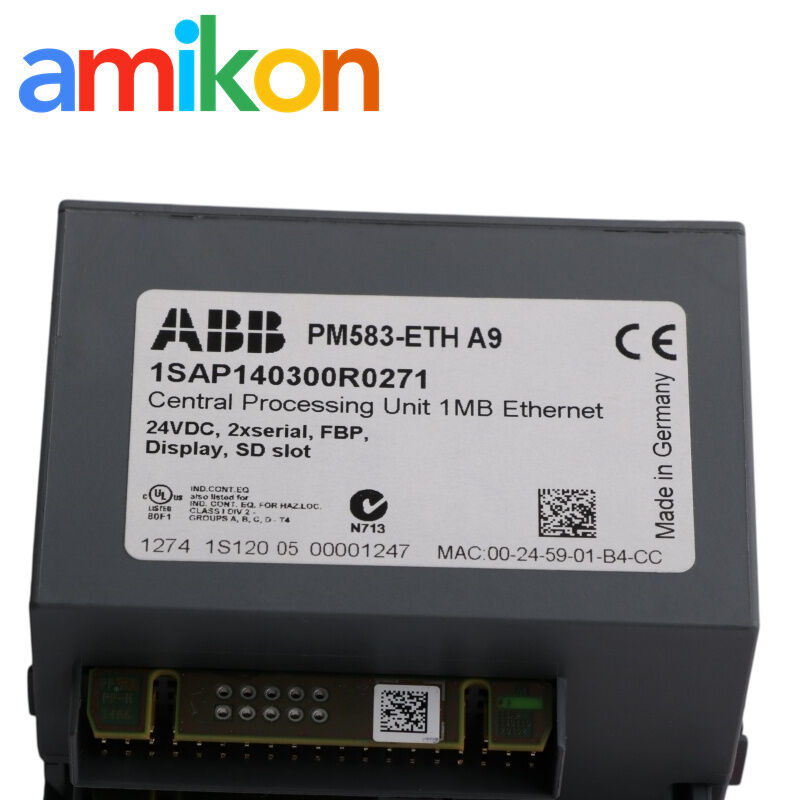

PM583-ETH: AC500 Processor module. Memory 1MB. Interfaces: Ethernet, 2x RS232/485, FBP. Display.
ABB catalog description · Product ID 1SAP140300R0271
Technical Parameters
Memory & processing
| Program memory | 1024 kB |
|---|---|
| User data memory | 1024 kB |
| Minimum instruction time | Bit: 0.05 µs · Word: 0.06 µs · Floating point: 0.5 µs |
| User program memory type | Flash EPROM, non-volatile RAM, SD card |
| User data memory type | Flash EPROM |
Communication & ports
| Ethernet | 1 integrated Ethernet interface |
|---|---|
| Ethernet functions | TCP/IP with integrated web server, SNTP and IEC 60870-5-104 protocols |
| Serial port 1 | RS-232 / RS-485 configurable; programming, Modbus Master/Slave, ASCII, CS31 Master |
| Serial port 2 | RS-232 / RS-485 configurable; programming, Modbus Master/Slave, ASCII |
| FBP | 1 FieldBusPlug interface |
| Programming software | Automation Builder |
Display, I/O and installation data
| Display | LCD display; 8 function keys; 3 LEDs |
|---|---|
| Maximum digital I/O | 320 digital inputs / 240 digital outputs with up to 10 expansion modules |
| Maximum analog I/O | 160 analog inputs / 160 analog outputs with up to 10 expansion modules |
| Mounting | TH35-15, 35 × 15 mm mounting rail according to IEC 60715 |
| Mounting position | Horizontal or vertical, with derating |
| Maximum operating altitude | 2000 m |
Electrical & mechanical data
| Rated voltage | 24 V DC |
|---|---|
| Supply voltage | 20.4 … 28.8 V DC |
| Secondary current | 0.2 A |
| Protection rating | IP20 |
| Product net weight | 0.134 kg |
| Product dimensions | 67.5 mm W × 76 mm H × 62 mm D |
| Packaging dimensions | 84 mm L × 72 mm H × 71 mm W |
Source: ABB PM57x / PM58x / PM59x Data Sheet, 3ADR010064; ABB AC500 Hardware Manual, 3ADR010121.
Installation & Configuration
Mounting
PM583-ETH is mounted on a TH35-15 DIN rail. Horizontal and vertical mounting are supported with the applicable derating.
Project configuration
Automation Builder is used for AC500 project programming and configuration. The PM583-ETH datasheet can be used for model-specific reference.
Communication
Configure Ethernet, COM1 and COM2 according to the required TCP/IP, Modbus, ASCII or CS31 communication function.
Application & Fault Search
Typical use
AC500 V2 control systems for manufacturing automation, machine control and process-control applications.
Ethernet
Useful for systems requiring integrated Ethernet communication, web-server access or IEC 60870-5-104 services.
Serial
Suitable for existing RS-232/RS-485 networks using Modbus, ASCII or CS31 communication.
Fault search
For controller or communication faults, check power, Ethernet status, serial connections and the configured AC500 project.
Downtime Risk
CPU failure
A failed processor can stop AC500 controller execution and interrupt the connected machine or process.
Request a Quote
PM583-ETH Spare Parts Support
Contact: Miya Zheng
Email
sales@amikon.cnWhatsApp
+86 180 2077 6792Part Number Quantity Destination
Delivery & Warranty
Testing
Inspection and applicable functional testing before dispatch.
Packaging
Protective export packaging for industrial shipments.
Warranty
One-year AMIKON warranty within the applicable warranty scope.
DOA / Returns
DOA and return cases handled through the AMIKON after-sales process.
FAQ
What is the order code for ABB PM583-ETH?
The order code is 1SAP140300R0271.
How much program memory does PM583-ETH have?
PM583-ETH has 1024 kB user program memory and 1024 kB user data memory.
Does PM583-ETH support Ethernet communication?
Yes. It has one integrated Ethernet interface with TCP/IP, web server, SNTP and IEC 60870-5-104 support.
What serial communication does PM583-ETH support?
It has two configurable RS-232/RS-485 interfaces. COM1 also supports CS31 Master.
What should I provide when ordering a PM583-ETH replacement?
Provide the complete part number, quantity, destination, required date and machine/system model.
ABB technical references: PM57x / PM58x / PM59x Data Sheet 3ADR010064; AC500 Hardware Manual 3ADR010121; ABB product record for 1SAP140300R0271.
