PM566-TP-ETH 1SAP121500R0071 ABB — AC500-eCo Processor Module

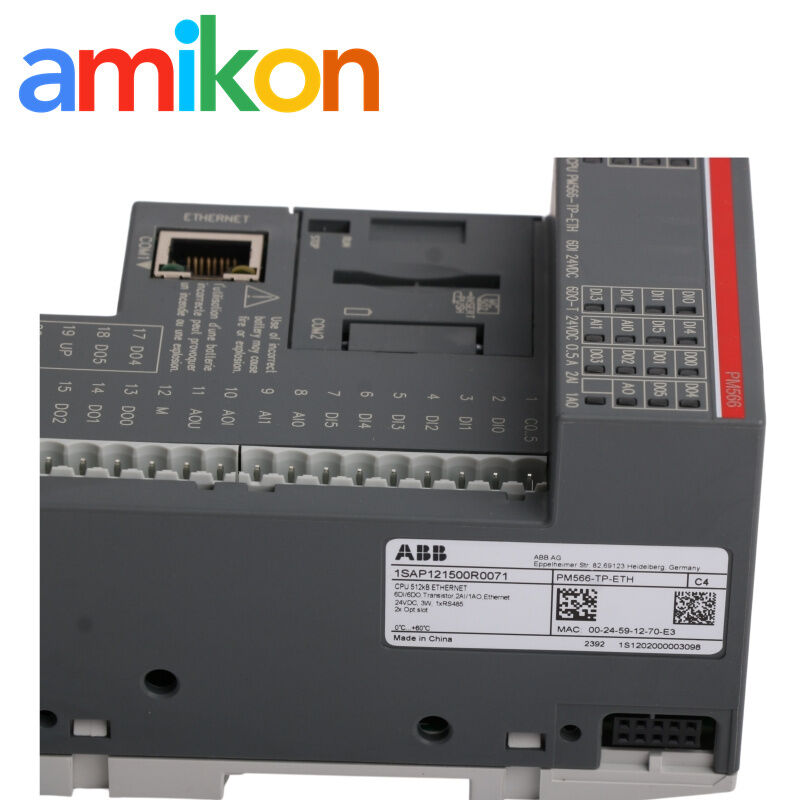

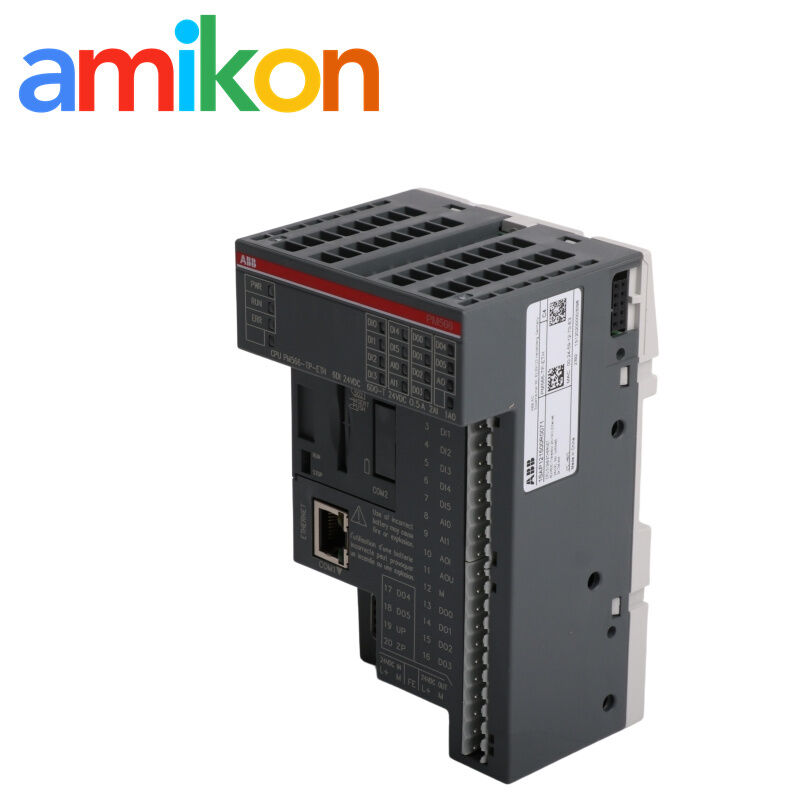

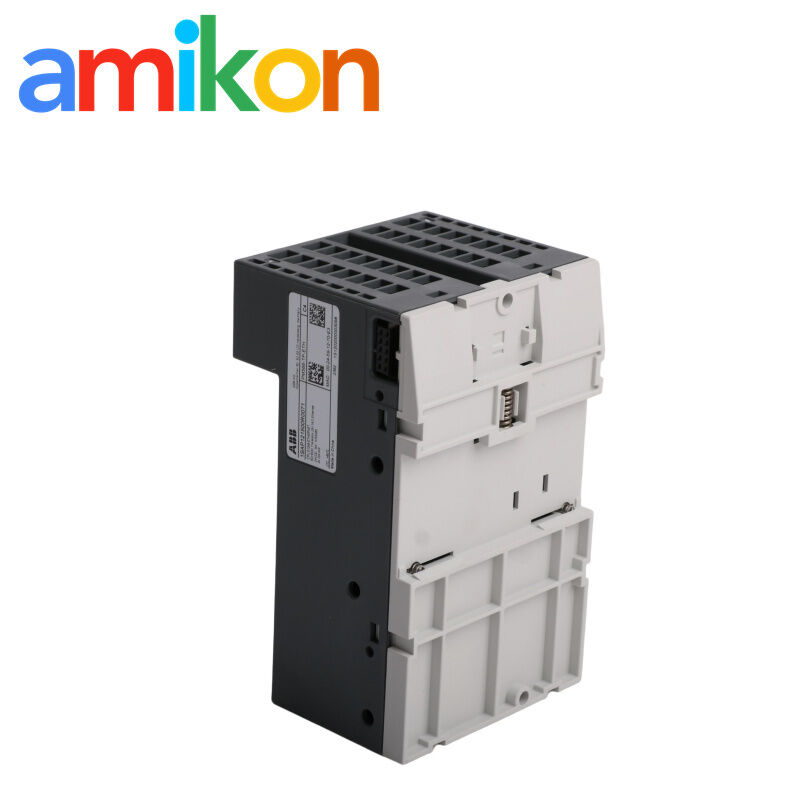

ABB PM566-TP-ETH
AC500-eCo Processor Module
512 kB Flash EPROM
Place of Origin:
SWEDEN
Brand Name:
ABB
ABB PM566-TP-ETH
,AC500-eCo Processor Module
,512 kB Flash EPROM
Core technical data
| Part number | 1SAP121500R0071 |
| Product type | Processor module |
| Product life cycle | Classic |
| Program memory | 512 kB Flash EPROM |
| Digital inputs | 6 |
| Digital outputs | 6 transistor outputs |
| Analog inputs | 2 |
| Analog output | 1 |
| Supply voltage | 24 V DC |
| Integrated communication | Ethernet |
| Current consumption | 100 mA typical; 220 mA maximum |
| Maximum power dissipation | 4.4 W |
| Weight | 300 g |
| Mounting position | Horizontal or vertical |
Source: ABB PM566-TP-ETH datasheet, document 3ADR010065, revision 11, dated 2024-01-05.
Expand detailed processor, memory and environmental data
| Data memory | VAR 10 kB; VAR_RETAIN 1 kB; %RB persistent data 1 kB; %MB 64 kB |
| Data buffering | Flash memory |
| Real-time clock | Optional |
| Battery low indication | Warning |
| Processor | Freescale ARM 32-bit |
| Processor clock speed | 50 MHz |
| Cycle time for 1000 instructions | Binary 0.08 ms; word 0.1 ms; floating point 1.2 ms |
| Program execution | Cyclic, time-controlled and multitasking |
| Programming languages | IL, FBD, LD, SFC, ST, CFC |
| Protection | User-program password protection possible |
| Operating temperature | 0 to +60 °C horizontal; 0 to +40 °C vertical |
| Storage / transport | −40 to +70 °C |
| Humidity | Maximum 95%, without condensation |
| Operating altitude | Below 2000 m |
| Protection class | IP20 for the complete PLC system with required modules, terminals and covers installed |
Signal path and controller interfaces
The Ethernet-equipped CPU provides the network connection used for controller programming and Ethernet-based communication in the AC500-eCo environment.
The integrated serial interface provides an RS-485 communication path for programming, Modbus master/slave, serial ASCII communication and CS31 master operation.
| COM1 physical link | RS-485, non-isolated |
| COM1 transmission rate | 1.2 to 187.5 kBit/s, configurable |
| COM1 connector | 9-pin D-sub female |
| COM2 | Optional RS-485 interface |
| Maximum central I/O modules | 10 |
| CS31 decentralized I/O | Up to 31 stations, with up to 120 digital inputs and 120 digital outputs per station |
Mixed-signal control capability
Analog processing
The PM566-TP-ETH combines digital and analog onboard I/O in the same processor module, allowing the controller to handle mixed signal requirements without relying entirely on additional I/O modules.
Input configuration
The analog inputs on PM564 and PM566 processor modules can also be configured as digital inputs.
Expand I/O expansion data
| Central digital inputs | Up to 320 + onboard inputs |
| Central digital outputs | Up to 240 + onboard outputs |
| Central analog inputs | Up to 160 + onboard analog inputs |
| Central analog outputs | Up to 160 + onboard analog output |
Mounting and connection
Power connection
24 V DC supply is connected through a removable 5-pin screw terminal.
Terminal hardware
AC500-eCo I/O terminal blocks are ordered separately. The product range uses 9- and 11-pole terminal blocks.
Rail mounting
Mounting is supported on a 35 mm Top Hat rail according to IEC 60715 or with M4 screws.
Expand mechanical and connection requirements
| Rail depth | 7.5 mm or 15 mm |
| Fastening torque | 1.2 Nm |
| Wiring method | Spring / screw terminals |
| Vibration resistance | 2–8.4 Hz: 3.5 mm peak; 8.4–150 Hz: 1 g |
| Shock resistance | 15 g, 11 ms, half-sinusoidal |
| Supply protection | Reverse-polarity protection for 24 V DC supply |
| Power supply requirement | SELV or PELV supply for extra-low-voltage circuits |
Expansion hardware
Memory and time functions
The supported accessory range includes an MC503 memory card and TA561-RTC real-time-clock accessory.
Serial expansion
Additional RS-485 functionality can be provided through TA562-RS, TA569-RS-ISO or TA562-RS-RTC accessories.
Expand supported accessory references
| Memory card | MC503 |
| Real-time clock | TA561-RTC |
| RS-485 | TA562-RS |
| Isolated RS-485 | TA569-RS-ISO |
| RS-485 + RTC | TA562-RS-RTC |
Replacement check
Original compatibility: Use the complete PM566-TP-ETH order code when matching an installed unit.
Historical / possible migration: ABB lists PM5052-T-ETH, PM5072-T-2ETH and PM5082-T-2ETH as possible migration devices for this Classic CPU; this is not presented as a direct one-for-one replacement.
When this CPU is searched
Typical system role
The PM566-TP-ETH fits AC500-eCo control systems that need onboard digital and analog I/O together with Ethernet communication and additional central I/O expansion.
Common replacement trigger
It is typically searched when an installed controller has a CPU fault, communication failure, I/O-related fault or requires an exact hardware match during maintenance.
Diagnostic points before replacing the CPU
- Check the Power, Run, Error and I/O status LEDs.
- Check the RUN/STOP switch position.
- Check Ethernet and serial communication connections when network or controller communication is lost.
- Check the onboard I/O and connected expansion modules when field signals are affected.
- Confirm the installed hardware and application configuration before replacing the processor.
A failed processor can interrupt controller execution and the associated machine-control sequence. Matching the complete hardware configuration before replacement helps reduce commissioning and recovery time.
AMIKON service
Inspection
Inspection and functional testing where applicable before shipment.
Packaging
Protective export packaging for transportation.
Warranty
One-year AMIKON warranty on the supplied product.
DOA / Returns
DOA and return cases handled through the AMIKON after-sales process.
Talk to the AMIKON team
Need help matching an automation part?
Our team can help check part details, existing control-system requirements and hard-to-source automation parts.
View 100 related automation models
PM566-TP-ETH buyer questions
What is the order code for PM566-TP-ETH?
The order code is 1SAP121500R0071. The complete order code should be matched when checking an installed unit or replacement.
Can the PM566-TP-ETH handle analog signals?
Yes. The processor module includes onboard analog input and output capability, and the analog inputs can also be configured as digital inputs.
Which communication interfaces are available?
The controller provides integrated Ethernet and COM1 RS-485 communication. An additional COM2 RS-485 interface can be added through the applicable accessory configuration.
Is PM566-TP-ETH still suitable for a new control-system project?
ABB lists the processor as Classic and notes that Classic products are available from stock but are not recommended for planning and commissioning new installations. For an existing system, the exact installed configuration should be checked before replacement.
What should I provide when requesting a PM566-TP-ETH quotation?
Please provide the Part Number, Quantity, Destination, Required Date and Machine / System Model.
