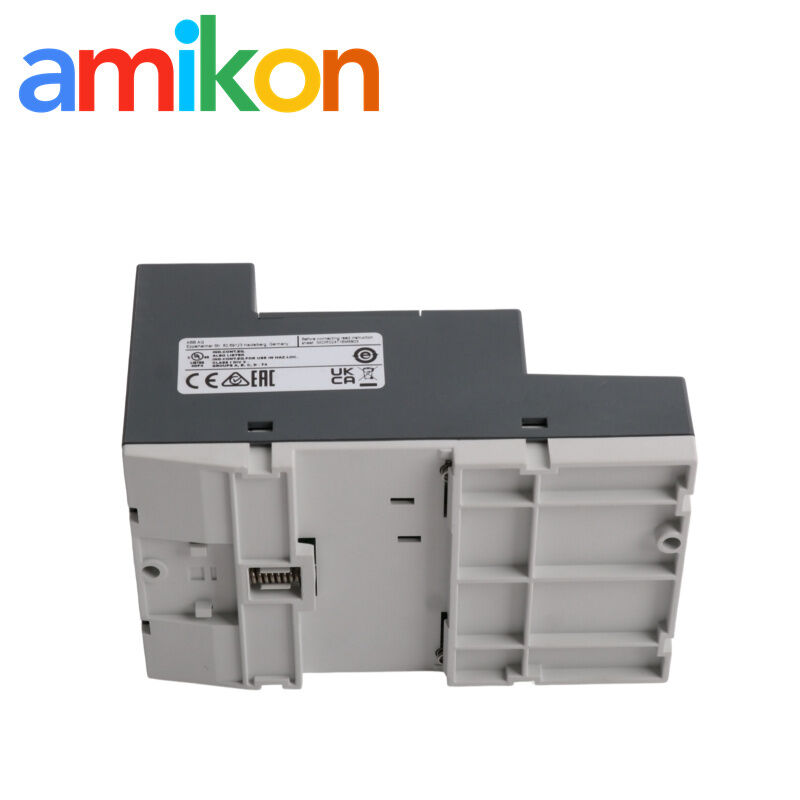

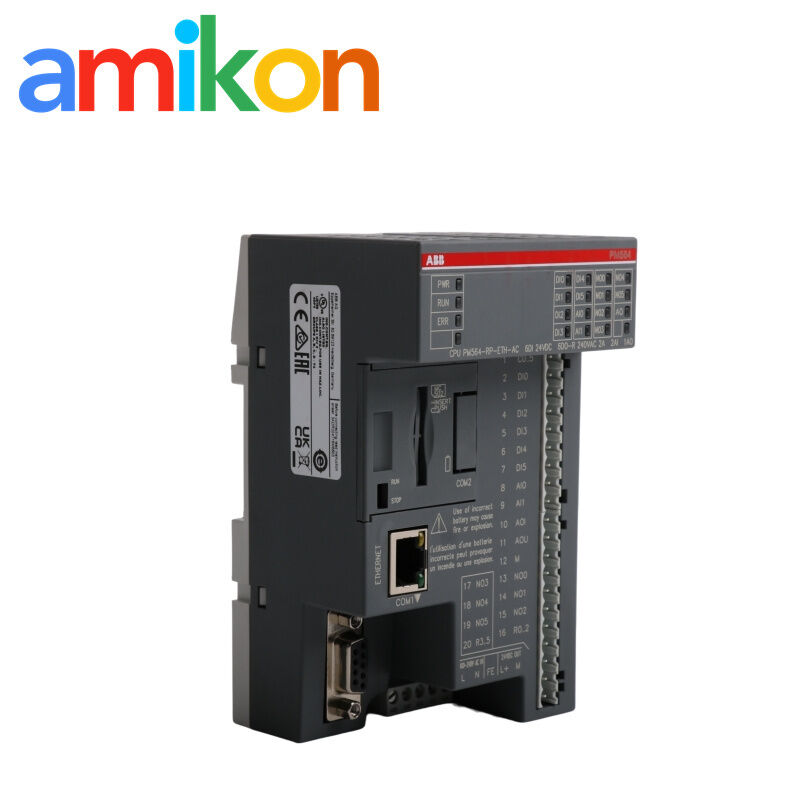

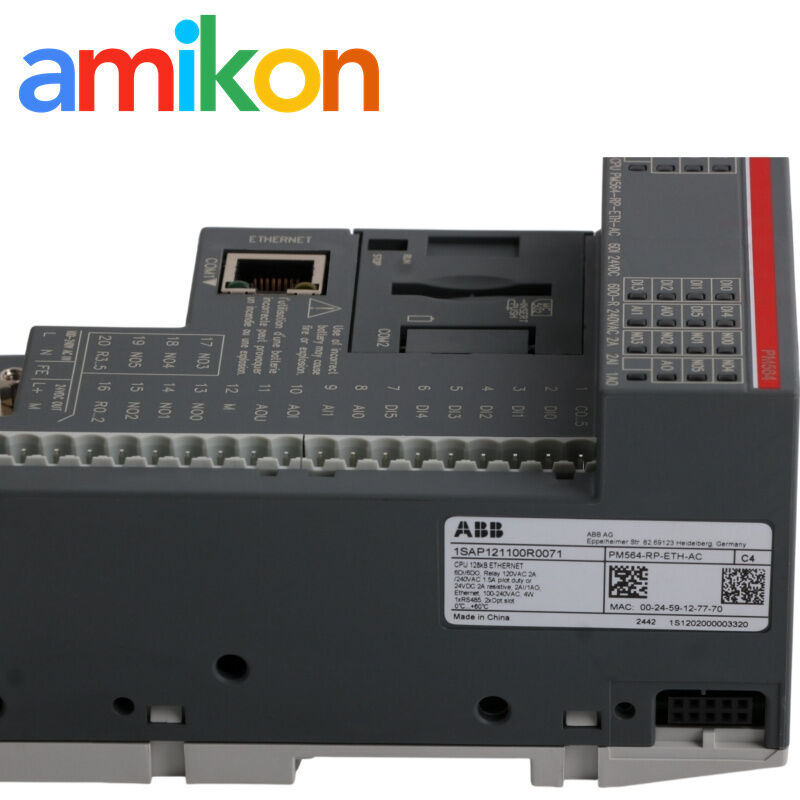

ABB PM564-RP-ETH-AC 1SAP121100R0071 PLC-AC500-eCo Processor Module
ABB PM564-RP-ETH-AC
PM564-RP-ETH-AC 1SAP121100R0071
PM564 Processor Module
Place of Origin:
SWEDEN
Brand Name:
ABB
Document:
Contact Us
Request A Quote
Product Details
Highlight:
ABB PM564-RP-ETH-AC
,PM564-RP-ETH-AC 1SAP121100R0071
,PM564 Processor Module
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
2-3 work days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
01 KEY SPECIFICATIONS
Key Specifications
| Power Supply | 100-240 V AC |
| Typical Current | 23 mA at 100 V AC; 14 mA at 240 V AC |
| Maximum Current | 220 mA at 100 V AC; 130 mA at 240 V AC |
| Maximum Power Dissipation | 5.3 W |
| Program Memory | 128 kB Flash EPROM |
| Real-Time Clock | Optional |
Additional Memory Data
| VAR Data | 10 kB |
| VAR_RETAIN Data | 1 kB, always buffered in flash |
| %RB Data | 1 kB, can be buffered in flash depending on configuration |
| %MB Data | 2 kB |
| Data Buffering | In flash memory |
Physical Data
| Width | 82 mm |
| Height | 135 mm |
| Depth | 74 mm |
| Weight | 400 g |
| Mounting Position | Horizontal or vertical |
Information source: ABB PM55x / PM56x Data Sheet, 3ADR010065, Rev. 11.
02 SYSTEM & SEARCH CONTEXT
Where This Part Is Usually Searched
SYSTEM
ABB AC500-eCo PLC systems.
SEARCH SCENARIOS
Existing unit replacement, processor/module fault, or maintenance of an installed controller.
Downtime consideration: when the processor module is unavailable or requires replacement, sourcing the exact installed part can become part of the maintenance timeline.
03 LIFECYCLE
Lifecycle & Migration
Classic product.
ABB lists PM5032-R-ETH and PM5052-R-ETH as migration-related controller references. Any migration decision should be checked against the installed system requirements.
AMIKON RFQ
Need a quote or availability check?
sales@amikon.cn
WhatsApp: +86 180 2077 6792
Miya Zheng | Quote response within 24h
04 DELIVERY & WARRANTY
Delivery & Warranty
| Testing | Inspection and testing can be arranged before shipment. |
| Packaging | Secure industrial packaging for shipment. |
| DOA / Returns | Contact AMIKON promptly for case review and return or exchange arrangements. |
| Warranty | 1-year AMIKON warranty and after-sales support. |
| Shipping | DHL / FedEx / UPS / TNT / Aramex. |
| RFQ | Part Number / Quantity / Destination / Required Date / Machine/System Model |
05 FAQ
Frequently Asked Questions
What power supply does the PM564-RP-ETH-AC require?
The specified power supply is 100-240 V AC.
What are the memory and physical dimensions of this module?
Program memory is 128 kB Flash EPROM. The module measures 82 mm wide, 135 mm high and 74 mm deep, with a weight of 400 g.
What should I check when matching this module to an existing system?
Check the complete designation PM564-RP-ETH-AC, Product ID 1SAP121100R0071, the installed AC500-eCo system configuration and the required power supply before ordering.
Can AMIKON arrange inspection or testing before shipment?
Yes. Inspection and testing can be arranged before shipment when required.
What information should I send for a quotation?
Please provide Part Number, Quantity, Destination, Required Date and Machine/System Model.
