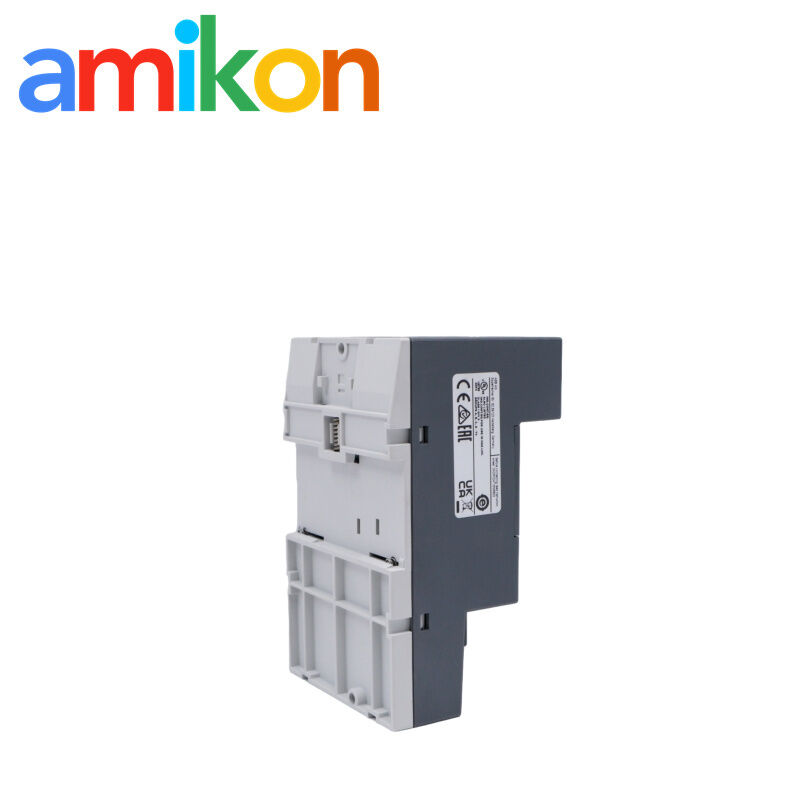

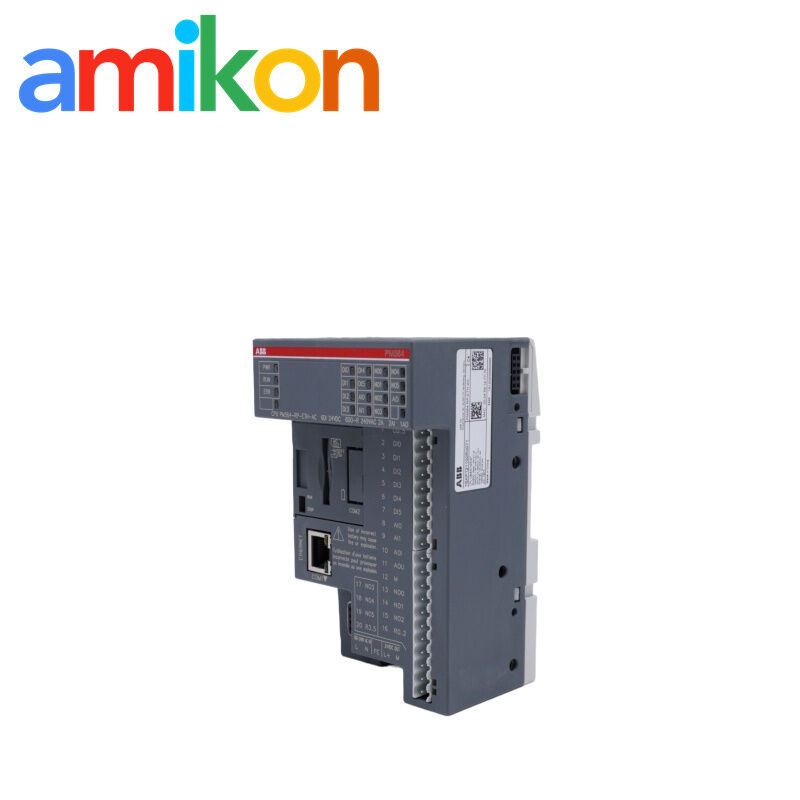

ABB PM564-RP-ETH 1SAP121100R0071 AC500-eCo Processor Module · 128 kB Ethernet
AC500-eCo Processor Module
128 kB Memory
Integrated Ethernet
Place of Origin:
SWEDEN
Brand Name:
ABB
AC500-eCo Processor Module
,128 kB Memory
,Integrated Ethernet
ABB PM564-RP-ETH 1SAP121100R0071 AC500-eCo Processor Module
A legacy AC500-eCo processor intended primarily for existing installations and exact-model spare-part replacement. The complete article number should be matched before procurement rather than selecting a visually similar PM-series CPU.
Technical Specifications
View complete technical specifications Click to expand
| Product type | AC500-eCo processor module |
|---|---|
| Product ID | 1SAP121000R0071 |
| Program memory | 128 kB |
| Digital inputs | 6 DI |
| Digital outputs | 6 DO, relay |
| Analog inputs | 2 AI |
| Analog output | 1 AO |
| COM1 | RS-485, 9-pin D-sub female connector |
| COM1 transmission rate | 1.2 to 187.5 kBit/s |
| COM1 functions | Programming, free protocol, Modbus RTU master/slave and CS31 master |
| COM2 | Optional serial interface |
| Ethernet | Integrated Ethernet interface |
| Ethernet communication | Modbus TCP, HTTP, FTP, SNTP, DHCP and UDP |
| Supply voltage | 24 V DC |
| Maximum current consumption | 250 mA |
| Typical current consumption | 120 mA |
| Maximum power dissipation | 4.9 W |
| Processor | 32-bit Freescale ARM, 50 MHz |
| Programming languages | IL, FBD, LD, SFC, ST and CFC |
| Execution modes | Cyclic, time-controlled and multitasking |
| Data buffering | Flash memory |
| User program protection | Password protection |
| RUN/STOP switch | Yes |
| RTC | Optional |
| Mounting position | Horizontal or vertical |
| Dimensions | Approx. 82 × 135 × 74 mm |
| Weight | Approx. 350 g |
| Protection | IP20 |
| Operating temperature | 0 °C to +60 °C horizontal; 0 °C to +40 °C vertical, subject to documented load conditions |
| Humidity | Maximum 95%, non-condensing |
Why This Model Matters in Existing Systems
The full order code distinguishes this relay-output, Ethernet-equipped version from other PM564 variants.
The Ethernet interface is part of the processor module rather than a separately listed communication module.
ABB classifies this model as Classic, making exact-model sourcing relevant when maintaining an installed controller.
Installation & Configuration
Terminal arrangement
Check the installed pluggable terminal blocks before moving field wiring. Terminal blocks are selected separately from the processor module.
Programming environment
The controller is configured and programmed within ABB's AC500 programming environment using the documented IEC 61131-3 language set.
Optional hardware
ABB documents optional serial and RTC accessories, as well as the MC503 memory card. Existing accessory configuration should be recorded before CPU replacement.
Replacement preparation
Record the existing application project, installed terminals and optional hardware before removing the processor. Do not assume a nearby PM-series housing has the same wiring.
Compatibility & Replacement
Application & Fault Scenarios
Existing controller unavailable
Common procurement trigger: the installed processor fails or cannot return the controller to normal operation, creating an immediate spare-part requirement.
Ethernet communication is lost
If the controller remains installed but Ethernet communication is unavailable, the processor may be investigated as part of the hardware fault diagnosis.
Control sequence cannot resume
A processor-level fault can prevent the PLC application from executing, leaving dependent machine or process control unavailable until the fault is resolved.
Contact & RFQ
Delivery & Warranty
FAQ
What is the exact ABB part number for PM564-RP-ETH?
ABB product ID: 1SAP121000R0071. Use this complete number when requesting a quotation or checking an installed unit.
Is PM564-RP-ETH the relay-output version of PM564?
Yes. The PM564 family includes different output and supply variants, so the complete order code should be matched rather than the PM564 family name alone.
Can PM5032-R-ETH replace PM564-RP-ETH without checking the application?
No direct replacement should be assumed. ABB identifies PM5032-R-ETH as a possible migration device, so the existing application and hardware configuration need to be assessed before migration.
Where can I find the PM564-RP-ETH manual or datasheet?
The ABB processor-module documentation is the appropriate reference for technical specifications, installation and configuration details. AMIKON can also use the exact part number to help identify the applicable documentation.
What should I send when ordering a replacement PM564-RP-ETH?

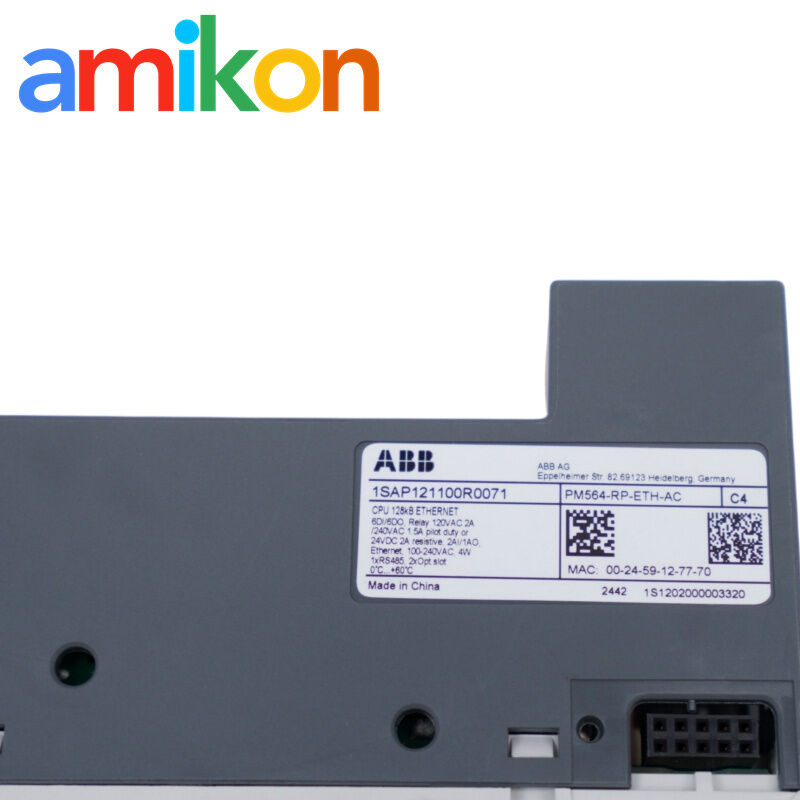

Send the complete Part Number, Quantity, Destination, Required Date and Machine/System Model. A photo of the installed nameplate can also help with exact-model checking.
