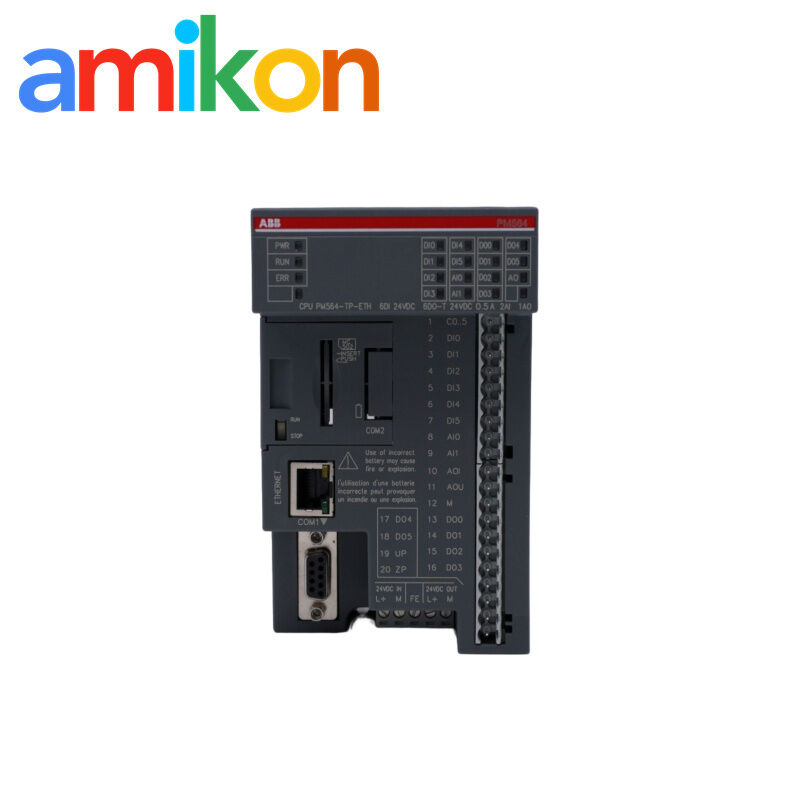

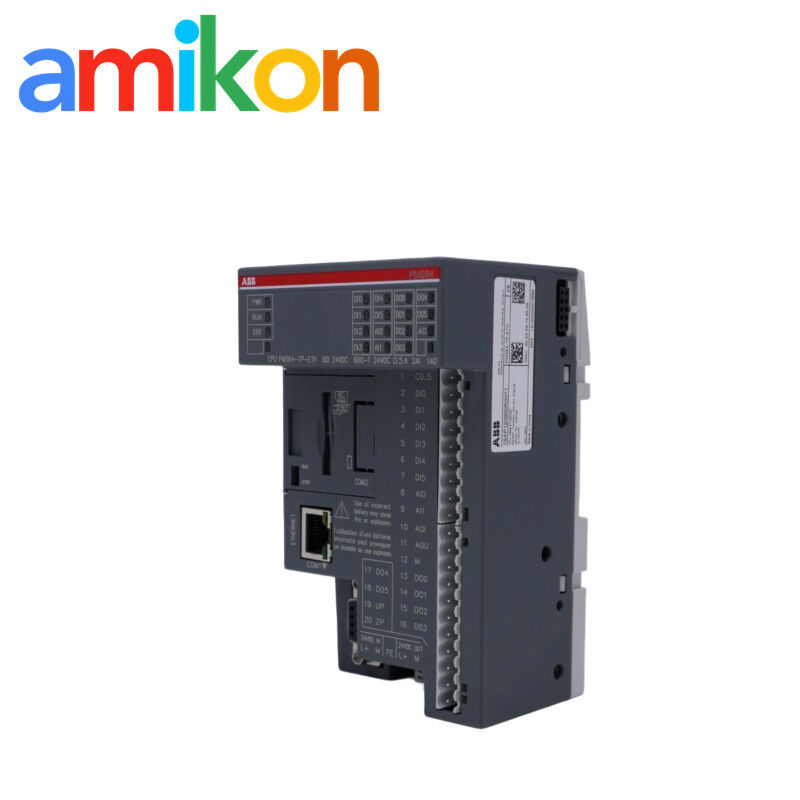

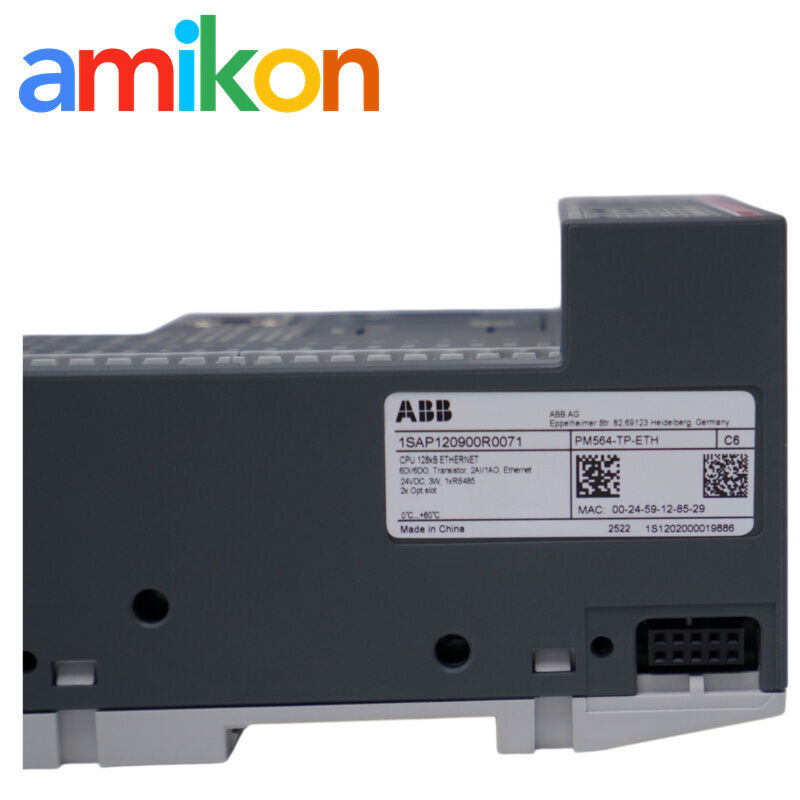

ABB PM564-TP-ETH · 1SAP 120 900 R0071 · Programmable Logic Controller · 24 V DC / Ethernet
ABB PM564-TP-ETH
1SAP 120 900 R0071
ABB AC500-eCo
Place of Origin:
SWEDEN
Brand Name:
ABB
ABB PM564-TP-ETH
,1SAP 120 900 R0071
,ABB AC500-eCo
ABB PM564-TP-ETH · 1SAP 120 900 R0071 · Programmable Logic Controller
A processor module for AC500-eCo control architectures, combining controller processing with local field I/O and communication interfaces.
Processor module for the ABB AC500-eCo platform.
Exact model data
| Manufacturer | ABB |
|---|---|
| Product family | AC500-eCo |
| Part number | PM564-TP-ETH |
| Product ID | 1SAP 120 900 R0071 |
| Product type | Processor module |
| Program memory | 128 kB |
| Data memory | 14 kB |
| Digital inputs | 6, including 2 counter inputs |
| Digital outputs | 6 transistor outputs, including 2 PWM outputs |
| Analog inputs | 2 × 0...10 V, configurable as digital inputs |
| Analog output | 1 × 0...10 V / 0...20 mA / 4...20 mA |
| Supply voltage | 24 V DC |
| Ethernet | Integrated Ethernet via RJ45 |
View remaining technical specifications
| Ethernet functions | Programming, Modbus TCP/IP, UDP/IP, integrated web server, DHCP and FTP server |
|---|---|
| Serial interface | COM1, RS-485 |
| Optional serial interface | COM2, RS-485 via optional hardware |
| I/O expansion | AC500-eCo I/O bus, maximum 10 I/O modules |
| Maximum centralized I/O | Up to 320 digital inputs, 320 digital outputs, 160 analog inputs and 160 analog outputs |
| Typical current consumption | 100 mA |
| Maximum current consumption | 220 mA |
| Maximum power dissipation | 4.4 W |
| Power connection | Removable 5-pin screw terminal |
| Fuse | 3 A fast fuse |
| Installation orientation | Horizontal or vertical installation |
| Optional memory | MC502 memory card with MC503 adaptor |
| Optional real-time clock | RTC available as optional hardware |
| Approx. weight | 0.29 kg / approximately 300 g |
Source: ABB PM564-TP-ETH datasheet — PM55x/PM56x Data Sheet 3ADR010065, Rev. 11; AC500-eCo Hardware Manual 3ADR010121.
At-a-glance interface overview
Ethernet status indications
Link
The green Link indication shows that the Ethernet connection has been established.
Activity
The yellow Activity indication flashes when Ethernet data traffic is present.
Why this part number is searched during downtime
Lifecycle and migration reference
ABB places this product in the Classic lifecycle phase. Classic modules are available from stock but are not recommended for planning and commissioning new installations.
ABB lists this device as a possible migration reference. Migration should be evaluated against the complete machine configuration rather than treated as a like-for-like identity.
AMIKON Supply Support
Please provide Part Number, Quantity, Destination, Required Date, Machine / System Model.
Buyer Questions
What interfaces are built into the PM564-TP-ETH?
It has integrated Ethernet via RJ45 and COM1 RS-485; COM2 RS-485 is optional hardware.
How many local I/O points are built into the controller?
It has 6 digital inputs, 6 transistor outputs, 2 analog inputs and 1 analog output.
What supply voltage does the PM564-TP-ETH require?
The supply voltage is 24 V DC.
What information should I send for a quotation?
Send the part number, quantity, destination, required date and machine or system model.
Can AMIKON inspect and test the unit before shipment?
Yes, pre-shipment inspection and functional testing are available where applicable.
