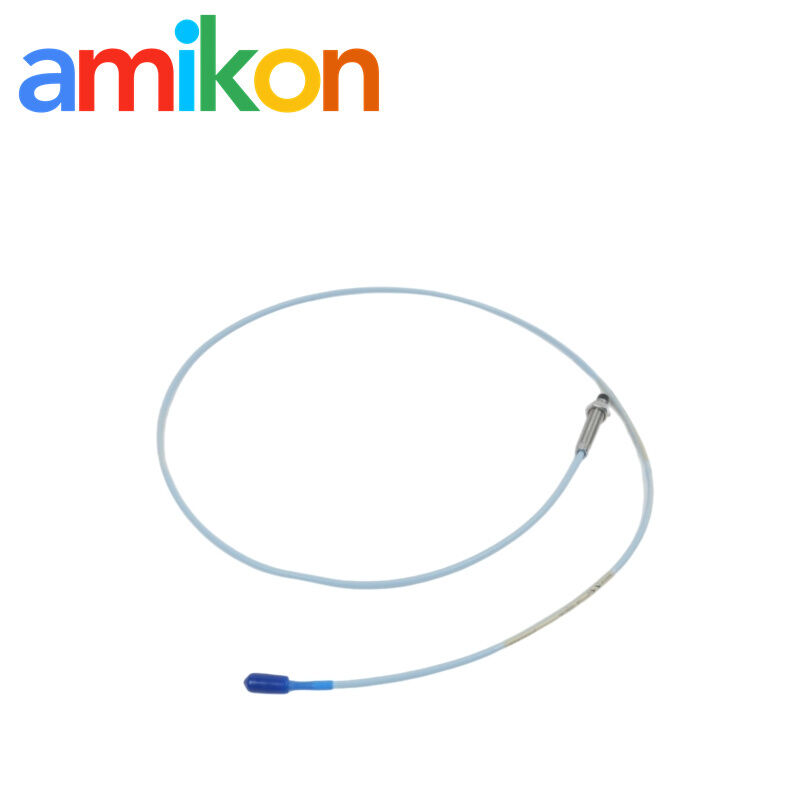

Bently Nevada 162381-078-027-50-05 Sensor Accessory · 162381 Series
Bently Nevada 162381 sensor accessory
Bently Nevada 162381-078-027-50-05
162381 Series sensor accessory
Brand Name:
Bently Nevada
Bently Nevada 162381 sensor accessory
,Bently Nevada 162381-078-027-50-05
,162381 Series sensor accessory
Bently Nevada 162381-078-027-50-05 Sensor Accessory · 3300 XL 8 mm
The 162381-078-027-50-05 is a configured Bently Nevada 162381-series reference associated with the 3300 XL 8 mm proximity transducer system. The complete part number is used for identification and sourcing.
162381-078-027-50-05
| Manufacturer | Bently Nevada |
|---|---|
| Complete part number | 162381-078-027-50-05 |
| Base part number | 162381 |
| Product class | Sensor Accessories |
| Configuration | 078-027-50-05 |
3300 XL 8 mm signal path
The system converts the distance between the probe tip and a conductive target into an electrical output for position and vibration measurement.
Measurement applications
Shaft position
Non-contact measurement of shaft position.
Machine vibration
Dynamic vibration measurement on rotating machinery.
Keyphasor
Reference and speed measurement applications.
Relevant system features
Non-contacting sensing
Output varies with probe-to-target distance.
ClickLoc connection
Gold-plated locking connectors require no special tools.
XL component interchangeability
3300 XL probes, cables and Proximitor Sensors are interchangeable within the XL system.
Key 3300 XL 8 mm values
| Linear range | 2.0 mm / 80 mils |
|---|---|
| Frequency response | 0–10 kHz, +0/−3 dB |
| Incremental scale factor | 7.87 V/mm / 200 mV/mil for standard 5 m or 1 m systems |
| Recommended radial vibration gap | Approximately 1.27 mm / 50 mils |
| Maximum field wiring | 305 m between Proximitor Sensor and monitor |
| Minimum cable bend radius | 25.4 mm / 1.0 in |
System matching
Complete reference
Use 162381-078-027-50-05 when sourcing this configured item.
5 m system
The 3300 XL ordering system specifies the corresponding 5 m Proximitor Sensor for a 5 m configuration.
XL / non-XL
Mixed XL and non-XL systems are limited to non-XL performance specifications.
Order support
Buyer questions
What measurement functions does the associated 3300 XL 8 mm system support?
What is the linear range of the 3300 XL 8 mm system?
What is the frequency response?
Should the complete part number be used when requesting this item?
What information should I provide for an RFQ?
