Product Description
BENTLY NEVADA · TK-3E

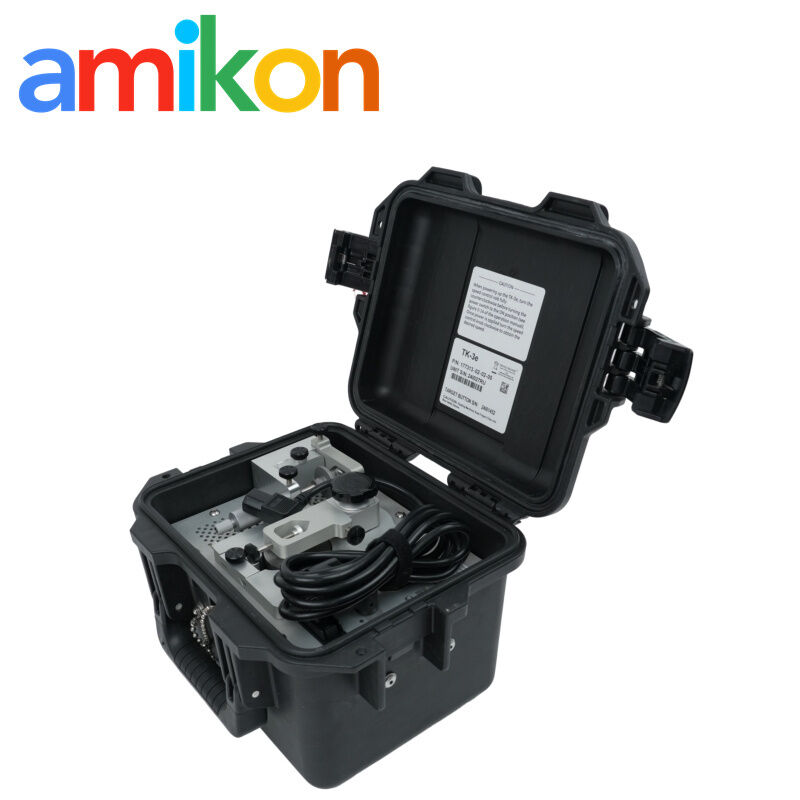

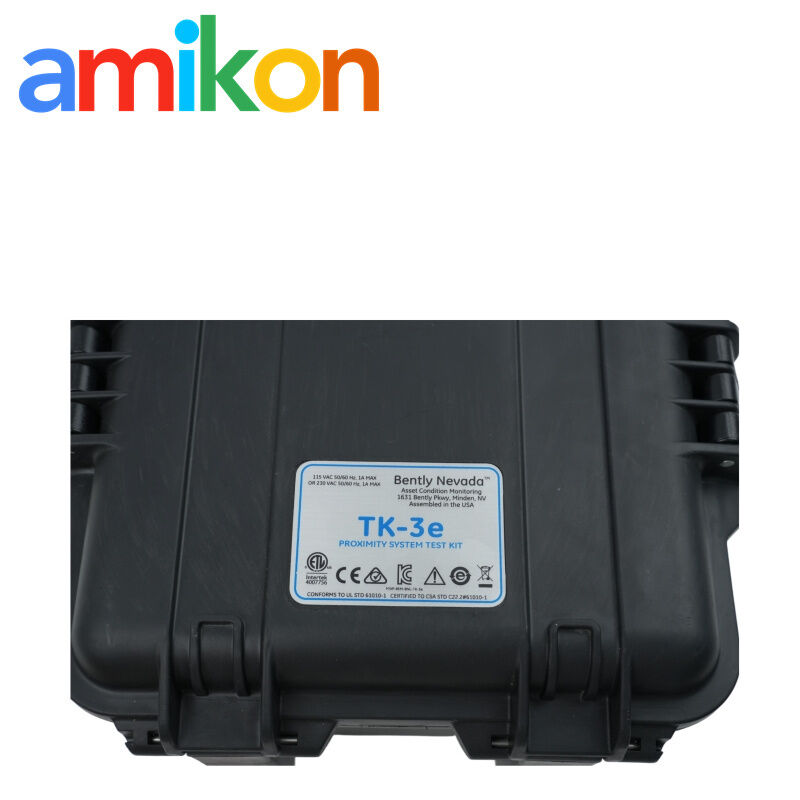

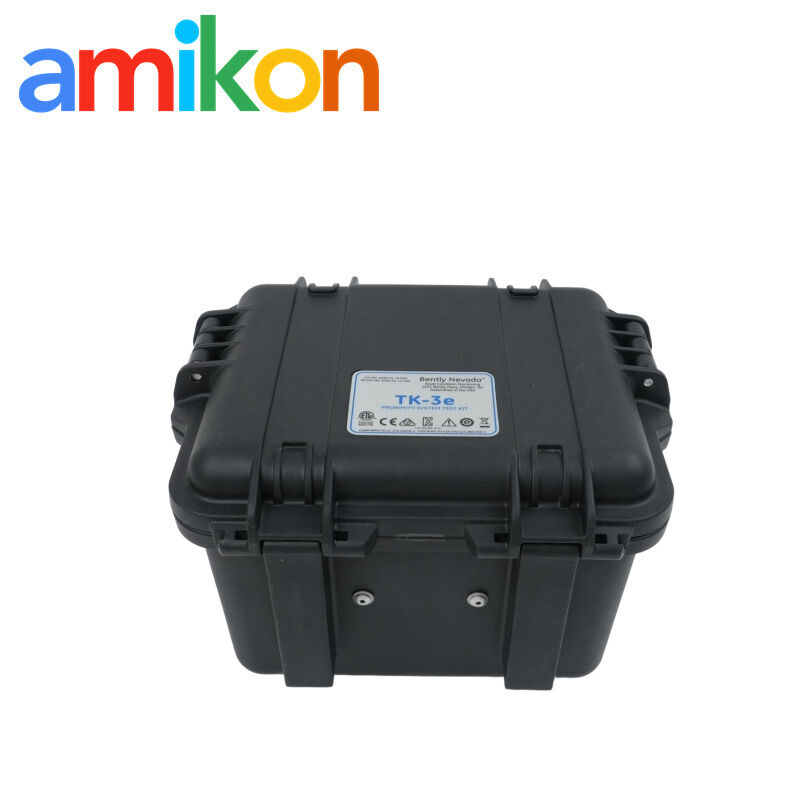

Bently Nevada 177313-02-02 TK-3E Proximity System Test Kit
Electric-driven test kit for controlled proximity-system position checks and vibration monitor calibration.
Designed to simulate shaft vibration and position for checking Bently Nevada monitor readouts and proximity transducer system condition.
01
Two Test Modes
POSITION / GAP CHECK
Transducer System & Position Monitor
The removable spindle micrometer assembly moves the target toward or away from the proximity probe in calibrated increments.
- Universal probe mount: 5–19 mm diameter
- Magnetic base for field positioning
- Proximitor Sensor output recorded with a voltmeter
VIBRATION / MONITOR CHECK
Vibration Monitor Calibration
A motor-driven wobble plate generates the mechanical vibration input while the swing-arm holds the proximity probe.
- 50–254 µm (2–10 mils) peak-to-peak
- Probe scale factor used with measured DC voltage
- Multimeter-based method; no oscilloscope required
02
Test Architecture
01
Mechanical Input
Controlled target position or mechanical vibration.
02
Proximity Probe
The probe senses the controlled target movement.
03
Proximitor Output
The transducer system produces the corresponding electrical output.
04
Monitor
The monitor processes the proximity signal and displays the reading.
05
Comparison
Controlled input is compared with the resulting monitor indication.
Measurement method: the vibration calibration procedure uses the probe absolute scale factor and peak-to-peak DC voltage measured with a multimeter.
03
Technical Specifications
Expand full specification table
| Product family | TK-3 Proximity System Test Kit |
|---|---|
| Configuration | 177313-02-02 · Electric-driven · Metric / European |
| Electric power | 95–125 Vac, 50/60 Hz, 1 A minimum; 190–250 Vac, 50/60 Hz, 1 A minimum |
| Wobulator vibration amplitude | 50–254 µm (2–10 mils) peak-to-peak |
| Maximum speed | 0–5000 cpm ±1000 cpm |
| Spindle micrometer range | 0–25.4 mm (0–1000 mils) |
| Universal probe mount | 5–19 mm (0.197–0.75 in) probe diameter |
| Target / wobble plate | AISI 4140 alloy steel |
| Dimensions | 195 mm H × 299 mm W × 248 mm D |
| Weight | 5.22 kg (11.5 lb) |
| Operating temperature | 0–50 °C (32–122 °F); extended continuous use maximum 40 °C |
| Storage temperature | −18–65 °C (0–150 °F) |
| Humidity | 95% non-condensing |
| Operating environment | Indoor use only; maximum altitude 2000 m |
| Exposure | Designed to meet IP54 for dust and water exposure when closed |
| Compliance | FCC Part 15; EN 61000-6-2; EN 61000-6-4; EMC Directive 2014/30/EU; RoHS 2011/65/EU; LVD EN 61010-1 |
Source: Baker Hughes / Bently Nevada, TK3 Proximity System Test Kit Datasheet 178087 Rev. G.
04
Field Testing & Setup
Spindle Micrometer
Provides controlled target movement for position and gap-related checking.
Magnetic Base
The spindle micrometer assembly uses a magnetic base for field use.
Probe Mount
The universal mount accommodates proximity probes from 5 to 19 mm in diameter.
Wobble Plate
The motor-driven wobble plate provides the mechanical vibration input for monitor calibration.
Calibration point: the specified vibration procedure establishes the mechanical vibration level from the probe scale factor and measured peak-to-peak DC voltage.
05
Environment & Safety
| Indoor use | Indoor use only |
| Altitude | Maximum 2000 m |
| Operating temperature | 0–50 °C; extended continuous use maximum 40 °C |
| Storage temperature | −18–65 °C |
| Humidity | 95% non-condensing |
| Closed-unit exposure | Designed to meet IP54 for dust and water exposure |
Keep clear of rotating components and the wobble plate during operation. Avoid loose clothing or objects, use safety glasses and guards, and check mounting screws before operation.
AMIKON Industrial Automation
TK-3E 177313-02-02 Spare Support
Contact Miya Zheng
Email sales@amikon.cn
WhatsApp +86 180 2077 6792
06
Ordering Configuration
| Base model | 177313 TK-3e, Electric Driven |
|---|---|
| AA · Scale units | 02 Metric |
| BB · Power cord | 02 European |
| CC · Agency approvals | Not included in the supplied part number 177313-02-02. |
Official electric-driven ordering structure: 177313-AA-BB-CC. Confirm the complete required configuration before quotation.
Optional accessory: 168836 MDS 100 – Data Acquisition CBT (Computer Based Training) Module.
07
Application & Test Scenarios
Position calibration Controlled target movement can be used to check the proximity transducer system and position monitor calibration.
Vibration calibration The wobble plate provides a known mechanical vibration input for vibration monitor calibration.
Monitor verification Controlled mechanical input can be compared with the resulting monitor readout.
08
Delivery & Warranty
Inspection Part number and physical condition checked before shipment.
Packaging Protective packaging prepared for shipment.
Warranty AMIKON one-year warranty; DOA and functional issues handled under confirmed order terms.
RFQ: Part Number · Quantity · Destination · Required Date · Machine/System Model
09
Frequently Asked Questions
What type of input does the TK-3E generate for monitor calibration?
The TK-3E provides controlled mechanical position and vibration inputs. Position is generated with the spindle micrometer assembly, while vibration is generated by the motor-driven wobble plate.
What is the vibration range of the electric-driven TK-3E?
The wobulator vibration amplitude is 50–254 µm (2–10 mils) peak-to-peak, with a maximum speed range of 0–5000 cpm ±1000 cpm.
What probe diameter can be used with the universal probe mount?
The universal probe mount accommodates probe diameters from 5 mm to 19 mm (0.197 to 0.75 in).
Is an oscilloscope required for the specified vibration calibration method?
No. The specified method uses the proximity probe's absolute scale factor together with peak-to-peak DC voltage measured with a multimeter.
What configuration does 177313-02-02 specify?
177313 is the electric-driven TK-3e configuration. The first 02 specifies Metric scale units and the second 02 specifies the European power-cord configuration. The supplied part number does not include the agency-approval suffix.
