Allen-Bradley 2711P-T12W22D9P PanelView Plus 7 Performance HMI · 12.1-in. WXGA

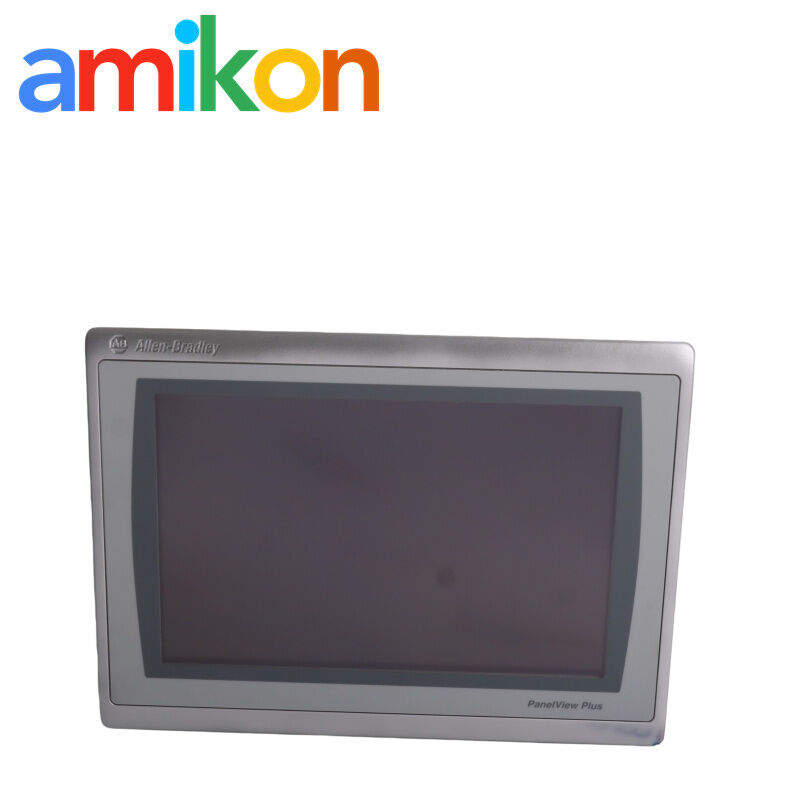

12.1-in. wide touch operator terminal with 1280 × 800 WXGA display, dual Ethernet ports with Device Level Ring capability, and 24V DC input.
Technical Data
Data source: Rockwell Automation Publication 2711P-TD009, PanelView Plus 7 Performance Terminals Technical Data, and the current product record for 2711P-T12W22D9P.
Expand full technical specifications
| Attribute | Confirmed specification |
|---|---|
| Operator input | Touch screen |
| Display type | TFT color |
| Display size | 12.1-in. wide screen |
| Viewing area | 261 × 163 mm (10.3 × 6.4 in.) |
| Display resolution | 1280 × 800 WXGA |
| Aspect ratio | 16:10 |
| Brightness, typical | 300 cd/m² (nits) |
| Backlight | White LED, solid-state; 50,000 h minimum at 40 °C (104 °F) to half-brightness. Backlight is not field-replaceable. |
| Touch screen | Analog resistive |
| Touch actuation rating | 1,000,000 presses |
| Touch operating force | 100 grams |
| System memory | 512 MB RAM and 512 MB storage |
| User memory | Approximately 80 MB nonvolatile storage for applications |
| External storage | One Secure Digital (SD) card slot for external storage. |
| Ethernet ports | Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports supporting Device Level Ring (DLR), linear, or star network topologies. |
| Input voltage | 24V DC nominal, 18…30V DC |
| Power supply | SELV / PELV 24V DC supply supported |
| Operating system | Windows 10 IoT Core as identified on the current Rockwell product record. |
| Runtime environment | FactoryTalk View Machine Edition |
| Product lifecycle | Active on the current Rockwell Automation product record |

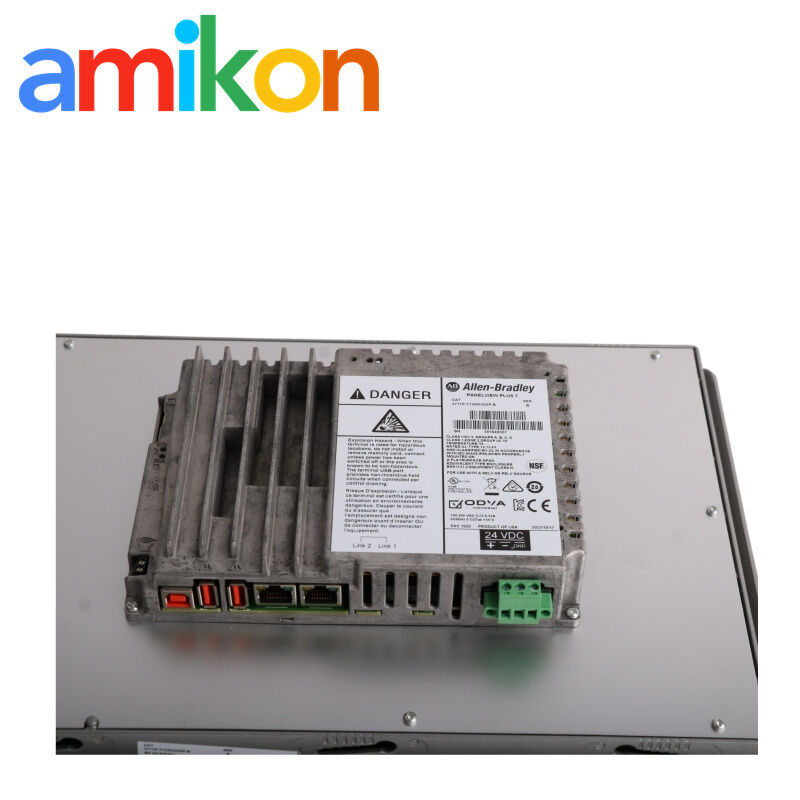

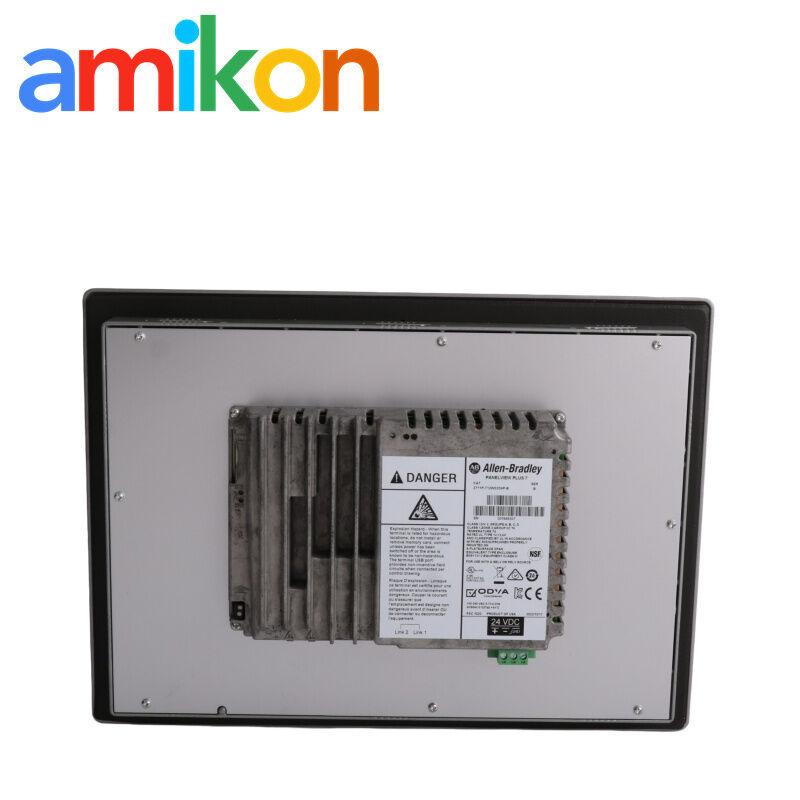

Operator Interface to Ethernet Network
Dual Ethernet architecture
Two Ethernet ports support DLR, linear and star network topologies. Check the installed network arrangement before replacing the terminal.
Exact Match vs. Historical Migration
2711P-T12W22D9P
For an exact replacement request, verify the complete catalog number on the installed terminal before ordering.
PanelView Plus 6 1250 family
Rockwell Automation migration documentation identifies the PanelView Plus 7 Performance 12-in. terminal as a primary replacement option for PanelView Plus 6 1250 terminals.
Where Buyers Usually Need This HMI
Machine operator interface
Used for plant-floor visualization and operator interaction within PanelView Plus / FactoryTalk View Machine Edition systems.
Display or HMI failure
Buyers commonly search the complete catalog number when an installed terminal requires replacement during maintenance.
Loss of operator visibility
A failed HMI can interrupt normal access to machine status, alarms and operator control functions.
Key Replacement Checks
Buyer Questions
What should I verify before ordering 2711P-T12W22D9P?
Is 2711P-T12W22D9P a current Allen-Bradley product?
Can 2711P-T12W22D9P be used for a PanelView Plus 6 1250 migration?
What power and Ethernet configuration does this terminal use?
What information should I send for a quotation?
