Product Description
Allen-Bradley · PanelView Plus 7 Performance

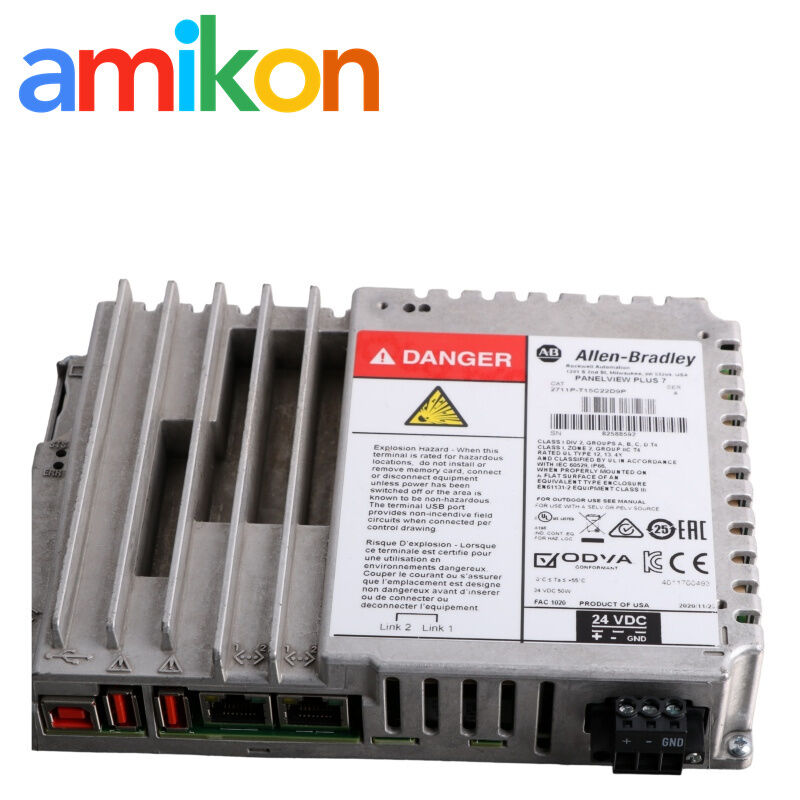

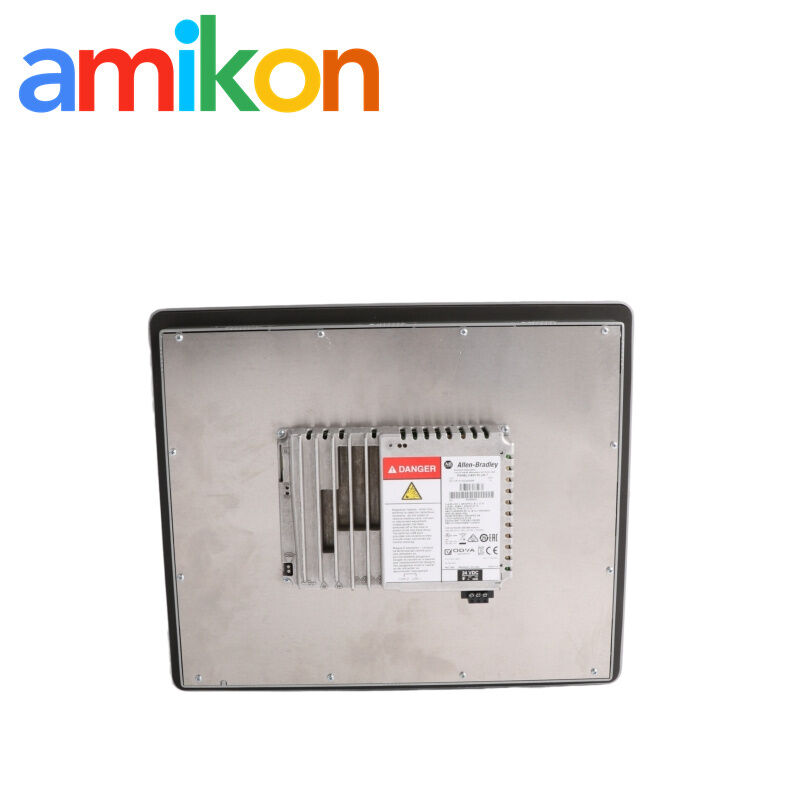

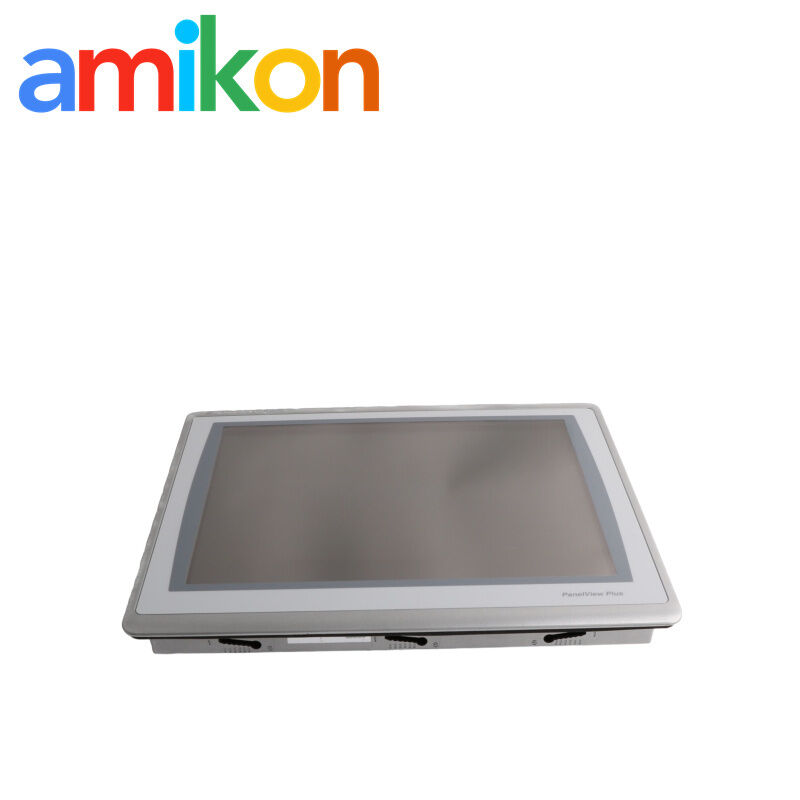

Allen-Bradley 2711P-T15C22D9P PanelView Plus 7 Performance Graphic Terminal — 15-in. XGA Touch
A 15-in. touch-screen PanelView Plus 7 Performance terminal with XGA color display and dual Ethernet connectivity.
01 / OVERVIEW
Operator visualization for industrial control
The 2711P-T15C22D9P is a 15-in. PanelView Plus 7 Performance terminal with a 1024 × 768 XGA TFT color display and analog resistive touch.
Its two 10/100Base-T Ethernet ports support DLR, linear and star network topologies, making the terminal suitable for operator visualization and control applications where Ethernet communication is required.
02 / TECHNICAL SPECIFICATIONS
Technical data
Core specifications are shown below; additional manufacturer data is available through the expandable section.
Source: Rockwell Automation Publication 2711P-TD009M-EN-P, PanelView Plus 7 Performance Terminals Technical Data.
| Catalog number | 2711P-T15C22D9P |
|---|---|
| Product family | PanelView Plus 7 Performance |
| Operator input | Touch |
| Display | 15-in. TFT color |
| Resolution | 1024 × 768 XGA |
| Touch technology | Analog resistive |
| Ethernet | Two 10/100Base-T Auto MDI/MDIX ports |
| Network topology | DLR, linear, or star |
| Input voltage | 24V DC nominal; 18...30V DC |
Documentation: Rockwell Automation 2711P-TD009 Technical Data and 2711P-UM008 User Manual provide the product-specific technical and installation information.
03 / COMPATIBILITY & REPLACEMENT
Official replacement relationships
Original family
PanelView Plus 7 Performance
2711P-T15C22D9P belongs to the PanelView Plus 7 Performance family; verify the complete catalog number before replacing an installed terminal.
Historical replacement
2711P-T15C22A9P
Rockwell Automation identifies 2711P-T15C22D9P as the engineering replacement for discontinued 2711P-T15C22A9P.
Historical replacement
2711P-T15C4D9
Rockwell Automation also identifies 2711P-T15C22D9P as the engineering replacement for discontinued 2711P-T15C4D9.
Important
Verify before migration
Screen, power, communication, mounting and application requirements should be checked against the installed terminal.
04 / APPLICATION & FAULT SCENARIOS
When this spare is commonly needed
Ethernet communication fault
Network communication problems can interrupt HMI access to the control system and operator data.
Terminal startup fault
Startup errors, diagnostics or abnormal terminal behavior may require replacement after troubleshooting.
Downtime risk: When this terminal is the primary operator interface, hardware failure can remove normal visualization and operator interaction even if the controller itself remains operational.
FIELD NOTES
Installation & service points
Power 24V DC nominal input; published range 18...30V DC.
Network Two 10/100Base-T ports for DLR, linear or star topology.
Service The official manual covers touch calibration, diagnostics, startup and troubleshooting.
Project files, firmware requirements and communication settings should be checked against the installed system before migration.
05 / DELIVERY & WARRANTY
Simple spare-part handling
Before shipment: Part number and condition are checked, the unit is visually inspected, and protective packaging is used. Functional testing is performed according to the available test scope.
After delivery: Please inspect the package promptly and report shipping damage or DOA issues with supporting evidence. Warranty coverage excludes damage caused by incorrect installation, wiring, misuse or unauthorized modification.
06 / FAQ
2711P-T15C22D9P FAQ
Is 2711P-T15C22D9P still an active Allen-Bradley model?
Rockwell Automation currently lists 2711P-T15C22D9P as an active PanelView Plus 7 Performance product.
Can 2711P-T15C22D9P replace 2711P-T15C22A9P?
Yes. Rockwell Automation identifies 2711P-T15C22D9P as the engineering replacement for discontinued 2711P-T15C22A9P.
What power supply is required for 2711P-T15C22D9P?
The terminal uses 24V DC nominal input, with a published operating input range of 18...30V DC.
Does 2711P-T15C22D9P support DLR networking?
Yes. The technical data specifies two 10/100Base-T Auto MDI/MDIX Ethernet ports supporting DLR, linear and star topologies.
What information should I provide when ordering this spare?
Please provide the complete Part Number, Quantity, Destination, Required Date, Machine and System information. A photo of the installed nameplate can also help confirm the exact configuration.
