ABB PM858K02 3BSE082896R1 AC 800M Controller · 16 MB
ABB PM858K02 AC 800M Controller
ABB PLC with 16 MB memory
ABB PM858K02 industrial controller
Place of Origin:
SWEDEN
Brand Name:
ABB
ABB PM858K02 AC 800M Controller
,ABB PLC with 16 MB memory
,ABB PM858K02 industrial controller
ABB PM858K02 AC 800M Controller · Redundant CPU
PM858K02 is a redundant AC 800M controller configuration supplied as a K02 package. ABB identifies the configuration by article number 3BSE082896R1.
High Integrity: No
AC 800M Controller
PM858K02 package configuration
The K02 configuration is built around redundant PM858 controller hardware and its associated AC 800M components.

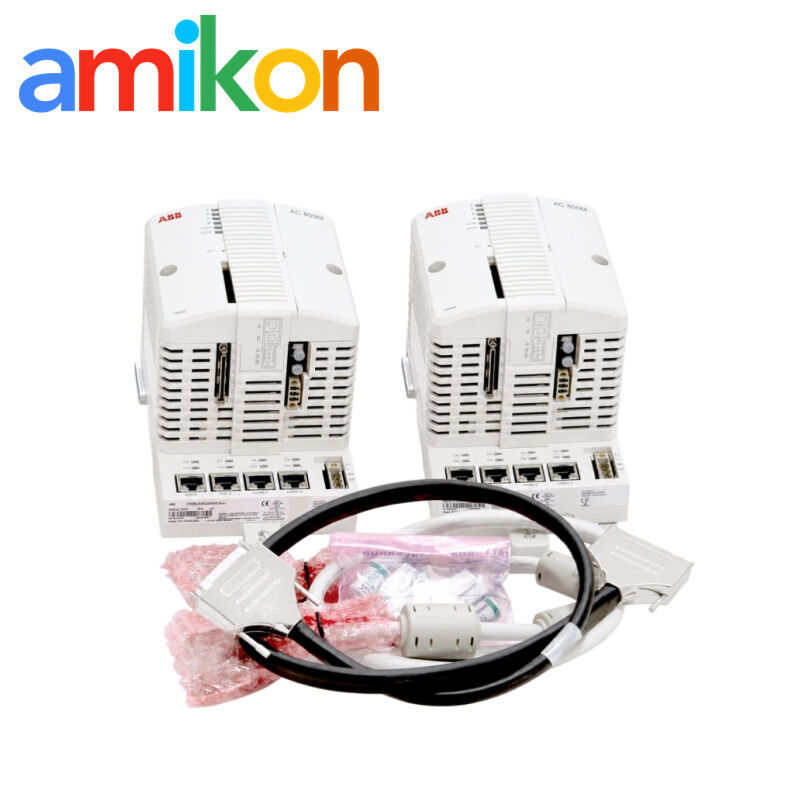

The PM858K02 package contains two PM858 CPU units for the redundant controller configuration.
ABB specifies TP830 baseplates, TB807 ModuleBus terminators, a TK850 CEX-Bus expansion cable and a TK851 RCU-Link cable in the package.
Two 3.6 V lithium backup batteries are included, one for each controller.
Technical specifications
Key electrical, communication and environmental data from ABB product documentation.
System and replacement checks
Use the installed engineering environment and controller configuration as the basis for replacement decisions.
System 800xA
ABB lists compatibility with System 800xA 6.0.2 and Compact Control Builder 6.0.0-1 and onwards.
Match the installed configuration
PM858K01 and PM858K02 are different configurations. K02 is the redundant version, so an alternative controller should be checked against the installed system before ordering.
Controller position in the architecture
A simplified view of the main controller relationship within the AC 800M system.
Controller
ModuleBus
Configuration access
ABB identifies COM4 as the isolated serial interface intended for connection to a configuration tool.
COM3 provides the other RS-232C connection for serial communication functions.
Maintenance and replacement focus
Typical situations in which the exact PM858K02 identification matters during industrial maintenance.
Use the installed article number to identify the controller configuration when a redundant AC 800M controller requires maintenance.
Check the controller label and article number before sourcing a replacement to avoid mixing different AC 800M configurations.
For shutdown work, confirm the installed configuration before ordering so the replacement matches the intended system arrangement.
Inspection before dispatch
AMIKON checks the requested part number and arranges inspection and packaging according to the actual item and order condition.
We verify the requested PM858K02 / 3BSE082896R1 designation before order processing.
Available testing and industrial packaging are arranged according to the actual item and shipping requirements.
DOA cases should be reported promptly with order information and supporting evidence. Warranty follows the agreed AMIKON order terms.
Need PM858K02 for a running system?
Send the exact part number and system information. We can check the requested configuration before quotation.
RFQ — keep it simple
For faster checking, send the six items at right. If you are replacing an installed controller, a clear nameplate photo can also help identify the exact part number.
PM858K02 buyer questions
Key questions covering the product configuration, package, interfaces and installation checks.
What is the PM858K02 package configuration?
What baseplate is used with PM858K02?
Does PM858K02 support CPU redundancy?
What communication interfaces are available on PM858K02?
What should be checked before installing a PM858K02?
Other automation inventory
Recommended inventory references only. These models are not presented as direct replacements for PM858K02.
