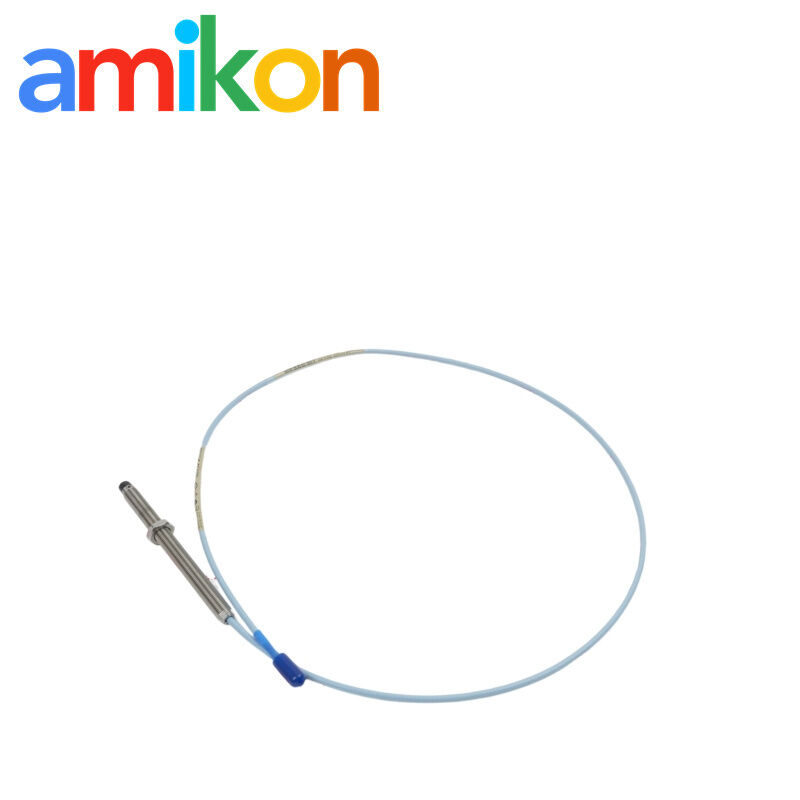

330103-00-12-10-12-05 Bently Nevada 3300 XL 8 mm Proximity Probe, 1.0 m ClickLoc FluidLoc
330103-00-12-10-12-05 Bently Nevada 3300 XL 8 mm Proximity Probe, 1.0 m ClickLoc FluidLoc
Bently Nevada 3300 XL proximity probe
8 mm proximity probe with ClickLoc
1.0 m proximity probe FluidLoc
Brand Name:
Bently Nevada
Contact Us
Request A Quote
Product Details
Highlight:
Bently Nevada 3300 XL proximity probe
,8 mm proximity probe with ClickLoc
,1.0 m proximity probe FluidLoc
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
2-3 work days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Bently Nevada · 3300 XL Series
330103-00-12-10-12-05 3300 XL 8 mm Proximity Probe
M10 × 1 probe configuration with 1.0 m total length, ClickLoc connector, FluidLoc cable option and CSA / ATEX / IECEx approvals.
01
Product & Configuration
Exact part-number breakdown
PART NUMBER · 330103-00-12-10-12-05
3300 XL 8 mm Proximity Probe
Standard 3300 XL 8 mm probe configuration for non-contact measurement applications. This configuration uses an M10 × 1 thread, 120 mm case length and 1.0 m total length.
ClickLoc + FluidLoc Miniature coaxial connector with FluidLoc cable arrangement.
Base
330103
3300 XL 8 mm probe, M10 × 1 thread, without armor
A
00
0 mm unthreaded length
B
12
120 mm overall case length
C
10
1.0 m total length
D
12
Miniature coaxial ClickLoc connector, FluidLoc cable
E
05
CSA, ATEX, IECEx approvals
02
Technical Specifications
Open only when detailed technical data is required
3300 XL 8 mm system technical data View Specifications
Probe type
3300 XL 8 mm proximity probe
Linear range
2 mm (80 mils), approximately 0.25–2.3 mm (10–90 mils)
Recommended radial vibration gap
−9 Vdc, approximately 1.27 mm (50 mils)
Scale factor
7.87 V/mm (200 mV/mil) ±5%
Frequency response
0–10 kHz, +0 / −3 dB
Minimum target size
15.2 mm (0.6 in) diameter flat target
Probe tip material
Polyphenylene sulfide (PPS)
Probe case
AISI 303 or 304 stainless steel
Cable
75 Ω triaxial, FEP insulated
Minimum cable bend radius
25.4 mm (1.0 in)
Connector maximum torque
0.565 N·m (5 in-lbf)
Probe case torque
Maximum 33.9 N·m; recommended 11.2 N·m
Non-contact measurement
Output voltage varies with the distance between the probe tip and the observed conductive surface.
FluidLoc
Helps prevent oil and other liquids from leaking through the cable interior.
ClickLoc
Gold-plated connector with a tactile click when tightened.
03
Compatibility
Manufacturer-documented interchangeability
3300 XL / 3300 System
3300 XL 8 mm components are backward compatible and interchangeable with documented non-XL 3300-series 5 mm and 8 mm components under the stated conditions.
Replacement Check
Verify the exact probe configuration, connector arrangement, system length and required approvals before replacement.
04
Application
Typical measurement functions
01 · VIBRATION
Dynamic Vibration
Non-contact vibration measurement on machinery with fluid-film bearings.
02 · POSITION
Static Position
Measures the relative distance between the probe tip and the observed conductive target.
03 · KEYPHASOR
Reference & Speed
Supports Keyphasor reference and speed measurement applications.
05
Delivery & Warranty
AMIKON supply handling
01
Inspection
Part number, condition and packaging checked before dispatch.
02
DOA
Report arrival issues promptly with supporting evidence.
03
Warranty
Coverage follows the quotation and order terms.
AM
AMIKON Industrial Automation
Contact · Miya Zheng
06
FAQ
Five quick answers for part selection
What is the configuration of 330103-00-12-10-12-05?
It is a 3300 XL 8 mm proximity probe with M10 × 1 thread, 0 mm unthreaded length, 120 mm case length, 1.0 m total length, miniature coaxial ClickLoc connector with FluidLoc cable, and CSA / ATEX / IECEx approvals.
Does 330103-00-12-10-12-05 use an extension cable?
No. The 1.0 m system configuration does not use an extension cable.
What does the Bently Nevada 3300 XL 8 mm probe measure?
Its output is proportional to the distance between the probe tip and the observed conductive surface, supporting static position and dynamic vibration measurements.
Can 3300 XL and non-XL 3300 components be mixed?
Applicable components are backward compatible under the manufacturer's stated conditions. Mixed XL / non-XL systems are limited to non-XL performance specifications.
What should be checked before ordering 330103-00-12-10-12-05?
Confirm the exact part number, mechanical configuration, total system length, connector arrangement and required approval configuration before ordering.
Recommended Inventory Models · 30+ additional models
330101-00-25-10-02-00 330902-00-40-10-02 40-A-005 25J3P-20030D1R01 QF0238071N6R01 F2AK-06A1I-ACROT11 665-25316-000 M231 U463T053R0601 5526037 VBN3A000.33PA+MVN713A0000 INTEGRA 3425 CYDA15 6SE7090-0XX84-0-KA0 PAW-060606-G 511780-01-01 1011010000 7916121AT 206Q56LR30 6FX8002-5CN41-1AG0 360401000-557-0000H 36040100055 5K110 500-5031 MLC500T30-600 547300-09 OVEM-07-LB-GO-CE-N-LK LECP1N3-LEPY10K-50 0E01991613 A860-0360-V501
Source: Bently Nevada / Baker Hughes, 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
