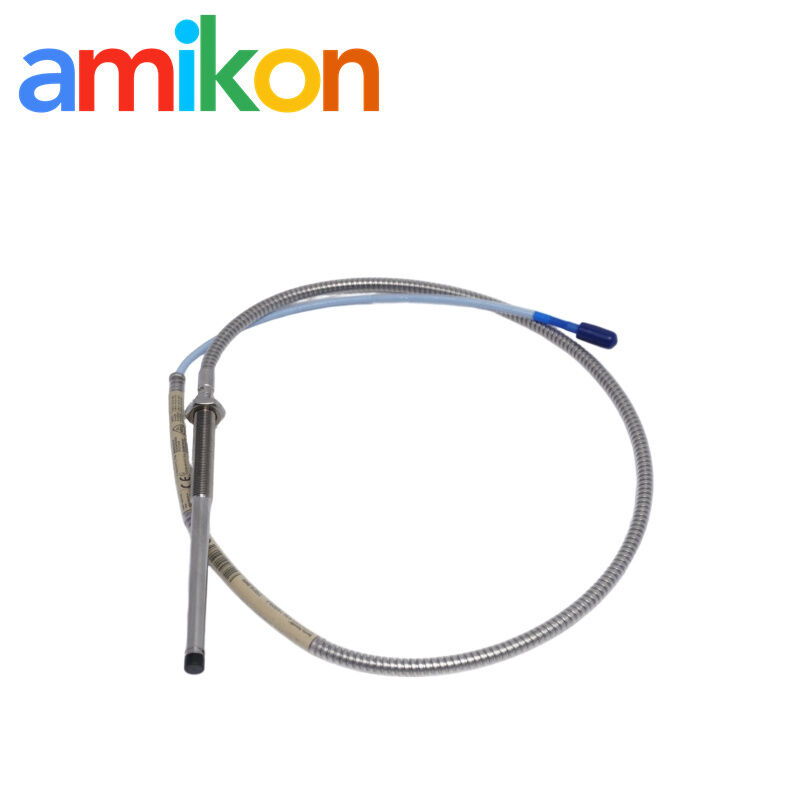

Bently Nevada 330104-08-13-10-01-05 8 mm Proximity Probe | 3300 XL Series
Bently Nevada 8 mm proximity probe
3300 XL Series proximity sensor
Bently Nevada 330104-08-13-10-01-05 probe
Brand Name:
Bently Nevada
Bently Nevada 8 mm proximity probe
,3300 XL Series proximity sensor
,Bently Nevada 330104-08-13-10-01-05 probe
330104-08-13-10-01-05 8 mm Proximity Probe
Standard-mount 3300 XL 8 mm proximity probe with M10 x 1 thread, armor, 80 mm unthreaded length, 130 mm case and 1.0 m total length.
Key specifications
Configuration and system data below follow the Bently Nevada 3300 XL 8 mm documentation.
Spare Parts Support
Product sourcing, inspection and shipment support for industrial automation spare parts.
Original-family and legacy compatibility
Compatibility should be considered at system level rather than by the probe family number alone.
Original 3300 XL system
3300 XL 8 mm probes, extension cables and Proximitor Sensors are designed as interchangeable system components when the required system configuration is maintained.
3300 legacy system
Bently Nevada documents electrical and physical interchangeability between 3300 XL 8 mm components and non-XL 3300 5 mm / 8 mm components. Mixing XL and non-XL components limits performance to the applicable non-XL system specifications.
Typical search and replacement scenarios
A practical reference for maintenance teams looking for the exact probe configuration.
Shaft vibration
Used with the 3300 XL 8 mm system for non-contact shaft vibration measurement on machinery with fluid-film bearings.
Shaft position
The same system can measure static shaft position when the probe, target and Proximitor Sensor are correctly configured.
Exact spare search
Common search details include 330104, 1.0 m length, M10 x 1, armored construction, ClickLoc connector and approval option 05.
Installation
- M10 x 1 probe mounting.
- Maximum thread engagement: 15 mm.
- Recommended radial gap: approximately 1.27 mm.
- ClickLoc connectors require finger-tight installation; no special tool is required.
System setup
- One-meter systems do not use an extension cable.
- Proximitor Sensors are factory calibrated to AISI 4140 steel by default.
- Calibration to other target materials is available upon request.
Inspection, packing and after-sales
Commercial condition and shipment details are provided with the quotation.
DOA
If an item arrives with a suspected defect or shipping damage, contact AMIKON with the part number, photos and packaging information for review.
Warranty
Warranty covers defects attributable to the supplied item under the agreed sales terms. Installation damage, modification and improper use are excluded.
AMIKON Industrial Automation
Request a Quote
Please include the following information.
330104-08-13-10-01-05 FAQ
Short answers for purchasing and maintenance teams.
What does 330104-08-13-10-01-05 specify?
Does the 1.0 m version require an extension cable?
What should be checked before replacing this probe?
How is the probe installed and gapped?
Where can I find information for this model?
