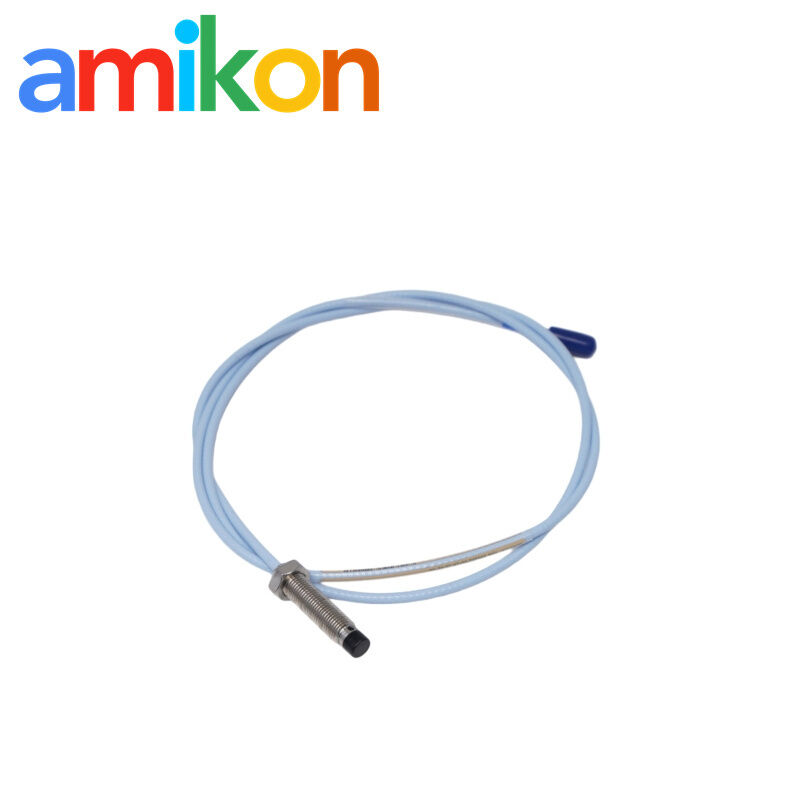

Bently Nevada 330101-00-16-05-11-05 3300 XL 8 mm Proximity Probe · 0.5 m
Bently Nevada 3300 XL proximity probe
8 mm proximity sensor with warranty
0.5 m Bently Nevada probe
Brand Name:
Bently Nevada
Bently Nevada 3300 XL proximity probe
,8 mm proximity sensor with warranty
,0.5 m Bently Nevada probe
330101-00-16-05-11-05
3300 XL 8 mm Proximity Probe · 3/8-24 UNF · 0.5 m configuration
3300 XL 8 mm Proximity Probe
A non-contact eddy-current probe used as part of the 3300 XL 8 mm Proximity Transducer System.
The probe measures the distance to a conductive machine target and forms part of the measurement chain for shaft vibration and position monitoring.
This specific ordering code defines the mechanical configuration, cable arrangement and approval option rather than representing a generic 3300 XL probe.
Verified configuration data
Key values are shown below; the full parameter list is available in the expandable section.
View full technical specification
Replacement within the 3300 system
Compatibility should be checked against the complete transducer chain, not the probe body alone.
Original-family compatibility
Designed for use within the 3300 XL 8 mm Proximity Transducer System, together with compatible extension cables and Proximitor Sensors.
3300 XL 8 mm Extension Cable Proximitor SensorHistorical 3300 compatibility
Bently Nevada documents interchangeability between XL and earlier 3300 5 mm / 8 mm components, with system performance limited to the applicable non-XL specifications when mixed.
3300 5 mm 3300 8 mmWhere the probe is used
Focused on the measurement duties and maintenance situations most relevant to this part.
Measurement duties
- Shaft vibration monitoring
- Shaft / rotor position measurement
- Keyphasor reference
- Speed measurement
Typical replacement situations
- Damaged probe or probe tip
- Cable or connector damage
- Maintenance replacement during shutdown
- Measurement channel troubleshooting
Ready for replacement purchasing
Configuration and physical condition are checked before dispatch.
Part number and condition verified.
Connector area protected for shipment.
Report with order evidence if received damaged.
Subject to AMIKON warranty terms.
Need this exact configuration?
RFQ
Send these six details for a faster quotation:
330101-00-16-05-11-05 FAQ
