Product Description
Bently Nevada · 24701 Series

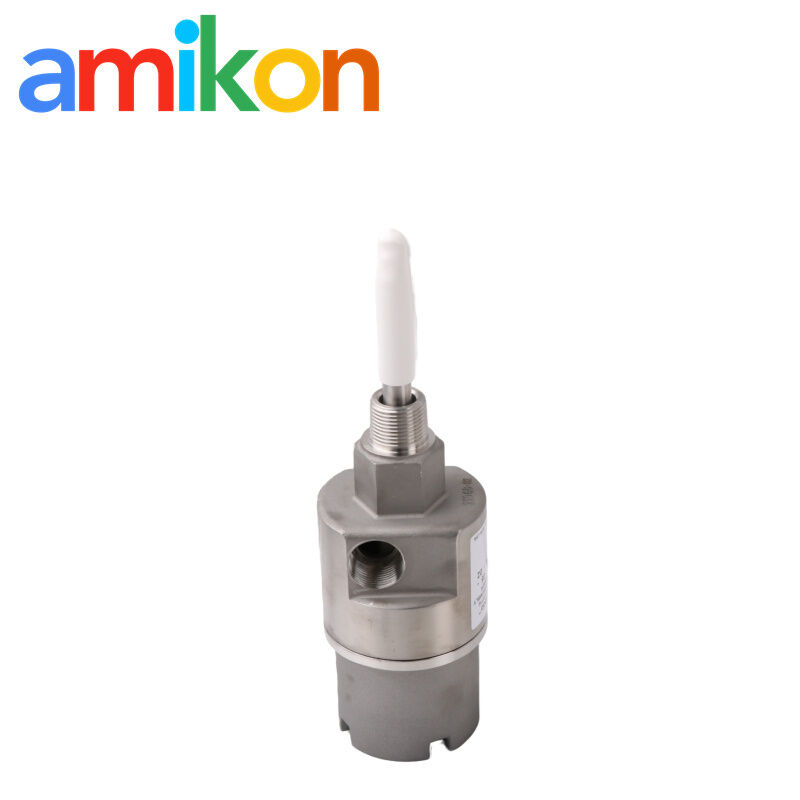

24701-34-05-00-041-03-02 Proximity Probe Housing Assembly · 3300 XL 8 mm
Stainless-steel housing assembly for external proximity-probe installation, configured for the 3300 XL 8 mm probe.
Part Number 24701-34-05-00-041-03-02
Product Type Proximity Probe Housing Assembly
01 / OVERVIEW
External probe housing for rotating machinery
Bently Nevada / Baker Hughes
The 24701 series provides a mechanical housing arrangement for externally mounted proximity probes. It is intended for installations where the probe position, housing geometry and field connection arrangement need to match the existing machine setup.
Family 24701
Construction Stainless steel
Probe family 3300 XL
02 / TECHNICAL SPECIFICATIONS
Configuration details
Source: Bently Nevada Datasheet 141600 Rev. AA
Manufacturer
Bently Nevada / Baker Hughes
Product Type
24701 Proximity Probe Housing Assembly
Housing Material
303 stainless steel body; 304 stainless steel probe sleeve
Option 34 — Probe
3300 XL 8 mm probe with connector protector; selectable hazardous-area approvals
Option 05 — Cable
0.5 m (20 in) probe cable
Option 00 — Standoff
No standoff adapter
Option 041 — Penetration
4.1 in (approximately 104 mm)
Option 03 — Fittings
One 3/4-14 NPT plug; one 3/4-14 to 1/2-14 NPT reducer; one cable seal grip with grommets for specified cable sizes
Option 02 — Mounting Thread
3/4-14 NPT
Cable Seal Grip Range
1/8–3/16 in; 1/4–5/16 in; 5/16–3/8 in
Series24701 Housing assembly
Position 134 3300 XL 8 mm
Position 205 0.5 m cable
Position 300 No standoff
Position 4041 4.1 in penetration
Positions 5–603 / 02 Fittings / mounting thread
03 / COMPATIBILITY & REPLACEMENT
Match the installation, not just the series
Original family
24701 Series
The target assembly belongs to the Bently Nevada 24701 proximity probe housing family.
Historical family reference
21000 / 164818
Both are identified in the manufacturer's housing documentation as other proximity-probe housing assemblies, rather than direct equivalents to this exact ordering configuration.
Replacement check
Verify the complete order string
Check the installed probe, cable arrangement, penetration, fittings and mounting interface before selecting another configuration.
04 / INSTALLATION & SIGNAL PATH
Mechanical position comes first
Machine Target The rotating-machine surface being monitored.
→
Proximity Probe Installed at the required measurement position.
→
Housing / Field Connection Secures the external probe installation and cable interface.
Probe positioning Maintain the required probe location relative to the machine target.
Long sleeve support Sleeves longer than 304 mm (12 in) require additional support to reduce vibration.
Field connection The housing's fitting arrangement should match the existing installation.
05 / APPLICATION & FAULT SCENARIOS
Typical maintenance search points
Searchers typically arrive at this part number when an existing proximity-probe installation needs a like-for-like housing assembly or when the original assembly has been damaged or removed during machine maintenance.
Housing damage Physical damage to the installed probe housing requires replacement.
Maintenance replacement Existing assembly is removed during machinery inspection and needs to be restored.
Installation mismatch A replacement assembly does not align with the existing mechanical arrangement.
Downtime pressure An unavailable or incorrectly configured assembly can delay return of monitored equipment.
06 / DELIVERY & WARRANTY
Supply and inspection
Inspection Part number check
Model and physical condition are checked before dispatch.
Packaging Protective packing
Packed for safe handling and transportation.
Warranty 12 Months
Covers confirmed product defects under normal use.
DOA Prompt handling
Report arrival damage or DOA condition with supporting photos.
07 / FAQ & RFQ
24701-34-05-00-041-03-02
Can AMIKON supply Bently Nevada 24701-34-05-00-041-03-02?
Yes. AMIKON Industrial Automation supplies this model through its industrial automation spare-parts channel. Send the complete part number when requesting a quotation.
What should be checked before replacing a 24701 assembly?
Check the existing probe installation and the complete 24701 ordering configuration, especially the mechanical interface and field connection arrangement.
Is the 24701 housing suitable for external probe installation?
Yes. The 24701 family is designed for external mounting of proximity probes.
Does this 24701 configuration use a standoff adapter?
No. The “00” ordering position specifies no standoff adapter.
What information should I send for an RFQ?
Please provide Part Number, Quantity, Destination, Required Date, Machine and System Model. A photo of the installed assembly is also useful for configuration checking.
