Bently Nevada 84661-34 Standard Armored Interconnect Cable · 22 AWG
Bently Nevada 84661-34 armored cable
Bently Nevada 22 AWG interconnect cable
Bently Nevada standard interconnect cable
Brand Name:
Bently Nevada
Bently Nevada 84661-34 armored cable
,Bently Nevada 22 AWG interconnect cable
,Bently Nevada standard interconnect cable
Bently Nevada 84661-34

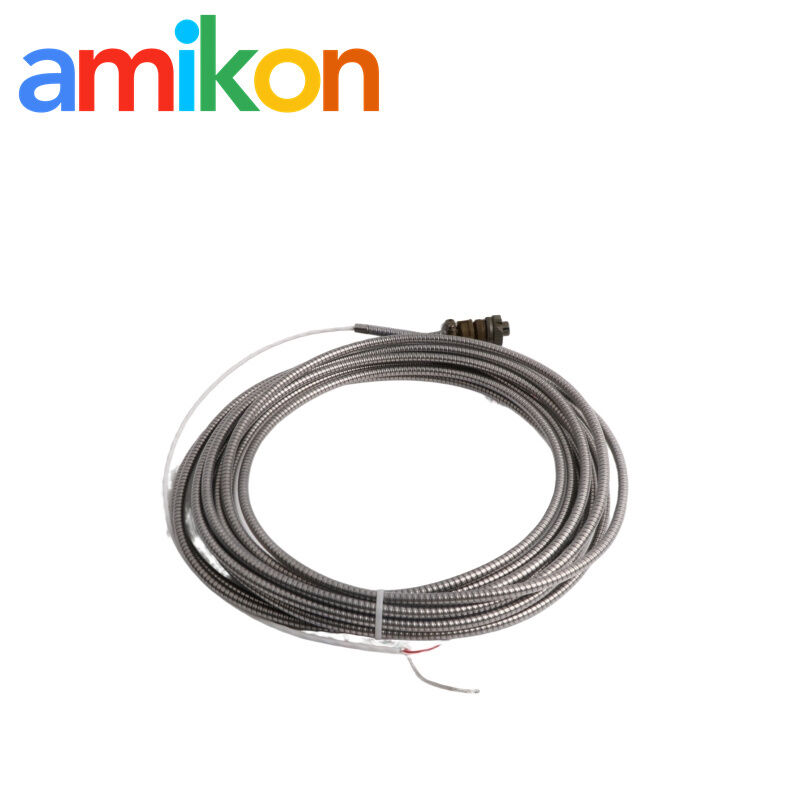

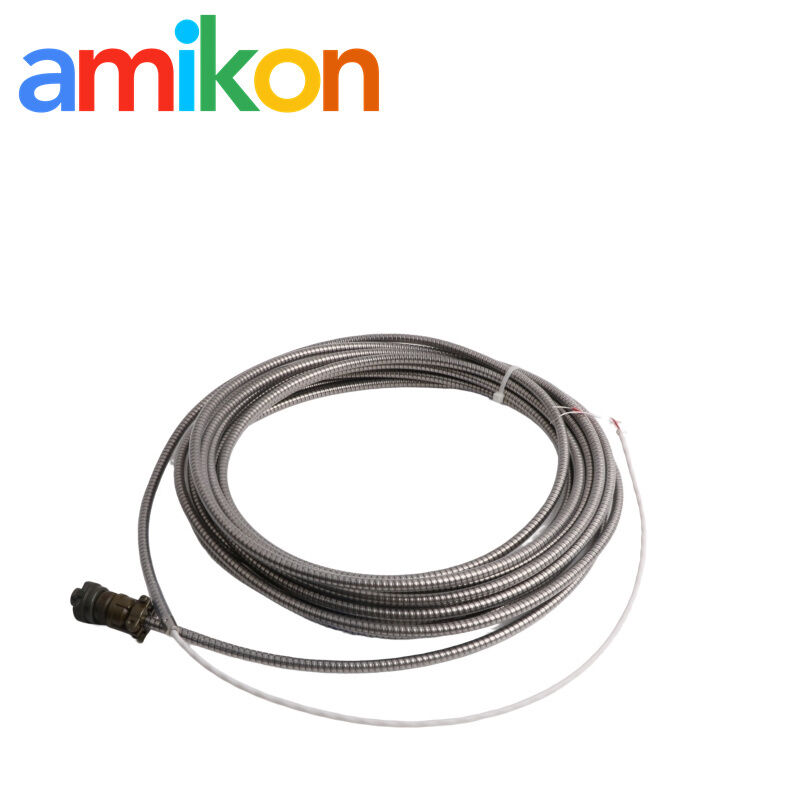

Standard armored interconnect cable for the 330750 / 330752 High Temperature Velomitor System. The 84661-34 configuration specifies a 34-foot cable with stainless steel armor and a shielded 0.382 mm² (22 AWG) cable.
Built into the HTVS signal connection
The 84661-34 connects the high-temperature assembly with the monitor-side termination.
Bently Nevada lists the 84661-NN as the Standard Armored Interconnect Cable for the 330750 / 330752 High Temperature Velomitor System.
The cable uses stainless steel armor and shielded 22 AWG construction. The 34-foot length is identified by the “34” suffix.
Technical specifications
View 84661-34 specifications
Three-point connection
The cable occupies the interconnect position between the HTVS assembly and monitor.
Compatibility & replacement
The important distinction within the 84661 family is cable length.
Original documented application
84661-NN Standard Armored Interconnect Cable is listed for the 330750 / 330752 High Temperature Velomitor System.
- 84661-34 = 34 ft
- Shielded 22 AWG cable
- Stainless steel armor
Other 84661 lengths
The NN suffix identifies cable length in feet. Other suffixes therefore represent different cable-length configurations rather than the same 84661-34 part number.
Application & fault scenario
Why this cable appears in maintenance and replacement searches.
High-temperature vibration monitoring
Used as the interconnect cable in the Bently Nevada 330750 / 330752 High Temperature Velomitor System.
Lost or intermittent signal
Cable or termination damage can interrupt the vibration signal path, making the interconnect a maintenance replacement item.
Inspection & warranty
AMIKON supply process for industrial spare parts.
Inspection before shipment
Part number, quantity and physical condition are checked before dispatch. Inspection photographs are available where applicable.
Warranty & DOA
Confirmed product defects are handled under applicable AMIKON warranty terms. DOA or transport-damage cases should be reported promptly with photographs.
Request availability for 84661-34
Contact: Miya Zheng
RFQ information
84661-34 FAQ
Four practical questions for identification and ordering.
Which Bently Nevada system is 84661-34 specified for?
The 84661-NN Standard Armored Interconnect Cable is listed for the 330750 and 330752 High Temperature Velomitor System.
Does the “34” in 84661-34 indicate the cable length?
Yes. The 84661-NN ordering convention uses NN to specify cable length in feet, so 84661-34 denotes a 34-foot cable.
What terminations are supplied with 84661-34?

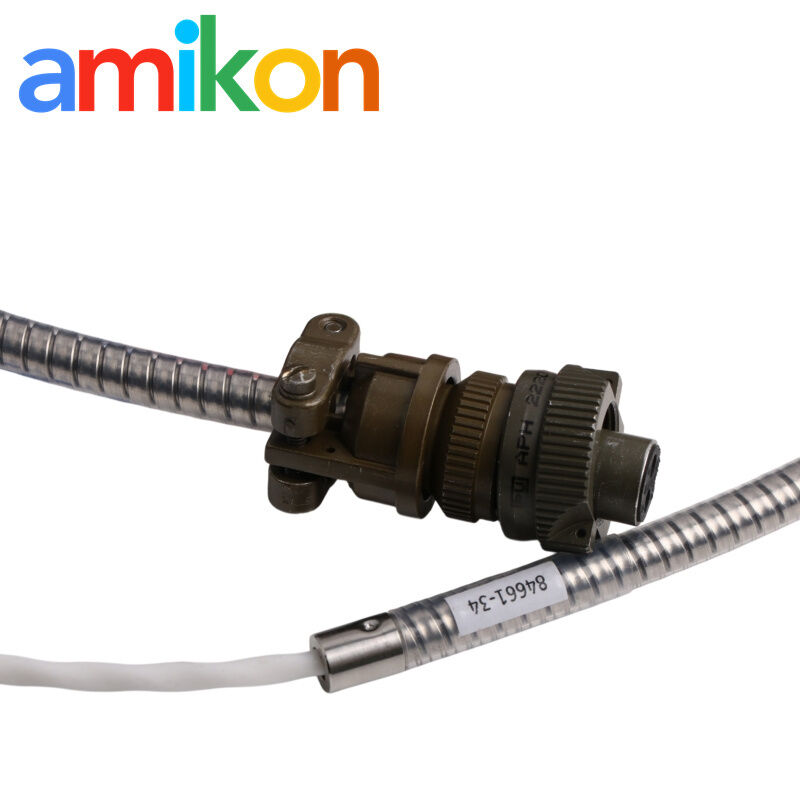

The documented configuration has a moisture-resistant female connector at the HTVS end and ring lugs at the monitor end.
Can AMIKON quote Bently Nevada 84661-34?
Yes. Send the Part Number, Quantity, Destination, Required Date, Machine and System Model to sales@amikon.cn for availability and quotation.
Additional inventory
Additional industrial automation inventory for browsing.
Technical specifications are based on Bently Nevada Datasheet 141639.
