Product Description
Allen-Bradley · PanelView 5510

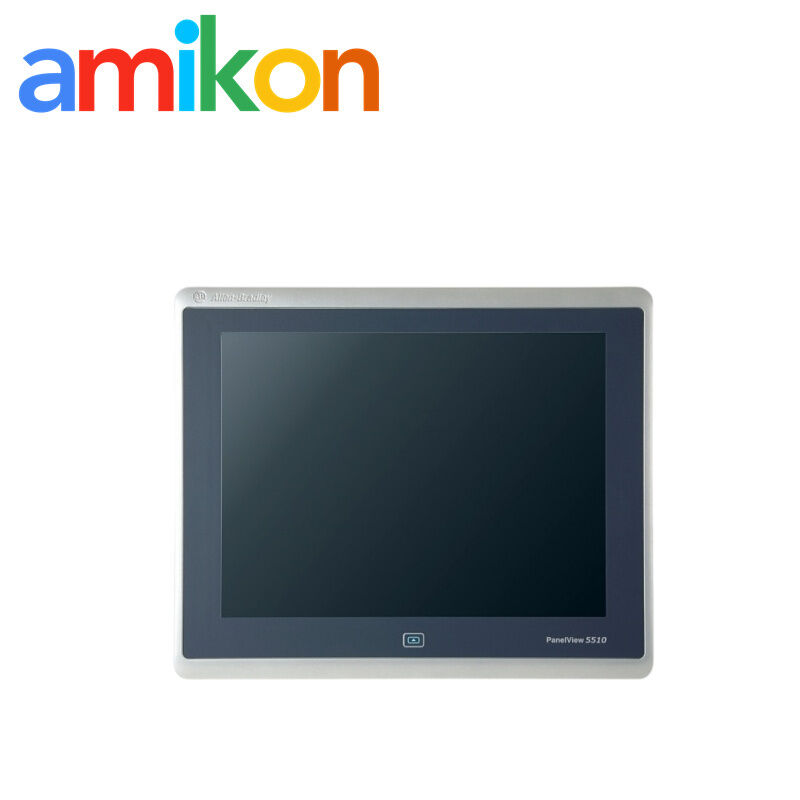

2715P-T15CD-K PanelView 5510 Graphic Terminal · 15 in. 4:3 Resistive Touch
A 15-inch PanelView 5510 operator terminal with resistive touch input, 24V DC power and conformal coating for industrial HMI applications.
01 · TECHNICAL DATA
Technical Specifications
Key configuration and installation data
View specifications
Catalog Number
2715P-T15CD-K
Terminal Series
PanelView 5510
Display
15 in. Color TFT LCD
Resolution
1024 × 768 XGA
Aspect Ratio
4:3
View Area
304 × 228 mm
Color Depth
24-bit color graphics
Brightness
300 cd/m² typical or greater
Touch
Analog resistive
Touch Actuation
1 million presses
Input Voltage
24V DC nominal, 18…30V DC
Max. Power Consumption
33 W
Ethernet
2 × 10/100Base-T
Network Topology
DLR, Linear, Star
USB
2 × Type A host + 1 × Type B device
SD Card
1 slot; 1784-SDx supported
Operating Temperature
0…55 °C
Nonoperating Temperature
−25…+70 °C
Humidity
5…95% noncondensing
Front Protection
IP66 / NEMA 4X, 12, 13
Conformal Coating
Yes
Overall Dimensions
318 × 381 × 69.5 mm
Mounted Depth
64 mm
Panel Cutout
290 × 353 mm
02 · SYSTEM PATH
Control & Communication
Typical PanelView 5510 architecture
Logix Controller ControlLogix or CompactLogix platform
→
EtherNet/IP 10/100Base-T network connection
→
2715P-T15CD-K Operator display and touch interface
03 · COMPATIBILITY
Compatibility & Replacement
Logix Controller Compatibility
Compatible with ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers with firmware V27 or later.
Replacement Check
Match the catalog number, PanelView project, controller setup, 24V DC supply, network configuration and 290 × 353 mm panel cutout.
04 · FIELD USE
Application & Fault Scenarios
01
Operator Station
Local machine and process monitoring, control and operator interaction.
02
Replacement Trigger
Evaluate when the installed terminal has display, touch or startup problems.
03
Communication Loss
Network or controller faults can remove normal HMI data and operator access.
05 · SUPPLY
Delivery & Warranty
Packaging Protective industrial packaging
DOA Report damage or failure with evidence
Warranty 12 months
Lead Time Confirmed with quotation
AMIKON Industrial Automation
Send the exact part number for availability and quotation.
06 · FAQ
Frequently Asked Questions
Click a question to view the answer
What should be checked before replacing an installed 2715P-T15CD-K?
Match the catalog number, PanelView project, controller, 24V DC supply, network setup and 290 × 353 mm panel cutout.
Which Logix controllers can be used with the 2715P-T15CD-K?
ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 with firmware V27 or later.
What does the K suffix indicate on 2715P-T15CD-K?
The K configuration has conformal coating.
What Ethernet configuration does the 2715P-T15CD-K support?
Two 10/100Base-T ports with DLR, linear and star topology support.
What information should be included when requesting a quotation?
Part Number, Quantity, Destination, Required Date, Machine and System Model.
Request a Quote
For 2715P-T15CD-K availability or replacement checking, contact AMIKON directly.
