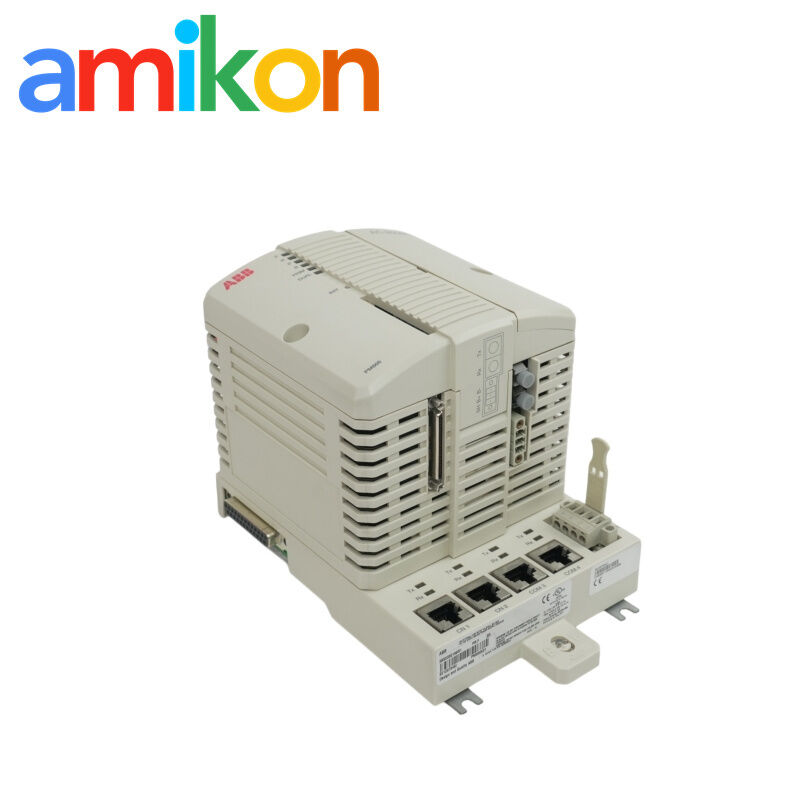

ABB PM866K01 3BSE050198R1 Processor Unit — 133 MHz / 64 MB
ABB PM866K01 processor unit
ABB PLC with 133 MHz
64 MB ABB processor unit
Place of Origin:
SWEDEN
Brand Name:
ABB
Contact Us
Request A Quote
Product Details
Highlight:
ABB PM866K01 processor unit
,ABB PLC with 133 MHz
,64 MB ABB processor unit
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
2-3 work days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
ABB AC 800M Processor Unit
ABB PM866K01 3BSE050198R1 Processor Unit — 133 MHz / 64 MB
01
Product Overview
ABB PM866K01 is an AC 800M processor unit with a 133 MHz MPC866 processor and 64 MB memory.
Technical Specifications
View Technical Specifications
ManufacturerABB
Article Number3BSE050198R1
Type DesignationPM866K01
Product TypeProcessor Unit
ProcessorMPC866
Processor Frequency133 MHz
Memory64 MB RAM
Controller FamilyAC 800M
Ethernet2 × Ethernet channels
RS-232C2 × RS-232C interfaces
CompactFlashApplication loading / cold retain data storage
Lifecycle StatusLimited; replacement available
Hardware Configuration
PM866K01 Package
PM866 CPU, TP830 baseplate, TB850 CEX-Bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator and battery for memory backup.
Communication
Two Ethernet channels and two RS-232C interfaces are documented for the processor unit.
CompactFlash
The CompactFlash interface supports application loading and cold retain data storage.
AC 800M Architecture
The processor unit works within the AC 800M architecture using CEX-Bus, ModuleBus and RCU-Link connections.
Compatibility & Replacement Check
01
Exact Identification
Match both PM866K01 and 3BSE050198R1 with the installed unit.
02
System Configuration
Review the existing AC 800M configuration and connected hardware before replacement.
03
Replacement Review
ABB lists PM866K01 as Limited with replacement available. System compatibility should be confirmed before substitution.
Maintenance Notes
Before placing a replacement order: compare the complete article number, processor-unit configuration, TP830 baseplate arrangement and the connected CEX-Bus, ModuleBus and RCU-Link components. This is particularly important when the existing AC 800M controller remains in service.
Delivery & Warranty
Delivery 3–5 Days Fast order processing
Pre-shipment Check Product inspection before dispatch
Secure Export Packing Protected for international shipping
12-Month Warranty Warranty support included
FAQ
1. Is PM866K01 3BSE050198R1 supplied as a complete processor unit kit?
Yes. ABB documents PM866K01 as a Processor Unit Kit. The documented package includes the PM866 CPU, TP830 baseplate, TB850 CEX-Bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator and a battery for memory backup. If only the processor is required, the existing installation should be checked carefully before ordering.
2. What should I check when replacing an existing PM866K01 in an AC 800M system?
Check more than the model number. The installed PM866K01 / 3BSE050198R1, TP830 baseplate arrangement and connected CEX-Bus, ModuleBus and RCU-Link configuration should be compared with the required replacement. The controller configuration should also be reviewed before substitution.
3. ABB lists PM866K01 as “Limited” with a replacement available. Can another processor be installed directly?
Not automatically. ABB's lifecycle information lists PM866K01 as Limited with a replacement available, but this does not by itself confirm a drop-in substitution for every existing installation. PM866AK01 is separately listed by ABB, so the installed system and hardware revision should be checked before using another processor variant.
4. Why should customers confirm both PM866K01 and 3BSE050198R1 when requesting a quotation?
PM866K01 is the ABB type designation, while 3BSE050198R1 identifies the specific article. Providing both identifiers gives the purchasing team a clearer reference for the requested hardware and reduces the risk of selecting a different AC 800M processor variant.
Request for Quotation
Need ABB PM866K01 3BSE050198R1? Send the part number and project details for quotation.
Part Number PM866K01 / 3BSE050198R1
Quantity Required quantity
Destination Shipping destination
Required Date Target delivery date
Machine Equipment information
System Control system
Contact: Miya Zheng | Email: sales@amikon.cn | WhatsApp: +86 180 2077 6792
