Bently Nevada 200150-02-CN General Purpose Trendmaster Accelerometer
Bently Nevada 200150-02-CN General Purpose Trendmaster Accelerometer
Bently Nevada 200150-02-CN
Trendmaster Accelerometer
Option 02 Plate-Mount Stud
Brand Name:
Bently Nevada
Model Number:
200150-02-CN
Contact Us
Request A Quote
Product Details
Highlight:
Bently Nevada 200150-02-CN
,Trendmaster Accelerometer
,Option 02 Plate-Mount Stud
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
INDUSTRIAL AUTOMATION SPARE

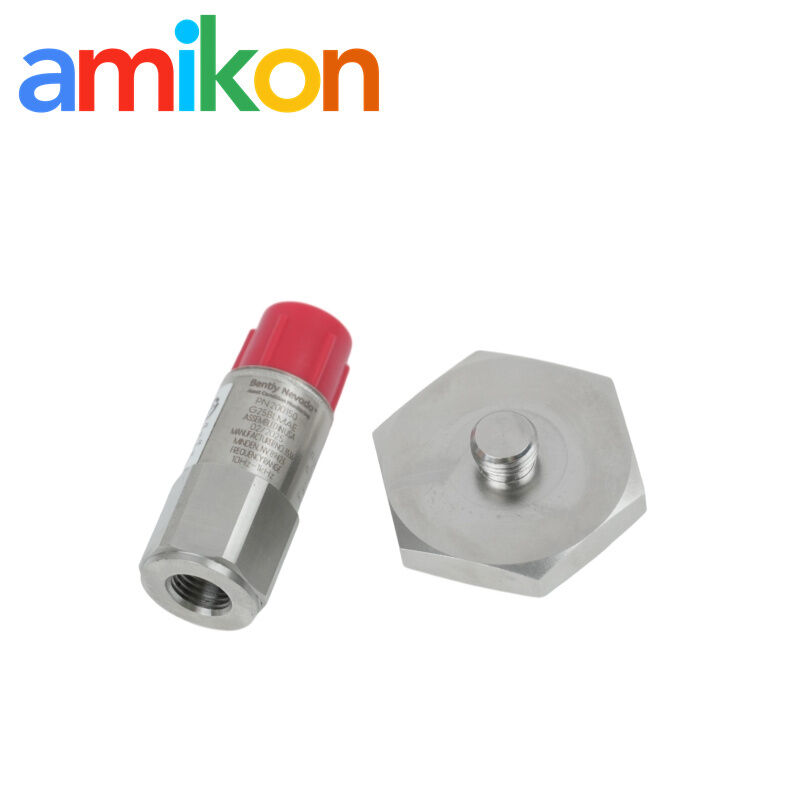

Bently Nevada 200150-02-CN General Purpose Trendmaster Accelerometer
A hermetically sealed case-mounted accelerometer for Trendmaster machinery condition monitoring, configured with the 3/8-24 UNF plate-mounting stud option.
Type
Piezoelectric accelerometer
System
Trendmaster ProTIMs / Trendmaster 2000
Focus
Option 02 plate stud · CN identifier
Brand
Bently Nevada
SYSTEM INTEGRATION
System Fit & Selection
Monitor interfaces
Interface options include the 200100 Dual Accel-to-Velocity flexiTIM, 89130-01 Accel-to-Velocity TIM, and 1900/25 or 1900/27 monitors.
SPECIFICATIONS
Technical Specifications
Complete part number
200150-02-CN
Sensor family
200150 general-purpose accelerometer
Measurement output
Differential voltage proportional to acceleration
Mounting option 02
3/8-24 to 3/8-24 UNF stud
Stud form
1-3/8 inch hex plate stud
Sensitivity at 80 Hz
10.2 mV/(m/s²), equivalent to 100 mV/g, ±12%
Acceleration range
±245 m/s² (±25 g)
Frequency response
10 to 1,000 Hz (600 to 60,000 cpm), ±10%
Mounted resonance
>20 kHz
Amplitude linearity
±2%
Transverse sensitivity
≤7%
Settling time
≤300 ms
Excitation voltage
4.7 to 5.5 Vdc
Quiescent current
<800 µA
Output bias voltage
+2.5 Vdc ±0.23 Vdc
Electrical isolation
600 Vrms, case to common
Shock limit
5,000 g peak
Operating temperature
-40 to +105 °C
Humidity
100% relative humidity, condensing, non-submerged
Housing material
316L stainless steel
Dimensions
17.5 mm diameter × 45.7 mm height
Approximate weight
58 g
Mounting thread
3/8-24 UNF
Mounting torque
2.7 to 6.8 N·m
Connector
Top-mounted 5-pin, 1/2-20
FIELD SUPPORT
Applications & Fault Scenarios
Low casing-vibration response
First check
Check the mounting surface, mounting torque and whether rotor vibration is being transmitted to the bearing casing.
Downtime risk
A poor mechanical interface can understate a developing machine problem.
Bias voltage outside the expected value
First check
Inspect excitation, connector seating and cable continuity before changing monitor settings.
Downtime risk
An open or damaged signal path can remove a usable trend channel.
Unexpected change after replacement
First check
Confirm the full 200150-02-CN reference, mounting stud, cable family and monitor input.
Downtime risk
A configuration mismatch can create misleading trends or prolong restart checks.
AMIKON SUPPORT
About Amikon & Service Support
Amikon supports independent sourcing and fulfillment for industrial automation spare parts.
01
Order Review
We check part number, quantity, destination and required date.
02
Inspection & Testing
Identity and condition checks follow the agreed order.
03
Packing & Dispatch
Packing and shipment details are prepared for the destination.
04
After-sales Support
DOA, returns and warranty support follow the agreed sales terms.
MORE SOURCING REQUESTS
Multi-brand Spare Parts Also Requested
01BEHB82L086
02IE5266
03RU42S-C-A110
04BCB-58-6 U8800153
052700-AA6A4B3H
06X36421510
0730B20H
082501-LL-12-12-FG
099L-EE45-M2-C2A-TT
10A-5003-1218
11RZ7-FSM7UU23
12CSG-4222-043-HC-A024
1311-11122-F2
14EYN911MS-0035FT
153732-HR
16P21939-E20
17RG001530170
18602003746RK
1931AR662A
2073711085
216655231 WIH052076
22QOU1402100
23AFC-575
24IF5597 IF-2004-FRKG
25260Z-000032
269000-41034-0401000
2732844 / 32844D
28035682000B
29TL-X10C1-GL
30CAN-CTR101
Procurement note
These 30 models are independent procurement references only. They are not replacements for 200150-02-CN. Compatibility, configuration and inventory must be checked separately for every request.
REQUEST A QUOTE
RFQ Details & Direct Contact
Please include
- Part Number
- Quantity
- Destination
- Required Date
- Machine / System Model
BUYER QUESTIONS
Frequently Asked Questions
Use the complete part number and match the 3/8-24 to 3/8-24 UNF plate stud mounting-stud configuration to the machine.
Inspect the mounting surface, stud seating and mounting torque, then check the interface cable and connector.
Check the 4.7 to 5.5 Vdc excitation, connector seating, cable continuity and monitor input before replacing the sensor.
The 200150 works with Trendmaster ProTIMs and Trendmaster 2000, including the listed flexiTIM, TIM and 1900-series monitor interfaces.
200150-02-CN uses 3/8-24 to 3/8-24 UNF plate stud; 200150-06-CN uses 3/8-24 to 1/4 NPT stud. The accelerometer performance is from the same 200150 family.
Include the complete part number, quantity, destination, required date, machine or system model, mounting-point details and installed interface.
