3701/55 ADAPT ESD
323073-01 is the 4-channel relay output module used in the 3701/55 ADAPT ESD system.
Home
>
Products
>
Bently Nevada
>
Bently Nevada 323073-01 3701/55 ADAPT ESD 4-Channel Relay Output Module
Bently Nevada 323073-01 3701/55 ADAPT ESD 4-Channel Relay Output Module
Bently Nevada 323073-01
3701/55 ADAPT ESD Relay Module
4-Channel Relay Output
Brand Name:
Bently Nevada
Model Number:
323073-01
Contact Us
Request A Quote
Product Details
Highlight:
Bently Nevada 323073-01
,3701/55 ADAPT ESD Relay Module
,4-Channel Relay Output
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
INDUSTRIAL AUTOMATION SPARE

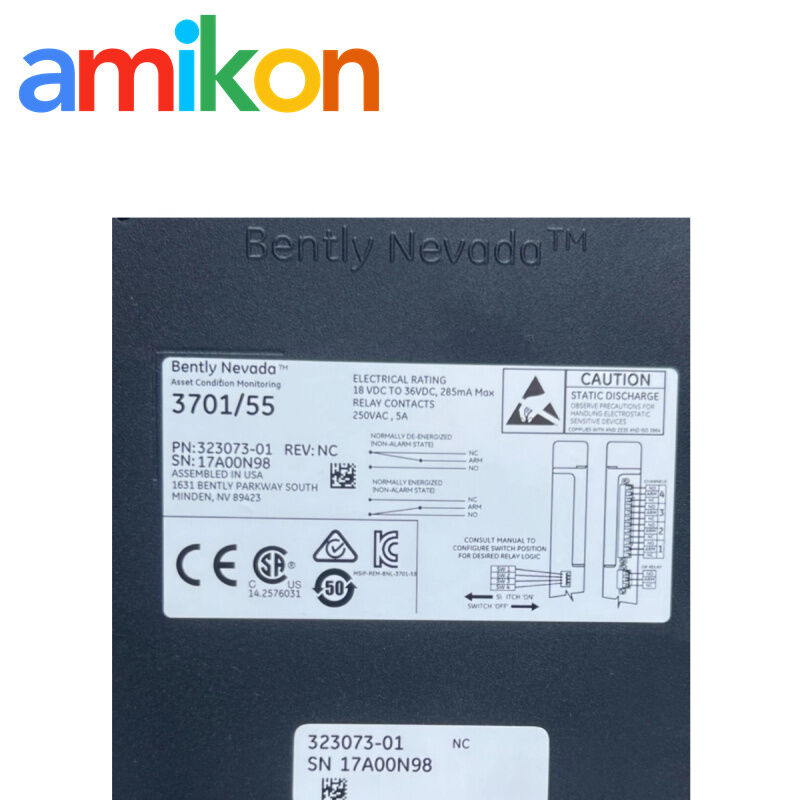

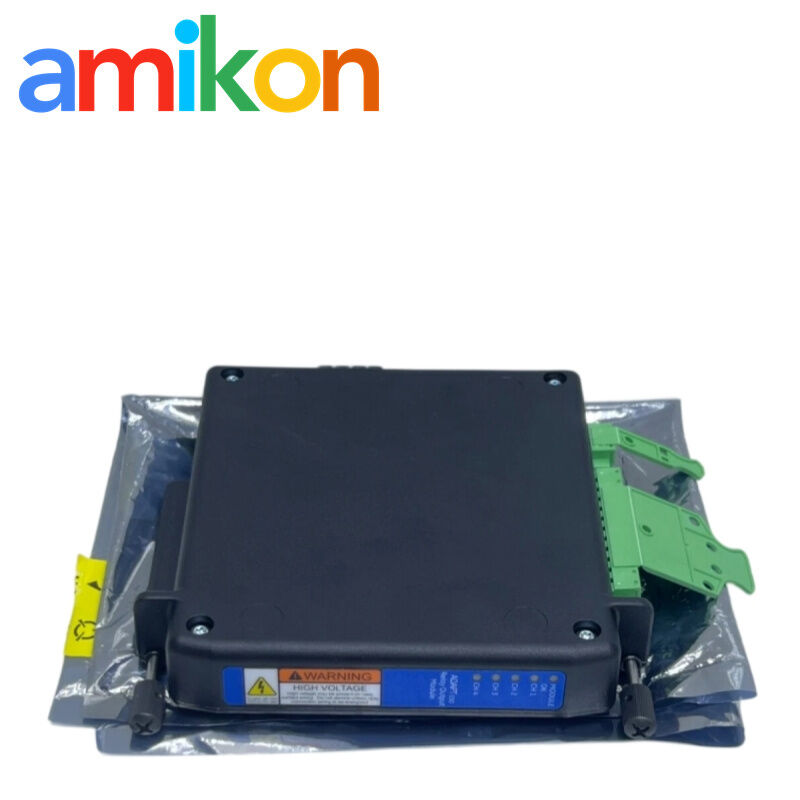

Bently Nevada 323073-01 3701/55 ADAPT ESD 4-Channel Relay Output Module
A relay output module for the 3701/55 ADAPT ESD emergency-shutdown system, providing four configurable control relays plus one system OK relay contact.
Type
Emergency-shutdown relay module
System
3701/55 ADAPT ESD
Focus
4 control channels · OK relay · SPDT
Brand
Bently Nevada
SYSTEM INTEGRATION
System Fit & Selection
Relay-channel arrangement
Channels 1 and 2 support independent 1oo1 or TMR 2oo3 operation; Channels 3 and 4 operate as independent 1oo1 outputs.
Contact material option
323073-02 is the gold-plated-contact version.
SPECIFICATIONS
Technical Specifications
Part number
323073-01
Module type
ADAPT ESD 4-Channel Relay Output Module
Control relay channels
4
Additional contact
1 system OK relay
Channels 1 and 2
Independent 1oo1 or TMR 2oo3
Channels 3 and 4
Independent 1oo1
Contact form
SPDT with normally-open and normally-closed contacts
AC rating
5 A at 250 Vac; 1,500 VA maximum
DC rating
5 A at 250 Vdc; 150 VA maximum
Minimum switching load
12 Vdc at 100 mA
Relay transition time
8 ms
Relay modules per system
3
Module dimensions
15.8 × 2.8 × 15.8 cm
Approximate module weight
0.6 kg
System input power
18 to 36 Vdc
System power consumption
24 W typical; 35 W maximum
System operating temperature
-30 to +65 °C
System storage temperature
-45 to +85 °C
System humidity
0 to 95% relative humidity, non-condensing
System functional safety
3701/55 ADAPT ESD is certified as a SIL 3 device to IEC 61508 Parts 1–7
FIELD SUPPORT
Applications & Fault Scenarios
Relay channel indication does not follow the commanded state
First check
Check the commanded logic state, field wiring, load voltage and relay diagnostics under the site safety procedure.
Downtime risk
A failed output path can prevent a demanded shutdown or create an unwanted trip.
Output changes but the final element does not respond
First check
Check normally-open versus normally-closed wiring and keep the connected load within the contact rating.
Downtime risk
Miswiring or excessive load can damage the trip path and extend downtime.
Voting behavior differs from the cause-and-effect chart
First check
Check whether Channels 1 and 2 are configured for 1oo1 or TMR 2oo3; Channels 3 and 4 are 1oo1 only.
Downtime risk
Incorrect voting assumptions can compromise the intended shutdown philosophy.
AMIKON SUPPORT
About Amikon & Service Support
Amikon supports independent sourcing and fulfillment for industrial automation spare parts.
01
Order Review
We check part number, quantity, destination and required date.
02
Inspection & Testing
Identity and condition checks follow the agreed order.
03
Packing & Dispatch
Packing and shipment details are prepared for the destination.
04
After-sales Support
DOA, returns and warranty support follow the agreed sales terms.
MORE SOURCING REQUESTS
Multi-brand Spare Parts Also Requested
011PP/6695/RLBR STR2QLH
02103021PZXE7MJZ
03668105601 GWSHP01
04R11253801
05P0916MU-0A
068603-FT-FU-01 PAC8000
07K22-240
082-1/16-16 UNS-3B
09DEE2R-815D
102004-1302
11F3000-W-BOWL-FM
1257025-000
13PT3012A21P100
14T1X-L204S-Q11
15STJCRF062D
16VTE14SZ
17C12M-STUPL1103-14
181083434595
19P-136-49-MSHA
203534JA
21634275-90
22BK6425
23FIS-00-0101-B
244977D40G04
25GV3ME08 GV3M08
26C85Y20-280-XB6
27ADMT160660R-F56 WSP45
281747-L531
29800T-QH2G
3062R25
Procurement note
These 30 models are independent procurement references only. They are not replacements for 323073-01. Compatibility, configuration and inventory must be checked separately for every request.
REQUEST A QUOTE
RFQ Details & Direct Contact
Please include
- Part Number
- Quantity
- Destination
- Required Date
- Machine / System Model
BUYER QUESTIONS
Frequently Asked Questions
Match the 3701/55 system, the 323073-01 part number, contact material and the required channel voting arrangement.
Check the normally-open and normally-closed wiring, load voltage, contact rating, field fuse and final control element.
Channels 1 and 2 support TMR 2oo3 or independent 1oo1 operation. Channels 3 and 4 are independent 1oo1 outputs.
Check NO/NC terminal selection, energize or de-energize logic, voting configuration and field wiring against the cause-and-effect chart.
Compare the field load with the AC or DC contact rating in the specifications and the 12 Vdc, 100 mA minimum switching load.
Include the complete part number, quantity, destination, required date, 3701/55 system model, channel assignment and contact-load details.
