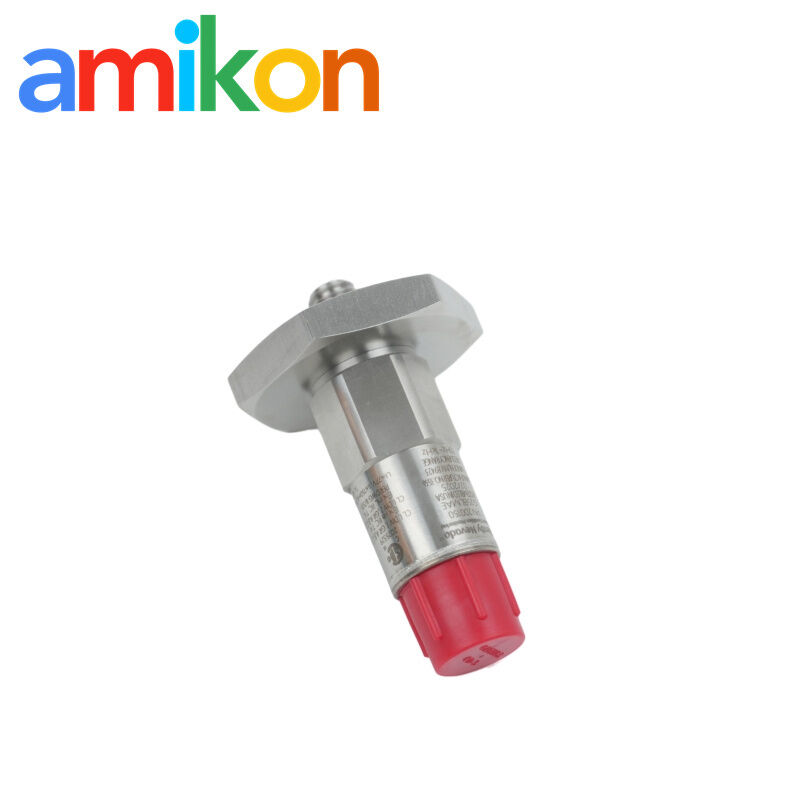

Bently Nevada 200150-06-CN General Purpose Trendmaster Accelerometer
A hermetically sealed case-mounted accelerometer for Trendmaster machinery condition monitoring, configured with the 3/8-24 to 1/4 NPT mounting-stud option.
Type
Piezoelectric accelerometer
System
Trendmaster ProTIMs / Trendmaster 2000
Focus
Option 06 · 1/4 NPT stud · CN identifier
Brand
Bently Nevada
SYSTEM INTEGRATION
System Fit & Selection
Monitor interfaces
Interface options include the 200100 Dual Accel-to-Velocity flexiTIM, 89130-01 Accel-to-Velocity TIM, and 1900/25 or 1900/27 monitors.
SPECIFICATIONS
Technical Specifications
Complete part number
200150-06-CN
Sensor family
200150 general-purpose accelerometer
Measurement output
Differential voltage proportional to acceleration
Mounting option 06
3/8-24 to 1/4 NPT stud
Stud form
3/4 inch hex stud
Sensitivity at 80 Hz
10.2 mV/(m/s²), equivalent to 100 mV/g, ±12%
Acceleration range
±245 m/s² (±25 g)
Frequency response
10 to 1,000 Hz (600 to 60,000 cpm), ±10%
Mounted resonance
>20 kHz
Amplitude linearity
±2%
Transverse sensitivity
≤7%
Settling time
≤300 ms
Excitation voltage
4.7 to 5.5 Vdc
Quiescent current
<800 µA
Output bias voltage
+2.5 Vdc ±0.23 Vdc
Electrical isolation
600 Vrms, case to common
Shock limit
5,000 g peak
Operating temperature
-40 to +105 °C
Humidity
100% relative humidity, condensing, non-submerged
Housing material
316L stainless steel
Dimensions
17.5 mm diameter × 45.7 mm height
Approximate weight
58 g
Mounting thread
3/8-24 UNF
Mounting torque
2.7 to 6.8 N·m
Connector
Top-mounted 5-pin, 1/2-20
FIELD SUPPORT
Applications & Fault Scenarios
Low measured casing response
First check
Check the 1/4 NPT mounting point, stud seating and specified mounting torque.
Downtime risk
Poor coupling can conceal a meaningful increase in machine casing vibration.
No stable bias voltage
First check
Check 4.7 to 5.5 Vdc excitation, interface cable continuity and connector condition.
Downtime risk
A failed channel removes condition-trending evidence and can delay maintenance decisions.
Unexpected result after installation
First check
Compare the full 200150-06-CN reference, stud option, interface device and monitoring input.
Downtime risk
A wrong mounting or input configuration can create false alarms or rework.
AMIKON SUPPORT
About Amikon & Service Support
Amikon supports independent sourcing and fulfillment for industrial automation spare parts.
01
Order Review
We check part number, quantity, destination and required date.
02
Inspection & Testing
Identity and condition checks follow the agreed order.
03
Packing & Dispatch
Packing and shipment details are prepared for the destination.
04
After-sales Support
DOA, returns and warranty support follow the agreed sales terms.
MORE SOURCING REQUESTS
Multi-brand Spare Parts Also Requested
019915480000
02Allen Bradley 1786-RPA
03IC693CMM311P
04BFDL44 53E6158
05960128
06LG5924-48-61-24
07F3042.UZ19.019.Z02.09
08T66R-21850-X/2
099375-12UNJ-3B
10WP8342C001M
11SSC3Q #200
12CCGT431FN-AR V12K
13SEN-15242
14305B006A20XX
15MWS0400X8DB VP15TF
16A87L-0001-0017
1718973P
18R80036A R80028B
1975HC0375
20934206
21AT13S-00
22A10CN0 A10YED2 3PH C10C-1
239093-3058
2471404982
259160-0602,S951-210.3X
261SNA195118R1200
2702-070184 04-022050-0000
28135341.999.000
29TPVF6616B
30RA265.2-100E
Procurement note
These 30 models are independent procurement references only. They are not replacements for 200150-06-CN. Compatibility, configuration and inventory must be checked separately for every request.
REQUEST A QUOTE
RFQ Details & Direct Contact
Please include
- Part Number
- Quantity
- Destination
- Required Date
- Machine / System Model
BUYER QUESTIONS
Frequently Asked Questions
Use the complete part number and match the 3/8-24 to 1/4 NPT stud mounting-stud configuration to the machine.
Inspect the mounting surface, stud seating and mounting torque, then check the interface cable and connector.
Check the 4.7 to 5.5 Vdc excitation, connector seating, cable continuity and monitor input before replacing the sensor.
The 200150 works with Trendmaster ProTIMs and Trendmaster 2000, including the listed flexiTIM, TIM and 1900-series monitor interfaces.
200150-06-CN uses 3/8-24 to 1/4 NPT stud; 200150-02-CN uses 3/8-24 to 3/8-24 UNF plate stud. The accelerometer performance is from the same 200150 family.
Include the complete part number, quantity, destination, required date, machine or system model, mounting-point details and installed interface.
