Bently Nevada 330172-00-08-10-01-05 Armored 3300 5 mm Proximity Probe
Bently Nevada 330172-00-08-10-01-05 Armored 3300 5 mm Proximity Probe
Bently Nevada 330172-00-08-10-01-05
Armored 3300 5 mm Proximity Probe
1.0 m ClickLoc Probe Cable
Brand Name:
Bently Nevada
Model Number:
330172-00-08-10-01-05
Contact Us
Request A Quote
Product Details
Highlight:
Bently Nevada 330172-00-08-10-01-05
,Armored 3300 5 mm Proximity Probe
,1.0 m ClickLoc Probe Cable
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
INDUSTRIAL AUTOMATION SPARE

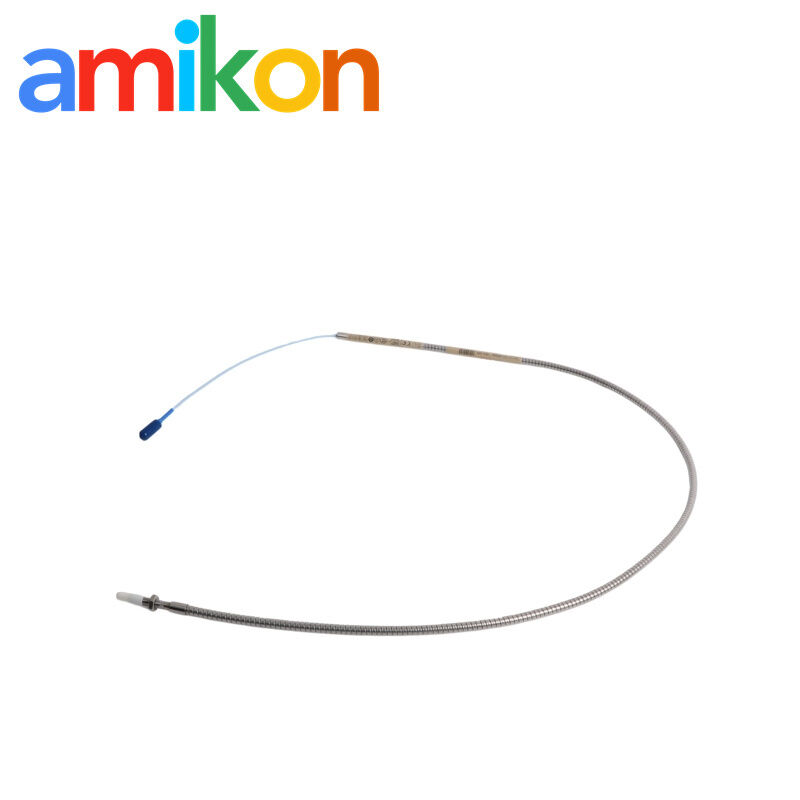

Bently Nevada 330172-00-08-10-01-05 Armored 3300 5 mm Proximity Probe
An armored 3300 5 mm proximity probe with a 1.0 m integral cable and miniature coaxial ClickLoc connector for shaft displacement and vibration measurement.
Type
Armored 5 mm proximity probe
System
3300 5 mm Transducer System
Focus
0.8 in case · 1.0 m cable · ClickLoc
Brand
Bently Nevada
SYSTEM INTEGRATION
System Fit & Selection
Component interchangeability
The probe, extension cable and Proximitor Sensor are interchangeable within the specified 3300 5 mm system without individual matching or bench calibration.
Complete system length
The probe and extension cable form a 5 m or 9 m transducer system.
SPECIFICATIONS
Technical Specifications
Complete part number
330172-00-08-10-01-05
Probe family
330172 5 mm probe with armor
Unthreaded length option 00
0.0 in
Case length option 08
0.8 in
Total probe length option 10
1.0 m
Connector and cable option 01
Miniature coaxial ClickLoc connector with protector; standard cable
Approval option 05
Multiple approvals
Linear range
2.0 mm (80 mil), approximately 0.25 to 2.3 mm
Recommended gap
1.27 mm (50 mil)
Scale factor
7.87 V/mm (200 mV/mil), ±6.5%
Frequency response
0 to 10 kHz
Minimum flat target diameter
15.2 mm
Recommended minimum shaft diameter
50.8 mm; 76.2 mm for optimum performance
Minimum probe-tip separation
40 mm axial; 38 mm radial
Probe-tip material
Polyphenylene sulfide (PPS)
Probe-case material
303/304 stainless steel
Integral cable
75 Ω triaxial cable with FEP insulation
Armor
Flexible AISI 302/304 stainless-steel armor with FEP outer jacket
Recommended case torque
5.1 N·m
Maximum case torque
7.3 N·m
Minimum cable bend radius
25.4 mm
Probe temperature-stability range
-35 to +177 °C
System length rule
5 m or 9 m total, including the extension cable
FIELD SUPPORT
Applications & Fault Scenarios
DC gap approaches a linear-range limit
First check
Check mounting position, target surface and recommended 1.27 mm initial gap.
Downtime risk
A channel outside the linear region can under-report or clip shaft motion.
Intermittent dynamic signal
First check
Inspect the ClickLoc engagement, connector protector, armor and cable bends before changing calibration.
Downtime risk
A broken measurement path can hide vibration growth or cause a false trip investigation.
Unexpected scale after component work
First check
Verify 5 mm probe, matching extension cable, 330180 sensor, total system length and target material.
Downtime risk
A mixed or incorrectly sized chain can prevent trustworthy commissioning.
AMIKON SUPPORT
About Amikon & Service Support
Amikon supports independent sourcing and fulfillment for industrial automation spare parts.
01
Order Review
We check part number, quantity, destination and required date.
02
Inspection & Testing
Identity and condition checks follow the agreed order.
03
Packing & Dispatch
Packing and shipment details are prepared for the destination.
04
After-sales Support
DOA, returns and warranty support follow the agreed sales terms.
MORE SOURCING REQUESTS
Multi-brand Spare Parts Also Requested
0117005865
021989970000
03306630-10
04SM312FMHS
05SCGX120408-P1 T2000D
06X36420460
076639352A1
08GT2-71N
09ESD 10017562
10B07-134-A1LA
11PF-D-TME-1.5 48074
12363500600
13LAC2VEG
14D1T03012L050-I0.35ISOTMVT
151771-OFE2
16XEC-DN32H
17PGU-40-PC60-C-4FSM
18SVJBL-163
19300PSI 20BAR 962921-03
2071503-052130
21L0G5
22WTV4-3P3441
23PZ-V32
2498624-66501 HP-IB
25MEQT0002SZ
26WL160-F330 6022771
27AB-0849
2864-4425
290041-9274-08
30TM2DDI16DT
Procurement note
These 30 models are independent procurement references only. They are not replacements for 330172-00-08-10-01-05. Compatibility, configuration and inventory must be checked separately for every request.
REQUEST A QUOTE
RFQ Details & Direct Contact
Please include
- Part Number
- Quantity
- Destination
- Required Date
- Machine / System Model
BUYER QUESTIONS
Frequently Asked Questions
Use a 3300 XL extension cable and a 330180 3300 XL Proximitor Sensor, with a complete system length of 5 m or 9 m.
Set the probe against the correct target and use the 1.27 mm recommended gap as the commissioning reference.
Inspect the ClickLoc connection, connector protector, integral cable and cable bend radius.
330172-00-08-10-01-05 is the armored version. Check the complete part number and the cable protection required by the installation.
Add the probe cable and extension cable lengths and match the resulting 5 m or 9 m system to the Proximitor Sensor.
Include the complete part number, quantity, destination, required date, machine or system model, total system length and installed Proximitor Sensor.
