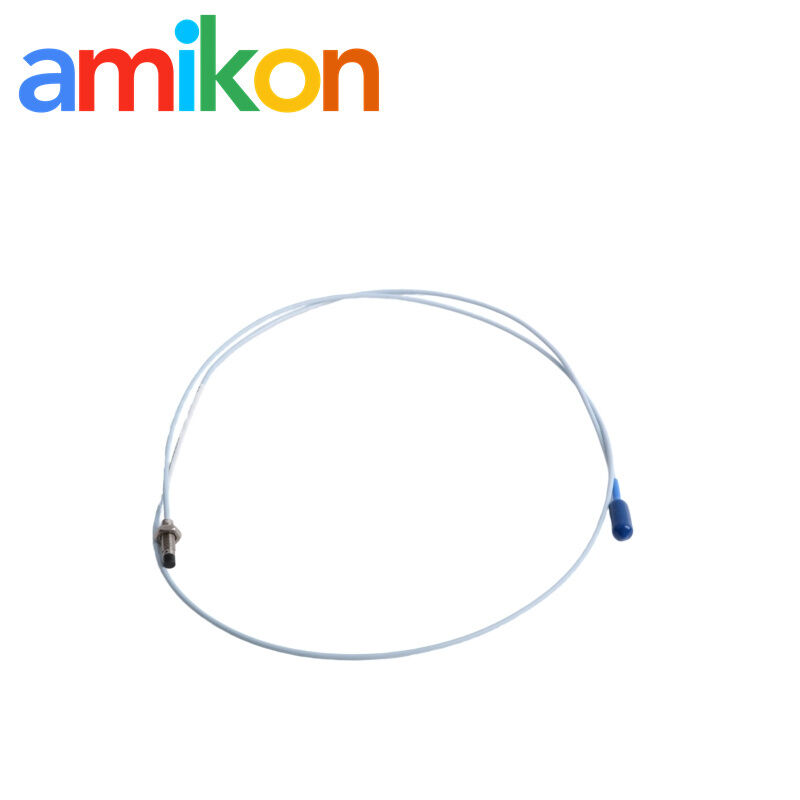

Bently Nevada 330171-00-08-10-01-05 Unarmored 3300 5 mm Proximity Probe
Bently Nevada 330171-00-08-10-01-05 Unarmored 3300 5 mm Proximity Probe
Bently Nevada 330171-00-08-10-01-05
Unarmored 3300 5 mm Proximity Probe
1.0 m ClickLoc Probe Cable
Brand Name:
Bently Nevada
Model Number:
330171-00-08-10-01-05
Contact Us
Request A Quote
Product Details
Highlight:
Bently Nevada 330171-00-08-10-01-05
,Unarmored 3300 5 mm Proximity Probe
,1.0 m ClickLoc Probe Cable
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
INDUSTRIAL AUTOMATION SPARE
Bently Nevada 330171-00-08-10-01-05 Unarmored 3300 5 mm Proximity Probe
An unarmored 3300 5 mm proximity probe with a 1.0 m integral cable and miniature coaxial ClickLoc connector for shaft displacement and vibration measurement.
Type
Unarmored 5 mm proximity probe
System
3300 5 mm Transducer System
Focus
0.8 in case · 1.0 m cable · ClickLoc
Brand
Bently Nevada
SYSTEM INTEGRATION
System Fit & Selection
Component interchangeability
The probe, extension cable and Proximitor Sensor are interchangeable within the specified 3300 5 mm system without individual matching or bench calibration.
Complete system length
The probe and extension cable form a 5 m or 9 m transducer system.
SPECIFICATIONS
Technical Specifications
Complete part number
330171-00-08-10-01-05
Probe family
330171 5 mm probe without armor
Unthreaded length option 00
0.0 in
Case length option 08
0.8 in
Total probe length option 10
1.0 m
Connector and cable option 01
Miniature coaxial ClickLoc connector with protector; standard cable
Approval option 05
Multiple approvals
Linear range
2.0 mm (80 mil), approximately 0.25 to 2.3 mm
Recommended gap
1.27 mm (50 mil)
Scale factor
7.87 V/mm (200 mV/mil), ±6.5%
Frequency response
0 to 10 kHz
Minimum flat target diameter
15.2 mm
Recommended minimum shaft diameter
50.8 mm; 76.2 mm for optimum performance
Minimum probe-tip separation
40 mm axial; 38 mm radial
Probe-tip material
Polyphenylene sulfide (PPS)
Probe-case material
303/304 stainless steel
Integral cable
75 Ω triaxial cable with FEP insulation
Armor
No armor
Recommended case torque
5.1 N·m
Maximum case torque
7.3 N·m
Minimum cable bend radius
25.4 mm
Probe temperature-stability range
-35 to +177 °C
System length rule
5 m or 9 m total, including the extension cable
FIELD SUPPORT
Applications & Fault Scenarios
Gap reading is near an endpoint
First check
Verify bracket position, flat target area and the recommended 1.27 mm gap.
Downtime risk
Operation beyond the linear region can make shaft-position and vibration data unreliable.
Signal changes when the cable is touched
First check
Inspect the ClickLoc connection, integral cable and bend radius; the 330171 has no armor.
Downtime risk
Cable damage can remove the channel or introduce intermittent alarms.
Channel does not match the previous scale
First check
Confirm the probe family, extension cable, 330180 Proximitor Sensor and total 5 m or 9 m system length.
Downtime risk
An incorrect transducer chain delays safe machine return to service.
