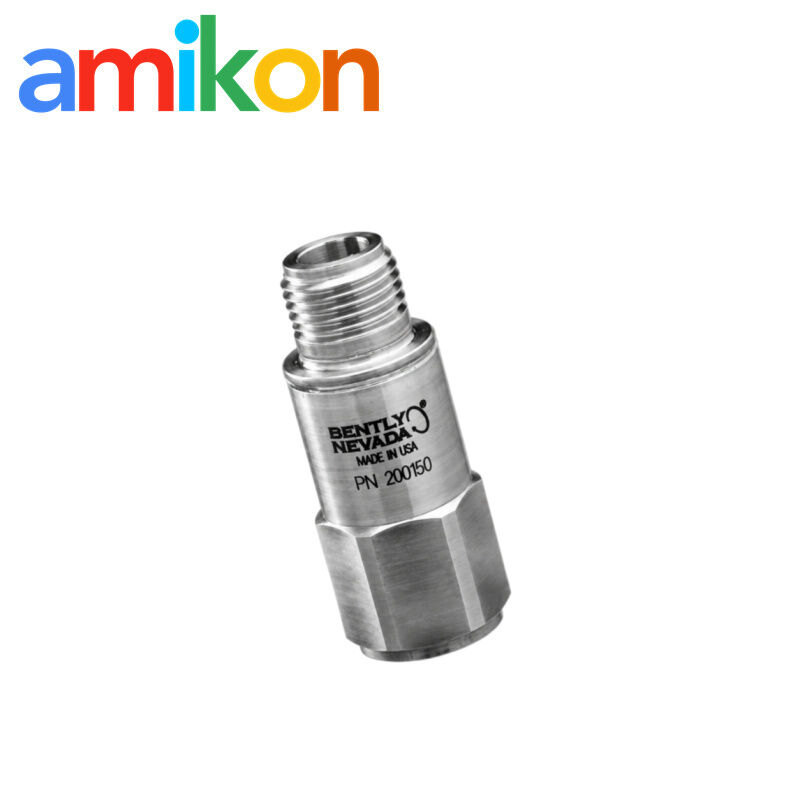

For use with Bently Nevada 200150, 200155 and 200157 accelerometers.
Home
>
Products
>
Bently Nevada
>
Bently Nevada 200151-20-03-00 Accelerometer Interface Standard Cable
Bently Nevada 200151-20-03-00 Accelerometer Interface Standard Cable
Bently Nevada 200151-20-03-00
Accelerometer Interface Cable
2.0 m Armored Standard Cable
Brand Name:
Bently Nevada
Model Number:
200151-20-03-00
Contact Us
Request A Quote
Product Details
Highlight:
Bently Nevada 200151-20-03-00
,Accelerometer Interface Cable
,2.0 m Armored Standard Cable
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
INDUSTRIAL AUTOMATION SPARE
Bently Nevada 200151-20-03-00 Accelerometer Interface Standard Cable
A 2.0 m blue armored interface cable with connectors on both ends for Bently Nevada 200150, 200155 and 200157 accelerometer installations.
Type
Accelerometer interface cable
System
20015x accelerometers / Trendmaster
Focus
2.0 m · armored · standard coupling
Brand
Bently Nevada
SYSTEM INTEGRATION
System Fit & Selection
Connector arrangement
The 200151 cable has connectors at both ends; the 200152 cable family has one connector.
Installed cable length
Keep the complete cable run within 25 m.
SPECIFICATIONS
Technical Specifications
Complete part number
200151-20-03-00
Base family
200151 accelerometer interface standard cable
Cable length option 20
2.0 m
Armor option 03
Blue cable with armor
Coupling-nut option 00
Standard
Connector arrangement
Connectors on both ends
Conductors
4-conductor, 22 AWG
Shield
Braided shield with drain wire, 85% minimum coverage
Jacket
PVC
Coupling nuts
Nickel plated
Mated connector sealing
IP67 with specified transducers and mating hardware
Minimum bend radius
63.5 mm
Maximum installed cable length
25 m
Operating temperature
-20 to +100 °C
FIELD SUPPORT
Applications & Fault Scenarios
Intermittent accelerometer signal
First check
Inspect both molded connector interfaces, cable movement and visible jacket/armor damage.
Downtime risk
Unstable trend data can delay detection of developing machine vibration.
Noise or an unexpected signal shift
First check
Check routing, shield/drain continuity and connector seating before changing monitor configuration.
Downtime risk
Incorrect vibration indication can trigger unnecessary investigation or hide a real change.
Damage near a bend or clamp
First check
Compare the route with the 63.5 mm minimum bend radius and check for repeated flexing.
Downtime risk
A damaged interface cable can interrupt the measurement channel and extend outage work.
AMIKON SUPPORT
About Amikon & Service Support
Amikon supports independent sourcing and fulfillment for industrial automation spare parts.
01
Order Review
We check part number, quantity, destination and required date.
02
Inspection & Testing
Identity and condition checks follow the agreed order.
03
Packing & Dispatch
Packing and shipment details are prepared for the destination.
04
After-sales Support
DOA, returns and warranty support follow the agreed sales terms.
MORE SOURCING REQUESTS
Multi-brand Spare Parts Also Requested
01ZL-RRL16HDF-24-1
0204PF 5015
03800T-H33D1
04ES-3
05OP-87444
06FEHB72L002
0716-16-16
08HAEVXBG023A
09HSRTD-3-100-A-80-E
10CTFPL163D
113RG4012-0AG33-PF
129611926600
13420C9W
147159.16
15QS-P107
16NG2125LK KC730
17WMZH3D16T
18CGT4U
19AS5H949ALP
20WMZH1C16T
21PR40
22MPK4-3
23SW-1601
2414-235-918-001
2537-102,Gexol-125
26IPM12-X8-MRA-WL-6AP-10
27R40-227-BNEA
28CA3106E18-A71
29AHV51
301717900000
Procurement note
These 30 models are independent procurement references only. They are not replacements for 200151-20-03-00. Compatibility, configuration and inventory must be checked separately for every request.
REQUEST A QUOTE
RFQ Details & Direct Contact
Please include
- Part Number
- Quantity
- Destination
- Required Date
- Machine / System Model
BUYER QUESTIONS
Frequently Asked Questions
Match the 2.0 m length, armor option 03, connectors at both ends and standard coupling nuts to the installed cable.
Reseat both connectors, inspect the jacket and armor, and check the route for pinching, sharp bends or repeated movement.
Protect the cable from sharp edges and repeated flexing, and maintain the 63.5 mm minimum bend radius along the route.
200151-20-03-00 is 2.0 m; 200151-40-03-00 is 4.0 m. Both use the blue armored option with connectors at both ends.
Keep the complete installed cable run within 25 m.
Include the complete part number, quantity, destination, required date, machine or system model, and the installed cable length.
