Bently Nevada 330101-30-60-10-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 8mm proximity probe

3300 XL proximity sensor

Bently Nevada 330101 probe with warranty

Brand Name:

Bently Nevada

Model Number:

330101-30-60-10-02-05

Request A Quote

Product Details

Highlight:

Bently Nevada 8mm proximity probe

3300 XL proximity sensor

Bently Nevada 330101 probe with warranty

Bently Nevada 200155-02-CN Low Frequency Trendmaster Pro Accelerometer

Get Best Price

Bently Nevada 200152-XX-XX-XX MOD: 323357-10-03-10 Accelerometer Interface Cable

Get Best Price

Bently Nevada 200350-12-00-CN General Purpose Accelerometer

Get Best Price

Bently Nevada 200155-18-CN Low Frequency Trendmaster Pro Accelerometer

Get Best Price

Contact Now

Product Description

Condition monitoring spare

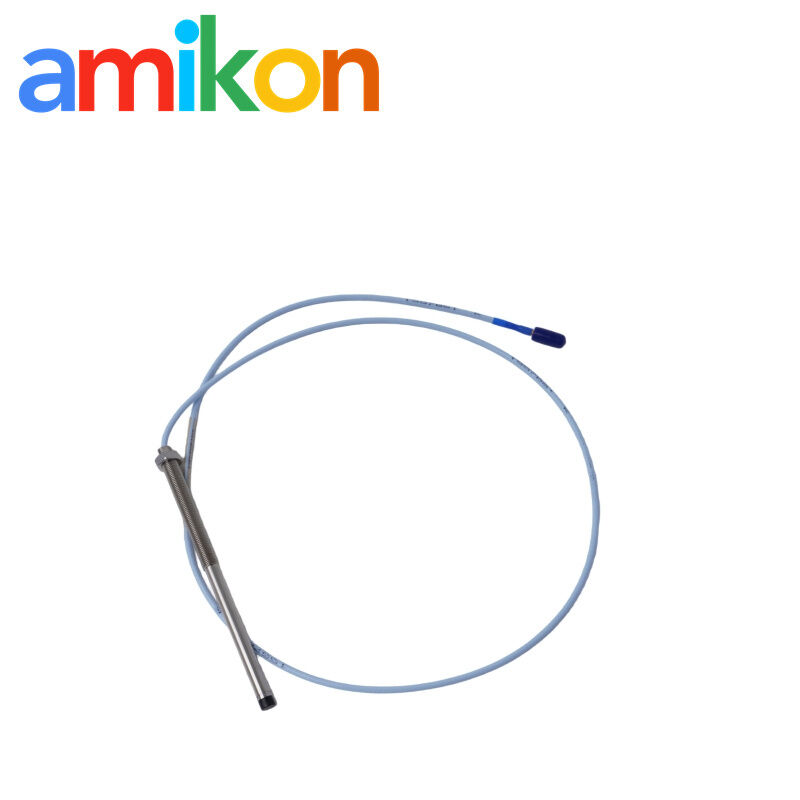

Bently Nevada 330101-30-60-10-02-05 3300 XL 8 mm Proximity Probe

Name: Bently Nevada 330101-30-60-10-02-05 3300 XL 8 mm Proximity Probe
Brand: AMIKON LIMITED
SKU: 330101-30-60-10-02-05
Price: negotiable USD
Availability: InStock

A 3/8-24 UNF 3300 XL 8 mm forward-mount probe configured with a 6.0 in overall case, 1.0 m probe cable and miniature coaxial clickloc, standard cable, no connector protector for non-contact shaft vibration and position measurement.

Type

3300 XL 8 mm Proximity Probe

System

3300 XL 8 mm

Focus

6.0 in case with 1.0 m probe cable

Brand

Bently Nevada

Technical data

Technical Specifications

Measurement values require a complete, correctly matched 3300 XL 8 mm probe, extension cable and Proximitor Sensor.

View 9 selected configuration specifications

Full model

330101-30-60-10-02-05

Probe family

3300 XL 8 mm forward-mount proximity probe

Case thread

3/8-24 UNF

Armor

Without armor

Unthreaded length

3.0 in

Overall case length

6.0 in

Total probe/cable length

1.0 m

Connector and cable

Miniature coaxial ClickLoc, standard cable, no connector protector

Approval option

CSA, ATEX and IECEx approvals

View 6 probe construction specifications

Probe tip material

Polyphenylene sulfide (PPS)

Probe case material

AISI 303 or 304 stainless steel

Standard probe cable

75 ohm triaxial FEP-insulated cable

Maximum probe case-to-lead tensile rating

330 N (75 lbf)

Connector material

Gold-plated brass or gold-plated beryllium copper

Standard probe operating/storage temperature

-52°C to +177°C (-62°F to +350°F)

View 7 complete 3300 XL 8 mm system specifications

Linear range

2.0 mm (80 mil), approximately 0.25 to 2.3 mm from target

Recommended radial-vibration gap

-9 Vdc, approximately 1.27 mm (50 mil)

Scale factor

7.87 V/mm (200 mV/mil); tolerance depends on system length and temperature

Frequency response

0 to 10 kHz, +0/-3 dB, with up to 305 m field wiring

Minimum flat target

15.2 mm (0.6 in) diameter

Shaft diameter

50.8 mm minimum; 76.2 mm recommended minimum

System lengths

1 m probe-only system, or 5 m / 9 m including extension cable

Field perspective

Applications & Fault Scenarios

Bias near range limit

Signal: DC bias nears a range end or clips · Check: reset gap; inspect mount and target · Risk: lost travel or nuisance trip

Motion-related dropout

Signal: spikes appear when the cable moves · Check: check the protector and ClickLoc engagement · Risk: false alarm or lost channel

Wrong scale after replacement

Signal: signal is stable but scale or offset changed · Check: match the 8 mm family and total length · Risk: incorrect vibration or position

System fit

Compatibility & Replacement

System matching

Probe lead plus extension cable must equal the Proximitor Sensor system length. A mixed XL / non-XL 5 mm or 8 mm chain operates to non-XL performance.

Commercial service

Amikon Field-Spare Verification

A field-spare request is checked for complete model identity, physical condition and packing constraints before the shipping plan is released.

Order Review

Inspection & Testing

Packing & Dispatch

DOA review · Returns review · Warranty terms · After-sales support. Scope and conditions are confirmed with the quotation.

Amikon commercial service is independent from the manufacturer technical information above.

Six model-specific answers

Frequently Asked Questions

What do the 30 and 60 options mean on Bently Nevada 330101-30-60-10-02-05?+

They select a 3.0 in unthreaded length and a 6.0 in overall probe case.

Is the cable on Bently Nevada 330101-30-60-10-02-05 1 m or 10 m?+

Option 10 specifies a 1.0 m integral probe cable; it does not mean 10 m.

Can Bently Nevada 330101-30-60-10-02-05 be used without an extension cable?+

Yes, when paired with the matching 1 m Proximitor Sensor. Five- and nine-metre systems require the correct extension cable.

Which connector construction is selected for Bently Nevada 330101-30-60-10-02-05?+

Option 02 selects a miniature coaxial ClickLoc connector, standard cable and no connector protector.

What target size is required for the specified performance of Bently Nevada 330101-30-60-10-02-05?+

The 3300 XL 8 mm system calls for a minimum 15.2 mm flat target. Shaft diameter is 50.8 mm minimum and 76.2 mm recommended minimum.

Which approval package is ordered on Bently Nevada 330101-30-60-10-02-05?+

The final 05 selects CSA, ATEX and IECEx approvals. Installation must follow the actual nameplate and site approval requirements.

Quote request

Send a Complete RFQ

Include these five items so the request can be reviewed without avoidable delay.

✓Part Number
✓Quantity
✓Destination
✓Required Date
✓Machine / System Model

Independent sourcing references

Multi-brand Spare Parts Also Requested

9535606SL3000-0BE21-6AA0RP6000 RP6150ACF3 80P-2-P037A200MACX036-39888-0GAllen Bradley 702-EODX620SRH66LSIGGE PLE3ESBG602 6BS R-206BS R-201771-A3BE4018TL1R55EFHT8316G566GK1502-2CB106LVV-DPFR4-PCAFB24EFB24-SRMS7503A20303RA1125-1KA25-1BB4IO-R-16-T 140065RNAL-1745630-026B0909 U0909APL-210N15A1Z2048R0715A1Z2048R0515A1Z2048L07H750-0030TSM17Q-2RG

Important: These part numbers are independent sourcing references only. They are not replacements for 330101-30-60-10-02-05. Compatibility, configuration and inventory must be confirmed separately.
