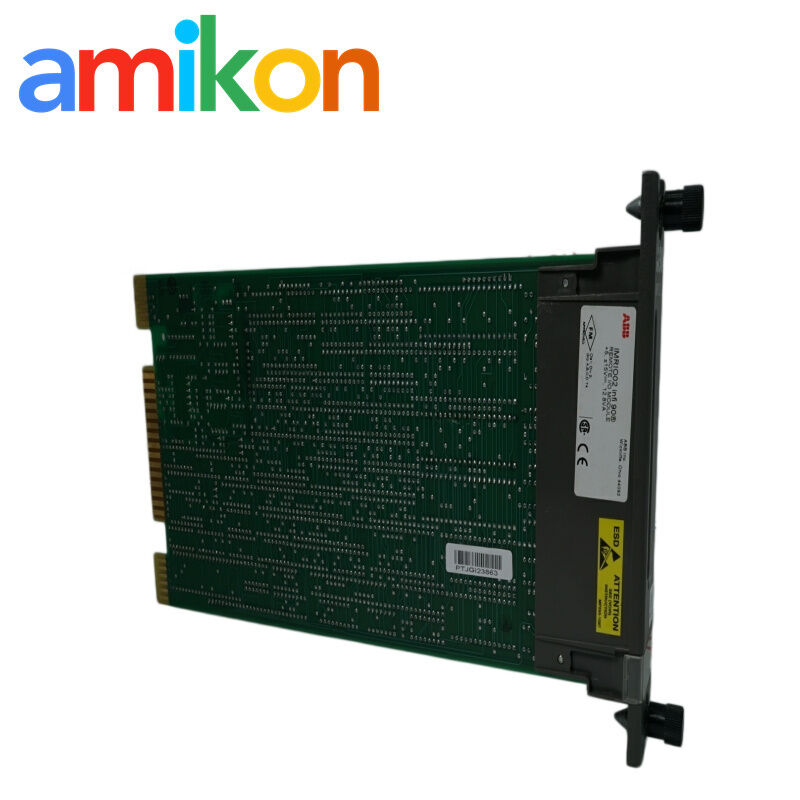

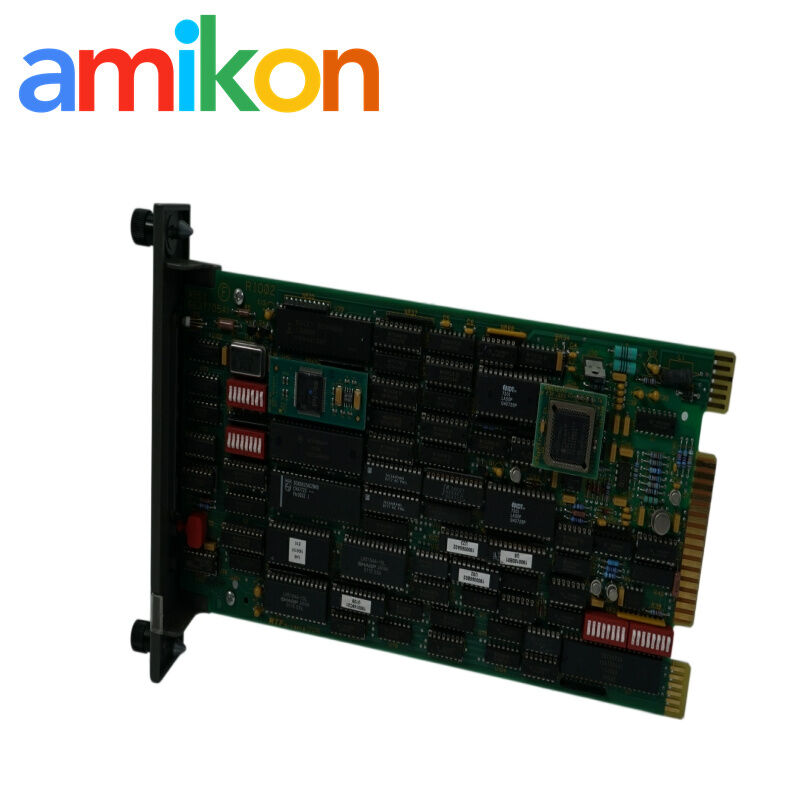

ABB IMRIO02 Remote I/O Slave Module
ABB Remote I/O Slave Module
ABB PLC module with warranty
IMRIO02 Remote I/O Module
Place of Origin:
SWEDEN
Brand Name:
ABB
Model Number:
IMRIO02
Document:
ABB Remote I/O Slave Module
,ABB PLC module with warranty
,IMRIO02 Remote I/O Module
ABB IMRIO02
Remote I/O Slave Module
The Remote I/O Module (IMRIO02) operates with the Bailey Multi-Function Processor (IMMFP01/02/03) to provide remote process control capability. It is designed for communication between an MFP and remotely located slave modules.
Remote I/O communication on a plant-wide scale.
IMRIO02 is the Remote I/O Module described in instruction I-E96-317A. The module operates with the Bailey Multi-Function Processor and supports communication with remotely located slave modules.
The RIO occupies one slot in the Module Mounting Unit (MMU). Dipswitches configure user options and module addresses, while front-panel LEDs provide operating status.
Communication cabling is connected to the termination unit or termination module associated with the RIO.
The documented RIO link can use coaxial, twinaxial or fiber optic cable.
The manual specifies communication up to 10,000 feet (3,000 meters) to the farthest remote drop. Maximum distance depends on cable type.
IMRIO02 documented specifications.
Specification values below are taken from the IMRIO02 instruction, I-E96-317A.
RMP and RSP define the RIO communication roles.
The documented architecture distinguishes the local and remote positions of the RIO. This section focuses on communication flow rather than repeating electrical specifications.
Remote control where the I/O is separated from the MFP.
The original instruction describes the IMRIO02 as part of a remote process control architecture and identifies several communication applications.
Identify the IMRIO02 by module role.
The product documentation identifies the module through its RIO function, processor role and MMU installation.
Remote I/O Module.
Remote Master Processor.
Remote Slave Processor.
One slot in the Module Mounting Unit.
Product reference and supply details.
Commercial details such as current stock condition, warranty and shipping are confirmed with the quotation.
Request an IMRIO02 quotation.
Please include the following information in your inquiry.
IMRIO02 frequently asked questions.
What is ABB IMRIO02?
IMRIO02 is the Remote I/O Module documented in I-E96-317A. It operates with the Bailey Multi-Function Processor and is designed for communication between an MFP and remotely located slave modules.
Which MFP modules are specified with IMRIO02?
The instruction identifies IMMFP01, IMMFP02 and IMMFP03 as the Bailey Multi-Function Processor modules used with the Remote I/O Module.
What are the RMP and RSP roles?
RMP is the Remote Master Processor role, while RSP is the Remote Slave Processor role in the documented RIO communication architecture.
What communication distance is documented for IMRIO02?
The instruction specifies communication up to 10,000 feet (3,000 meters) to the farthest remote drop. The maximum distance depends on cable type.
What should I include when requesting an IMRIO02 quotation?
Please provide the part number, quantity, destination, required date, machine and system information. Contact AMIKON at sales@amikon.cn.
