ABB IMSED01 Sequence of Events Digital Input Module | 16 Digital Inputs

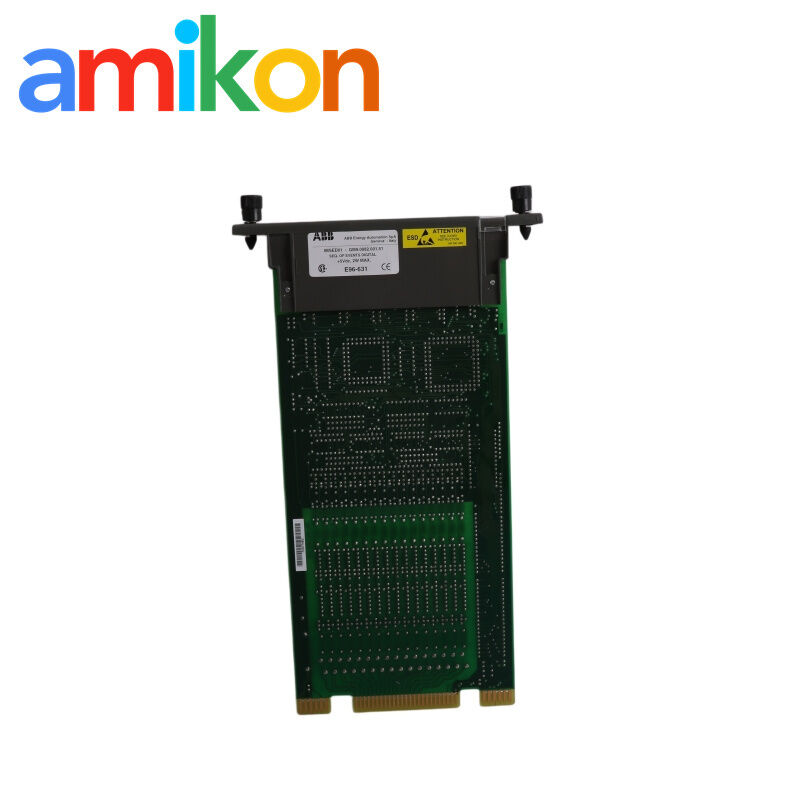

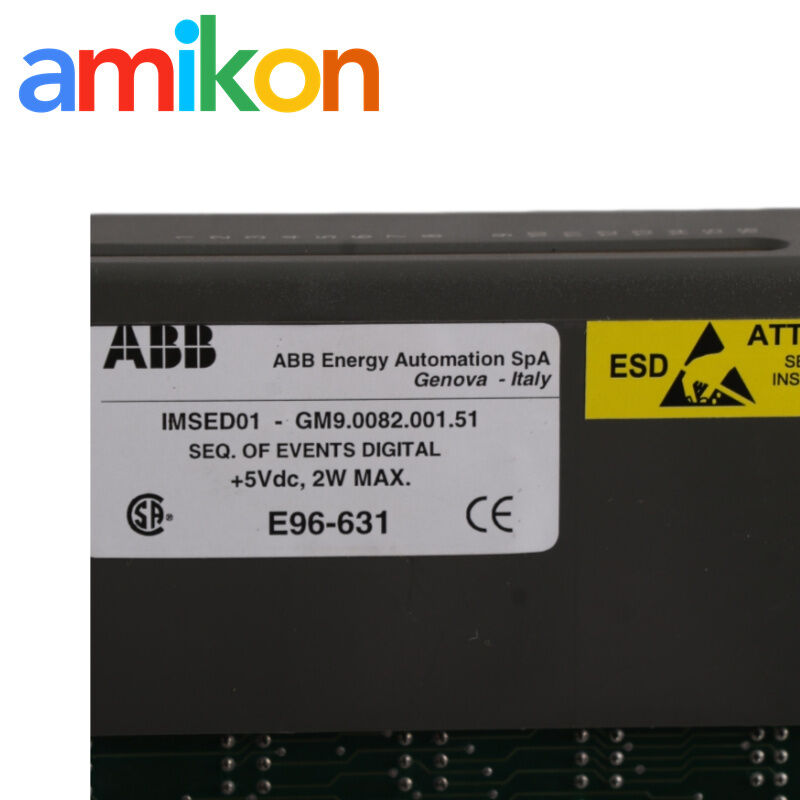

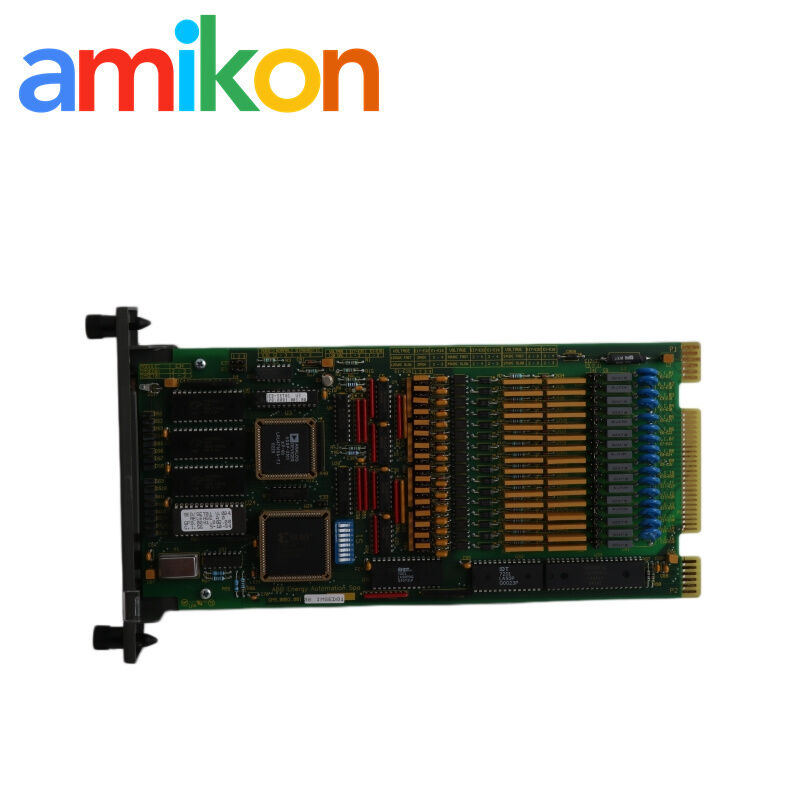

ABB IMSED01 is a Sequence of Events Digital Input module for the Harmony controller. It processes up to 16 digital field inputs and uses the SOE digital event interface for configuration and access to its input channels.
Sequence of Events Digital Input
IMSED01 belongs to the Harmony Sequence of Events architecture and handles digital field inputs for SOE event processing.
ABB defines a Sequence of Events event as a transition of a digital signal from on to off or from off to on.
IMSED01 processes up to 16 digital field inputs. The module communicates with the Harmony controller through the I/O expander bus.
Unlike IMSET01, the IMSED01 does not process time synchronization link information. The controller uses function code 242 to configure and access its input channels.
Technical Specifications
Core technical information documented by ABB for the Harmony Sequence of Events module family.
Field Signal to Controller
The signal path below follows ABB's documented SOE hardware arrangement.
IMSED01 SOE Signal Architecture
Field digital signals are terminated through NTDI01 and processed by IMSED01. The module communicates with the Harmony controller through the I/O expander bus.
Documented Application Areas
Application descriptions are limited to the functions ABB identifies for the SOE architecture.
Sequence of Events Monitoring
Collects transitions of digital field signals as part of the Harmony Sequence of Events system.
Harmony Controller I/O
Provides the digital input channel interface used by the Harmony controller's SOE function.
Multiple SOE Modules
Up to 63 IMSED01 modules can operate on an I/O expander bus segment along with one IMSET01 module.
Digital Field Signal Termination
ABB identifies NTDI01 as the termination unit associated with IMSED01 field wiring.
IMSED01 Identification
Purchasing and identification information is separated from the engineering specifications.
Supply Information
Commercial information is kept separate from manufacturer specifications.
Request an IMSED01 Quotation
Include the information below so the quotation can be prepared efficiently.
IMSED01 FAQ
Five product-specific questions based on ABB's documented IMSED01 architecture.
What is ABB IMSED01?
IMSED01 is a Sequence of Events Digital Input module for the Harmony controller and processes up to 16 digital field inputs.
How is IMSED01 different from IMSET01?
IMSED01 processes up to 16 digital field inputs but does not process time synchronization link information. IMSET01 additionally receives and decodes time synchronization link information.
Which function code is used for IMSED01?
Function code 242, the SOE digital event interface, is used by the Harmony controller to configure and access IMSED01 input channels.
How many IMSED01 modules can be used on an I/O expander bus segment?
ABB specifies up to 63 IMSED01 modules on an I/O expander bus segment along with one IMSET01 module.
Which termination unit is associated with IMSED01?
ABB identifies NTDI01 as the termination unit for field wiring associated with IMSED01.
