IMDSM04
ABB PLC module
IMDSM04 PLC component
ABB industrial automation module
Place of Origin:
SWEDEN
Brand Name:
ABB
Model Number:
IMDSM04
ABB PLC module
,IMDSM04 PLC component
,ABB industrial automation module
IMDSM04

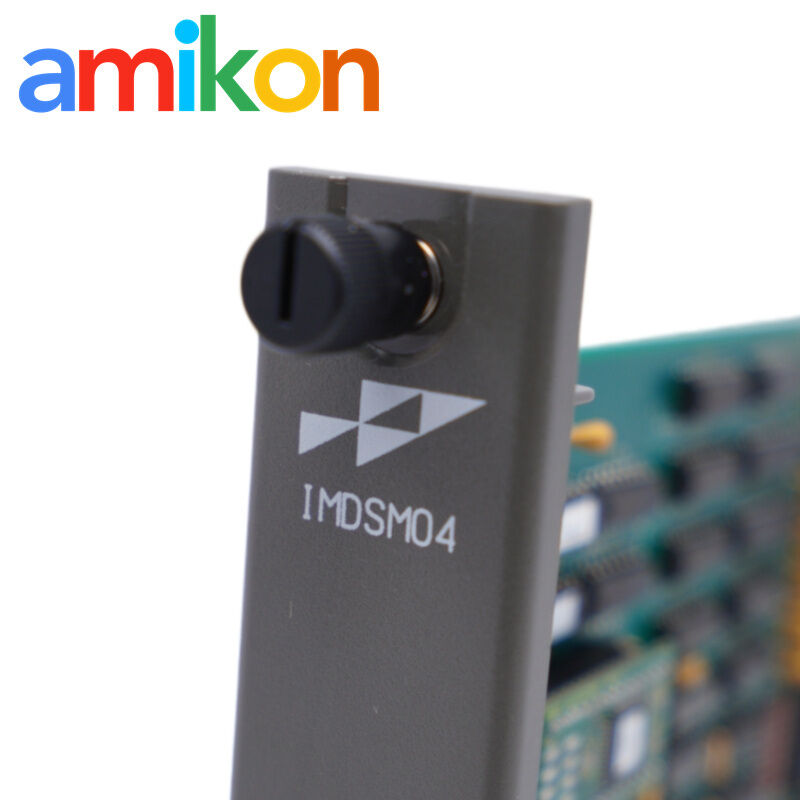

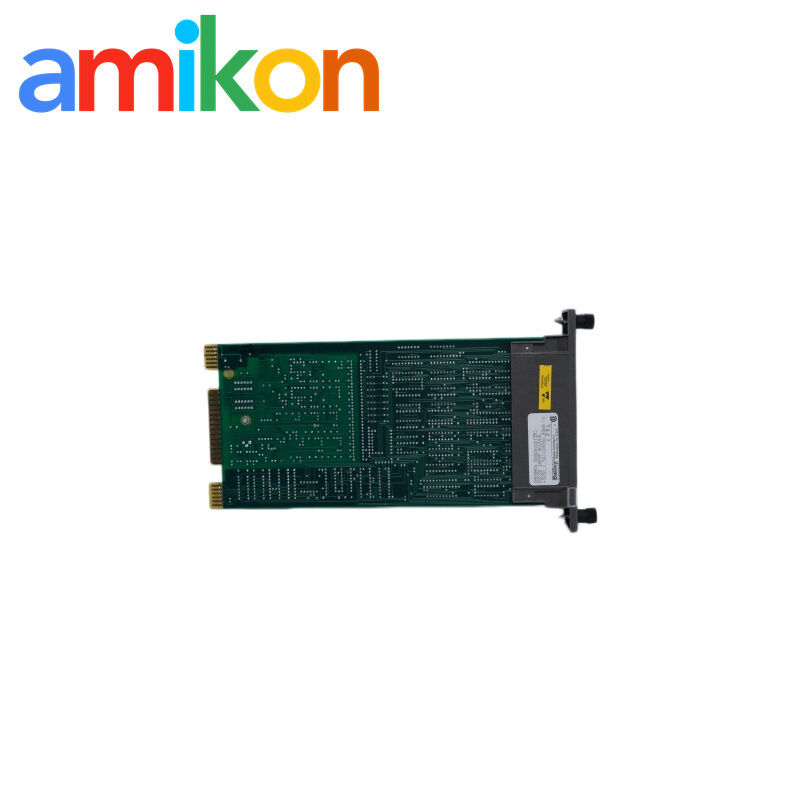

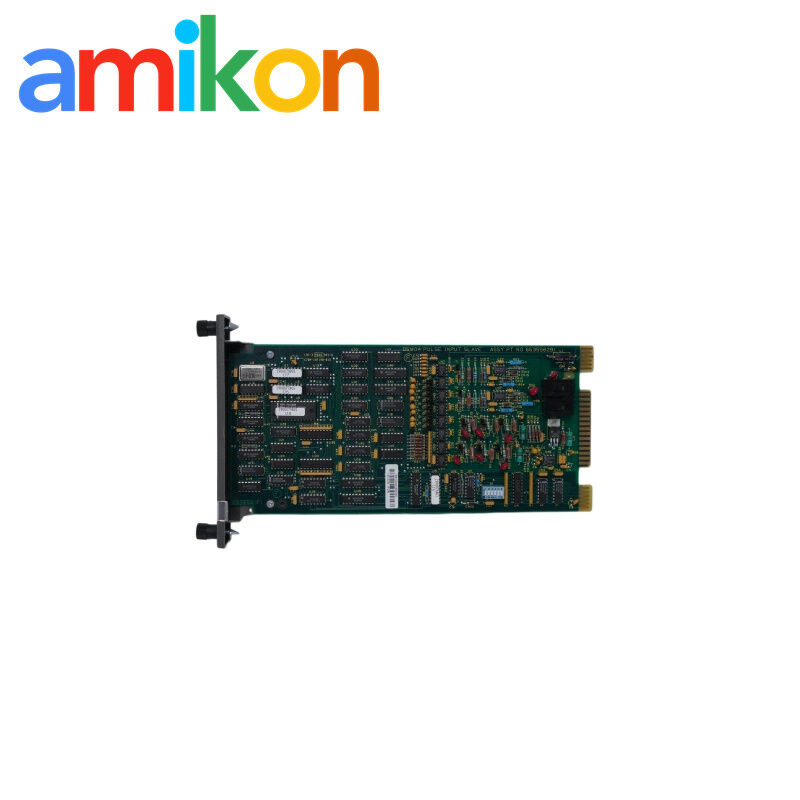

ABB IMDSM04 is a Pulse Input Slave Module for the Infi 90 process management system, designed for pulse-based measurement through eight input channels.
Overview
IMDSM04 handles pulse signals within the Infi 90 process management system. The module provides eight separate pulse input channels and supports Totalize, Frequency and Period measurement functions.
Eight channels. Three measurement functions.
The module is intended for pulse-based process measurements and can be used with applications including turbine flowmeters, tachometers, Wattmeters, proximity sensors and counters.
Technical Specifications
Signal Path
Pulse information moves through a straightforward measurement path from the field signal into the Infi 90 process management system.
Applications
Pulse measurement makes IMDSM04 useful in process applications where frequency, period or accumulated pulse information is required.
Turbine Flowmeters
Pulse-based flow measurement within process applications.
Tachometers
Pulse signals associated with rotational speed measurement.
Wattmeters
Pulse measurement applications involving Wattmeter signals.
Proximity Sensors
Pulse inputs generated by proximity sensing applications.
Counters
Applications requiring pulse counting and Totalize operation.
Product Identification
Supply Information
Request a Quotation
Need IMDSM04 for your system?
Send the details below and our sales team can check the requirement and prepare a quotation.
FAQ
What is ABB IMDSM04?
IMDSM04 is a Pulse Input Slave Module for the Infi 90 process management system.
How many input channels does IMDSM04 have?
The module has eight separate pulse input channels.
Which measurement functions are supported?
IMDSM04 supports Totalize, Frequency and Period measurement functions.
What is the maximum input frequency?
The maximum specified input frequency is 50 kHz at a 50% duty cycle.
What applications use the IMDSM04?
The module is identified for applications including turbine flowmeters, tachometers, Wattmeters, proximity sensors and counters.
