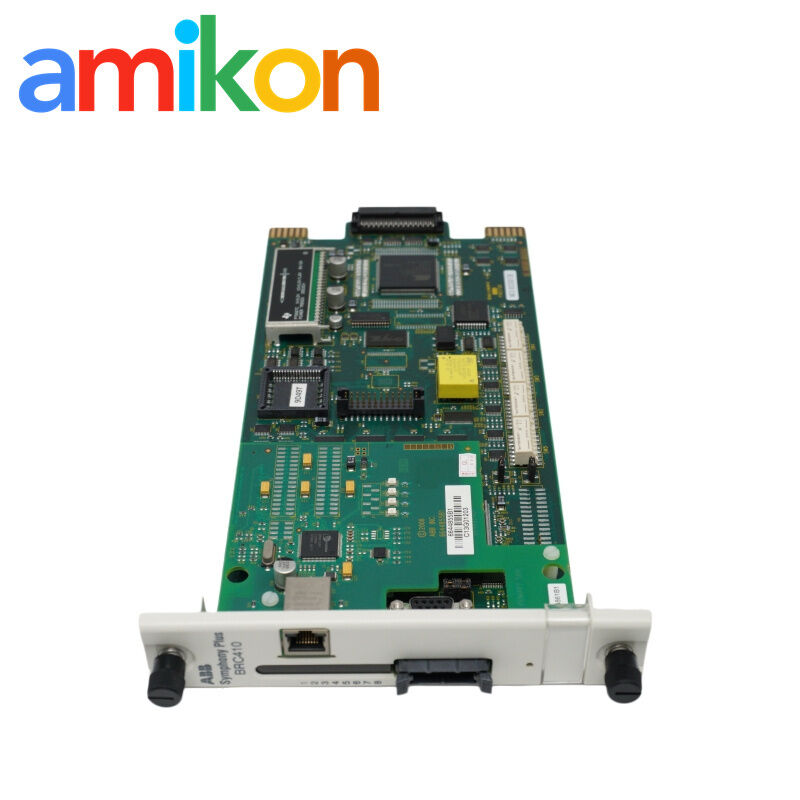

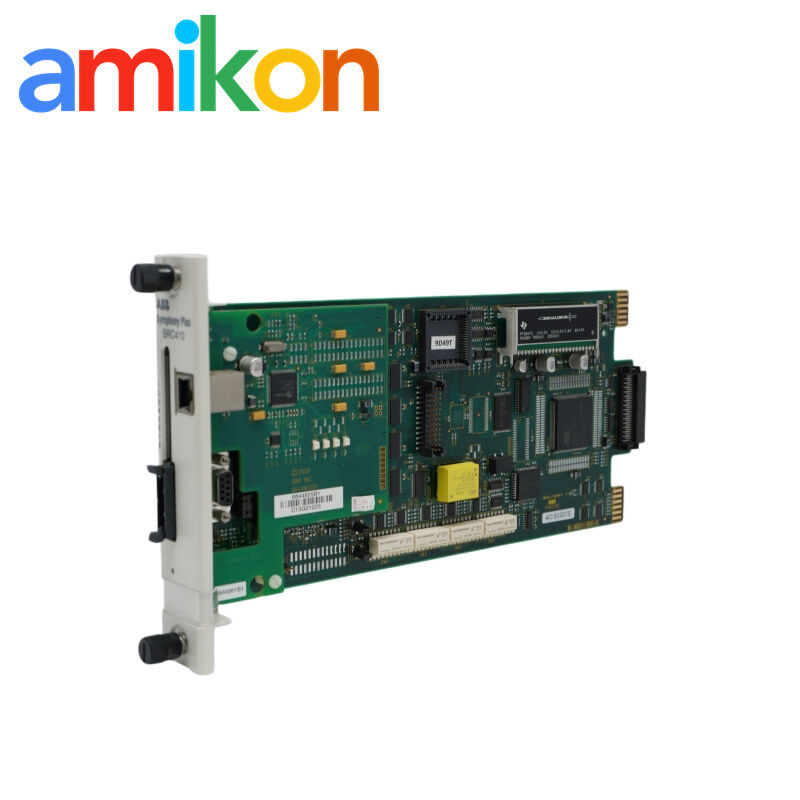

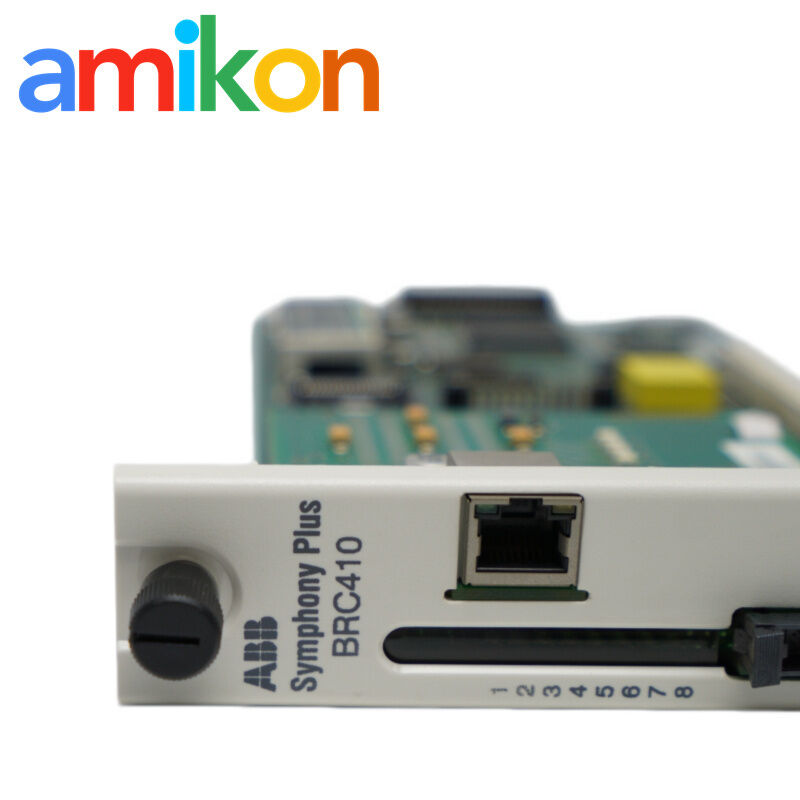

ABB SPBRC410 Bridge Controller – Harmony HR Series, 10/100 Mbps Ethernet
ABB SPBRC410 is a Harmony BRC410 Bridge Controller with Ethernet for the Symphony Plus control platform. ABB documentation identifies the BRC410 as a high-performance process rack controller for Harmony block I/O, Harmony rack I/O and S800 I/O. It is also documented as compatible with existing INFI 90 OPEN systems in functionality, communication and packaging.
The SPBRC410 nomenclature replaced the earlier P-HC-BRC-41000000 nomenclature for the Harmony BRC410 module.
Technical Specifications
| System | Symphony Plus / Harmony |
|---|---|
| Series | Harmony Rack (HR Series) |
| Module Type | Bridge Controller / Process Rack Controller |
| Ethernet | 10/100 Mbps |
| Memory | 8 MB DRAM + 2 MB NVRAM |
| Operating Temperature | 0 to 70 °C |
Detailed Technical Specifications
| Processor | 32-bit, 160 MHz |
|---|---|
| DRAM | 8 MB |
| NVRAM | 2 MB |
| Flash ROM | 2 MB |
| Ethernet | 1 × 10/100 Mbps |
| Serial Interfaces | 2 × RS-232-C, or 1 × RS-232-C + 1 × RS-485 |
| Diagnostic Interface | 1 × mini-USB |
| Mounting | One MMU slot |
| Modbus TCP | Supported |
| S800 I/O | Supported through IOR810 |
ABB also specifies Modbus TCP capacity of up to 4 servers, 24 clients and 4,000 total points when the applicable Symphony Plus Gateway configuration is used.
Compatibility Information
Original Compatibility: SPBRC410 is designed for the Harmony Rack / Symphony Plus architecture and supports Harmony block I/O, Harmony rack I/O and S800 I/O through IOR810. ABB also documents compatibility with INFI 90 OPEN systems.
Historical Replacement: ABB specifically identifies SPBRC410 as the replacement nomenclature for P-HC-BRC-41000000.
For redundant configurations, ABB documents BRC410 with BRC410 and BRC410 with BRC400 as supported combinations. ABB specifies restrictions when replacing BRC200 in redundant configurations; therefore, the existing controller and redundancy configuration should be verified before replacement.
Applications & Use Cases
SPBRC410 functions as a process rack controller, handling control processing, I/O communication and data exchange within the Harmony/Symphony Plus architecture. It can also communicate with field devices through Modbus TCP.
This model is typically searched for when an existing Harmony/Symphony Plus installation requires:
- BRC410 controller replacement
- Planned DCS maintenance
- Controller fault recovery
- Redundant controller replacement
- Legacy INFI 90 OPEN system maintenance
- Modbus TCP integration within an existing Harmony configuration
Because the BRC410 performs controller and I/O-related functions, a controller failure can affect the control functions assigned to that rack. ABB's manual therefore includes dedicated procedures for troubleshooting, maintenance, repair and replacement.
AMIKON - Industrial Automation Spare Parts
AMIKON specializes in DCS, PLC, and industrial automation spare parts, with access to 30,000+ parts and global sourcing support for hard-to-find, obsolete, and discontinued components.
Each product is inspected and tested before shipment. We also provide warranty and after-sales support for maintenance, repair, and replacement requirements.
Need a quote? Contact us for availability and pricing.
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Frequently Asked Questions
Q: Is SPBRC410 compatible with INFI 90 OPEN?
A: Yes. ABB states that BRC410 is fully compatible with INFI 90 OPEN in functionality, communication and packaging.
Q: Can SPBRC410 replace P-HC-BRC-41000000?
A: Yes. ABB identifies SPBRC410 as the replacement nomenclature for the earlier P-HC-BRC-41000000 BRC410 module.
Q: Does SPBRC410 support Modbus TCP?
A: Yes. ABB documents Modbus TCP support, with up to 4 servers, 24 clients and 4,000 total points under the applicable Gateway configuration.
Q: What information should I provide for an RFQ?
A: Please provide Part Number, Quantity, Destination, Required Date, and Machine/System Model. For compatibility checks, photos of the existing module label can also be useful.
Q: How is the unit handled before shipment?
A: AMIKON inspects the supplied unit before shipment and uses appropriate protective packaging for electronic equipment. ESD-sensitive handling is followed where applicable.
Q: What about DOA and warranty?
A: DOA cases should be reported promptly with order information and supporting photos or test evidence. Warranty and replacement coverage follow the supplier's written terms and should be confirmed before purchase.
