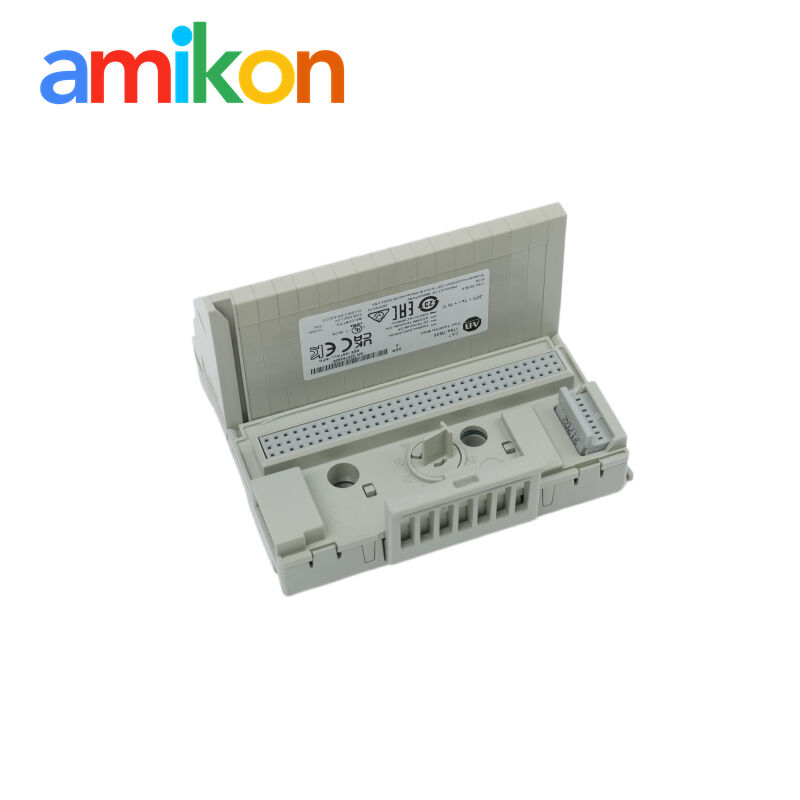

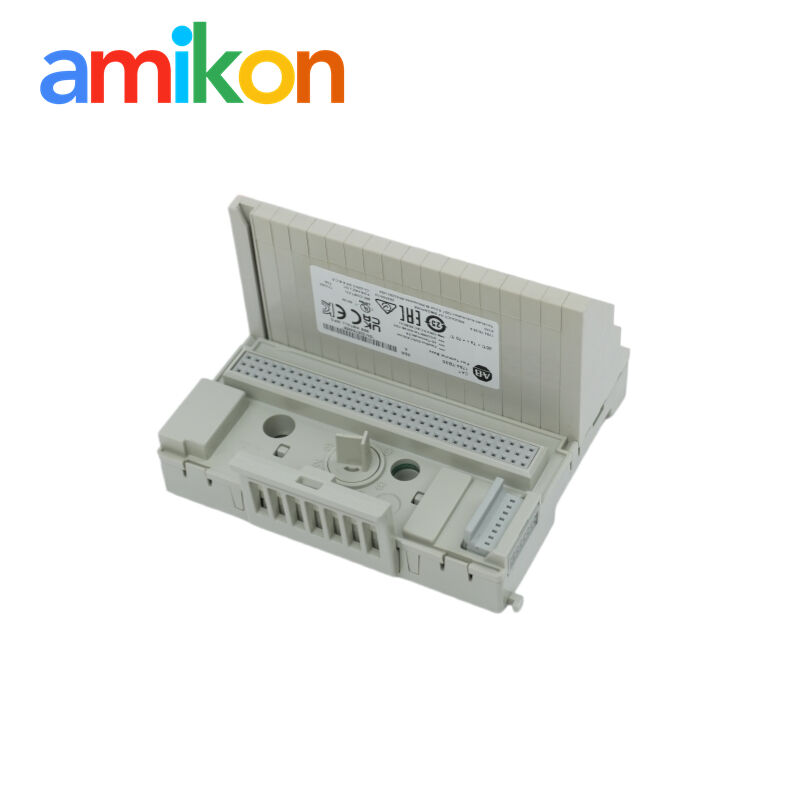

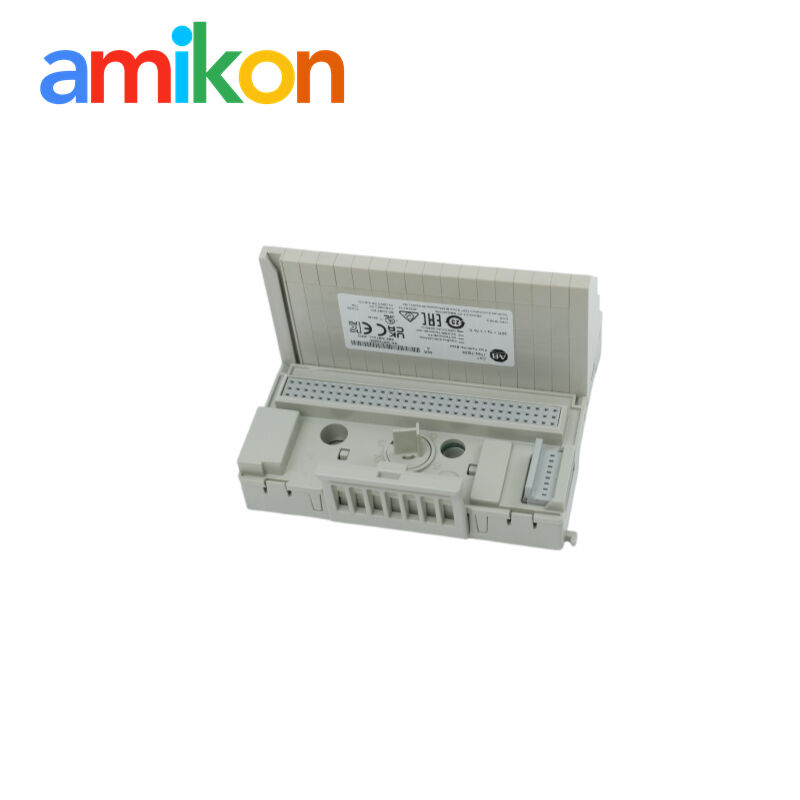

Allen Bradley 1794-TB3S FLEX I/O Spring-Clamp Terminal Base Unit for Industrial I/O
Allen Bradley FLEX I/O terminal base
1794-TB3S spring-clamp terminal
industrial I/O terminal base unit
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1794-TB3S
Allen Bradley FLEX I/O terminal base
,1794-TB3S spring-clamp terminal
,industrial I/O terminal base unit
Allen Bradley 1794-TB3S FLEX I/O Spring-Clamp Terminal Base Unit for Industrial I/O
Catalog-specific industrial automation spare for planned maintenance, fault recovery and installed-base support. Confirm the full label, series and approved documentation before replacement.
Technical Data Snapshot
| Product type | Terminal base unit |
| Wiring style | Spring-clamp terminals |
| Platform | 1794 FLEX I/O |
| Mounting | DIN rail |
| Selection check | Confirm supported I/O module and terminal assignment |
Practical Support from amikon
We supply cost-effective automation spares, help identify hard-to-find catalog numbers and consolidate multiple items into one shipment. Every offer remains open to other buyers until a sales order is confirmed.
Configuration, Programming & Use
1794-TB3S is used within the FLEX I/O platform for flex i/o terminal base unit. Customers should archive the current program or parameters, photograph field wiring, verify power and communication requirements, and record the exact slot or mechanical position before removal.
After installation, restore only a validated project or parameter set. Check diagnostics, channel status, communications and the relevant machine safety procedure before returning the asset to production.
Typical applications
Packaging, material handling, water treatment, food processing, metals, power generation, oil and gas, and maintenance of legacy production lines.
1794-TB3S Terminal-Base Selection & Wiring Check
Use the terminal base catalog number—not appearance alone—to confirm a replacement. Before removing the installed base, photograph every conductor and label, record the adjacent FLEX I/O module, and retain the existing terminal assignment for the maintenance file.
| Catalog verification | Confirm 1794-TB3S and the complete series/revision marking. |
| Module pairing | Verify that the selected FLEX I/O module is approved for this terminal-base type. |
| Field wiring | Match terminal numbers, conductor labels, field-power grouping and grounding to the validated drawing. |
| Commissioning | Check seating, wiring security and I/O status before returning the machine to service. |
Reference the current Rockwell Automation FLEX I/O terminal-base instructions and the machine-specific electrical drawings before field work.
Lifecycle & Migration Notes
Legacy status does not make visually similar modules interchangeable. Keep the exact catalog number for immediate maintenance. For modernization, evaluate the currently supported CompactLogix, Compact 5000 I/O, FLEX I/O or PowerFlex platform appropriate to the application, then validate electrical ratings, software, wiring conversion and safety requirements.
Frequently Asked Questions
How do I identify the exact model?
Match the complete catalog number 1794-TB3S, series/revision and the full nameplate.
Is it compatible with my system?
Confirm FLEX I/O, chassis or terminal-base requirements, firmware and project documentation before ordering.
Where is it typically applied?
Used for maintenance and modernization planning in documented industrial automation installations.
What should be checked before installation?
Record wiring, slot position and settings; isolate power, use ESD controls and follow 1794-IN092.
Is stock available?
Listed In Stock; request a written quantity confirmation before payment.
What warranty is supplied?
Warranty terms are confirmed in the quotation and depend on condition and supply channel.
How quickly can it ship?
Standard dispatch is 2-3 work days after order confirmation.
