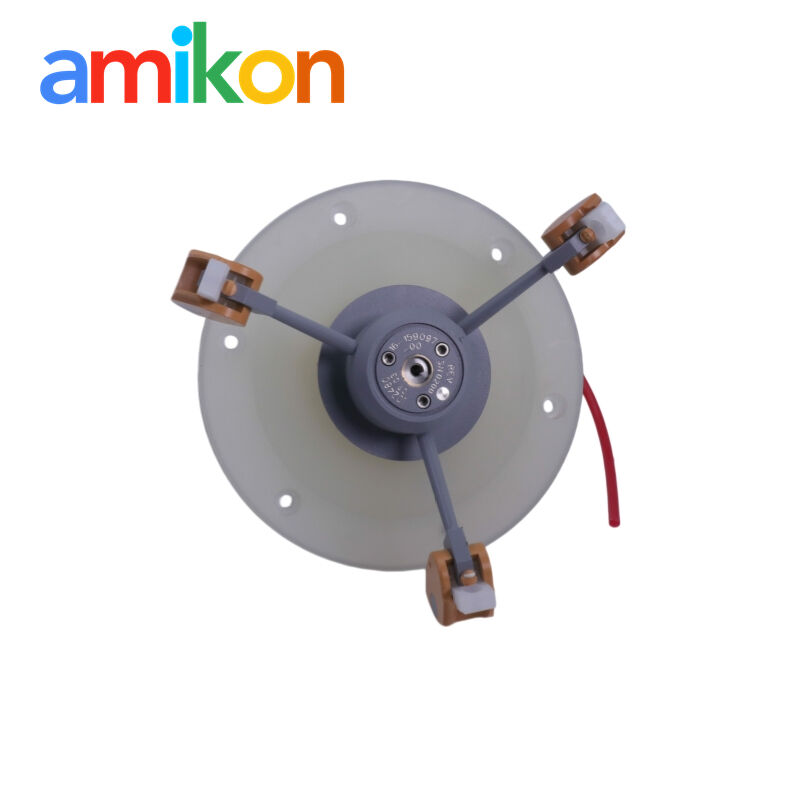

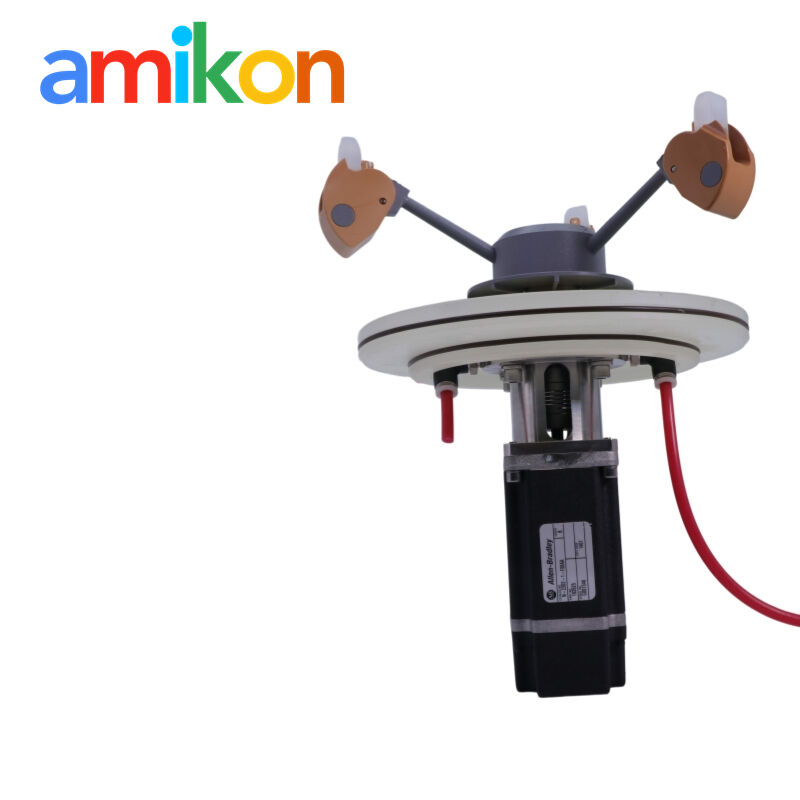

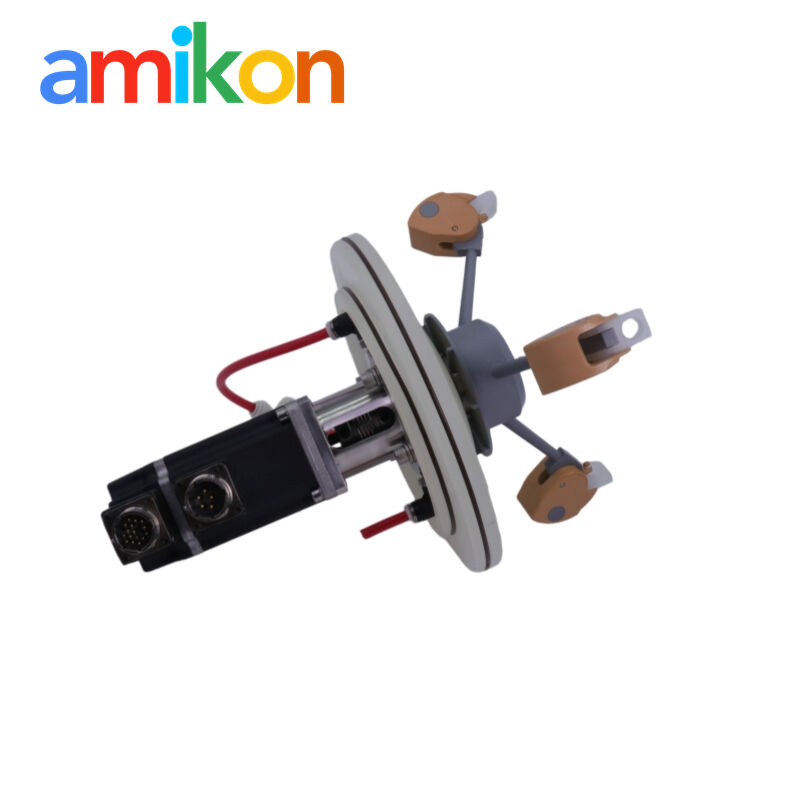

Allen Bradley N-2302-1-F00AA N-Series 6000 RPM Brushless Servo Motor for ULTRA 100/200

Verified Technical Snapshot

Values are based on Rockwell Automation N-Series/ULTRA product literature. Confirm the complete catalog string, feedback option and installed drive before replacement.

Lifecycle & Replacement Planning

This N-Series/ULTRA platform is a legacy installed-base product. A modern substitute must be selected as an engineered migration, not a drop-in assumption. Review current Rockwell Kinetix motor/drive families with a qualified motion engineer, matching voltage, continuous and peak torque, speed, inertia ratio, shaft/flange, brake, feedback, cables and controller support.

FAQ — N-2302-1-F00AA

How is the model identified?

Match the complete nameplate string N-2302-1-F00AA; do not purchase by the N-2302 stem alone.

Is it compatible with every ULTRA drive?

No. Official literature lists specific ULTRA 100/200 combinations; verify drive size, firmware, cables and application load.

Where is it commonly applied?

Legacy compact servo axes requiring fast positioning and a maximum listed speed of 6000 rpm.

What should be checked during installation?

Mounting, coupling alignment, cable condition, grounding, feedback polarity and drive parameter limits.

Is stock available?

Supply is offered as in-stock spare inventory subject to confirmation at inquiry time.

What about warranty and shipping?

Ask Miya for item-specific warranty confirmation. Standard dispatch target is 2–3 work days after order confirmation.
