Functional diagram based on the manufacturer’s documented MedWeld 3005 kit architecture; it is a system-level explanation, not a terminal-by-terminal wiring drawing.

The broader MEDAR catalog also covers flash and upset welding, plus selected current-control processes such as brazing, annealing, forging and tempering. Application suitability depends on the complete control and power package.

• 917-0050 exact match: Preferred maintenance route when rack, revision, program and companion hardware match.
• 830-0147 kit board: Official MedWeld 3005 single-phase kit reference; evaluate within a complete documented kit.
• 917-0049: Related legacy processor-card number; engineering comparison is required and plug compatibility is not assumed.
• 917-0043: Remote interface module with a different function; not a direct replacement.
• MedWeld 2200 / 4000: Possible full-control modernization families after review of power stage, schedules, I/O and safety.
• WT6000: Current WTC technology migration route; treat as a redesign project.
• Repair or tested exchange: Often the lowest-risk option when original validation and wiring must be retained.
• SLC modernization: Migration to a newer control platform requires coordinated machine and welding-control engineering.

How do I identify it?

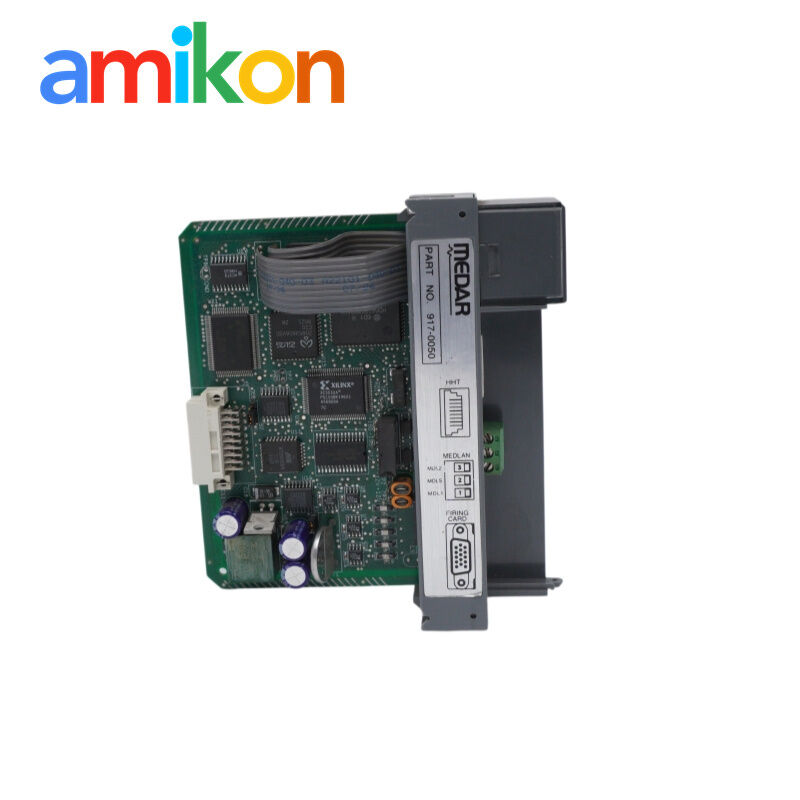

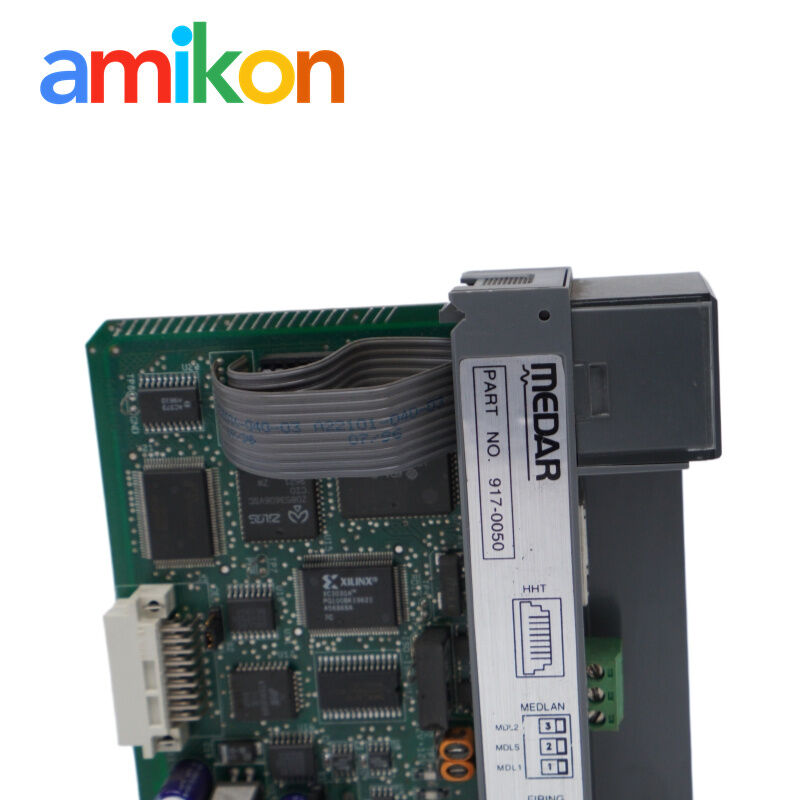

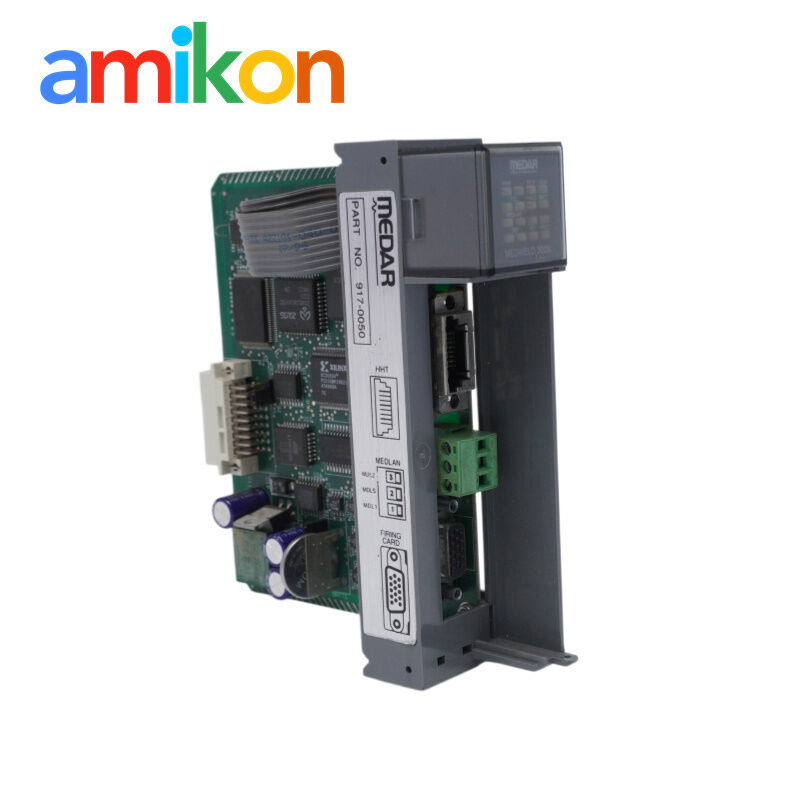

Match the MEDAR label and full 917-0050 number, then compare rack position, connectors, board revision and photographs.

Is it compatible with every SLC 500 rack?

No. The host platform alone is not enough; the machine program, chassis layout, MedWeld kit, firing interface and options must match.

What is its application?

It performs resistance-welding control functions within a MedWeld 3005 architecture used by integrated machine or robotic systems.

How should it be installed?

Use qualified personnel, lockout/tagout, ESD precautions, documented cable transfer and controlled recommissioning.

Is it in stock?

This listing is offered as In Stock. Ask for current label and board photos before payment.

What warranty applies?

Typical coverage is 6–12 months according to condition and quotation; the written quotation is final.

How is it shipped?

Anti-static protection, cushioned rigid carton and export packing, normally within 2–3 work days after confirmation.

These are additional sourcing references from the supplied working documents. They are not replacements for MEDAR 917-0050.

Reliable parts. Faster recovery. Less downtime.

AMIKON supplies new and discontinued industrial automation parts with a focus on rapid response, dependable sourcing and careful customer service. Our goal is to help maintenance teams keep operations moving while building long-term relationships based on trust and delivery performance.

MOQ 1 · USD 66 · T/T · In Stock · 2–3 work days · Brand new and original
