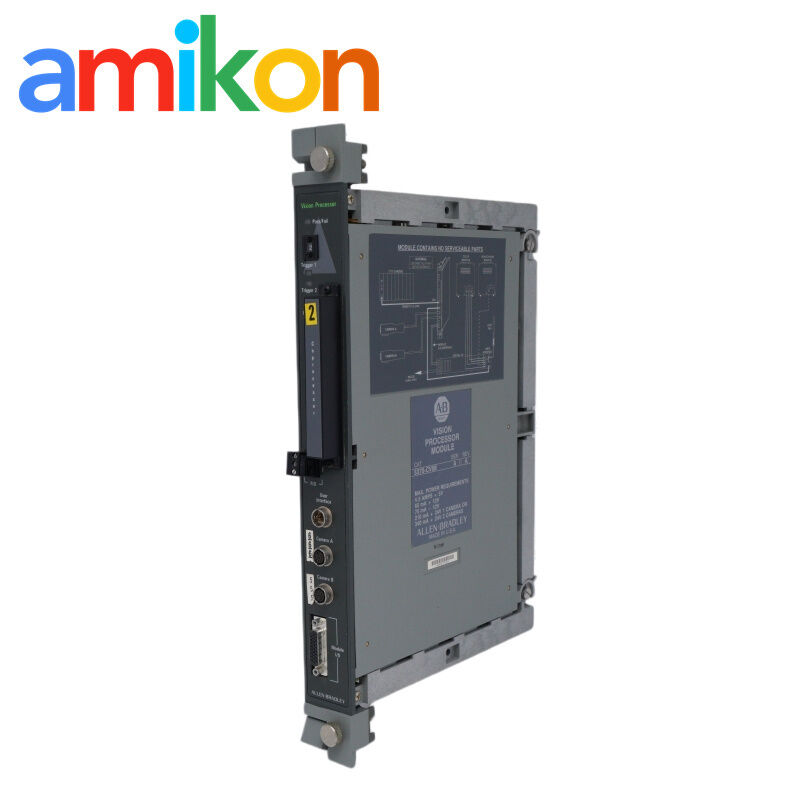

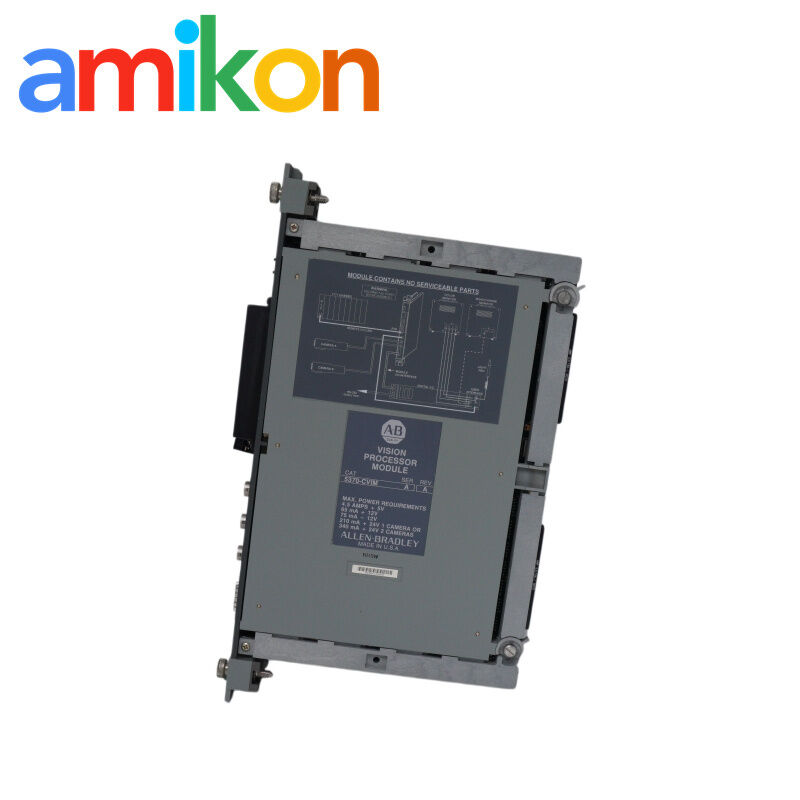

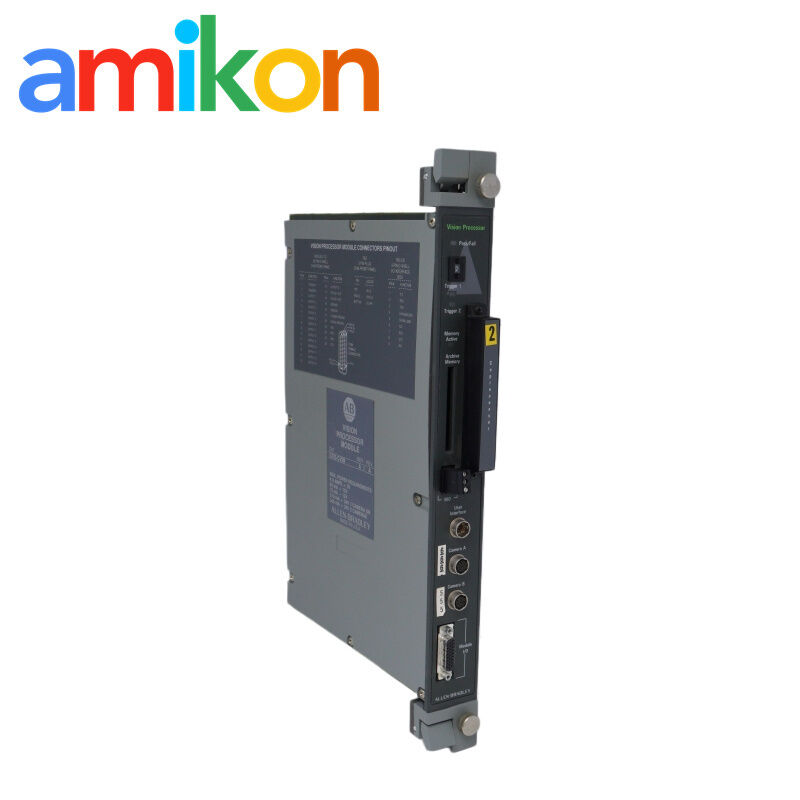

5370-CVIM Allen Bradley Dual Camera Input Vision Processor Module for Multi-Station Industrial Inspection
Product Overview
The Allen-Bradley 5370-CVIM is a vision processor that handles dual-camera inputs simultaneously for industrial inspection systems.
Technical Specifications

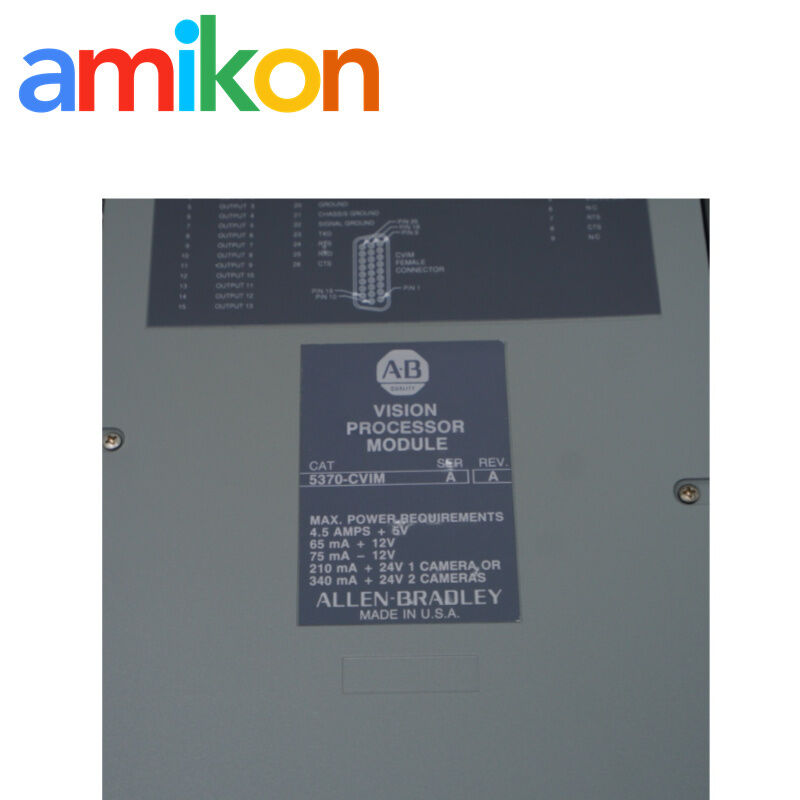

- Max. Power Requirements: 4.5 AMPS @ +5V
- Value: Ensures internal stable power supply and steady data processing
- Camera Power: 210 mA @ +24V (1 Camera) / 340 mA @ +24V (2 Cameras)
- Value: Supports direct dual-camera power allocation from the module
Engineering Notes
The hardware structure provides excellent noise rejection, making it reliable for multi-station setups using classic Allen-Bradley frameworks.
Project Case
This exact model has been successfully deployed in manufacturing plants for multi-camera automated inspections under continuous operational loads.
Global Supply Network
Amikon supplies industrial automation spare parts, mainly PLC, DCS, and TSI systems, to more than 160 countries.
- North America: Steady demand, especially US and Canada. Oil & gas plants and automotive-related production sites
- Europe: Similar in scale, Germany and UK stand out. Chemical plants and heavy equipment lines placing regular orders
- Middle East and Africa: Refinery projects and mining sites. UAE, Saudi Arabia, South Africa shipments, including remote field installations
- Asia-Pacific: Broad demand from China, Singapore, Australia, India. Semiconductor fabs, power stations, and metallurgy plants
- South America: Smaller volume but stable. Brazil, Chile, Argentina connected with mining, copper operations, and hydropower projects
Request a Quote
Service Benefits
100% Original Parts - Vetted industrial automation & DCS/PLC spares
Massive Inventory - 30,000+ items ready for immediate shipment
12-Month Warranty - Fully covered by a 1-year quality guarantee
Fast Global Shipping - Secure express delivery to 160+ countries
24/7 Rapid Response - Dedicated 1-on-1 customer service
Frequently Asked Questions
What is the primary function of the Allen-Bradley 5370-CVIM in an industrial automation system?
The 5370-CVIM is a Configurable Vision Input Module that acts as a dedicated hardware processor for real-time image processing, industrial inspection, and target positioning.
Does the 5370-CVIM support multiple camera inputs, and what are its exact power requirements?
Yes, the 5370-CVIM handles dual-camera inputs simultaneously. Its maximum power requirements are 4.5 AMPS @ +5V for internal processing, 210 mA @ +24V for 1 camera, and 340 mA @ +24V for 2 cameras.
What hardware options are available to expand or modify the capabilities of the 5370-CVIM?
Its functions can be expanded using the 2801-MD4 memory module alongside dedicated firmware packages including USER-PAK, MATH-PAK, and OCR-PAK.
How can engineers verify external wiring connections on the 5370-CVIM module?
External signals and communication lines are managed and troubleshooted via the faceplate's dedicated 26-pin CVIM female connector.
