330103-00-15-05-01-00 Bently Nevada 3300 XL 8 mm Proximity Probes for Steam Turbine Radial Vibration Monitoring, Fits 3500 System
330103-00-15-05-01-00 Bently Nevada 3300 XL 8 mm Proximity Probes for Steam Turbine Radial Vibration Monitoring, Fits 3500 System
Bently Nevada 330103-00-15-05-01-00 Bently Nevada 3300 XL Proximitor Sensor
330103-00-15-05-01-00 probe steam turbine vibration monitoring
3300 XL 8mm Proximity Probe radial vibration monitoring
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330103-00-15-05-01-00
Contact Us
Request A Quote
Product Details
Model:
330103-00-15-05-01-00
Packaging:
Original New Packaging
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
Expected Shipping Dimensions:
2x1.6x58cm
Weight:
0.1kg
Highlight:
Bently Nevada 330103-00-15-05-01-00 Bently Nevada 3300 XL Proximitor Sensor
,330103-00-15-05-01-00 probe steam turbine vibration monitoring
,3300 XL 8mm Proximity Probe radial vibration monitoring
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
330104-00-25-10-02-05 Bently Nevada 3300 XL 8mm Armored Probe for Rotating Machinery
Get Best Price
Contact Us
Contact Now
Product Description

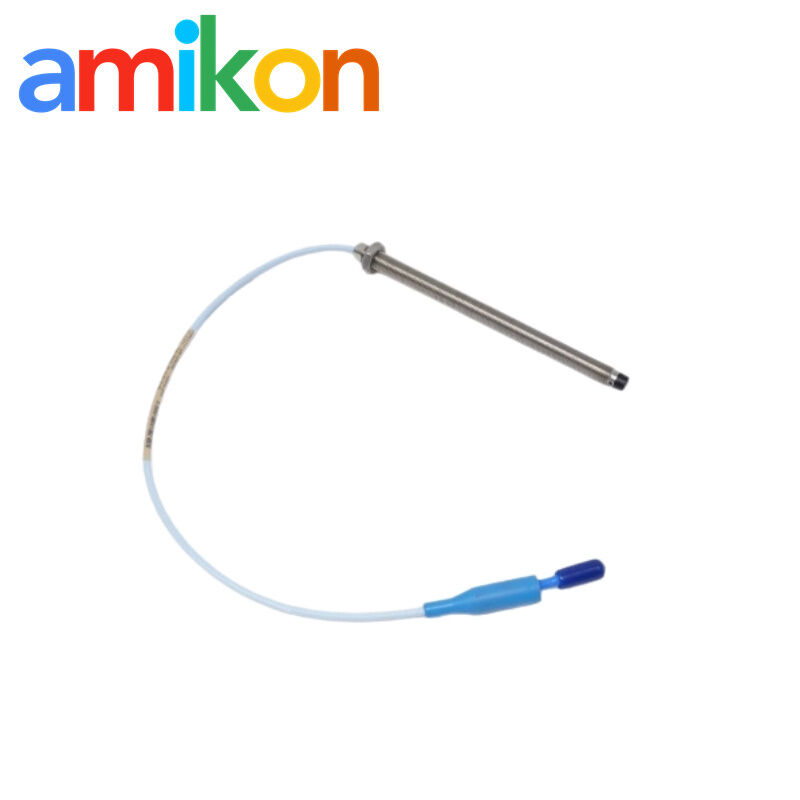

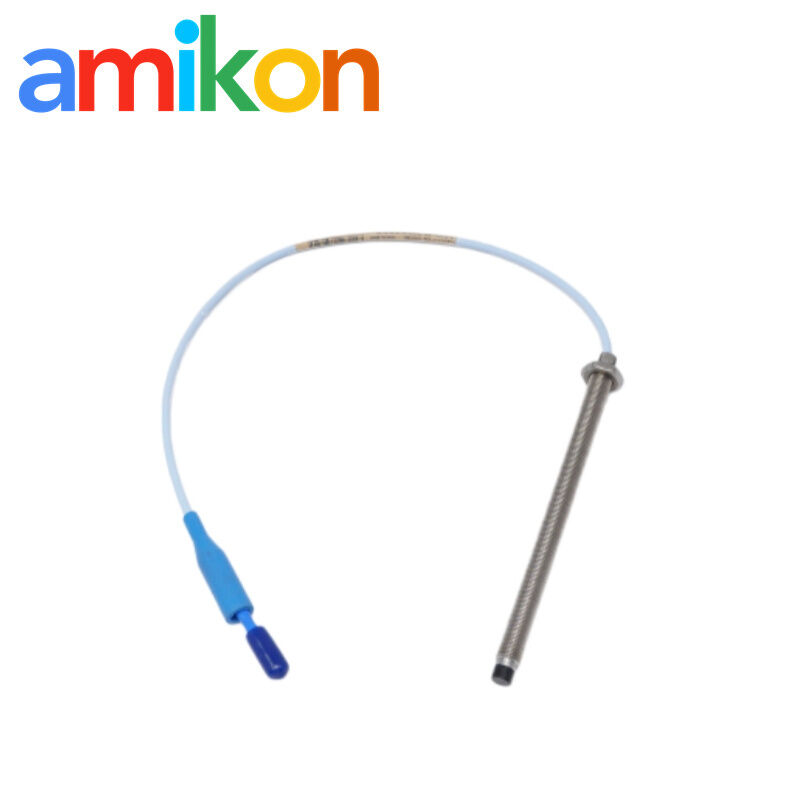

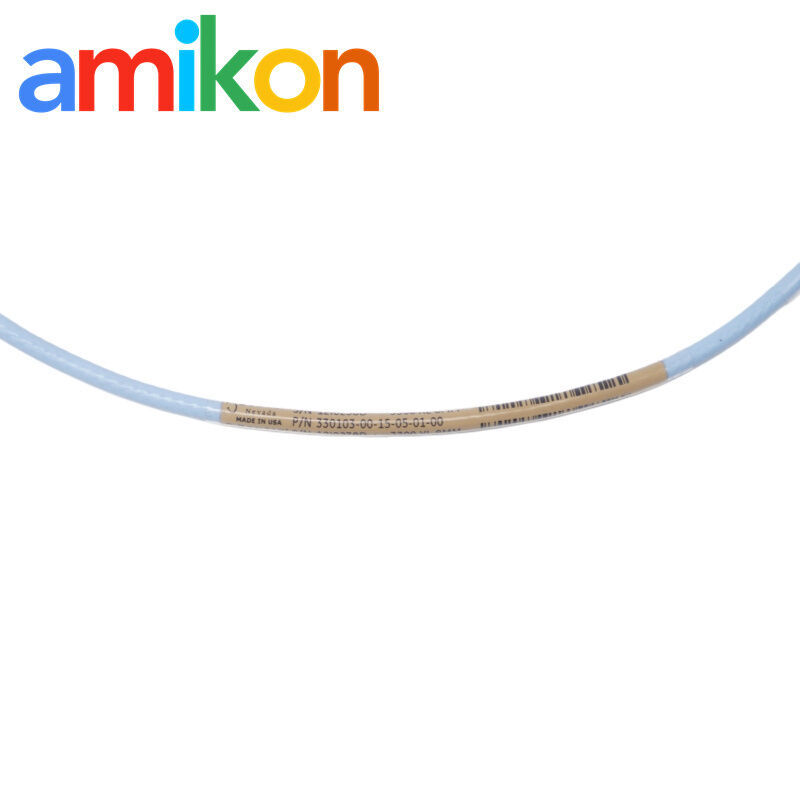

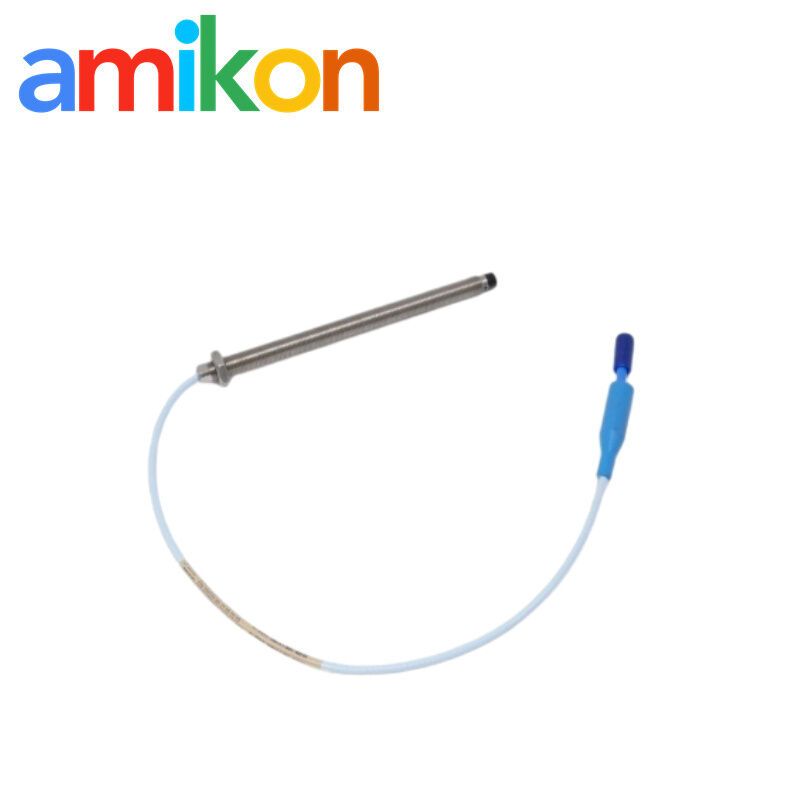

330103-00-15-05-01-00 Bently Nevada 3300 XL 8 mm Proximity Probes for Steam Turbine Radial Vibration Monitoring, Fits 3500 System
- Exact Fit Specification: Bently Nevada 330103-00-15-05-01-00 probe with M10x1 metric thread, 150mm case, and 0.5-meter cable.
- API 670 Machinery Protection: Provides non-contact radial vibration monitoring and axial thrust position measurement.
- Eddy Current Technology: Advanced transducer for continuous shaft eccentricity monitoring on critical steam and gas turbines.
- Rugged Unarmored Build: Integrated ClickLoc connector with connector protector ensures a stable proximity sensor interface.
- Full 3500 System Integration: Fully compatible with 3300 XL Proximitor sensors, extension cables, and 3500/40M monitor cards.
- Americas: Sourcing AB, Honeywell, Emerson, and GE control cards.
- Europe: Providing discontinued Siemens, ABB, Bently Nevada, and Schneider spares.
- Asia-Pacific: Supply network for Yokogawa DCS and Japanese servo/CNC drives.
- Channels: Direct procurement via factory excess inventory and global distributor liquidations.
- Logistics: Massive inventory in Xiamen hub with DHL/FedEx/UPS global delivery to 160+ countries.
- Discontinued Part Specialist
We source rare, obsolete, and hard-to-find PLC/DCS parts to keep your legacy systems running. - Massive Inventory, Ready to Ship
Huge stock of top brands (ABB, AB, Bently Nevada) available for immediate worldwide dispatch. - 100% Tested & 1-Year Warranty
Every component undergoes strict quality inspection and comes with a comprehensive 12-month warranty. - Minimize Your Downtime
Fast global shipping and rapid quotation response to get your production line back up instantly.
Frequently Asked Questions
Q: What is the correct system calibration procedure for the Bently Nevada 330103-00-15-05-01-00 proximity probe?
A: For the Bently Nevada 330103-00-15-05-01-00 probe, calibration is mainly about matching total electrical length.
It has a 0.5 m integrated cable, so the rest must be matched:
- 5 m system → 4.5 m extension cable
- 9 m system → 8.5 m extension cable
If mismatch happens, the scale factor (around 7.87 V/mm) drifts and the Proximitor sensor starts giving unstable vibration or gap readings.
Q: Can I replace an older 3300 series 8mm probe with Bently Nevada 330103-00-15-05-01-00?
A: Yes, it can replace older 3300 XL 8mm Proximity Probe systems, but only partially compatible.
The probe works, but the Proximitor sensor must be XL type. Mixing old and XL versions usually distorts the eddy current loop linearity, so most plants replace both together for stable machinery protection card signals.
Q: How do I verify installation depth and gap voltage for Bently Nevada 330103-00-15-05-01-00?
A: On M10x1 threaded housing, installers normally tune it using DC gap voltage. Target point is about -10.0 VDC, roughly center of the linear range. Over-tightening should be avoided since the 330103-00-15-05-01-00 probe is unarmored and more sensitive to mechanical stress.
Q: What causes a “Not OK” status on the 3500 rack with Bently Nevada 330103-00-15-05-01-00?
A: Usually a loop issue.
Check resistance first:
- normal range: 4.0–8.0 Ω
If OK, then suspect ClickLoc connector contamination or moisture, especially in field environments. That’s the most common failure point in 3500 rack module systems.
Q: Why is “Without Armor” specified for Bently Nevada 330103-00-15-05-01-00?
A: It means no stainless steel outer protection, just standard coaxial cable. Fine for conduit or internal routing in machinery. If exposed to vibration, debris, or sharp edges, engineers usually switch to an armored version instead of using the standard 330103-00-15-05-01-00 probe.
Compatible Parts Reference
| Part Number | Compatible Part Number |
|---|---|
| 330103-02-07-10-02-00 | 21000-28-10-00-098-04-02 |
| 330103-02-12-10-02-00 | 21000-28-10-00-217-04-02 |
| 330103-05-13-10-02-00 | 330104-00-05-10-02-00 |
| 330103-07-12-10-02-00 | 330101-00-08-20-02-05 |
| 330104-01-05-10-02-00 | 330130-070-00-00 |
| 330703-050-120-10-02-00 | 330130-080-01-05 |
| 330709-050-120-10-02-00 | 330703-000-060-50-12-00 |
| 76686-040-01 | 330103-00-06-15-02-CN |
| 81305-040-00 | 330130-030-01-CN |
| 135489-04 | 102044-00-18-10-02 |
| 128031-01C 128031-01 | 144181-50 |
| 330904-05-14-05-02-00 | 3500/42E |
| 330930-040-00-00 | 3500/50E |
| 330909-00-60-10-02-05 | 330101-30-63-10-02-00 |
| 21000-16-10-15-057-03-02 | 330130-035-00-CN |
| 21000-16-10-15-102-03-02 | 330130-035-01-CN |
| 21000-16-10-15-114-03-02 | 330130-045-01-CN |
| 21000-16-10-15-144-03-02 | 330104-00-07-05-02-00 |
| 991-01-XX-01-CN | 330130-085-01-00 |
| 3500/93 135799-02 | 40113-02 |
