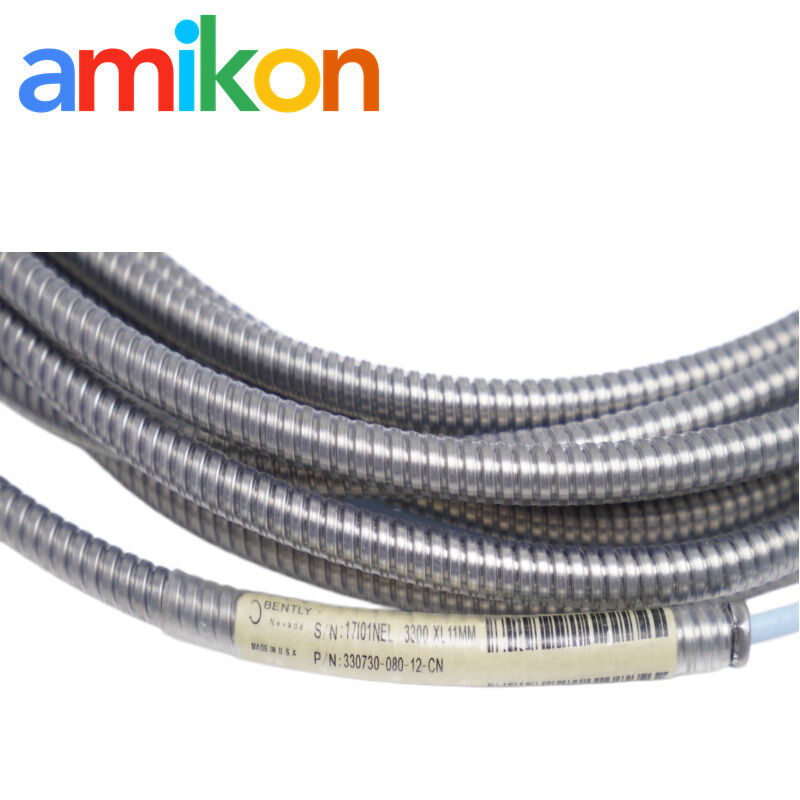

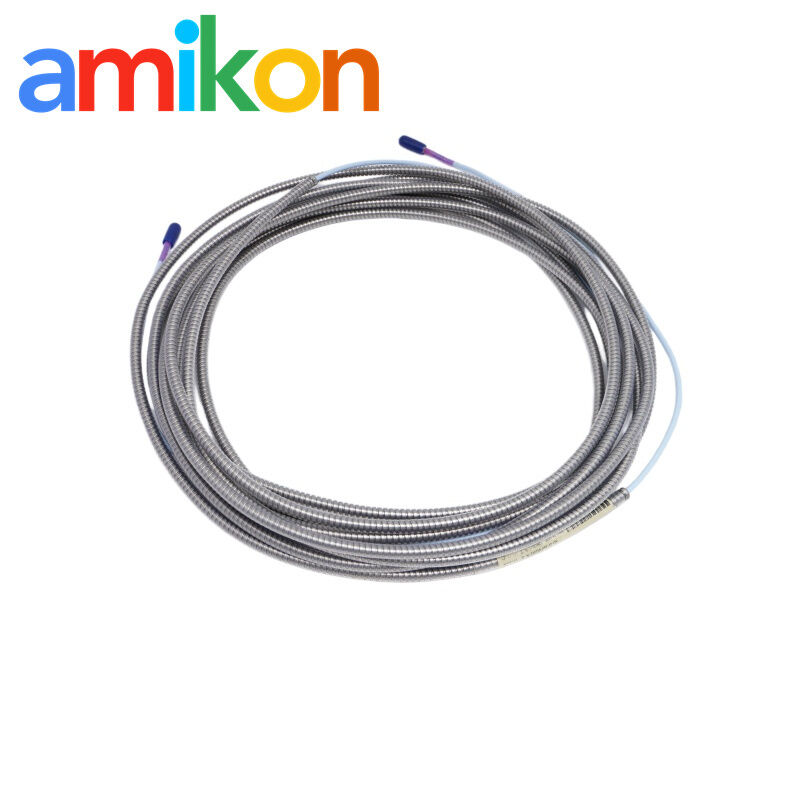

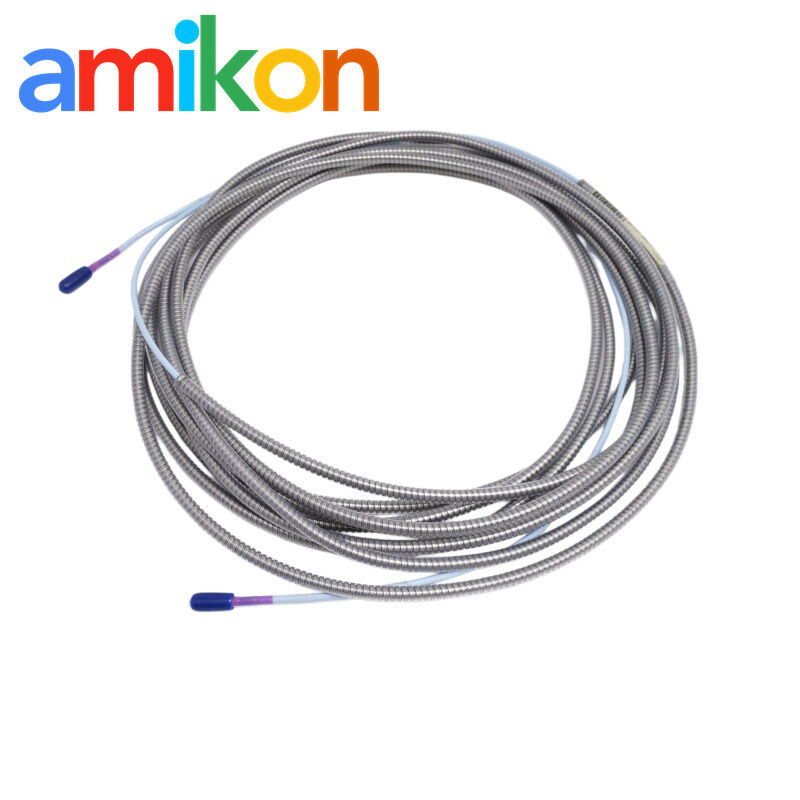

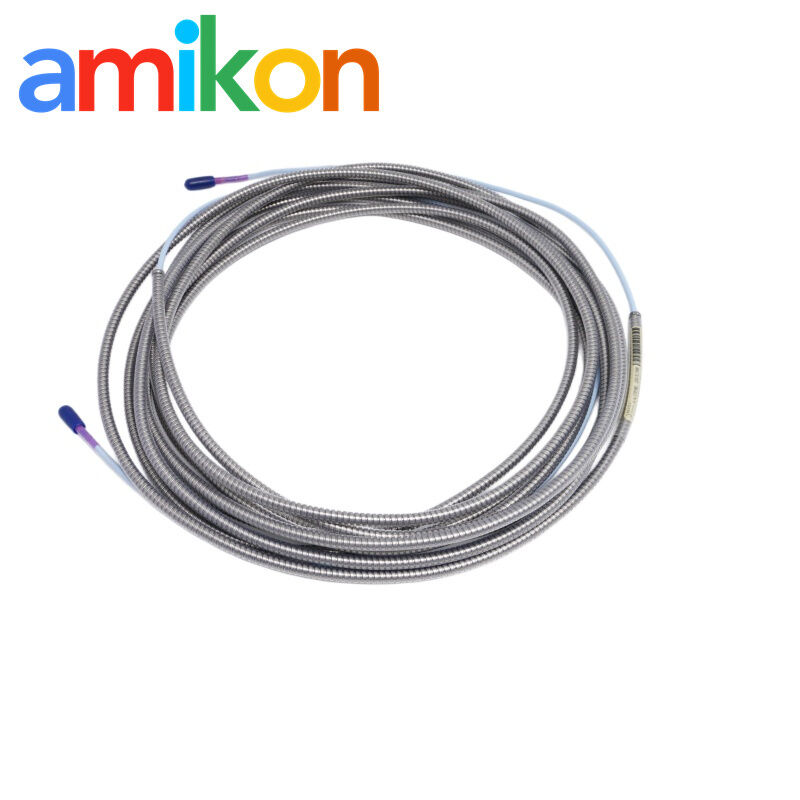

Bently Nevada 330730-080-12-CN 3300 XL 8.0 Meters Extension Cable with FluidLoc Technology and China Regional Approvals

The Bently Nevada 330730-080-12-CN is basically an extension cable used in the 3300 XL 11mm Eddy Current Proximity Transducer System. In most real setups, it sits between the 11mm proximity probe and the 3300 XL Proximitor Sensor, carrying the signal from the machine area back to the monitoring system.

It’s commonly seen in rotating equipment monitoring, things like gas turbines, steam turbines, and centrifugal compressors. The signals it carries usually relate to shaft vibration, axial thrust position, and sometimes eccentricity / Keyphasor reference. Nothing complicated on site, it’s more of a stable signal link in the chain.

The model number is just a configuration breakdown, not something random.

330730 → base series for 3300 XL 11mm extension cable
-080 → 8.0 meter cable length
-12 → version with FluidLoc technology and integrated connector protectors
-CN → China regional approval version (commonly CCC / NEPSI related compliance)

So in simple terms, 330730-080-12-CN is an 8-meter extension cable with fluid-resistant structure and connector protection, made for China compliance requirements.

In real plant environments, cables often deal with oil mist, moisture, and vibration. FluidLoc technology mainly helps stop liquids like oil or water from migrating through the cable core over time. That kind of issue usually shows up slowly, not immediately. The ClickLoc connectors (gold-plated, coaxial type) together with the connector protectors on the -12 version help keep the connection stable. In vibration-heavy areas, this locking design reduces the chance of loosening, and it also helps maintain a more consistent sealing against dust and moisture.

This one is mostly about matching the system length correctly. A typical 11mm probe already has a 1.0m integrated lead, so pairing it with the 8.0m 330730-080-12-CN gives a 9-meter total system length. That’s the intended setup for this cable. If it’s mixed with a different system length configuration, the scaling of the vibration signal can be off, and the measurement won’t match the designed calibration.

The cable is built on a 75-ohm triaxial structure, designed for stable analog signal transmission in industrial environments. It runs at a nominal 30 Vdc operating level, with low capacitance behavior (around 69.9 pF/m) to keep signal loss under control. Resistance values stay low in both core and shield paths, which helps maintain signal stability over longer runs. In practice, it’s more about keeping the vibration signal clean from the probe all the way back to the monitoring system, especially in noisy plant environments.

The cable uses FEP insulation, so it can handle a fairly wide temperature range, from very cold conditions to high heat near turbine areas. In real use, it’s often exposed to oil mist, humidity, and continuous vibration. As long as the connector is properly locked, it generally performs well in high-humidity or condensing environments. Direct immersion in liquid is still not recommended, but that’s not how it’s usually deployed anyway.
