Bently Nevada 330104-00-02-10-02-00 3300 XL 8mm Proximity Probe with M10 x 1 Metric Thread for API 670 Compliant Eddy Current Sensor
Bently Nevada 330104 Bently Nevada 3300 XL series
330104-00-02-10-02-00 steam turbine shaft vibration
3300 XL 8mm Proximity Probe radial vibration measurement
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330104-00-02-10-02-00
Bently Nevada 330104 Bently Nevada 3300 XL series
,330104-00-02-10-02-00 steam turbine shaft vibration
,3300 XL 8mm Proximity Probe radial vibration measurement
video
Bently Nevada 76683-50 35 mm Proximitor Sensor for Non-contact Distance and Axial Thrust Measurement
video
Bently Nevada 330705-02-18-90-02-00 11 mm Reverse Mount Proximity Probe with 9.0 Meters Cable and 4.0 mm Linear Range

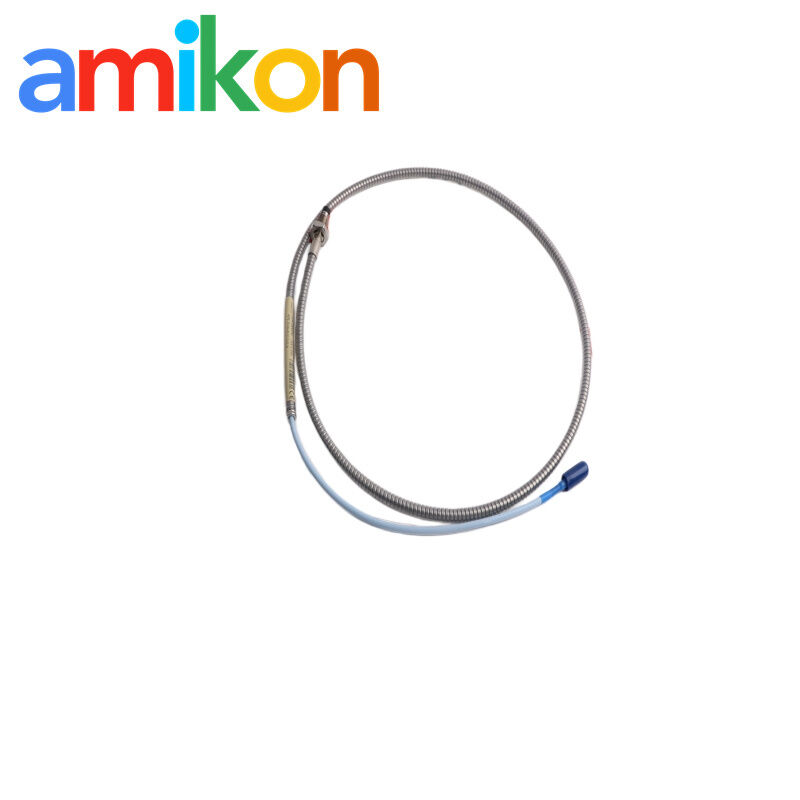

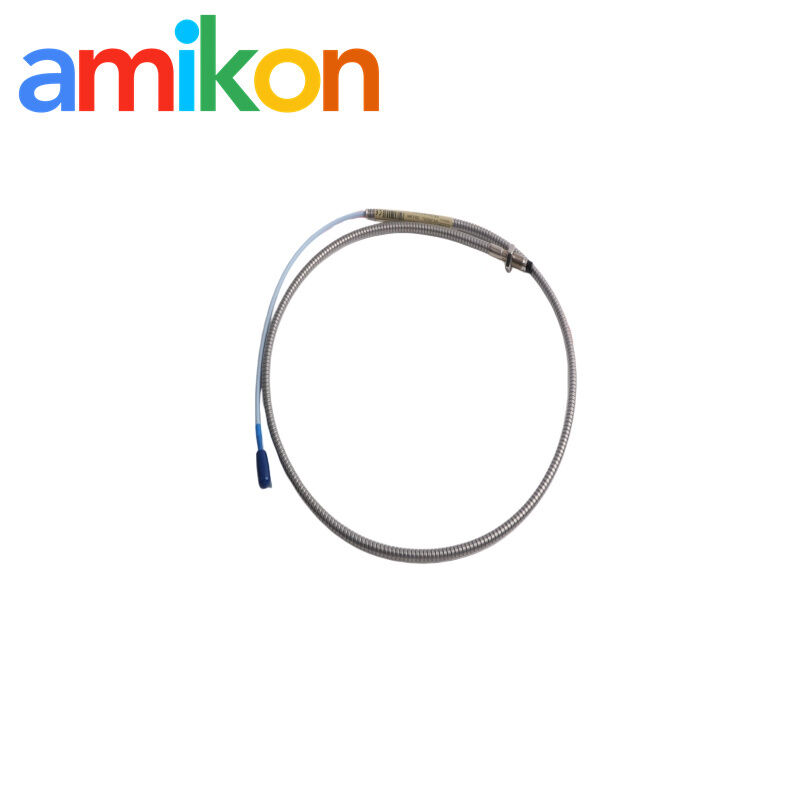

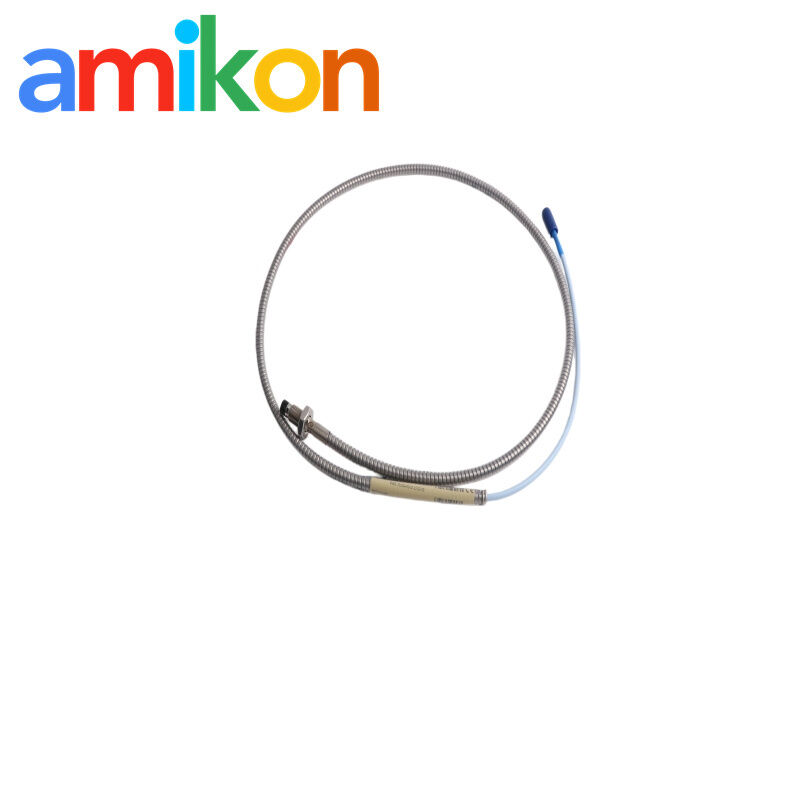

- Core Specifications: This model features an 8mm probe diameter with a metric M10x1 armored probe design, combined with a 1.0m armored cable for more demanding operating conditions. A ClickLoc coaxial connector is included as well, making installation and replacement more convenient during maintenance. For applications involving precise spacing control, it can also work effectively as a machinery air gap sensor or non-contact displacement probe.
- Key Applications: You will often find the Bently Nevada 330104 used in steam turbine shaft vibration monitoring, gas turbine asset protection, and centrifugal compressor monitoring. It is also widely applied to industrial rotating equipment such as compressors, pumps, and generators, particularly in power plant instrumentation and critical asset protection systems.
- System Compatibility: The 330104-00-02-10-02-00 is compatible with 3300 XL Proximitor Sensor systems and the 330130 extension cable. It also works smoothly with the Bently Nevada 3500 system, including the 3500/40M monitor module, 3500/42M Proximitor Monitor, and System 1 condition monitoring platform. For plants operating under API 670 machinery protection requirements, this probe is often a practical and reliable option among Bently Nevada spare parts.
- Bently Nevada: 3500 Systems, Proximitor sensors, and 3300 XL probes.
- Honeywell: Experion PKS, TDC 3000, and FSC safety systems.
- ABB: 800xA, Symphony Plus, and Bailey INFI 90 DCS.
- Allen-Bradley: ControlLogix 1756 and legacy SLC 500 modules.
- GE Vernova: Mark VI/VIe Speedtronic turbine control cards.
- Triconex: Invensys/Schneider TMR emergency shutdown systems.
The 330104-00-02-10-02-00 is a non-contact eddy current proximity probe, mainly used for shaft movement monitoring. On site it’s usually tied to radial vibration and shaft position readings. Turbines, compressors, pumps… these kinds of rotating machines. It just sits in the system and keeps sending displacement data, nothing complicated in daily use. In API 670 setups it’s a pretty standard piece in the monitoring loop.

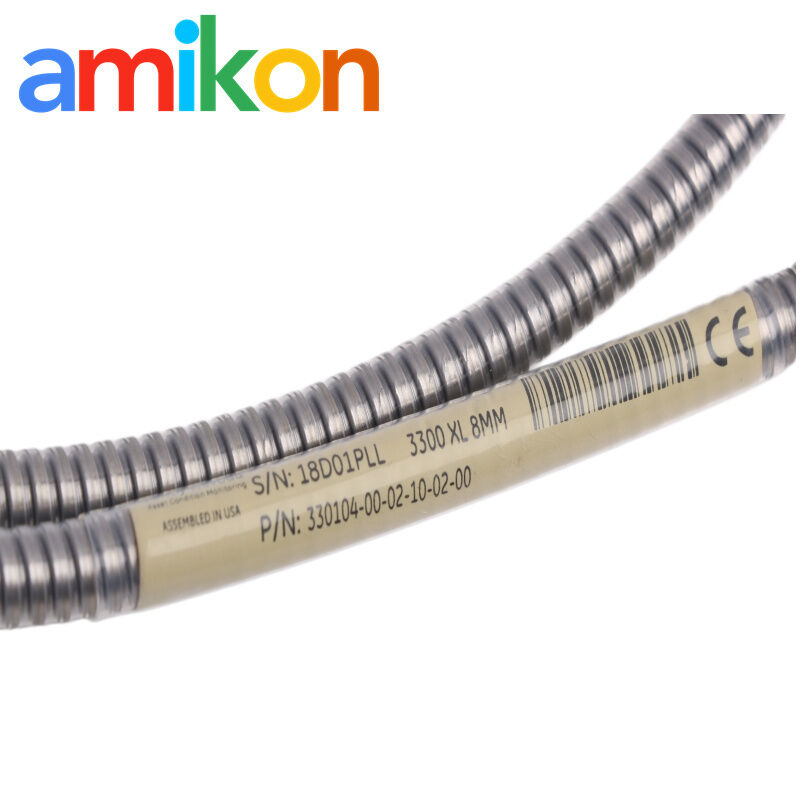

The code is basically a configuration string, each part corresponds to physical details.
330104 → 3300 XL 8mm metric probe, M10 × 1 thread
00 → 0 mm unthreaded section
02 → 20 mm case length
10 → 1.0 m cable
02 → armored cable with ClickLoc connector
00 → standard version
In practice, people usually don’t “interpret” it too much. It’s more about matching it exactly during replacement. One small mismatch and installation won’t feel right.
It’s part of the 3300 XL system chain. Normally the 1.0 m probe cable is paired with a 330130 extension cable, often the 4 m type, then it goes into a 3300 XL Proximitor Sensor. After that, it feeds into the 3500 rack system, commonly 3500/40M or 3500/42M depending on how the system is built. That’s the usual setup, nothing special beyond that.
It’s built for that kind of environment, otherwise it wouldn’t be used in turbines. PPS tip material, Viton® O-ring, stainless armored cable. In real sites you’ve got oil mist, heat, vibration all the time, so the structure is just there to survive normal industrial conditions over long runs. Not anything exaggerated, just standard rugged design.
| Part Number | Part Number |
|---|---|
| 3500/72M 176449-08 | 330104-19-25-10-11-05 |
| 3500/62 163179-03 | 330103-00-05-10-02-05 |
| 3500/40M 140734-01 | 330103-00-18-05-02-05 |
| 330500-02-00 | 330130-045-02-05 |
| 135137-01 | 330101-00-08-05-02-05 |
| 149992-02 | 330130-085-00-05 |
| 147663-01 | 125388-01 |
| 3500/94 145988-01 | 128275-01/128275-01F 130944-01 |
| 140482-01 | 330780-91-00 |
| 330500-00-20 | 330103-00-14-10-01-00 |
| 170133-090-00 | 330730-080-02-00 |
| 3500/32M 149986-02 | 330104-05-13-10-02-00 |
| 1900/65A 172323-01 | 3500/23E |
| 330180-X0-05 | 3500/15E |
| 125720-01 | 136711-01 |
| 125760-01 | 330703-000-040-10-11-00 |
| 125768-01 | 330705-02-18-10-02-00 |
| 128229-01 | 330703-000-070-10-02-00 |
| 128240-01 | 330101-10-27-05-02-05 |
| 133396-01 | 330878-50-00 |
