Product Description

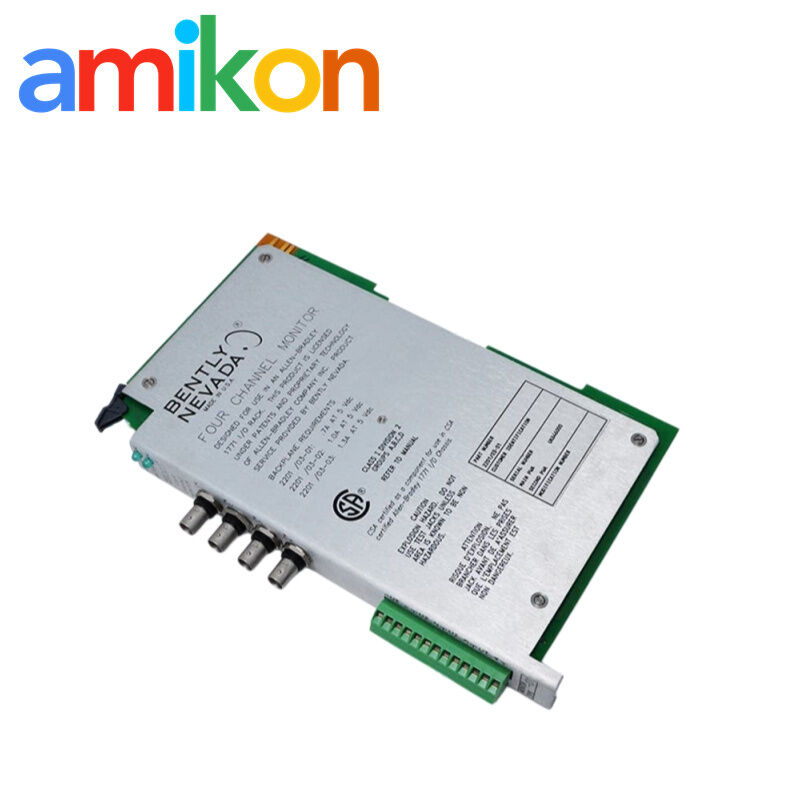

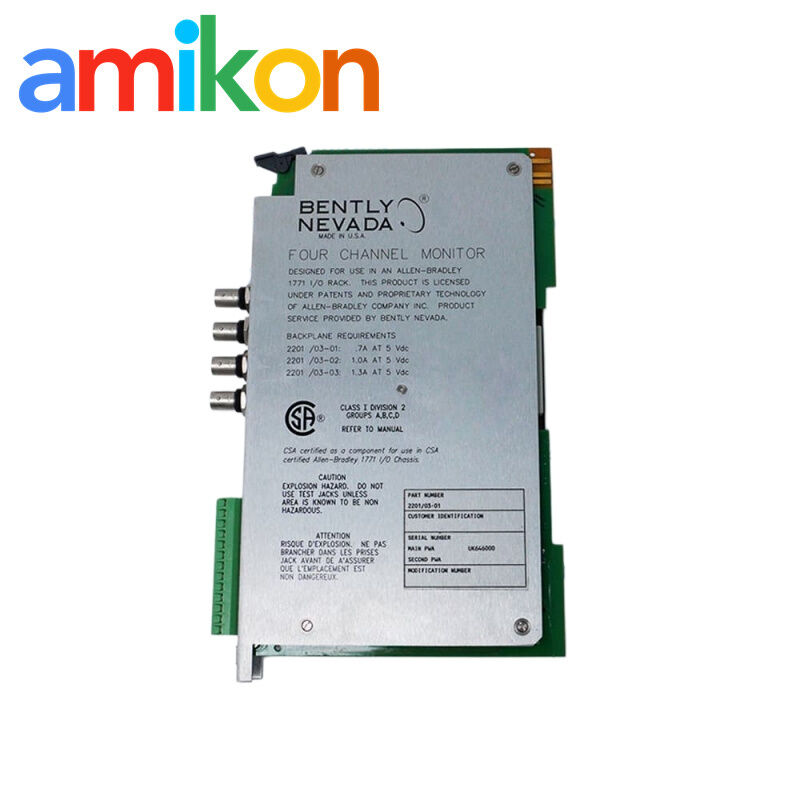

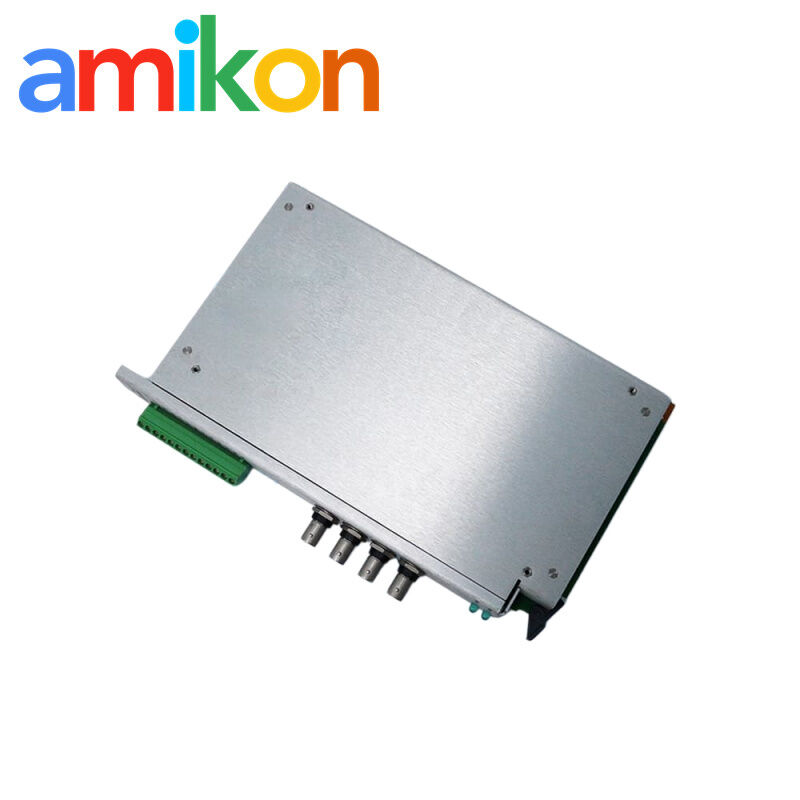

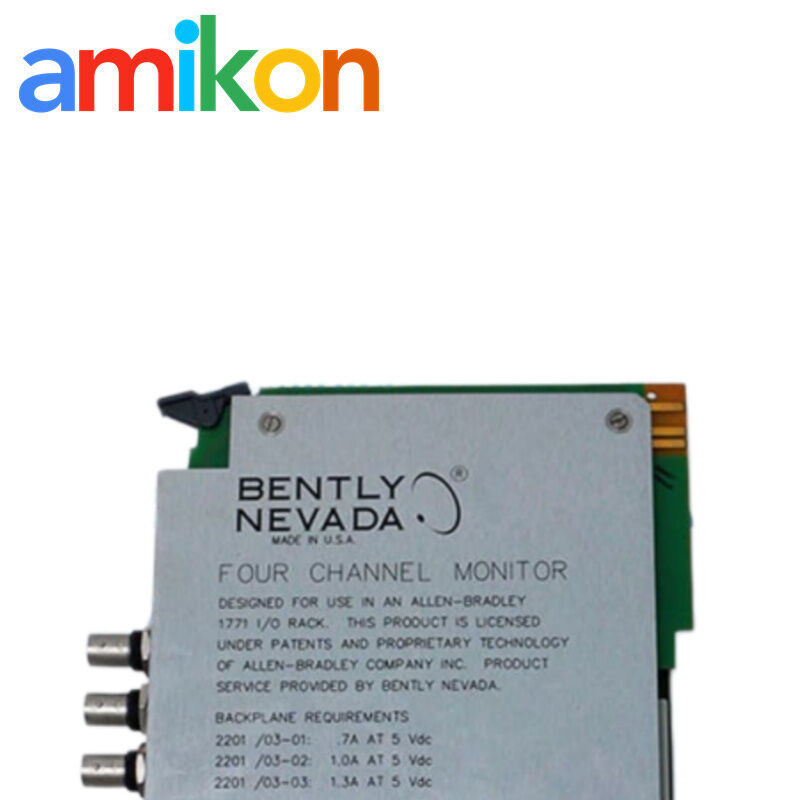

Bently Nevada 2201/03-01 Four-Channel Monitor module
Product Overview
| Category | Parameter | Technical Specification |
|---|---|---|
| General Info | Manufacturer | Bently Nevada |
| Model Number | 2201/03-01 | |
| Product Type | Four-Channel Monitor Module | |
| Compatibility | Host System | AB PLC-5 System |
| Chassis Interface | 1771 Universal I/O chassis | |
| Electrical | Backplane Current | 0.7 A @ 5 VDC |
| Channels | Channels per Module | 4 independent channels |
| Full System Capacity | Up to 6 channel modules (24 channels total) | |
| System Scan Rate | Scans all 24 channels every 40 milliseconds (ms) | |
| Inputs | Supported Transducers | Vibration probes, Seismic sensors |
| Alarms | Alarm Levels | Dual-level per channel: Alert and Danger |
| Configuration | Software-configurable via PLC-5 Block Transfer instructions |
Key Features
- High-Density 4-Channel Continuous Vibration Monitoring - Engineered for continuous vibration monitoring and machinery protection across 4 independent channels. It delivers real-time shaft radial vibration monitoring, seismic vibration measurement, and thrust position detection to prevent catastrophic rotating machinery failures.
- Seamless AB PLC-5 System Integration - Designed specifically for the AB PLC-5 system architecture. The module inserts directly into the 1771 Universal I/O chassis via a dedicated 2201 monitoring system backplane, enabling direct plant process data integration without external gateways.
- Smart Software Configuration & Block Transfer - Eliminates the need for tedious manual hardware jumpers. Operators can configure all measurement parameters, channel settings, and dual-level alarms directly from the host controller using standard PLC-5 block transfer instructions.
- Dual-Level Machinery Protection (Alert & Danger) - Provides robust critical asset protection with highly configurable dual-level alarm thresholds (Alert and Danger) for every single channel. It can be integrated into the plant's emergency shutdown input loop to enable immediate automated machine trips.
- Ultra-Fast System Scan Rate - Supports critical predictive maintenance systems with rapid data processing. The module works synchronously with the 2201 System Monitor Module, ensuring a full system scan rate that updates all 24 channels every 40 milliseconds (ms) for reliable power plant instrumentation and industrial rotating machinery protection.
- Reliable Legacy Spare Parts Availability - As a crucial component of Bently Nevada legacy spare parts, this module offers a perfect form-fit-function replacement for vintage centrifugal compressor monitors and steam turbine vibration monitoring setups, extending the lifecycle of existing facility infrastructure.
Applications
- Critical Asset Protection for Industrial Rotating Machinery - This module is basically sitting at the core of continuous vibration monitoring in heavy industry setups. In real plants you’ll see it tied to key rotating equipment where downtime is not really an option. It keeps an eye on machine condition in real time, and when something starts drifting out of normal range, you usually get early warning before it turns into a real failure. That’s the whole point—keeping critical assets stable and avoiding those expensive unplanned stops.
- Steam Turbine Vibration Monitoring in Power Plants - In power generation environments, especially around steam turbine vibration monitoring, this unit shows up quite often. It’s also used in gas turbine protection setups. What it does in practice is handle shaft radial vibration monitoring and seismic vibration measurement with pretty solid accuracy. Operators rely on it to make sure high-speed turbines stay within safe operating behavior, not just on paper but during actual running conditions.
- Centrifugal Compressor Monitoring & Predictive Maintenance - For oil, gas, and petrochemical sites, centrifugal compressor monitoring is one of those areas where this module fits naturally. It tracks things like thrust position detection and shaft movement behavior, then feeds that data into predictive maintenance systems. Around maintenance planning, engineers use this kind of information to spot trends early—basically trying to predict wear before it becomes a shutdown event rather than reacting after the fact.
- Emergency Shutdown System (ESD) & Safety Interlocking - This part behaves like a machinery protection card inside the control chain. It handles dual-level alarm configurations (Alert and Danger), and the response time is fast—around a 40ms scan cycle. When integrated into an emergency shutdown system (ESD), it can trigger immediate trips if operating limits are exceeded. In real operations, this is the layer that steps in when normal control is no longer enough.
- Legacy System Lifecycle Extension & Retrofitting - Another big use case is legacy installations. As part of Bently Nevada legacy spare parts, this module often gets selected when plants are still running older setups like AB PLC-5 system and 1771 Universal I/O chassis. Instead of replacing everything, companies just retrofit and extend the life of existing control systems. It’s not fancy, but it’s practical—keeps old instrumentation running without a full system overhaul.
Frequently Asked Questions
Q1: What is the primary function of the Bently Nevada 2201/03-01 module?
A1: The Bently Nevada 2201/03-01 is mainly used as a Four-Channel Monitor Module, focused on continuous vibration monitoring and general machinery protection in rotating equipment systems. In practice it’s handling dynamic signals all the time, giving operators live data like shaft radial vibration monitoring, seismic vibration measurement, and also thrust position detection. You’ll usually see it sitting in the background of critical industrial rotating machinery setups where people don’t really want surprises like sudden mechanical breakdowns.
Q2: How does the 2201/03-01 monitor interface with plant control systems?
A2: Integration-wise, this module is pretty much designed around legacy Rockwell / AB PLC-5 system environments. It slots into a 1771 Universal I/O chassis and communicates through the 2201 monitoring system backplane. Once it’s in, the machinery condition monitoring data doesn’t stay isolated—it gets pushed directly into the PLC side so plant control and vibration data are basically talking to each other in the same loop. That’s where the plant process data integration becomes quite practical.
Q3: Does the 2201/03-01 module require manual hardware jumpers for configuration?
A3: No, there’s no need to mess with hardware jumpers on this one. Most of the setup—channel settings, scaling for sensors, alarm thresholds—is handled in software. Operators configure everything through parameters, and then the data is downloaded from the PLC-5 processor using standard Block Transfer instructions. So once it’s set, adjustments are more like system edits rather than physical rewiring.
Q4: What alarm capabilities does the 2201/03-01 offer for critical asset protection?
A4: Each channel supports a dual-level alarm setup, usually split into Alert and Danger. The Alert side is more like an early warning, while Danger is the point where the system treats it as a potential trip condition. When those thresholds are exceeded, the module can pass signals straight into the Emergency Shutdown System (ESD), triggering automatic shutdown actions. In real plant operation, this is one of the key layers for critical asset protection—catching issues before they escalate.
Q5: What is the processing speed and channel capacity of the 2201/03-01 monitoring system?
A5: System-wise, the 2201/03-01 runs in a multi-channel setup and scales quite flexibly. A single 2201 monitoring system backplane can take up to six of these four-channel modules, so you’re looking at up to 24 channels in total. Working together with the System Monitor Module, the whole setup refreshes all channels pretty fast—around a 40ms scan cycle. It’s not just raw speed though, it’s about keeping all vibration data updated in sync.
Q6: Since the 2201/03-01 is a legacy product, how can facilities secure replacement units?
A6: Yes, it’s a legacy / end-of-life product from the OEM side, but it’s still widely used in older installations like power plants and centrifugal compressor monitoring systems. A lot of sites don’t really replace the whole control architecture because it’s expensive and risky, especially when it involves AB PLC-5 system setups and 1771 Universal I/O chassis.
In most cases, facilities just keep the system running by sourcing replacement units through trusted suppliers. AMIKON can provide Bently Nevada 2201/03-01 units, including tested, refurbished, or available stock options, helping customers maintain existing infrastructure and avoid a full system overhaul or unexpected downtime.
