Bently Nevada 330104-13-20-10-02-00 8 mm Proximity Probe with API 670 Compliance and ClickLoc Miniature Coaxial Connector
Bently Nevada 330104-13-20-10-02-00 8 mm Proximity Probe with API 670 Compliance and ClickLoc Miniature Coaxial Connector
3300 XL 8mm Proximity Probe vibration and position measurements
shaft vibration monitoring gas turbine protection
steam turbine vibration monitoring Bently Nevada 3500 rack module
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330104-13-20-10-02-00
Contact Us
Request A Quote
Product Details
Model:
330104-13-20-10-02-00
Country Of Origin:
USA
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Estimated Shipping Size:
1.8x1.5x123cm
Weight:
0.16 Kg
Highlight:
3300 XL 8mm Proximity Probe vibration and position measurements
,shaft vibration monitoring gas turbine protection
,steam turbine vibration monitoring Bently Nevada 3500 rack module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Bently Nevada 330173-00-18-10-02-05 3300 5mm Proximity Probe with API 670 Standard and ATEX/IECEx/CSA Certification for Precision Displacement Sensing
Get Best Price
video
Bently Nevada 330104-13-20-10-02-00 8 mm Proximity Probe with API 670 Compliance and ClickLoc Miniature Coaxial Connector
Get Best Price
Contact Us
Contact Now
Product Description

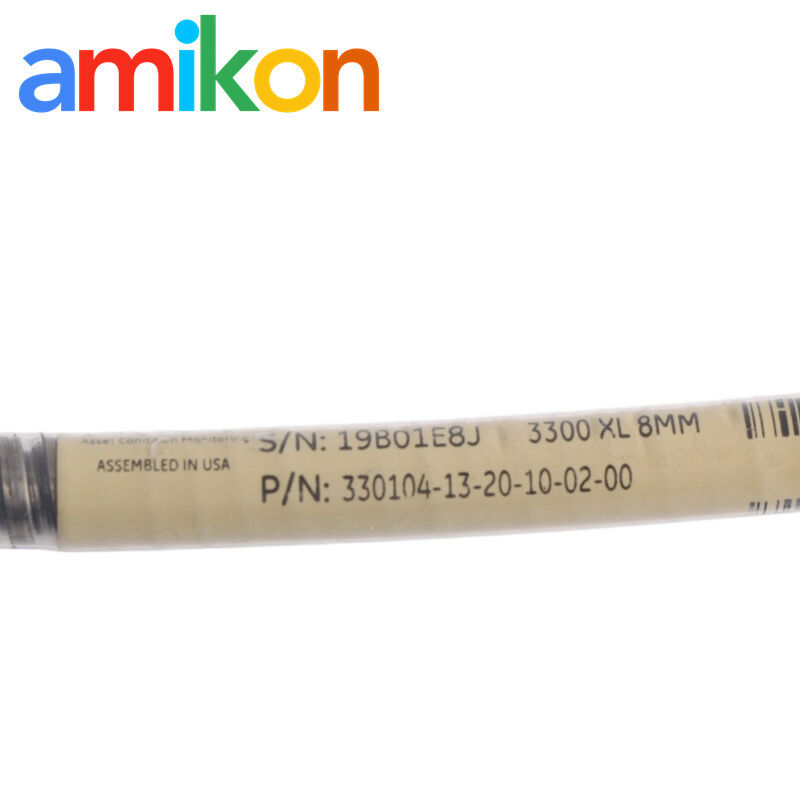

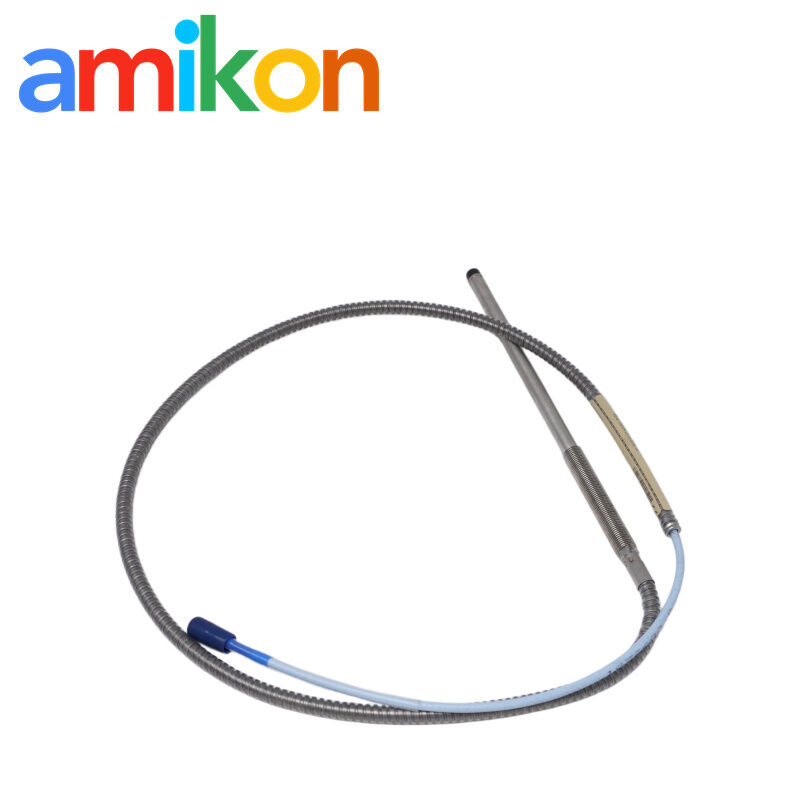

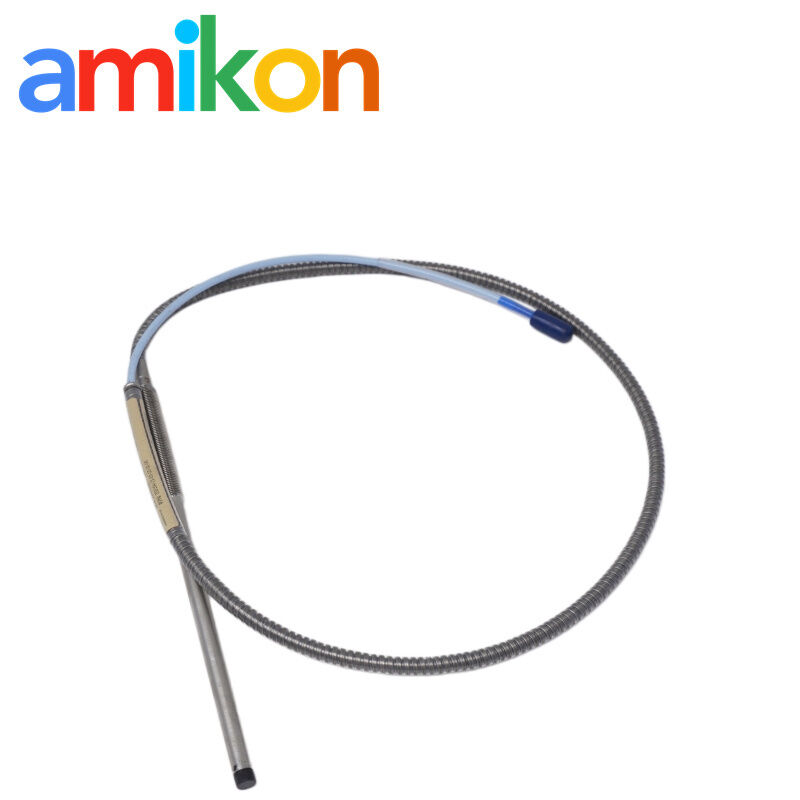

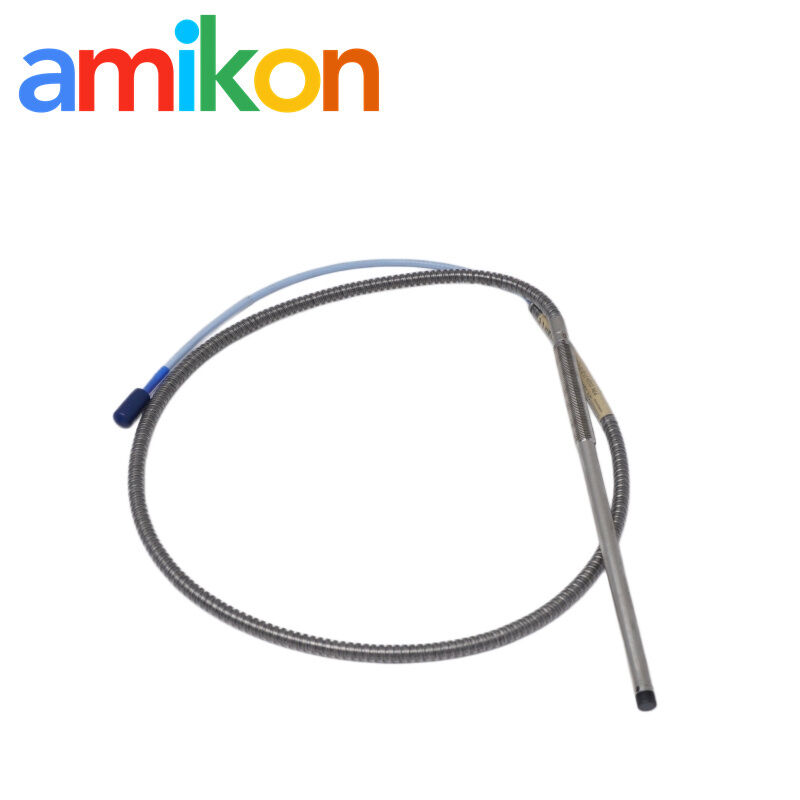

Bently Nevada 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe
| Parameter | Specification |
|---|---|
| Model Number | 330104-13-20-10-02-00 |
| Base Part Number (330104) | Metric M10 x 1 with Coaxial Armor |
| Unthreaded Length (13) | 130 mm |
| Overall Case Length (20) | 200 mm |
| Total Length (10) | 1.0 meter (3.3 feet) |
| Connector Option (02) | ClickLoc Miniature Coaxial |
| Agency Approval Option (00) | None |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Scale Factor (Sensitivity) | 200 mV/mil (7.87 V/mm) |
| Linear Range | 2.0 mm (80 mils) |
| Operating Temperature | -51 °C to +177 °C (-60 °F to +350 °F) |
| Recommended Extension Cable | 3300 XL 9.0-meter extension cable |
Contact Us for Pricing or Technical Support
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Key Features & Benefits
- Advanced Machinery Protection & Monitoring
Built for machinery protection and monitoring, mainly used where shaft vibration and displacement need to be tracked with decent accuracy. In real applications it runs continuously, giving stable vibration and position signals for rotating equipment that can’t afford downtime. - Heavy-Duty Construction with Coaxial Armor
On the construction side, it’s a fairly solid industrial setup. AISI 303/304 stainless steel housing, PPS probe tip, plus FluidLoc coaxial armored cable. Nothing overly complicated, but it’s made to handle oil, moisture, and general harsh plant conditions without much issue. - API 670 Compliant Proximity Transducer System
Fully complies with American Petroleum Institute (API) 670 standards. This eddy current proximity sensor offers a standard linear range of 2.0 mm (80 mils) and a highly stable scale factor of 200 mV/mil (7.87 V/mm) for precise critical asset protection. - Secure Connection via ClickLoc Technology
Utilizes the advanced ClickLoc miniature coaxial connector, ensuring a secure, vibration-resistant connection to the 3300 XL extension cable and preventing accidental signal disconnection. - Optimized for Critical Industrial Applications
Widely applied in steam turbine vibration monitoring, gas turbine protection, and centrifugal compressor monitoring. Ideal for power plant instrumentation and fluid-film bearing machines to support predictive maintenance. - Seamless 3500 System Integration
Perfectly compatible as a direct spare part for the Bently Nevada 3500 rack module. Connects seamlessly with the 3300 XL Proximitor Sensor to feed accurate data into the 3500/40M Proximitor Monitor and 4-channel monitor modules.
Industrial Applications
- Steam & Gas Turbine Vibration Monitoring
Provides critical shaft vibration monitoring and shaft displacement measurement for large-scale utility and industrial turbines. It ensures continuous machinery protection by detecting microscopic rotor movements before failures occur, minimizing unplanned downtime in power plant instrumentation. - Centrifugal Compressor & Turbo-Expander Protection
Deployed in high-speed, fluid-film bearing machines to track shaft eccentricity and axial position. Complying with API 670 standards, this eddy current proximity sensor offers reliable critical asset protection under extreme pressures and volatile process conditions. - Heavy-Duty Industrial Rotating Machinery
Ideal for predictive maintenance programs across a wide range of large rotating equipment, including multi-stage industrial pumps, large electric motors, gearboxes, and cooling tower fans used in oil & gas, petrochemical, and manufacturing facilities. - Predictive Maintenance & Predictive Diagnostics
Acts as the primary data-gathering tool for machinery diagnostics. By tracking real-time vibration and position measurements, it enables plant engineers to implement predictive maintenance strategies, analyze trend data, and prevent catastrophic equipment failures. - Seamless Integration into Plant Safety Systems
Designed to work in tandem with the 3300 XL Proximitor Sensor and 3300 XL extension cable. It feeds highly accurate analog signals directly into the Bently Nevada 3500 rack module, 3500/40M Proximitor Monitor, and 4-channel monitor modules to support emergency shutdown systems (ESD).
Our Core Advantages
| Core Advantage | Value Proposition |
|---|---|
| Rapid Response Time | Rapid response is basically the way we work here — usually quotes can be turned around within 24 hours, so procurement doesn’t get stuck waiting. |
| Massive Ready Stock | Stock side we keep quite a lot on hand, millions of industrial automation parts already sitting in warehouse, so most items are ready to ship without long lead time. |
| Express Global Shipping | For shipping, we rely on express carriers for global delivery. In many cases it lands in 3–5 business days, depending on destination and customs situation. |
| Professional Technical Support | Technical side, there’s an engineering team behind it. They help check cross references, part numbers, configuration questions… sometimes customers just send a code and we verify it. |
| Customer-Centric Service |
|
Frequently Asked Questions
Q1: What kind of probe is the 330104-13-20-10-02-00 and what are its main mechanical details?
A: 330104-13-20-10-02-00 is a 3300 XL 8mm eddy current proximity probe. Used pretty widely on rotating machinery. It’s got M10 x 1 threaded housing, FluidLoc armored cable. Nothing special, standard industrial build.
- 13 → 130 mm non-threaded section
- 20 → 200 mm total case length
- 10 → 1.0 m integrated cable
- 02 → ClickLoc connector
- 00 → no hazardous area rating
Main job is still shaft displacement measurement.
Q2: Where is the 330104-13-20-10-02-00 usually used in real plants or machines?
A: Mostly turbines and compressors. Steam turbine, gas turbine, centrifugal compressor, fluid-film bearing machines. Used for vibration + shaft eccentricity monitoring. Basically sits in predictive maintenance loop, helps catch early mechanical issues before trips happen.
Q3: How does the 330104-13-20-10-02-00 connect into a Bently Nevada 3500 system?
A: Setup is quite straightforward. Probe → ClickLoc connector → 3300 XL extension cable (around 9 m) → full transducer system. Then signal goes into 3300 XL Proximitor Sensor. Output is 200 mV/mil (7.87 V/mm), then into 3500 rack system. Usually 3500/40M monitor or 4-channel module. Standard architecture in Bently Nevada 3500 protection chain.
Q4: Is the 330104-13-20-10-02-00 compliant with API 670 requirements?
A: Yes, it meets API 670. Materials are PPS tip, stainless steel body (303/304), FluidLoc armored cable. Used in critical protection and ESD systems where reliability is key.
Q5: What are the operating limits and measurement range of the 330104-13-20-10-02-00 probe?
A: Linear range is 2.0 mm, around 80 mil. Starts working around 0.25 mm gap.Temperature range is -51 °C to +177 °C. Works fine in turbine and compressor environments, long-term monitoring, stable output, low drift in field use.
