330130-045-01-05 Bently Nevada 3300 XL Standard Extension Cable
Bently Nevada 330130-045-01-05 3300 XL Proximitor Sensor
3300 XL extension cable fluid-film bearing monitoring
330130 armored cable vibration signal transmission
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330130-045-01-05
Bently Nevada 330130-045-01-05 3300 XL Proximitor Sensor
,3300 XL extension cable fluid-film bearing monitoring
,330130 armored cable vibration signal transmission
- Brand: Bently Nevada

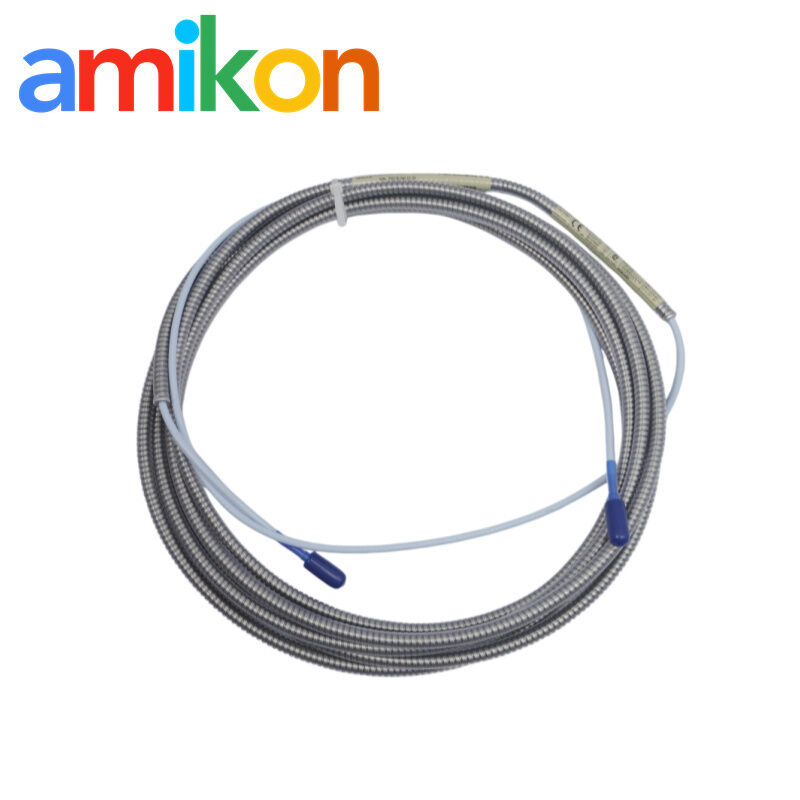

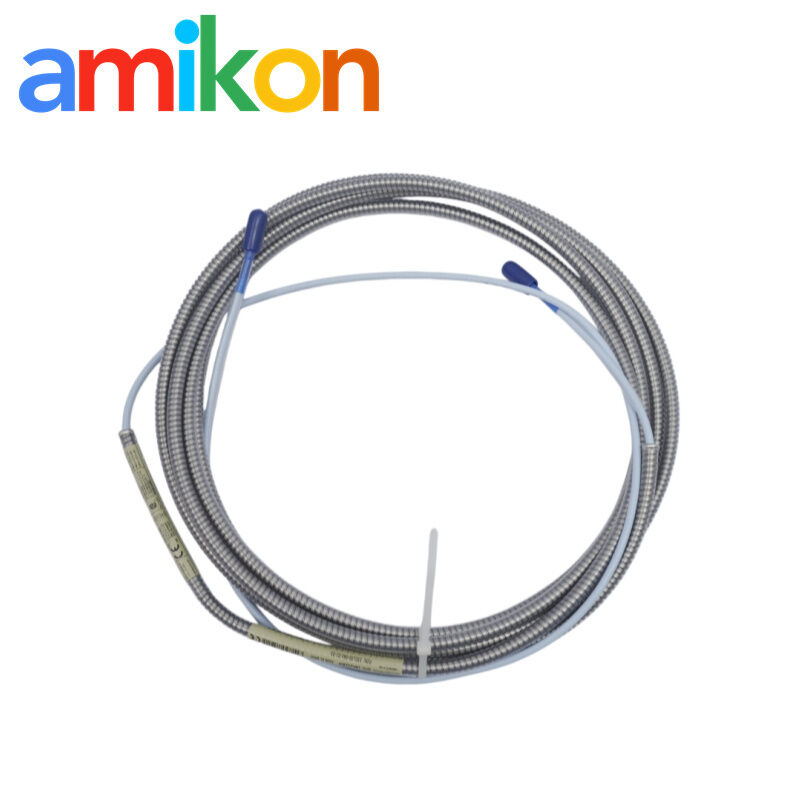

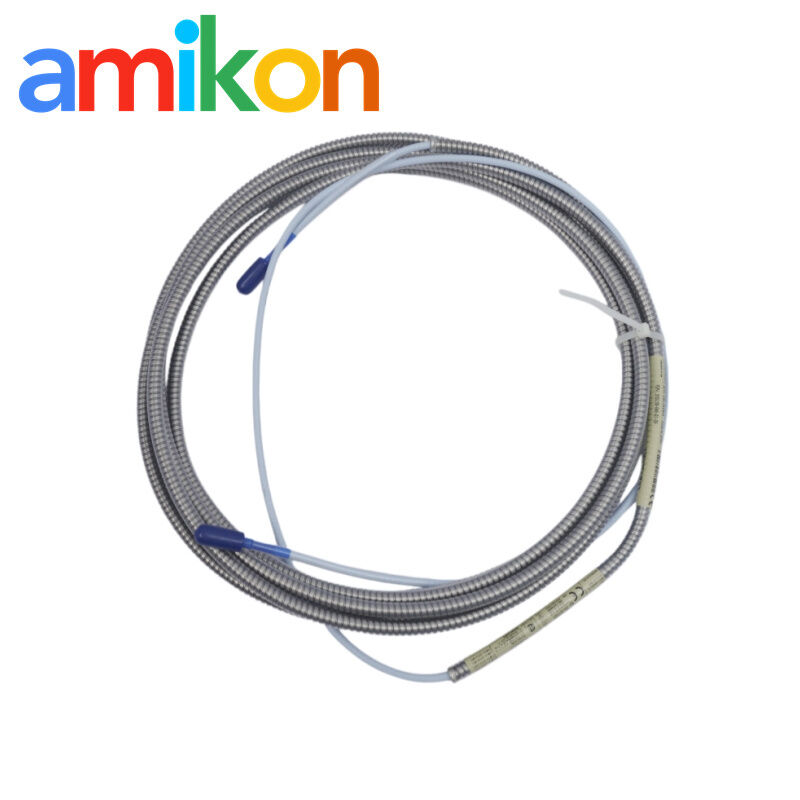

- Product Name: 3300 XL 8 mm Proximity Transducer System - Extension Cable
- Application: Connects the proximity probe to the Proximitor sensor to transmit vibration and position signals of rotating machinery
- 330130: Core model line for the 3300 XL Standard Extension Cable
- -045: Total cable length is 4.5 meters (14.8 feet)

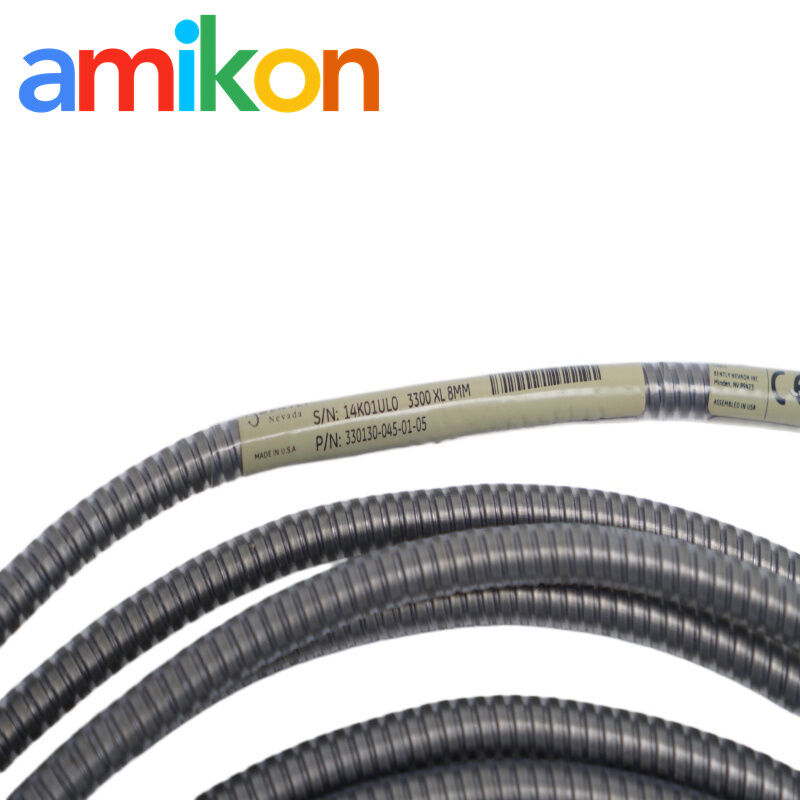

- -01: Equipped with Armored cable construction for superior wear and cut resistance
- -05: Certified with global hazardous area approvals (including CSA, ATEX, and IECEx)
- Ingress Protection: IP67 waterproof and dustproof rating
- Oil Resistance: Built to operate long-term in industrial oil environments, such as turbine oil (e.g., ISO VG32) at temperatures up to 80°C
- EMI Immunity: Provides up to 85 dB of electromagnetic interference (EMI) shielding efficiency
- System Matching: This 4.5-meter cable must be paired with a 0.5-meter probe to form a standard 5.0-meter system loop configuration for the Proximitor sensor
Amikon supplies industrial automation spare parts, mainly PLC, DCS, and TSI systems, to more than 160 countries.
- North America: Steady demand, especially US and Canada from oil & gas plants and automotive-related production sites
- Europe: Similar scale, with Germany and UK standing out from chemical plants and heavy equipment lines
- Middle East and Africa: Refinery projects and mining sites in UAE, Saudi Arabia, South Africa, and remote field installations
- Asia-Pacific: Broad demand from China, Singapore, Australia, India in semiconductor fabs, power stations, and metallurgy plants
- South America: Stable volume from Brazil, Chile, Argentina in mining, copper operations, and hydropower projects
In real turbine or compressor setups with strong EMI, this 330130-045-01-05 cable is mainly there to keep the 3300 XL probe signal usable by the Proximitor. Without good shielding, you get noise or unstable vibration readings.
It uses a 75-ohm triaxial structure with high shielding (around 85 dB), so the signal stays clean enough for systems like 3500/40M monitors. Basically helps avoid weird spikes or false trips caused by interference.
On turbine decks, cables get abused more than expected—mechanical stress, oil, sometimes sharp bends during maintenance.
The armored version holds up better. Stainless steel mesh gives it higher physical resistance (around 270 N tensile strength), so it doesn’t get cut or crushed easily. The jacket also handles turbine oil and heat cycles in the -52°C to +177°C range.
Most people just start with DC resistance check. You should see about 0.99 Ω ±0.15 Ω. If it goes open or jumps high, usually it’s connector damage or internal break.
Capacitance check is sometimes used, but honestly resistance test is what gets used first on site.
| Product 1 | Product 2 |
|---|---|
| 3500/22M 288055-01 | 330130-080-00-00 |
| 3500/33 149986-01 | 330130-045-00-05 |
| 3500/60 163179-01 | 330130-085-00-00 |
| 3500/72M 176449-08 | 09E01KPS 3300XL 8MM |
| 3500/62 163179-03 | 330180-50-05 |
| 3500/40M 140734-01 | TM0180-08-00-15-10-02 |
| 330500-02-00 | TM0180-A08-B00-C02-D10 |
| 135137-01 | 3500/70M 176449-09 |
| 149992-02 | 330130-040-02-00 |
| 147663-01 | 3500/45 140072-04 |
| 3500/94 145988-01 | 330130-045-01-00 |
| 140482-01 | 330130-080-00-05 |
| 330500-00-20 | 990-04-70-02-00 |
| 170133-090-00 | 330104-15-23-10-02-00 |
| 3500/32M 149986-02 | 330104-19-25-10-11-05 |
| 1900/65A 172323-01 | 330103-00-05-10-02-05 |
| 330180-X0-05 | 330103-00-18-05-02-05 |
| 125720-01 | 330130-045-02-05 |
| 125760-01 | 330101-00-08-05-02-05 |
| 125768-01 | 330130-085-00-05 |
