88286-01J PWA88199-01 88614-01 Bently Nevada Control Panel Power/Signal Distribution Assembly
88286-01J PWA88199-01 88614-01 Bently Nevada Control Panel Power/Signal Distribution Assembly
Bently Nevada 88286-01J Bently Nevada 3300 rack module
PWA 88199-01 Panel industrial machinery protection
88614-01 Distribution Assembly DDI communication port
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
88286-01J
Contact Us
Request A Quote
Product Details
Weight:
0.48kg
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
Packaging:
Original New Packaging
Model:
88286-01J
Expected Shipping Dimensions:
22.8x10x8.6cm
Highlight:
Bently Nevada 88286-01J Bently Nevada 3300 rack module
,PWA 88199-01 Panel industrial machinery protection
,88614-01 Distribution Assembly DDI communication port
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

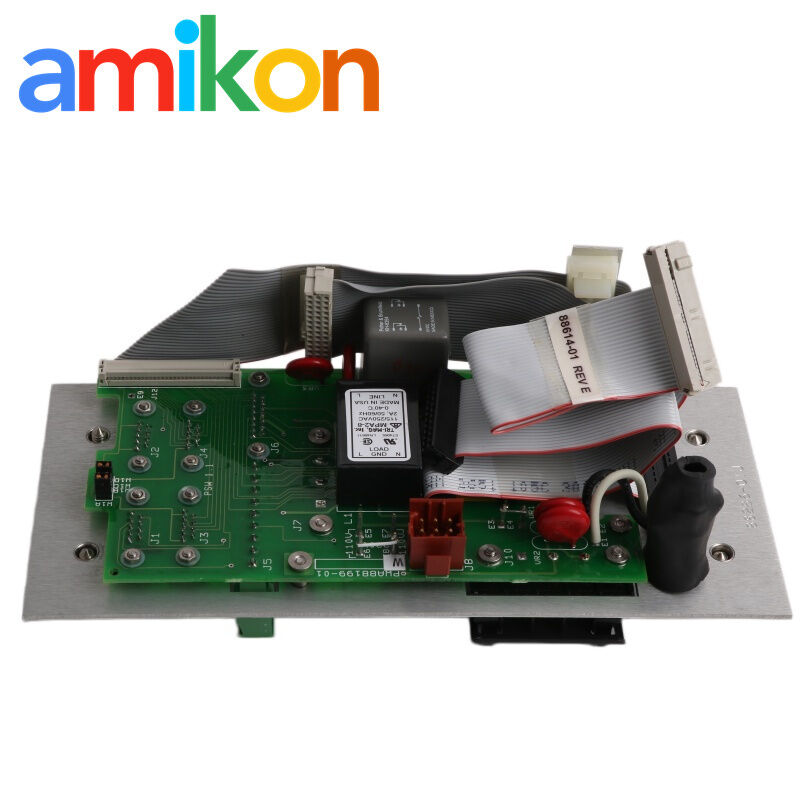

88286-01J PWA88199-01 88614-01 Bently Nevada Control Panel Power/Signal Distribution Assembly
Product Overview
Electrical Parameters
- Input Voltage: 110 / 220 VAC
- Current Rating: 1.0 / 0.75 A
- Frequency Range: 50 - 60 Hz
- Overcurrent Protection: Dual fuses, T0.75A 250V
- Wiring Requirement: Use copper conductors only

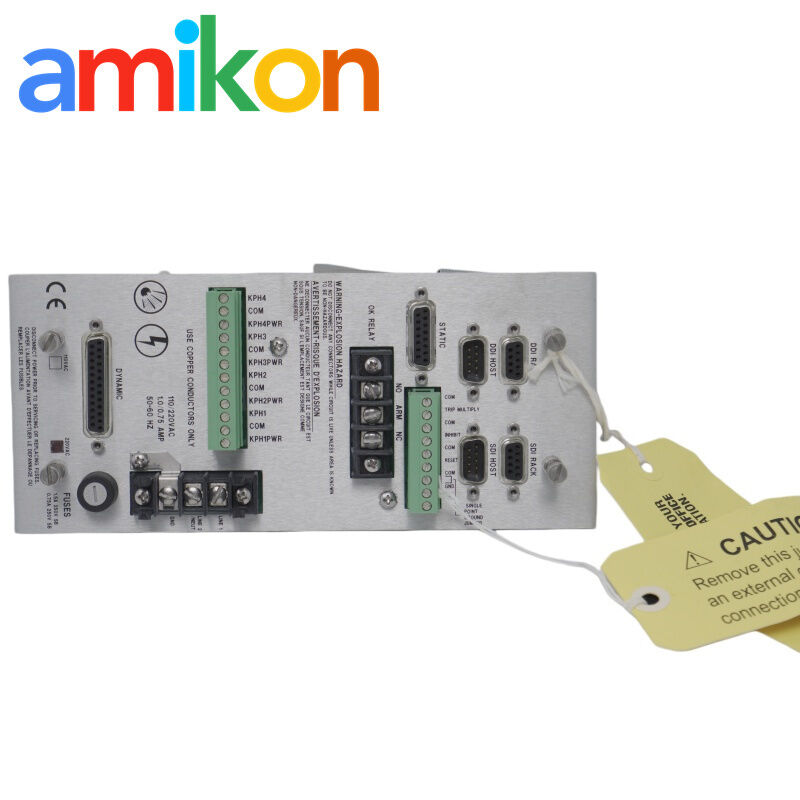

Communication Interfaces
- DDI RACK / HOST (2x DB9): Data Manager serial communication ports
- SDI RACK / HOST (2x DB9): Serial Data Interface communication ports
Signal & Control
- OK RELAY: System status interlocking relay (NO / ARM / NC terminals)
- DYNAMIC (DB25): Dynamic AC waveform signal output port
- STATIC: Static signal port
- POWER/CONTROL: 12-pin logic control and power distribution terminal block (including KPH4, COM, KPH4+PWR, etc.)
Global Supply Network
Amikon supplies industrial automation spare parts, including PLC, DCS, and TSI systems, to more than 160 countries worldwide.
- North America: Steady demand from the US and Canada, primarily serving oil & gas plants and automotive production sites
- Europe: Strong presence in Germany and UK, supporting chemical plants and heavy equipment manufacturing
- Middle East and Africa: Focus on refinery projects and mining sites in UAE, Saudi Arabia, South Africa, and remote field installations
- Asia-Pacific: Broad coverage across China, Singapore, Australia, India for semiconductor fabs, power stations, and metallurgy plants
- South America: Stable operations in Brazil, Chile, Argentina for mining, copper operations, and hydropower projects
Request a Quote Now
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Service Advantages
- 100% Original Parts - Vetted industrial automation & DCS/PLC spares
- Massive Inventory - 30,000+ items ready for immediate shipment
- 12-Month Warranty - Fully covered by a 1-year quality guarantee
- Fast Global Shipping - Secure express delivery to 160+ countries
- 24/7 Rapid Response - Dedicated 1-on-1 customer service
Technical Questions & Answers
What is the main function of the Bently Nevada 88286-01J?
The Bently Nevada 88286-01J is a rear control panel and distribution assembly for Bently Nevada 3300 series spares. It manages power distribution, signal routing, and communication interfaces, helping the 3300 monitoring system operate reliably in industrial machinery protection applications.
How does the 88286-01J support communication with the 3300 monitoring system?
The assembly includes DDI communication ports and SDI serial data interface connections, making it easy to transfer diagnostic information between the 3300 rack module, Data Manager, and host systems for equipment monitoring.
What signal outputs on the 88286-01J are available?
The 88286-01J offers both a static signal port and a dynamic AC waveform output. This allows users to monitor steady operating conditions while also collecting buffered transducer signals for vibration analysis and rotating equipment monitoring.
What protection features are built into the 88286-01J panel?
The panel includes OK relay interlocking for emergency shutdown circuits and a dual fuse protection panel for power distribution. These features improve system safety and help protect connected equipment during operation.
Is the 88286-01J suitable for API 670 applications?
Yes. The 88614-01 Distribution Assembly / PWA 88199-01 Panel is designed for API 670 compliant systems and is widely used in power plant instrumentation, critical asset protection, and other industrial machinery protection environments where dependable monitoring is required.
Compatible Parts Reference
| Part Number | Part Number |
|---|---|
| 3500/22M 288055-01 | 330130-080-00-00 |
| 3500/33 149986-01 | 330130-045-00-05 |
| 3500/60 163179-01 | 330130-085-00-00 |
| 3500/72M 176449-08 | 09E01KPS 3300XL 8MM |
| 3500/62 163179-03 | 330180-50-05 |
| 3500/40M 140734-01 | TM0180-08-00-15-10-02 |
| 330500-02-00 | TM0180-A08-B00-C02-D10 |
| 135137-01 | 3500/70M 176449-09 |
| 149992-02 | 330130-040-02-00 |
| 147663-01 | 3500/45 140072-04 |
| 3500/94 145988-01 | 330130-045-01-00 |
| 140482-01 | 330130-080-00-05 |
| 330500-00-20 | 990-04-70-02-00 |
| 170133-090-00 | 330104-15-23-10-02-00 |
| 3500/32M 149986-02 | 330104-19-25-10-11-05 |
| 1900/65A 172323-01 | 330103-00-05-10-02-05 |
| 330180-X0-05 | 330103-00-18-05-02-05 |
| 125720-01 | 330130-045-02-05 |
| 125760-01 | 330101-00-08-05-02-05 |
| 125768-01 | 330130-085-00-05 |
