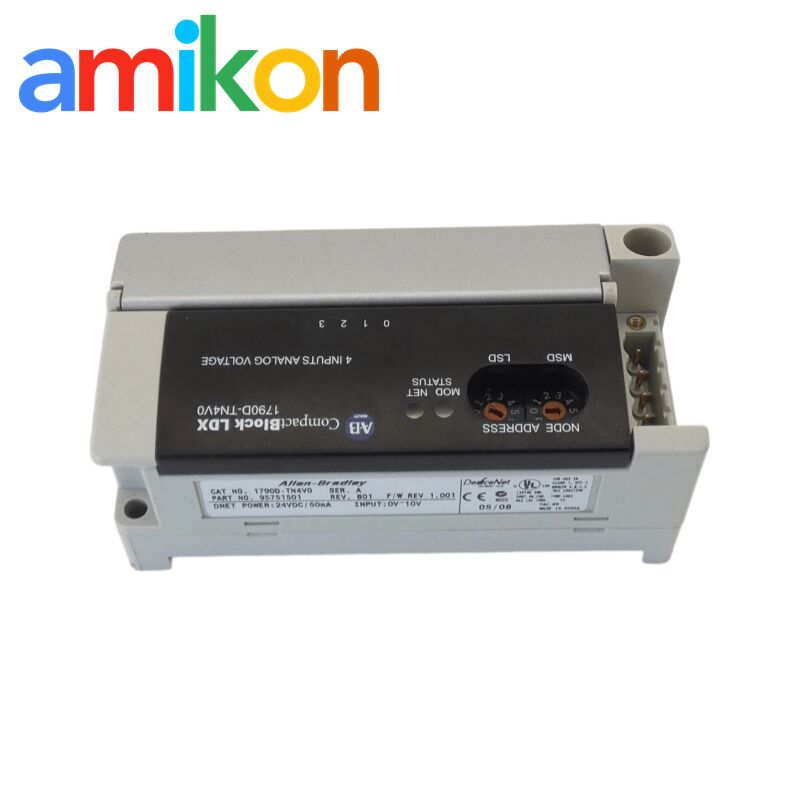

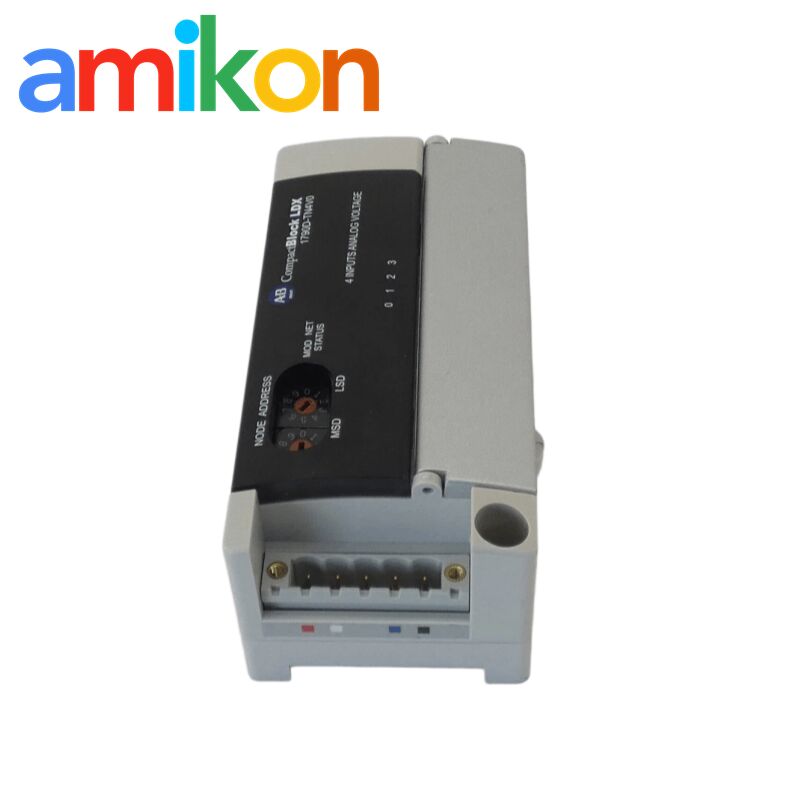

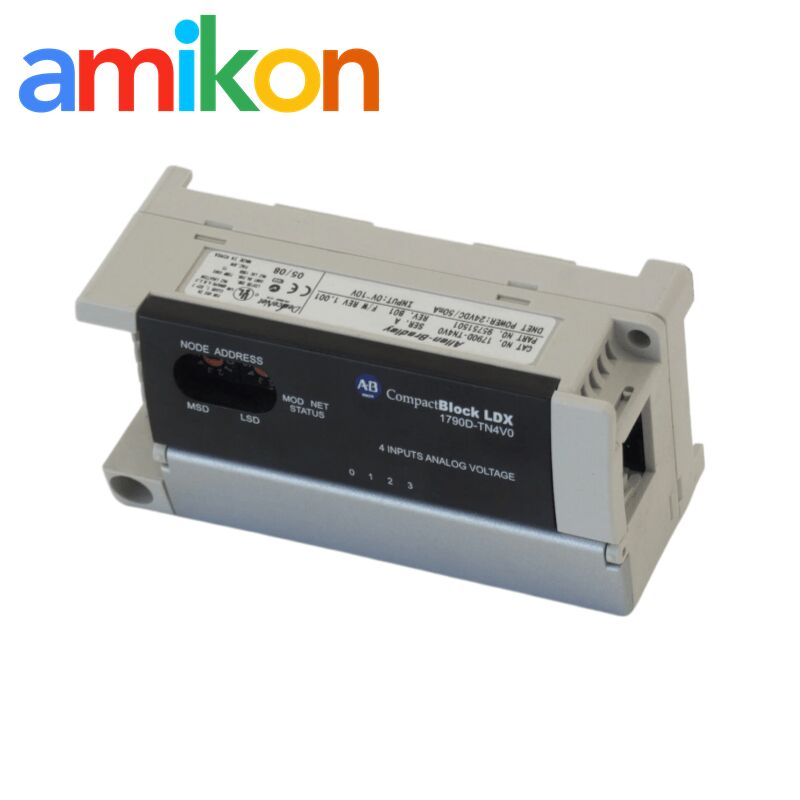

Allen Bradley 1790D-TN4V0 Base Block Module with 4 Channel Single-Ended
Allen Bradley 1790D-TN4V0 Base Block Module with 4 Channel Single-Ended
4 channel single-ended Base Block Module
0…10V input voltage I/O Module
12 bits resolution DeviceNet Module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1790D-TN4V0
Contact Us
Request A Quote
Product Details
Inputs Per Module:
4 Channel Single-ended, Nonisolated
Input Voltage:
0…10V
Resolution:
12 Bits-unipolar, 1/4096 Max, 2.44 MV/bit
Conversion Time:
10 Ms/channel
Overall Accuracy:
0.2% Full Scale @ 0…55 °C
Calibration:
None Required
Input Impedance:
500 KΩ Min
Insulation Resistance:
20 MΩ Min @ 250V Dc (between Insulated Circuits)
Highlight:
4 channel single-ended Base Block Module
,0…10V input voltage I/O Module
,12 bits resolution DeviceNet Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Allen Bradley 1794-IA8 Digital Input Module with 120V AC 8 Discrete Inputs and IP20 Protection
Get Best Price
video
Allen Bradley 1769-OV32T CompactLogix Solid State Output Module with 32 Compact Digital Outputs
Get Best Price
Contact Us
Contact Now
Product Description
Allen Bradley 1790D-TN4V0 Base Block Module
The CompactBlock LDX I/O series is based on the DeviceNet™ device-level network, providing a straightforward interface between controllers and field devices.
The Allen-Bradley 1790D-TN4V0 is typically used in small-scale or space-limited installations where a compact footprint and cost control are required, without demanding harsh environmental protection.
Functional Characteristics
I/O Coverage
Supports multiple signal types within a single platform:
- 24V DC digital
- Relay-based outputs
- 120V AC
- Analog signals
- Temperature inputs
This allows use across mixed application scenarios without additional interface modules.
Termination Methods
Two connection styles are available depending on installation preference:
- Removable D-shell connectors
- Standard screw terminals
Input Flexibility
Selectable sink/source input design simplifies spare parts handling and avoids the need to maintain separate input module types.
Expansion Capability
- Digital base units can be extended with up to three digital expansion blocks
- Analog base units support up to two digital expansion blocks
Expansion is incremental and does not require major reconfiguration.
