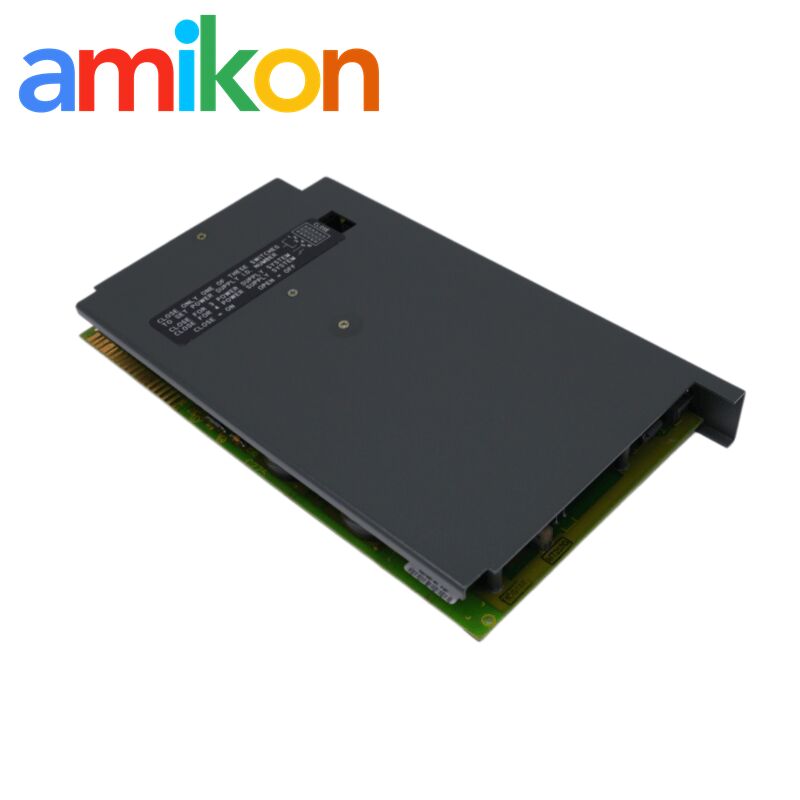

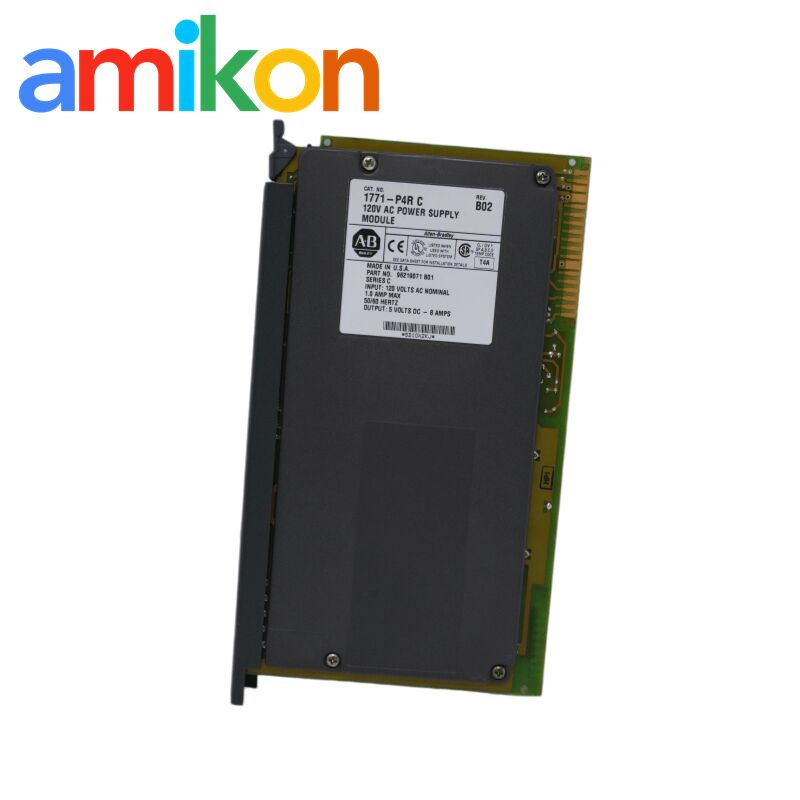

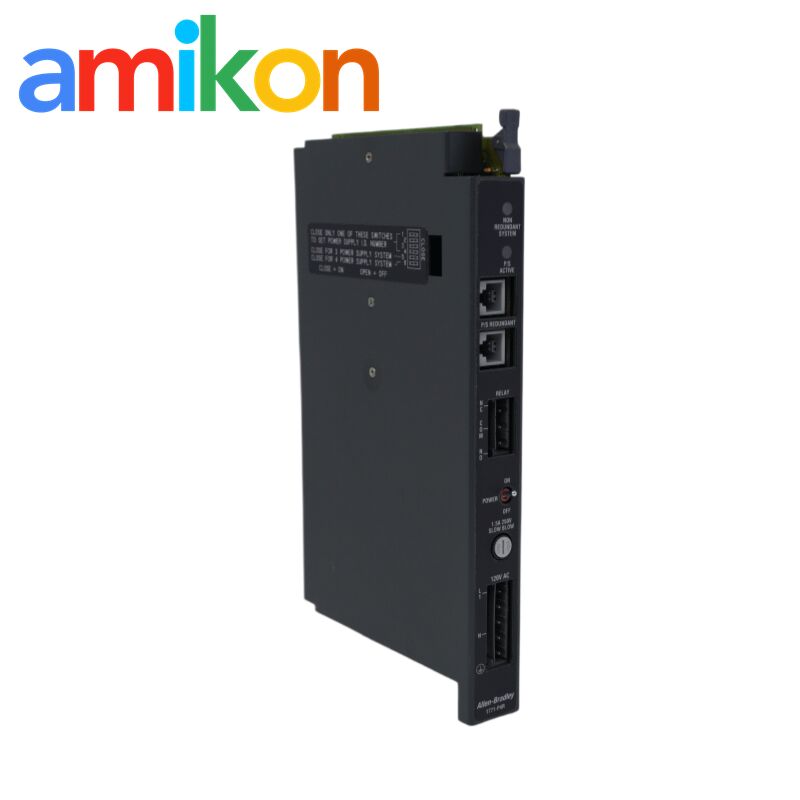

Allen Bradley 1771-P4R Power Supply with 120V AC Input 5V DC Output and 16 Watts Power Dissipation
Allen Bradley 1771-P4R Power Supply with 120V AC Input 5V DC Output and 16 Watts Power Dissipation
120V AC Input Power Supply
5V DC Output Power Supply
16 Watts Power Dissipation Power Supply
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1771-P4R
Contact Us
Request A Quote
Product Details
Input Voltage:
120V AC, 50–60Hz, 1A
Input Voltage Range:
97–132V AC
Output Voltage:
5V DC, 8A (Refer To Derating Curve)
Power Dissipation:
16 Watts (max.)
Thermal Dissipation:
47.8 BTU/hr (max.), 6.9 BTU/hr (min)
Backplane Current:
300mA @ 5V DC ±5%
Input Voltage Frequency:
47-63 Hz
Alarm Relay Rating:
250 VAC
Highlight:
120V AC Input Power Supply
,5V DC Output Power Supply
,16 Watts Power Dissipation Power Supply
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Allen Bradley 1775-SR Scanner Communications Module with 5000 ft Maximum Distance
Get Best Price
video
Allen Bradley 1756-M03SE Interface Module with 3 Drives Max 4 Mbps/8 Mbps SERCOS Data Rate
Get Best Price
video
Allen Bradley 1771-P4R Power Supply with 120V AC Input 5V DC Output and 16 Watts Power Dissipation
Get Best Price
video
Allen Bradley 1771-NIS 8-Channel Sourcing Analog I/O Module with 16-Bit Resolution
Get Best Price
Contact Us
Contact Now
Product Description
Removing the Power Supply
- Flip the POWER switch on the front panel to the Off position (only on the unit to be removed)
- Remove the AC input terminal block, alarm relay terminal block, and redundant cables only from the unit to be removed
- Slide the unit out of the chassis and note the following settings:
- I.D selection switch setting (1 through 4)
- Configuration switch setting (5 and 6)
- Jumper setting (local or remote sensing)
- Input voltage rating on the front panel near the AC input connector
Inserting the Power Supply
- Configure the supply to the same settings as the unit removed
- Flip the POWER switch on the front panel to the Off position
- Insert the module completely into the slot in the chassis
- Connect redundant cables, alarm relay terminal block, and AC input terminal block
- Flip the POWER switch to the On position
