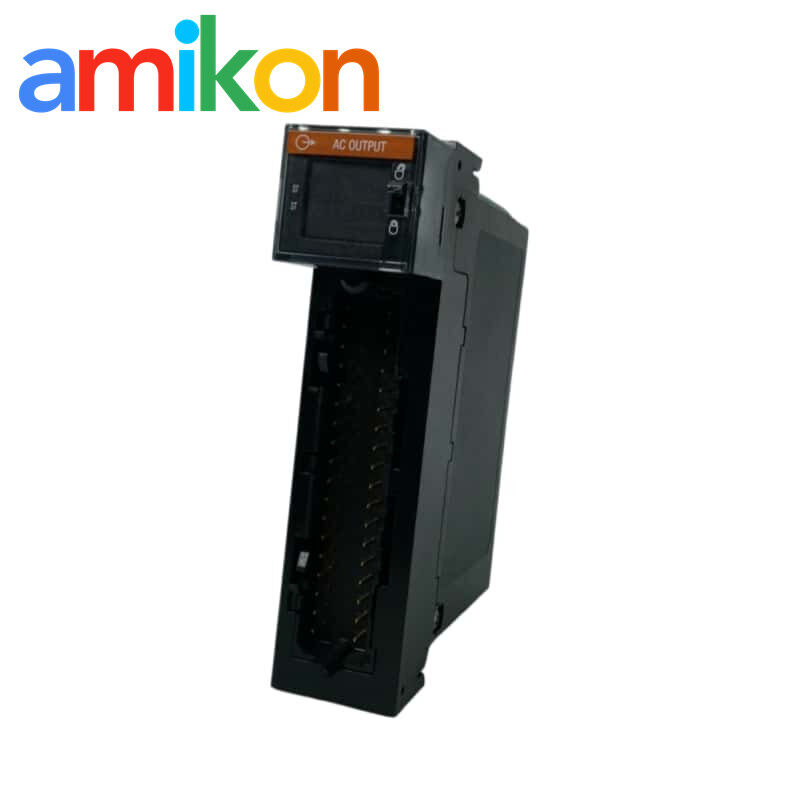

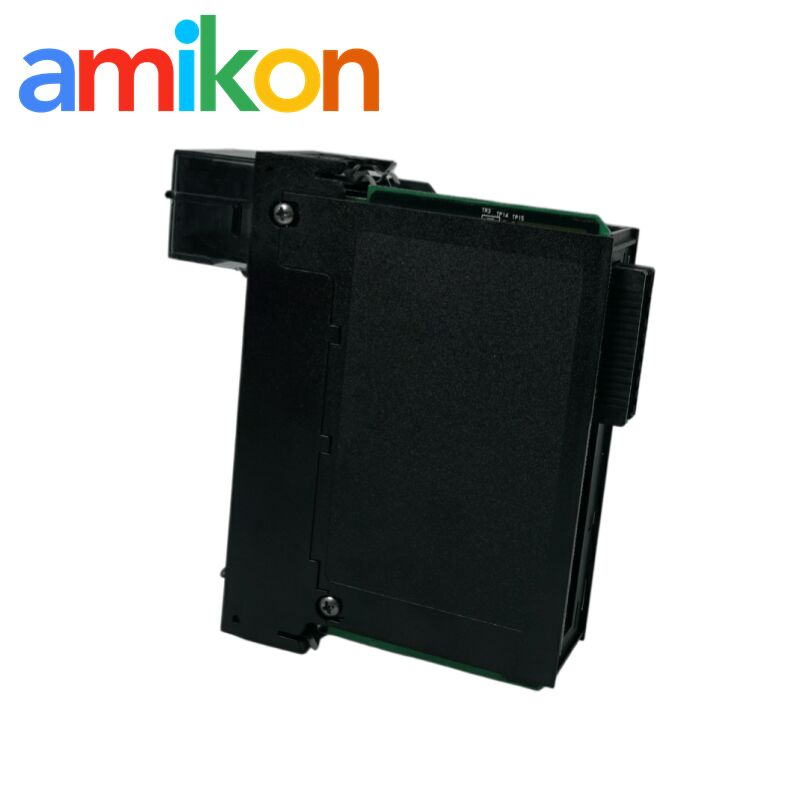

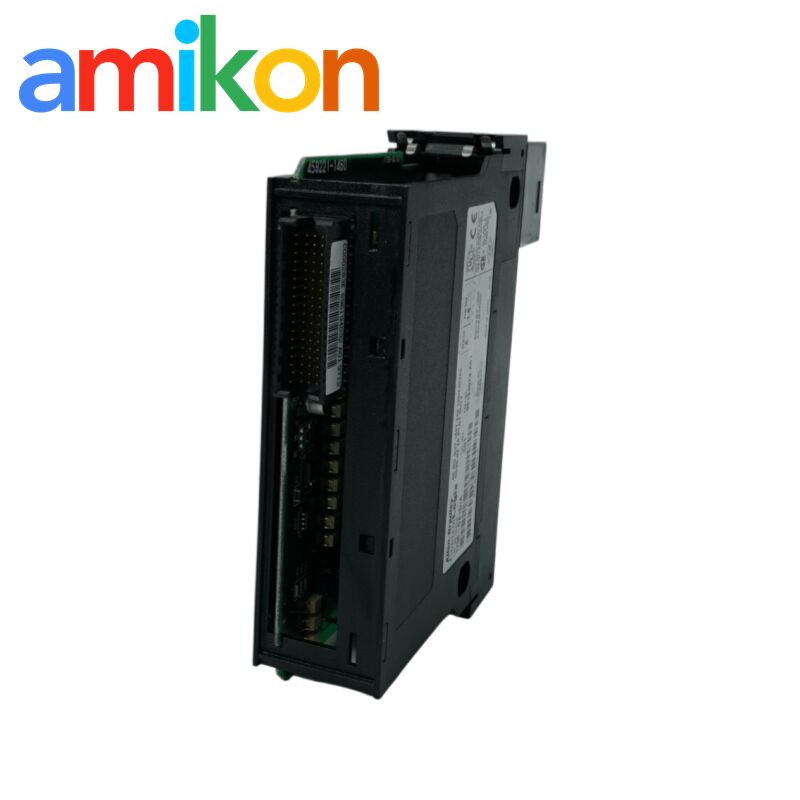

Allen Bradley 1756-OA16I Isolated Output Module with 16 Individually Isolated Outputs
Allen Bradley 1756-OA16I Isolated Output Module with 16 Individually Isolated Outputs
16 individually isolated Isolated Output Module
120/240V AC 50/60 Hz Allen Bradley Module
3 mA per point 1756-OA16I
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1756-OA16I
Contact Us
Request A Quote
Product Details
Product Parameters:
Isolated Output Module
Country Of Origin:
USA
Place Of Shipment:
Xiamen, China
Manufacturer:
Allen Bradley
Estimated Shipping Size:
15.2x15.2x5.1cm
Weight:
0.3 Kg
Voltage Category:
120/240V AC 50/60 Hz
Off-state Leakage Current, Max:
3 MA Per Point
Highlight:
16 individually isolated Isolated Output Module
,120/240V AC 50/60 Hz Allen Bradley Module
,3 mA per point 1756-OA16I
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Allen Bradley 1772-LW MINI Processor Module with 7.75 Word SRAM and 15-Pin Interface Port
Get Best Price
video
Allen Bradley 1771-HS3A 3-Axis Servo Controller Module with 250 Kilohertz Differential Input
Get Best Price
video
Allen Bradley 1757-PLX52 ProcessLogix CPU Controller Module with 365 Days Warranty
Get Best Price
Contact Us
Contact Now
Product Description
Allen Bradley 1756-OA16I Isolated Output Module
Technical Specifications
| Outputs | 16 individually isolated |
| Pilot duty | Yes |
| Voltage category | 120/240V AC 50/60 Hz |
| Operating voltage range | 74...265V AC, 47...63 Hz |
| Current draw @ 5.1V | 300 mA |
| Current draw @ 24V | 2.5 mA |
| Total backplane power | 1.59 W |
| Power dissipation, max | 5.5 W @ 60 °C (140 °F) |
| Thermal dissipation | 18.76 BTU/hr |
| Off-state leakage current, max | 3 mA per point |
| Surge current per point | 20 A for 43 ms per point, repeatable every 2 s @ 60 °C (140 °F) |
| Load current, min | 10 mA per point |
| Inhibit voltage, max | Zero crossing 60V peak |
| Module keying | Electronic, software configurable |
| Fusing | Not protected. A fused IFM is recommended to help protect outputs |
| RTB keying | User-defined mechanical |
| Slot width | 1 |
