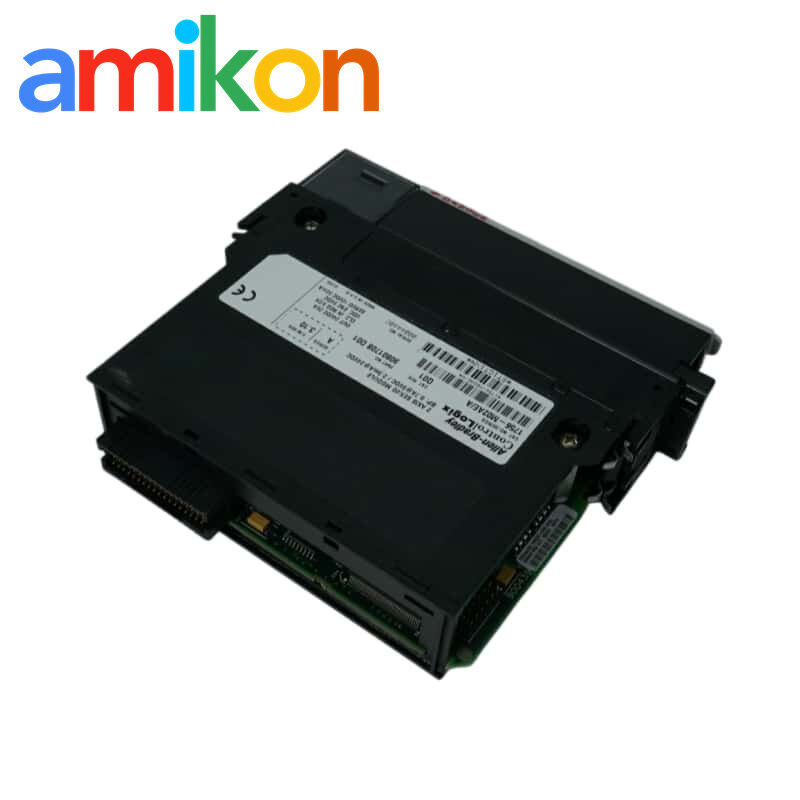

Allen Bradley 1756-M02AE 2-Axis Analog Encoder Servo Module with 32-bit Floating Point
Allen Bradley 1756-M02AE 2-Axis Analog Encoder Servo Module with 32-bit Floating Point
2-Axis Servo Module
32-bit Floating Point Analog Encoder Module
Chassis-Based 2-Axis Module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1756-M02AE
Contact Us
Request A Quote
Product Details
Number Of Axes Per Module, Max:
2
Gain Resolution:
32-bit Floating Point
Current Draw @ 5.1V DC:
700 MA
Current Draw @ 24V DC:
2.5 MA
Power Dissipation:
5.5 W
Slot Width:
1
Module Location:
Chassis-based, Any Slot
Wire Type:
Copper
Highlight:
2-Axis Servo Module
,32-bit Floating Point Analog Encoder Module
,Chassis-Based 2-Axis Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Allen Bradley 1772-LW MINI Processor Module with 7.75 Word SRAM and 15-Pin Interface Port
Get Best Price
video
Allen Bradley 1771-HS3A 3-Axis Servo Controller Module with 250 Kilohertz Differential Input
Get Best Price
video
Allen Bradley 1757-PLX52 ProcessLogix CPU Controller Module with 365 Days Warranty
Get Best Price
Contact Us
Contact Now
Product Description
Allen Bradley 1756-M02AE 2-Axis Analog Encoder Servo Module
This industrial servo module provides precise 2-axis analog encoder control for automation systems, featuring comprehensive status monitoring and diagnostic capabilities.
Module Status Indicators
| OK Indicator Status | Module Condition | Recommended Action |
|---|---|---|
| Off | Module is not operating |
|
| Flashing green light | Module passed diagnostics but not communicating axis data |
|
| Steady green light | Axis data exchange active - normal operating state | No action required - module is ready for operation |
| Flashing red light | Major recoverable failure occurred |
|
| Solid red light | Potential nonrecoverable fault |
|
