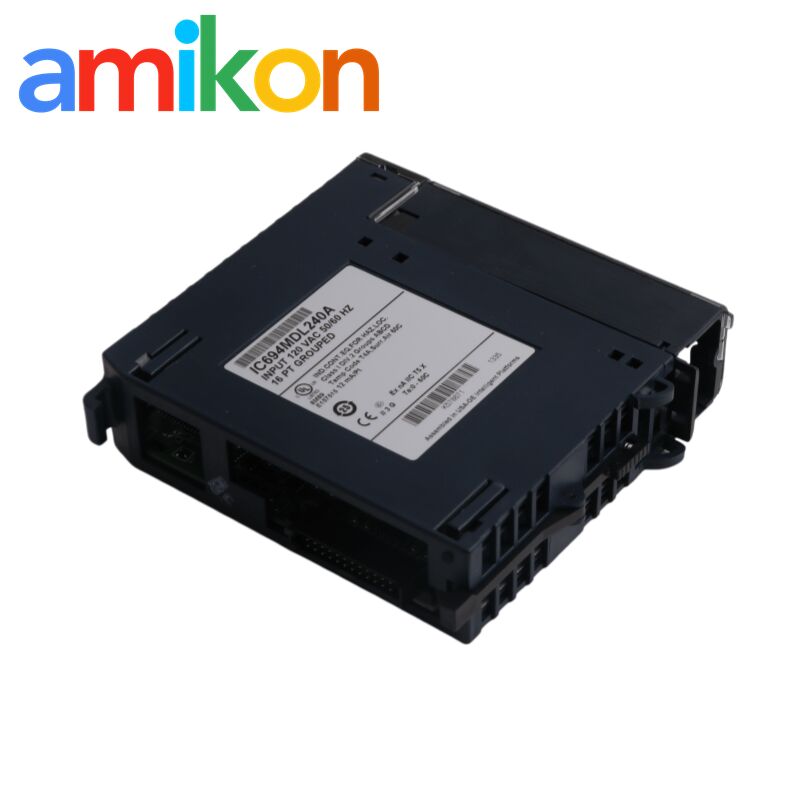

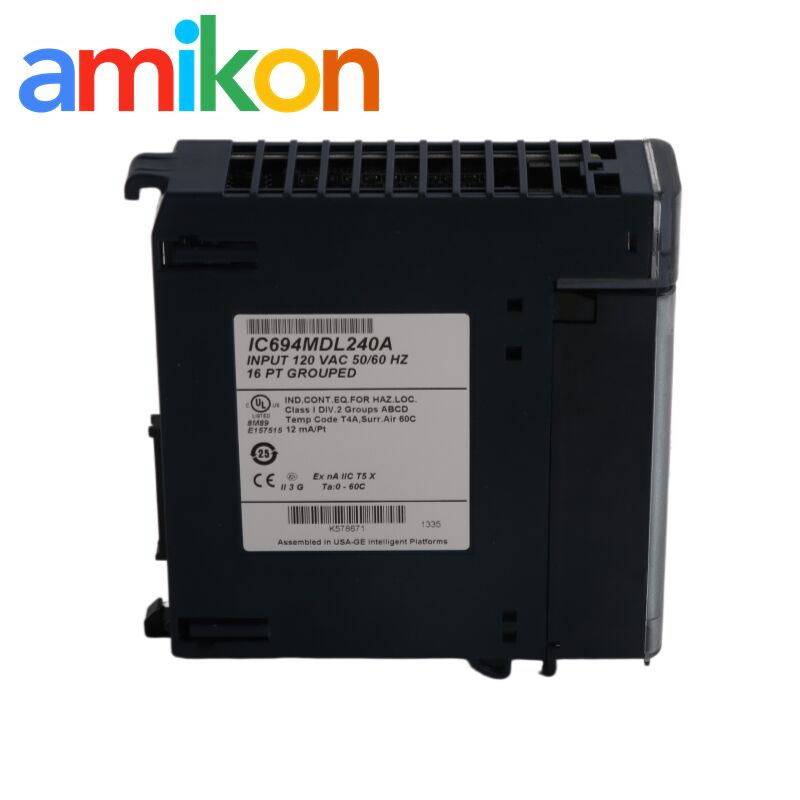

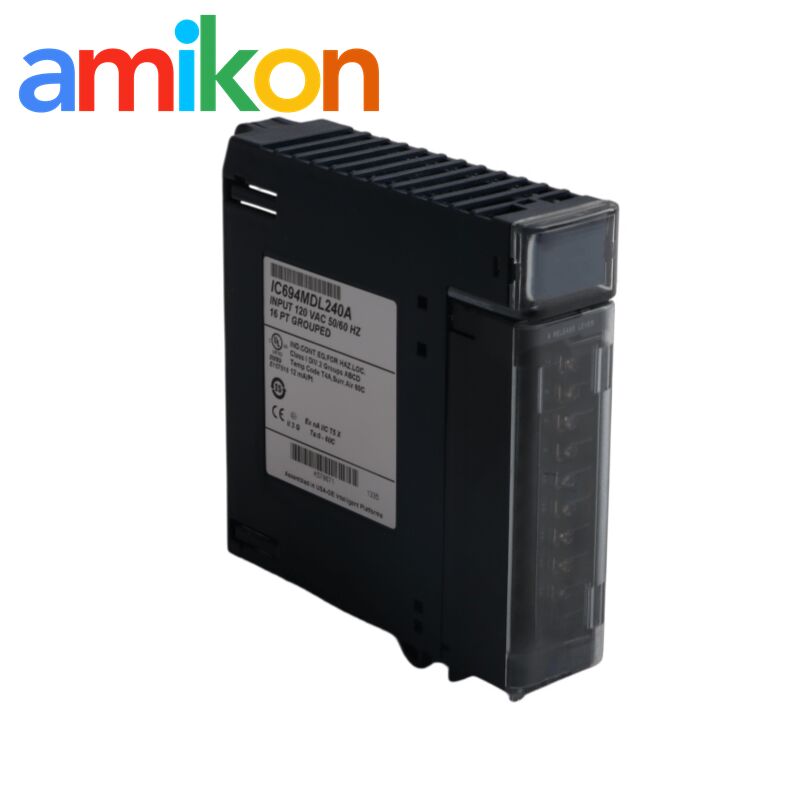

GE IC694MDL240 Discrete Input Module with 16 Discrete Points 120V AC Input for PACSystems RX3i
GE IC694MDL240 Discrete Input Module with 16 Discrete Points 120V AC Input for PACSystems RX3i
16 Discrete Points Discrete Input Module
120V AC Input GE IC694MDL240
Optical Isolation PACSystems RX3i Module
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC694MDL240
Contact Us
Request A Quote
Product Details
No Of Channels:
Sixteen (16)
Input Signal Range:
0-132 VAC
Voltage:
120 Volts AC
Input Frequency:
47-63 Hz
Power Consumption:
90 Milliamps
Input Current:
12mA Per Channel
Bus Voltage:
5 Volts
Current Draw:
90 MA (all Inputs Active)
Highlight:
16 Discrete Points Discrete Input Module
,120V AC Input GE IC694MDL240
,Optical Isolation PACSystems RX3i Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
The IC694MDL240 is a standard 120V AC input module for the GE PACSystems RX3i, identifiable by the high-voltage red band on its faceplate. It provides 16 discrete points sharing a single common terminal, drawing 90mA directly from the backplane. Built with reactive (resistor/capacitor) circuitry, the module converts incoming field signals into logic 1s within the %I status table. It fits into any universal I/O slot, making it a flexible choice for expanding system capacity as long as the controller's memory and power limits allow.
Performance Specifications
The module is rated for 50/60 Hz operation with a defined On-state window of 74 to 132 VAC. To filter out mechanical contact bounce or line noise, the hardware utilizes integrated signal filtering, resulting in a 30ms "On" response and a 45ms "Off" delay. Safety is maintained through optical isolation, rated at 1500V AC for transients and 250V AC for continuous duty. This isolation barrier is critical for shielding the RX3i CPU from the raw electrical environments typical of proximity sensors and auxiliary contacts.
Field Diagnostics & Applications
Field-side diagnostics are handled by 16 green LEDs that track the energized state of each individual channel. The module is strictly designed for AC excitation; it is incompatible with DC power sources and requires an external AC supply to drive the connected field devices. Common applications involve the integration of pushbuttons, limit switches, and other binary hardware. With its 7mA nominal current draw per point, the MDL240 provides a reliable, high-density interface for standard 120V industrial control logic.
