GE IC660BRD025 32 Points Discrete Output DC Block for Redundant Control
GE IC660BRD025 32 Points Discrete Output DC Block for Redundant Control
32 Points Discrete Output DC Block
Current Sinking Genius I-O Module
Redundant Control GMR Output Subsystem
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC660BRD025
Contact Us
Request A Quote
Product Details
Operating Voltage:
5 To 48 Volts DC
Operating Current:
0.5 To 1.0 Amp
Series:
Genius I-O
Max Inrush Current:
4.0 Amps
I/O Capacity:
32 Points
Location:
Genius I/O Bus
Block Type:
Current Sinking
Brand:
General Electric
Highlight:
32 Points Discrete Output DC Block
,Current Sinking Genius I-O Module
,Redundant Control GMR Output Subsystem
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
GE URRHH Power Supply Module with 24 Vdc Output 35 W Rated Power and Wide Operating Temperature
Get Best Price
Video
GE IC220MDL643 Discrete Input Module with 16 Inputs Optimized for DIN-rail Real Estate
Get Best Price
Video
GE IS220PRTDH1A Resistance Temperature Device with 1mA Excitation Current 250V AC/DC Isolation
Get Best Price
Video
GE IS200VAICH1DAB Analog Input Board with ±0.05% Accuracy for Mark VIe Controller
Get Best Price
CONTACT US
Contact Now
Product Description

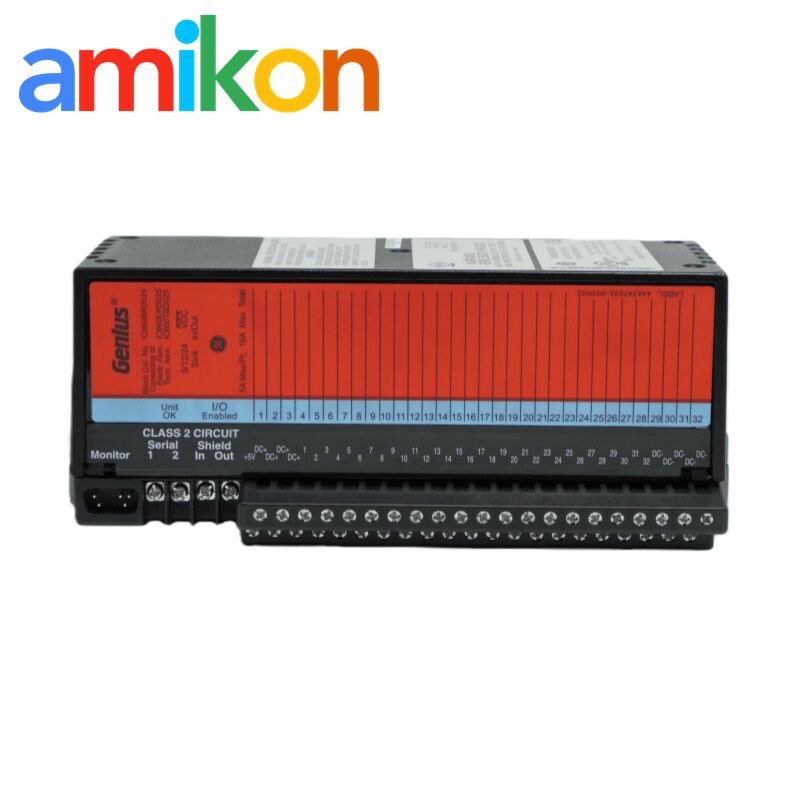

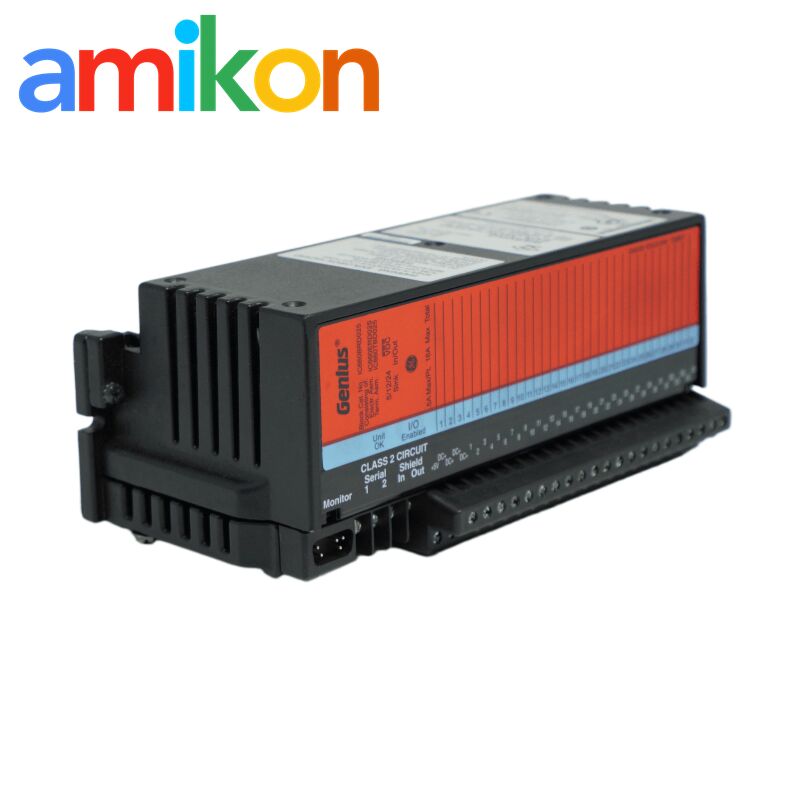

GE IC660BRD025 Discrete Output DC Block
The GE Fanuc IC660BRD025 Genius Modular Redundancy Sinking Output Block is a 32-point discrete DC output module used within the GMR output subsystem for controlling discrete loads in redundant control environments. The module is applied in H-Block redundant output group configurations, where multiple output blocks operate together to maintain output continuity. In this arrangement, the IC660BRD025 functions as a sinking-type output block and is paired with source-type blocks to support redundant load control.
An H-Block output group consists of four output blocks in total, including two sinking output blocks and two source output blocks. For each load, the two IC660BRD025 sinking blocks are wired in parallel on one side, while the source blocks are wired in parallel on the opposite side. Output validation is performed by comparing output data for all 32 points as received from the redundant PLCs. This comparison process is handled at the output group level and differs from the input subsystem, where voting is managed through software configuration.
| Product Model | IC660BRD025 |
| Product Parameters | Discrete Output DC Block |
| Country of Origin | USA |
| Place of Shipment | Xiamen, China |
| Estimated Shipping Size | 9x11x12.5cm |
| Manufacturer | General Electric |
| Weight | 1.46 kg |
| Application | GMR Output Subsystem |
| Supported Configuration | H-Block Output Group |
| Configuration | Genius Handheld Monitor |
