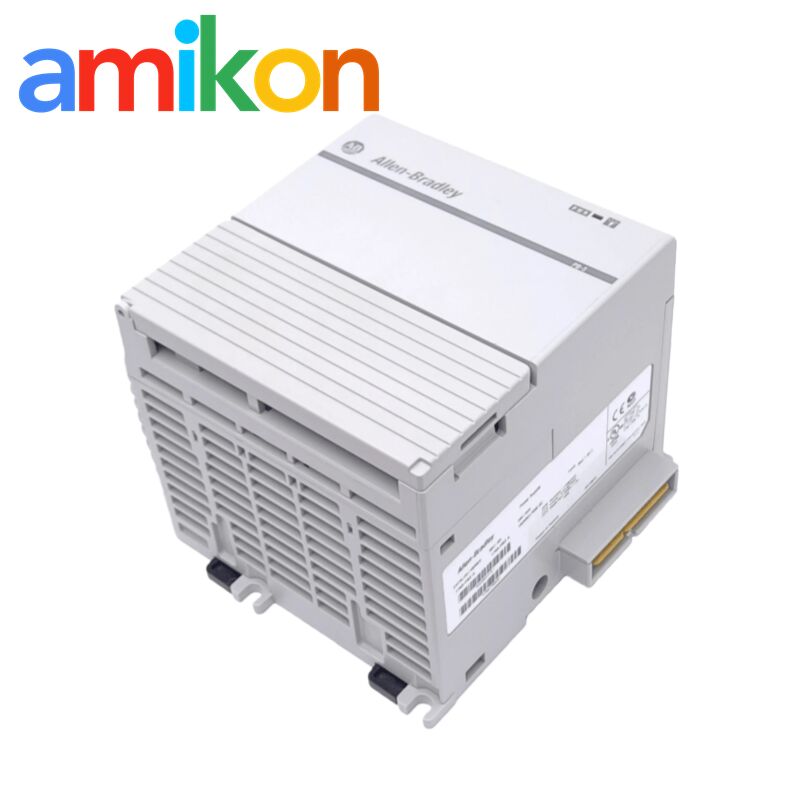

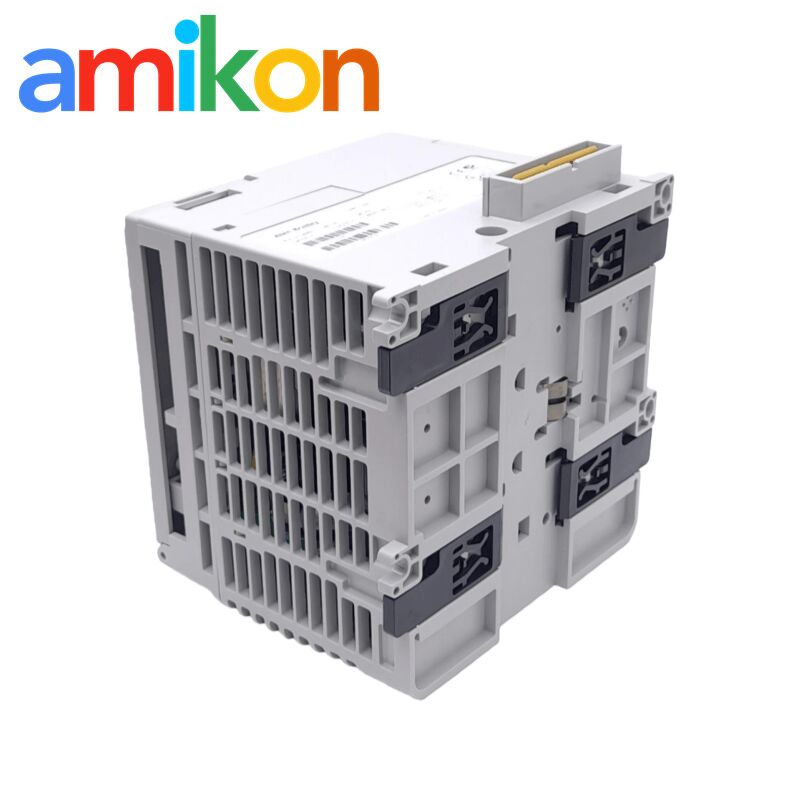

Allen Bradley 1768-PB3 CompactLogix Power Supply with 24V dc External Power
Allen Bradley 1768-PB3 CompactLogix Power Supply with 24V dc External Power
24V dc External Power CompactLogix Power Supply
112W Max Input Power 1768-PB3 Power Supply
Open-Style Enclosure Allen Bradley Power Supply
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1768-PB3
Contact Us
Request A Quote
Product Details
Efficiency:
80% Typical @ 24V Dc
Enclosure Type Rating:
None (open-style)
Input Voltage Range:
16.8-31.2V Dc
Input Power, Max:
112 W @ 24V Dc
Power Dissipation, Max:
22 W @ 24V Dc
Input Frequency Range:
N/A
Overcurrent Protection, Max:
15 A, User Supplied
Recommended External Overcurrent Protection:
8...12 A @ 166...250 A2S
Highlight:
24V dc External Power CompactLogix Power Supply
,112W Max Input Power 1768-PB3 Power Supply
,Open-Style Enclosure Allen Bradley Power Supply
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 20 Point Feed-Through Termination Module with Integrated Fuse Support and Blown Fuse Indication
Get Best Price
Video
Allen Bradley Voltage Sensing Board with 0–600 V AC and 0–1000 V DC Range and ±1% Full Scale Accuracy
Get Best Price
CONTACT US
Contact Now
Product Description
The CompactLogix power supply provides power through the CompactLogix backplane. The backplane is built into the 1768 and 1769 power supplies, controllers, and I/O modules.
In addition to backplane power, the 1768-PB3 power supplies offer a 24V DC external power supply terminal.
Panel Mounting
Mount one power supply per panel using four screws—one in each corner. Each panel mounting tab must have a screw. Use M4 or #8 panhead screws.
Installation Steps
- Drill pilot holes at the mounting points
- Insert screws through the anchors. Tighten to 1.16 Nm (10 lb-in)
- For multiple modules, connect them and close all DIN rail latches. Latches lock the modules together
